Introducción
The Diamond NR770HBNMO Dual-Band Mobile Antenna is a high-performance solution for amateur radio operators seeking reliable VHF and UHF communication from one versatile antenna. Engineered for mobile installations, this dual-band antenna combines rugged durability, optimized signal performance, and a compact form factor to deliver dependable communication on the go. This dual-band antenna supports efficient transmission and reception across both VHF and UHF frequency bands, eliminating the need for multiple antennas and enabling seamless band coverage with a single unit. The NR770HBNMO’s electrical design promotes consistent signal strength whether the vehicle is stationary or in motion, making it suitable for everyday mobile use in urban, suburban, or rural environments. Its compact, low-profile design reduces clearance concerns while maintaining strong radiation performance, offering an ideal balance between size and functionality. The antenna’s durable construction resists environmental stresses such as wind, vibration, and weather exposure, making it a dependable choice for mobile ham radio setups. Designed for broad compatibility with standard mobile antenna mounts, the NR770HBNMO integrates easily into existing installations and can be used with a variety of mount types such as magnetic, trunk lip, or roof mounts. For amateur radio operators looking for a rugged and versatile dual-band mobile antenna, the Diamond NR770HBNMO delivers professional-grade performance and reliable communication wherever the road takes you.
Características principales
- Dual-band VHF and UHF operation for versatile communication.
- Compact low-profile design ideal for vehicle mounting.
- Rugged construction for wind, vibration, and weather resistance.
- Stable signal performance while driving or stationary.
- Compatible with standard mobile antenna mounts.
Presupuesto
| Atributo | Valor |
|---|---|
| Dimensiones del producto | 38 x 2.5 x 1.5 pulgadas |
| Peso del artículo | 9.6 onzas |
| Fabricante | Antena de diamante |
| Número de modelo del artículo | NR770HNMO |
| Tipo de antena | Dual-Band Mobile Antenna |
| Marca | Antena de diamante |
| Color | negro |
| Impedancia | 50 ohmios |
| Alcance máximo | 154 pies |
| Código Postal | 702646179415 |
Configuración e instalación
The Diamond NR770HBNMO antenna is designed for mobile installations and is compatible with standard NMO (New Motorola) antenna mounts. Proper installation is crucial for optimal performance and durability.
Montaje de la antena
This antenna requires an NMO mount, which can be a magnetic, trunk lip, or roof mount. Ensure the mount is securely fastened to a suitable metal surface on your vehicle to provide an adequate ground plane for the antenna.
Figura 1: Completo view of the Diamond NR770HBNMO Dual-Band Mobile Antenna.

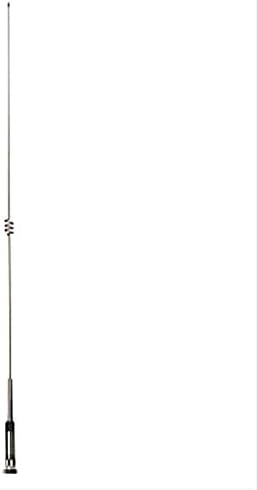

Figura 2: Lado view of the Diamond NR770HBNMO Dual-Band Mobile Antenna, showing its compact profile.
Conexión del cable coaxial
Connect the coaxial cable from your NMO mount to your radio. Ensure all connections are tight and secure to prevent signal loss and interference.
Visual Guide for NMO Mount Installation
Video 1: This video demonstrates the installation of an adjustable NMO antenna lip hatchback bracket kit, which is compatible with the Diamond NR770HBNMO antenna.
Video 2: This video provides a visual guide on installing an adjustable NMO antenna bracket, including the coaxial cable and rain cap, relevant for setting up your Diamond NR770HBNMO antenna.
Operación de la antena
The Diamond NR770HBNMO is a dual-band antenna, supporting both VHF and UHF frequencies. Ensure your radio is set to the correct frequency band for communication.
SWR Testing for Optimal Performance
After installation, it is highly recommended to test the Standing Wave Ratio (SWR) to ensure the antenna is properly tuned and matched to your radio. An SWR reading close to 1:1 indicates optimal performance and minimizes power loss.
Video 3: This video demonstrates how to use a power and SWR meter to test your antenna's performance, a crucial step for ensuring efficient operation of your Diamond NR770HBNMO antenna.
Mantenimiento
To ensure the longevity and optimal performance of your Diamond NR770HBNMO antenna, follow these maintenance guidelines:
- Limpieza regular: Periodically clean the antenna with a mild soap and water solution to remove dirt, grime, and road salt. Rinse thoroughly and dry.
- Inspeccionar las conexiones: Regularly check all connections, including the antenna to the mount and the coaxial cable to the radio, for tightness and corrosion. Loose or corroded connections can degrade performance.
- Compruebe si hay daños físicos: Inspect the antenna for any signs of physical damage, such as bends, cracks, or fraying. Replace damaged components immediately.
- Protección contra la intemperie: While the antenna is designed to be durable, extreme weather conditions can still affect it. Consider removing the antenna during severe storms or when going through automatic car washes.
Solución de problemas
If you experience issues with your Diamond NR770HBNMO antenna, consider the following troubleshooting steps:
- Poor Signal or Limited Range:
- Check SWR: High SWR indicates a mismatch. Re-check installation and connections.
- Mounting Location: Ensure the antenna is mounted in a clear area with an adequate ground plane, away from obstructions.
- Cable Integrity: Inspect the coaxial cable for kinks, cuts, or damage.
- Interferencia o ruido:
- Grounding: Verify proper grounding of the antenna mount and radio.
- Cable Routing: Ensure the coaxial cable is routed away from power lines or other potential sources of electrical interference.
- Antenna Not Secure:
- Tighten Mount: Ensure the NMO mount is securely tightened to the vehicle surface.
- Antenna to Mount: Confirm the antenna is firmly screwed into the NMO mount.
Garantía y soporte
For warranty information or technical support regarding your Diamond NR770HBNMO Dual-Band Mobile Antenna, please refer to the manufacturer's official webSitio web o contacte con el departamento de atención al cliente. Conserve su recibo de compra como comprobante para cualquier reclamación de garantía.
