Pearl Export EXX 5-Piece Drum Set User Manual

Introducción

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Pearl Export EXX 5-Piece Drum Set. Please read this manual thoroughly before setting up and using your drum kit to ensure proper function and longevity of the instrument.

Image 1.1: The Pearl Export EXX 5-Piece Drum Set, Pure White finish, with included hardware. This image displays the full drum kit including bass drum, snare drum, tom-toms, and cymbal stands.

Contenido del paquete

Verify that all components listed below are present in your package before beginning assembly. If any items are missing or damaged, please contact customer support.

• 22" Bass Drum
• 10" Tom-Tom
• 12" Tom-Tom
• 16" Floor Tom
• 14" Snare Drum
• 830-series hardware package (includes cymbal stands, hi-hat stand, snare stand, bass drum pedal)
• Tom holders and mounting hardware
• Tecla de tambor

Instrucciones de instalación

Follow these steps to correctly assemble your Pearl Export EXX drum set. Ensure all connections are secure before playing.

1. Ensamblaje del bombo

1. Attach the bass drum spurs to the bass drum shell. Ensure they are securely tightened.
2. Insert the bass drum pedal into the bass drum hoop. Adjust the clamp para encajar cómodamente.
3. Attach the bass drum heads (if not pre-installed) and tension them evenly with the drum key.

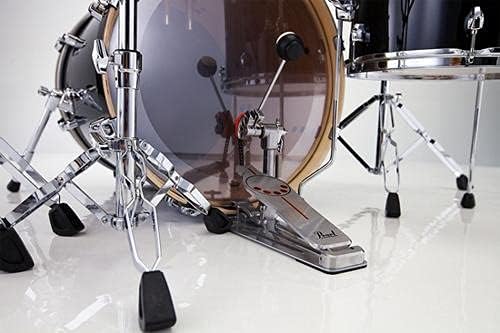

Imagen 2.1: Primer plano view of a bass drum pedal attached to the bass drum hoop and an adjustable bass drum spur. This illustrates the correct attachment points for these components.

2. Tom-Tom and Snare Drum Setup

1. Mount the 10" and 12" tom-toms onto the bass drum or cymbal stands using the included Opti-Loc mounting system.
2. Attach the legs to the 16" floor tom. Adjust the height for comfortable playing.
3. Place the snare drum on the snare stand. Adjust the basket to securely hold the snare drum.

Image 2.2: Detail of a floor tom leg and its mounting bracket. This shows how the leg is inserted and secured to the drum shell.

3. Montaje de hardware

Assemble the 830-series hardware components as follows:

• Cymbal Stands: Extend the legs for stability. Adjust height and boom arm position as desired.
• Soporte para charles: Assemble the stand, attach the hi-hat clutch, and mount the hi-hat cymbals (cymbals sold separately).
• Snare Stand: Extend the legs and adjust the basket to hold the snare drum securely.

Image 2.3: Various Pearl 830-series hardware components, including cymbal stands, a hi-hat stand, a snare stand, and a bass drum pedal. This illustrates the complete hardware package.

Operating Your Drum Set

Tuning Your Drums

Proper tuning is essential for optimal sound. Use the included drum key to adjust the tension rods. For best results, tighten tension rods in a star pattern, making small, even turns until the desired pitch is achieved. The Pearl Export EXX shells are designed to maximize frequency response, offering a wide tuning range.

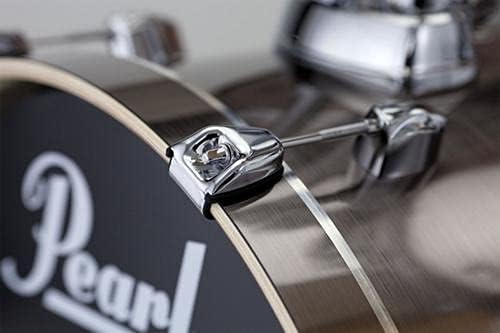

Imagen 3.1: Un primer plano view of a drum lug and tension rod on a drum hoop. This demonstrates the mechanism used for adjusting drum head tension.

Técnicas de juego

Experiment with different stick types and striking techniques to explore the full sonic capabilities of your drum set. The Opti-Loc mounting system ensures stable tom positioning, allowing for consistent playability.

Mantenimiento y cuidado

• Limpieza: Wipe down drum shells and hardware with a soft, dry cloth after each use to remove dust and fingerprints. For stubborn marks on chrome hardware, use a specialized chrome cleaner sparingly.
• Parches de tambor: Replace drum heads when they show signs of wear, dents, or loss of tone.
• Hardware: Revise periódicamente todas las tuercas, tornillos y clamps on the hardware for tightness. Lubricate moving parts of pedals and stands as needed.
• Almacenamiento: Store your drum set in a climate-controlled environment, away from extreme temperature changes and humidity, to prevent damage to the wood shells and metal components.

Solución de problemas

This section addresses common issues you might encounter with your drum set.

• Sonidos de traqueteo: Check all hardware connections, including tension rods, cymbal stands, and tom mounts, for looseness. Ensure no foreign objects are inside the drum shells.
• Poor Drum Tone: Re-tune the drum heads, ensuring even tension across all lugs. Check for damaged or worn drum heads that may need replacement.
• Soportes tambaleantes: Ensure all stand legs are fully extended and tightened. Verify that the stand's base is on a flat, stable surface.

Presupuesto

Garantía y soporte

Pearl provides a limited warranty for its products against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Pearl website. For technical support, replacement parts, or service inquiries, please contact Pearl customer service through their official channels.

Recursos en línea: Visit the Pearl Store on Amazon
