Introducción
The Emerald Full Motion TV Wall Mount is designed to securely hold televisions ranging from 26 inches to 70 inches. This mount provides flexible viewing angles through its swivel and tilt features, allowing for optimal visibility from various positions within a room. Constructed from high-quality alloy steel, it ensures durability and reliable support for your television. Its low-profile design helps save space and enhances the aesthetic of your living area.
Información de seguridad
- Lea atentamente todas las instrucciones: Ensure you understand all assembly and installation instructions before beginning.
- Capacidad de peso: Do not exceed the maximum weight capacity of 86 lbs. Overweight may cause damage or serious injury.
- Tamaño de TV: Este soporte es adecuado para televisores de entre 26 y 70 pulgadas.
- Tipo de pared: Mount only on solid concrete, brick walls, or single wood studs. NO LO MONTE SOLO SOBRE PARED DE YESO.
- Instalación profesional: Si no está seguro acerca del proceso de instalación, consulte con un profesional calificado.
- Comprobar conexiones: Revise periódicamente todos los tornillos y conexiones para asegurarse de que permanezcan seguros.
- Niños y mascotas: Mantenga a los niños y las mascotas alejados del área de instalación.
Contenido del paquete
Verify that all components are present and undamaged before beginning installation. Refer to the instruction manual for a complete list of parts.
Vídeo: Unboxing y másview of the Subtek Full Motion TV Wall Mount components, including various screws, spacers, and the main bracket.
- Conjunto de placa de pared
- Brazos de soporte para TV (2x)
- Kit de hardware (varios tornillos, arandelas, espaciadores, anclajes)
- Bridas para gestión de cables
- Llave pequeña
- Nivel de burbuja
- Manual de instrucciones
Configuración e instalación
1. Wall Type Compatibility & Tools Required
Ensure your wall is suitable for mounting. The mount is compatible with solid concrete, brick walls, and single wood studs. Do not install on drywall alone without proper stud support.
Video: Demonstrates compatible wall types (solid concrete, single wood stud, solid brick) and lists necessary tools like a drill, socket wrench, measuring tape, screwdriver, pencil, and stud detector.
2. Fijación de los soportes al televisor
Carefully place your TV face down on a soft, clean surface. Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV's VESA mounting holes. Attach the two vertical TV brackets to the back of your TV, ensuring they are securely fastened and aligned.
Image: This image displays the main components of the Emerald Full Motion TV Wall Mount, including the wall plate and the TV bracket arms.
Video: Step-by-step guide on connecting the plate components and attaching them to the TV's VESA holes.
3. Montaje de la placa de pared
Determine the desired height and center position for your TV. Use the provided template or the wall plate itself to mark the drilling points on the wall. Drill pilot holes, insert anchors (if required for your wall type), and securely fasten the wall plate to the wall using the appropriate screws.
Image: The wall plate component of the TV mount, designed to be securely attached to the wall.
Video: Illustrates the process of marking drill points, drilling, and securing the wall plate to a wooden stud wall.
4. Hanging the TV & Securing
With assistance, carefully lift the TV and hook the attached TV brackets onto the wall plate. Ensure the TV is level using the included bubble level. Secure the TV to the mount using the safety screws located at the bottom of the TV brackets to prevent accidental dislodging.

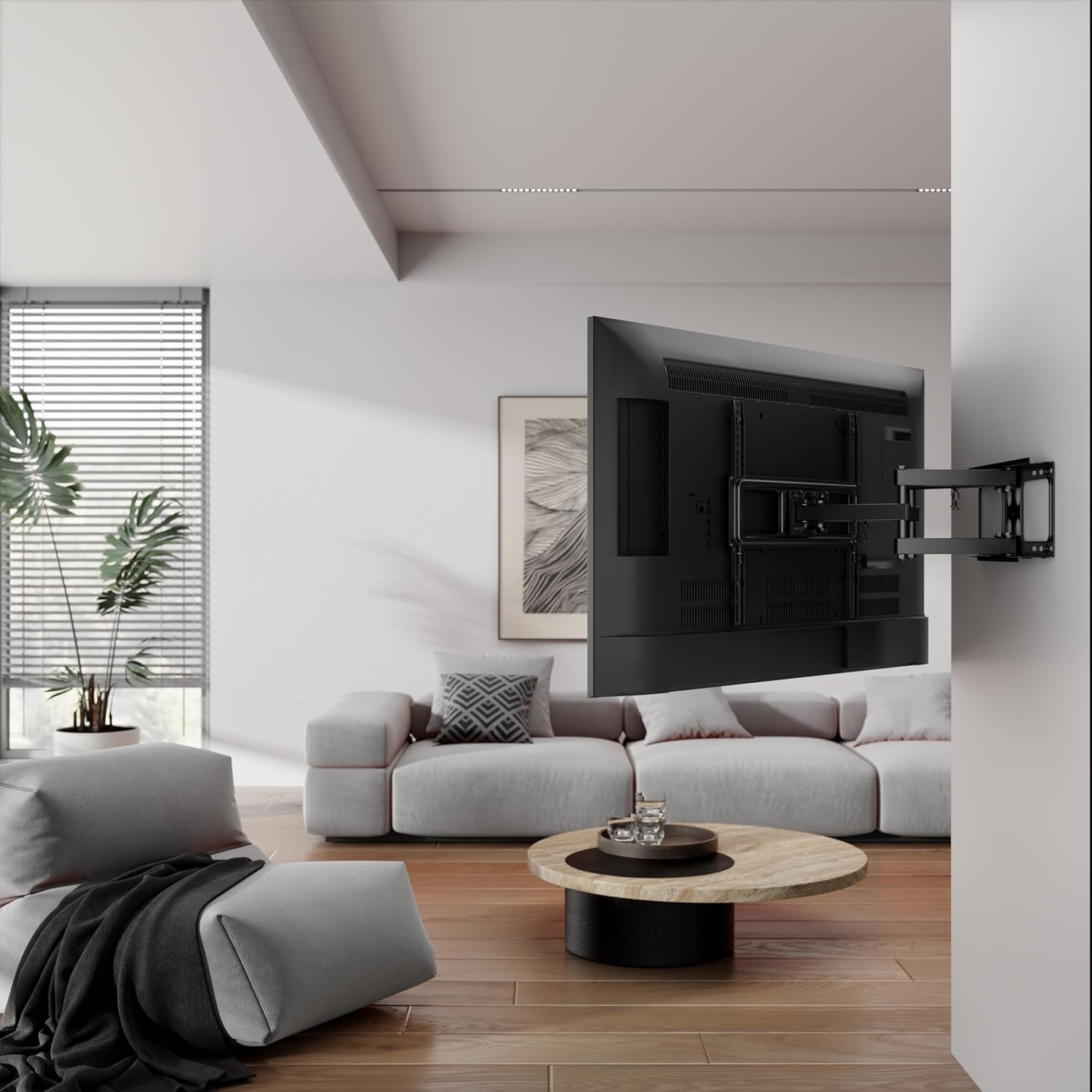

Image: A television mounted on the Emerald Full Motion TV Wall Mount, shown extended from the wall, demonstrating its full motion capability.
Video: Shows the final step of hanging the TV onto the wall mount and securing it with safety screws.
5. Gestión de cables
Use the provided cable management ties to neatly route and secure all cables along the mount arms. This helps maintain a clean appearance and prevents cables from getting tangled or damaged during adjustments.
Video: Demonstrates how to use cable ties to manage and organize cables along the TV mount arms.
Operación del Monte
The Emerald Full Motion TV Wall Mount offers versatile adjustments to enhance your viewExperiencia de aprendizaje.
- Extend and Retract: Gently pull the TV away from the wall to extend the mount, or push it back towards the wall to retract it. The mount extends up to 18.3 inches and retracts to a slim 2.1 inches.
- Girar: The mount allows for a 60-degree swivel, enabling you to angle the TV left or right to achieve the perfect viewing position from different areas of the room.
- Inclinación: Adjust the tilt angle to minimize glare and optimize viewing comfort. The mount supports a maximum tilt angle of 3 degrees.
Image: The TV mount demonstrating its tilt adjustment feature, allowing the screen to be angled for optimal viewreducción de la luz y el deslumbramiento.
Image: This image illustrates the maximum extension (18.3 inches) and minimum retraction (2.1 inches) capabilities of the TV mount from the wall.
Video: Demonstrates the full motion capabilities of a TV wall mount, including extending, retracting, swiveling, and tilting the television.
Mantenimiento
- Limpieza: Limpie el soporte con un paño suave y seco para eliminar el polvo. Evite usar limpiadores abrasivos o disolventes.
- Controles periódicos: Regularly inspect all mounting hardware and connections to ensure they are tight and secure. Re-tighten any loose screws as necessary.
- Lubricación: The moving parts of the mount are designed for smooth operation and generally do not require lubrication. If movement becomes stiff, consult the manufacturer.
Solución de problemas
- El televisor no está nivelado: Use the integrated leveling adjustment feature (if available) or slightly loosen the wall plate screws, adjust the level, and re-tighten.
- Dificultad para mover el televisor: Check for any obstructions or overtightened pivot points. Loosen adjustment screws slightly if movement is too stiff.
- El monte se siente inestable: Immediately remove the TV from the mount. Re-check all wall and TV connections to ensure they are installed correctly and securely tightened according to the instructions. Ensure the wall type is appropriate and anchors are correctly installed.
Presupuesto
| Característica | Especificación |
|---|---|
| Marca | Esmeralda |
| Número de modelo | SM-720-8550 |
| Tamaños de televisores compatibles | 26 - 70 pulgadas |
| Tipo de movimiento | Movimiento completo (giro, inclinación, extensión/retracción) |
| Ángulo de inclinación máximo | 3 grados |
| Rango de extensión | 2.1 pulgadas (retraído) a 18.3 pulgadas (extendido) |
| Material | Acero aleado |
| Color | Negro |
| Peso del artículo | 8 libras |
| Dimensiones del producto | 20.25 x 9.75 x 3 pulgadas |
Garantía y soporte
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Emerald webSitio. Conserve su recibo de compra como comprobante de compra.
