Introducción
This manual provides detailed instructions for the safe installation, operation, and maintenance of the Juno Trac-Lites R600L Series LED Trac Head. The R600L Series fixtures are designed for use with Juno Trac-Lites and Trac-Master™ track and system components, offering reliable performance and consistent color quality.
Figure 1: Juno Trac-Lites R600L Integral LED Cone Trac Head, illustrating its adjustable rotation (350°) and tilt (90°).
Información de seguridad
Lea y comprenda todas las instrucciones antes de instalar o utilizar este producto. El incumplimiento de estas instrucciones podría provocar descargas eléctricas, incendios u otros peligros que podrían causar daños materiales o lesiones personales.
- ADVERTENCIA: Riesgo de descarga eléctrica. Desconecte la alimentación desde el fusible o disyuntor antes de realizar cualquier instalación o mantenimiento.
- La instalación debe ser realizada por un electricista calificado de acuerdo con todos los códigos eléctricos nacionales y locales.
- Do not install on a track system that is not compatible with Juno Trac-Lites or Trac-Master components.
- Asegúrese del volumentage supply (120V) matches the fixture's requirements.
- No intente modificar el dispositivo. No contiene piezas que el usuario pueda reparar.
- Mantenga los materiales inflamables lejos del dispositivo durante su funcionamiento.
Contenido del paquete
Verifique que todos los componentes estén presentes antes de comenzar la instalación:
- 1 x Juno R600L G2 LED Trac Head (White, Regular Flood, 2700K)
- Manual de instrucciones (este documento)
Configuración e instalación
The Juno R600L G2 LED Trac Head is designed for easy installation onto compatible Juno track systems.
- Desconexión de energía: Before any installation, ensure the power supply to the track system is turned OFF at the circuit breaker.
- Fixture Orientation: Align the trac head connector with the track slot. The polarity tab on the connector should align with the track's polarity groove.
- Insertar y girar: Insert the trac head into the track slot. Once fully inserted, twist the fixture 90 degrees clockwise to lock it into place.
- Conexión segura: Ensure the fixture is securely seated and locked into the track.
- Ajustar dirección: The trac head can be rotated 350 degrees horizontally and tilted 90 degrees vertically to direct light as needed.
- Reconexión de energía: Restore power to the track system at the circuit breaker.

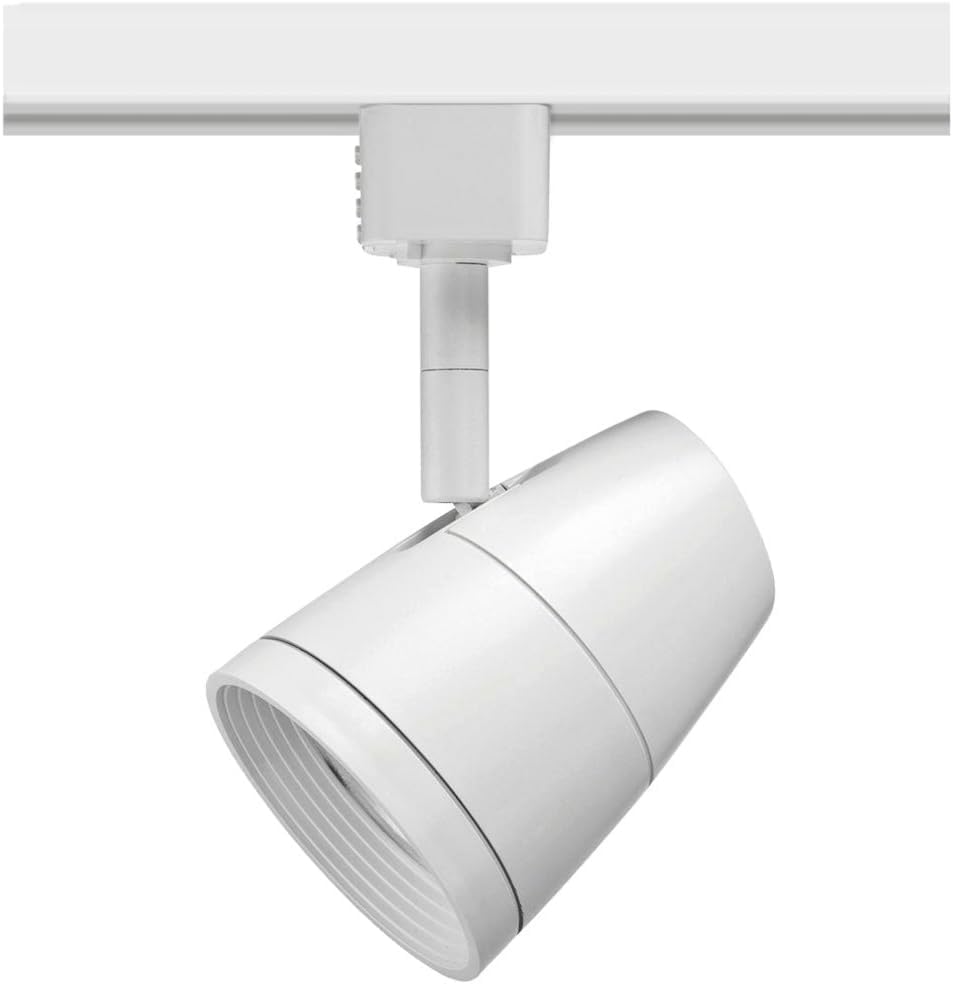

Figure 2: The Juno R600L G2 LED Trac Head securely installed on a track system.
Figure 3: Product dimensions for the Juno R600L G2 LED Trac Head, showing length, width, and height measurements.
Instrucciones de funcionamiento
The Juno R600L G2 LED Trac Head is designed for straightforward operation.
- Encendido/apagado: Control the fixture using the wall switch connected to your track lighting system.
- Atenuación: This fixture features phase dimming capability. For optimal performance, use high-quality, factory-approved dimmers. Consult the dimmer manufacturer's instructions for compatibility and installation.
- Ajuste de la dirección de la luz: Manually adjust the fixture's position by rotating it horizontally up to 350 degrees and tilting it vertically up to 90 degrees to achieve desired light coverage.
- Temperatura de color: This specific model provides a 2700K (Soft White) color temperature. Other models in the R600L G2 series may offer different color temperatures (3000K Warm White, 3500K Neutral White, 4000K Cool White).
Figure 4: The Juno R600L G2 LED Trac Head features an integral driver and is available in multiple color temperatures, including 2700K, 3000K, 3500K, and 4000K.
Figure 5: Visual guide demonstrating different color temperatures (2700K, 3000K, 3500K, 4000K) and their appearance in a display setting.
Mantenimiento
The Juno R600L G2 LED Trac Head requires minimal maintenance.
- Limpieza: Ensure power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components.
- Longevidad del LED: The integrated LED array is designed for long life and does not require bulb replacement.
- Inspección: Periodically inspect the fixture and track for any signs of damage or loose connections.
Solución de problemas
If you experience issues with your Juno R600L G2 LED Trac Head, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| El accesorio no se enciende. | No power to the track; fixture not properly seated; faulty wiring. | Check circuit breaker. Ensure fixture is twisted and locked into the track. Consult a qualified electrician for wiring issues. |
| La luz parpadea o se atenúa de manera inconsistente. | Incompatible dimmer; loose connection; voltage fluctuaciones. | Verify dimmer compatibility. Check fixture connection to track. Consult an electrician if voltagSe sospecha que existen problemas. |
| Fixture is loose on the track. | Not properly locked into place. | Ensure the fixture is fully inserted and twisted 90 degrees clockwise to lock. |
Si los pasos de solución de problemas no resuelven el problema, comuníquese con el servicio de atención al cliente.
Presupuesto
| Marca | Juno |
| Nombre del modelo | R600L G2 |
| Número de pieza | R600L G2 27K 80CRI PDIM FL WH |
| Color | Blanco |
| Material | Acero aleado |
| Estilo | 2700K (Regular Flood Gen 2) |
| Formulario de lámpara | Foco |
| Dimensiones del producto | 3.02" de largo x 3.02" de ancho x 6.31" de alto |
| Uso en interiores y exteriores | Interior |
| Fuente de poder | Eléctrico con cable |
| Característica especial | Dimmable (Phase Dimming) |
| Tipo de fuente de luz | CONDUJO |
| Tipo de acabado | Blanco mate |
| Volumentage | 120 voltios |
| Color claro | Blanco (2700 Kelvin) |
| Quétage | 9.5 vatios |
| Brillo | 850 lúmenes |
| Eficiencia | 89.7 lúmenes/vatio |
| Certificaciones | UL and C-UL Listed, DesignLights Consortium Qualified |
| Peso del artículo | 14 onzas |

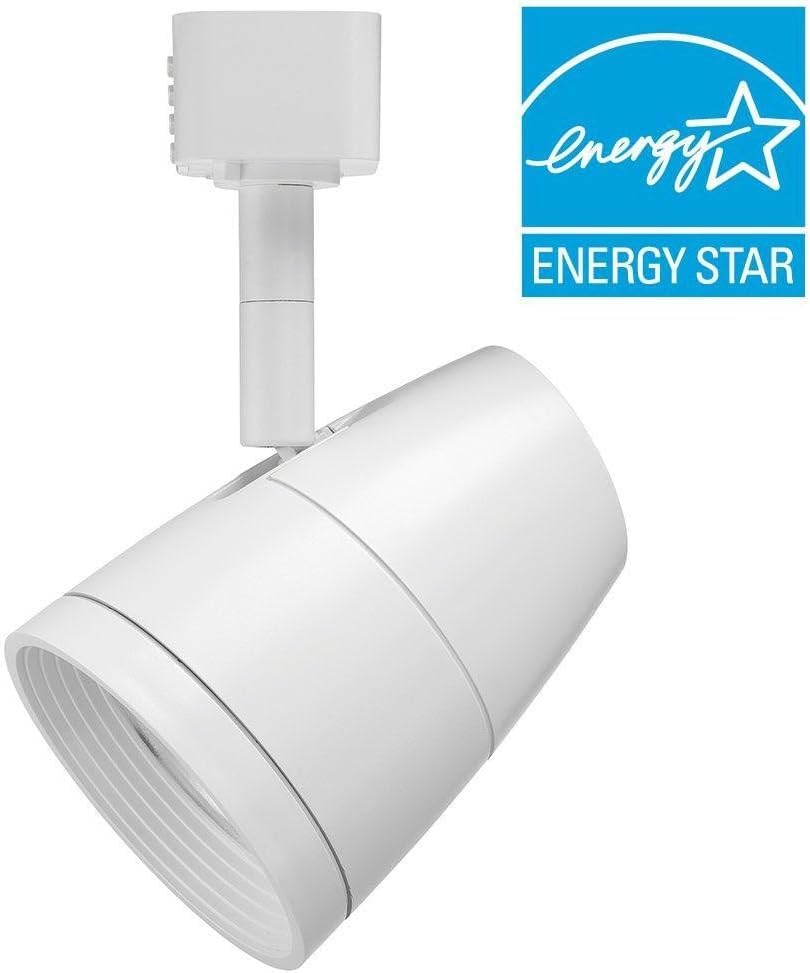

Figure 6: The Juno R600L G2 LED Trac Head displaying the Energy Star logo, indicating energy efficiency.
Garantía
The Juno R600L G2 LED Trac Head comes with a limited 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications. For warranty claims, please retain your proof of purchase and contact customer support.
Atención al cliente
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Juno Lighting customer support. Refer to the official Juno Lighting webSitio para obtener la información de contacto más actualizada.
