Zoeller Sewage Package System with Alarm (Model 915-0005)

1. Introducción

This manual provides essential instructions for the safe installation, operation, and maintenance of the Zoeller Sewage Package System with Alarm, Model 915-0005. This system is designed for efficient and reliable handling of sewage and wastewater in residential or light commercial applications. Please read this manual thoroughly before installation or use to ensure proper function and to prevent injury or damage.

2. Información importante de seguridad

WARNING: Risk of electric shock, fire, or injury. Always disconnect power before servicing the pump or alarm system.

• Asegúrese de que todas las conexiones eléctricas cumplan con los códigos y regulaciones locales.
• No opere la bomba con un cable o enchufe dañado.
• Never handle the pump or alarm system with wet hands or while standing in water.
• This system is designed for sewage and wastewater. Do not use for flammable liquids or chemicals.
• Mantenga a los niños y al personal no autorizado lejos del sistema.
• Wear appropriate personal protective equipment (PPE) when working with the system.

3. Componentes del sistema

The Zoeller Sewage Package System (Model 915-0005) includes the following main components:

• Sewage Pump Assembly with Basin Tapa
• Sistema de alarma
• Controlador de el volumen
• Power Adapter for Alarm
• Mounting Hardware (e.g., hose clamp)

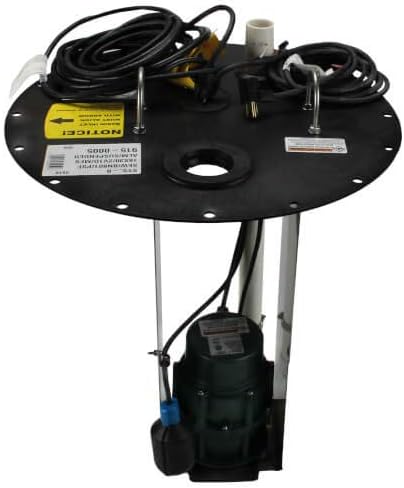

Figure 1: Main Sewage Package System. This image shows the complete pump assembly, including the pump motor submerged in the basin, the discharge pipe, and the black lid with electrical cords and float switches.

Figure 2: Accessory Components. This image displays the separate alarm unit (black box), a quiet check valve (grey cylinder), a power adapter, and a metal hose clamp, which are included with the system.

4. Configuración e instalación

Proper installation is critical for the system's performance and longevity. If you are unsure about any step, consult a qualified professional.

4.1 Preparación del sitio

• Ensure the installation area is clean, level, and provides adequate space for maintenance.
• Verify that the electrical supply meets the pump's requirements (AC/DC, as specified).
• Confirm that plumbing connections for inlet and discharge pipes are ready.

4.2 Pump and Basin Instalación

1. Place the sewage basin in its designated location.
2. Baje la bomba hasta el basin, ensuring it sits level on the bottom.
3. Connect the discharge pipe from the pump to the main discharge line. Use the provided check valve in the discharge line to prevent backflow.
4. Connect the inlet pipe(s) to the basin.
5. Asegurar el basin lid, ensuring all electrical cords pass through the designated openings without pinching.

4.3 Alarm System Installation

1. Mount the alarm unit in a dry, accessible location, away from direct moisture.
2. Connect the alarm float switch cable from the basin to the alarm unit.
3. Plug the alarm power adapter into a standard electrical outlet.
4. Test the alarm by manually lifting the alarm float switch to ensure it activates.

4.4 Conexiones eléctricas

• Plug the pump's power cord into a dedicated, grounded electrical outlet.
• Asegúrese de que todas las conexiones estén seguras y protegidas de la humedad.

5. Instrucciones de funcionamiento

The Zoeller Sewage Package System operates automatically. The pump will activate when the liquid level in the basin rises to the "ON" float switch level and will turn off when the level drops to the "OFF" float switch level.

5.1 Operación normal

• Once installed and powered, the system will monitor the liquid level.
• The pump will cycle on and off as needed to maintain the desired liquid level.

Sistema de alarma 5.2

• If the liquid level rises above the normal operating range (e.g., due to pump failure or blockage), the alarm float switch will activate.
• The alarm unit will emit an audible alert and/or visual indicator.
• Upon alarm activation, investigate the cause immediately and take corrective action. Silence the alarm by pressing the designated button on the alarm unit, but note that it may reactivate if the high-water condition persists.

6. Mantenimiento

Regular maintenance ensures optimal performance and extends the life of your sewage system. Always disconnect power before performing any maintenance.

6.1 Controles mensuales

• Inspect Floats: Manually lift and lower the pump and alarm float switches to ensure they move freely and activate/deactivate correctly.
• Check Basin: Visually inspect the basin for excessive debris or buildup.
• Escuche ruidos anormales: During pump operation, listen for unusual sounds that may indicate a problem.

6.2 Inspección anual

• Limpiar Basin: If necessary, remove the pump and thoroughly clean the basin to remove any accumulated sludge or debris.
• Inspect Pump Impeller: Check the pump impeller for any obstructions or wear.
• Verify Check Valve: Ensure the check valve is functioning properly and not allowing backflow.
• Conexiones eléctricas: Inspect all electrical cords and connections for wear, damage, or corrosion.

7. Guía de solución de problemas

Esta sección ofrece soluciones a problemas comunes. Si tiene problemas que no aparecen aquí, contacte con atención al cliente.

8. Especificaciones

9. Información de garantía

Zoeller products are manufactured to the highest standards. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Zoeller Pump Company webSitio. Conserve su recibo de compra como comprobante de compra para cualquier reclamación de garantía.

10. Atención al cliente

If you require technical assistance, replacement parts, or have questions regarding your Zoeller Sewage Package System, please contact Zoeller Pump Company customer support. Have your model number (915-0005) and date of purchase ready when contacting support.

Para obtener más información, visite el Tienda Zoeller en Amazon or the official Zoeller Pump Company websitio.
