1. Producto terminadoview
The Weltool T1 Pocket EDC Flashlight is a compact, portable, and durable lighting tool designed for everyday carry. It features a high-efficiency LED, multiple brightness modes, and robust construction, making it suitable for various applications from night walks to emergency situations.
Características principales:
- Portable, Lightweight, Mini Size: Less than 10 centimeters in length, ideal for pocket carry.
- Operación de 3 modos: Offers Middle (default), High, and Low brightness settings.
- Advanced Reflector System (TIR): Provides a perfect beam with bright surround light for enhanced vision.
- De larga duración: Up to 12 hours runtime on Middle mode and 122 hours on Low mode with an Energizer L91 AA battery.
- Resistente al agua y a los golpes: IP67 rated for water resistance, featuring a stainless steel bezel for improved shock performance.
2. Configuración e instalación de la batería
The Weltool T1 flashlight is powered by a single AA battery. An Energizer L91 AA battery is typically included with the product.
- Desenrosque la tapa trasera: Hold the flashlight firmly and unscrew the tail cap counter-clockwise.
- Insertar batería: Insert one AA battery with the positive (+) end facing towards the head of the flashlight (towards the LED).
- Tapa trasera segura: Screw the tail cap back on clockwise until it is fully tightened. Ensure it is snug to maintain water resistance.
Figure 2.1: Weltool T1 flashlight with the tail cap removed, illustrating battery insertion. Note the compact size of the flashlight, approximately 3.7 inches in length, next to a standard AA battery.
3. Instrucciones de funcionamiento
The Weltool T1 features a simple user interface with three brightness modes controlled by the tail switch.
- Encender/Apagar: Presione completamente el interruptor de cola hasta que haga clic para encender o apagar la linterna.
- Modos de cambio: When the flashlight is ON, lightly tap the tail switch (without fully clicking) to cycle through the brightness modes: Middle → High → Low. The flashlight defaults to Middle mode when turned on.
Brightness Modes and Performance:
Figure 3.1: Performance specifications for the Weltool T1 flashlight across its three modes.
Beam Performance Demonstration:
Figure 3.2: Visual comparison of the Weltool T1's advanced TIR reflector system beam pattern against a traditional reflector flashlight, highlighting the T1's superior surround light.
Figure 3.3: The Weltool T1 demonstrating its powerful 213 ft distance beam in an outdoor setting, showcasing its long-throw capability for its size.
Vídeo de demostración del producto:
Video 3.1: An official product video demonstrating the Weltool T1 Pocket EDC Flashlight's features and operation.
4. Mantenimiento y cuidado
Proper maintenance ensures the longevity and optimal performance of your Weltool T1 flashlight.
- Limpieza: Limpie el cuerpo de la linterna con un paño limpio y suave. Para la lente, utilice un paño de limpieza para evitar rayones.
- Lubricación: Aplique periódicamente grasa de silicona a las juntas tóricas y a las roscas para mantener la resistencia al agua y un funcionamiento suave.
- Almacenamiento de la batería: If the flashlight will not be used for an extended period, remove the battery to prevent leakage and damage.
- Resistencia al agua: The flashlight is IP67 waterproof. This means it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. Ensure the tail cap is fully tightened before exposure to water.

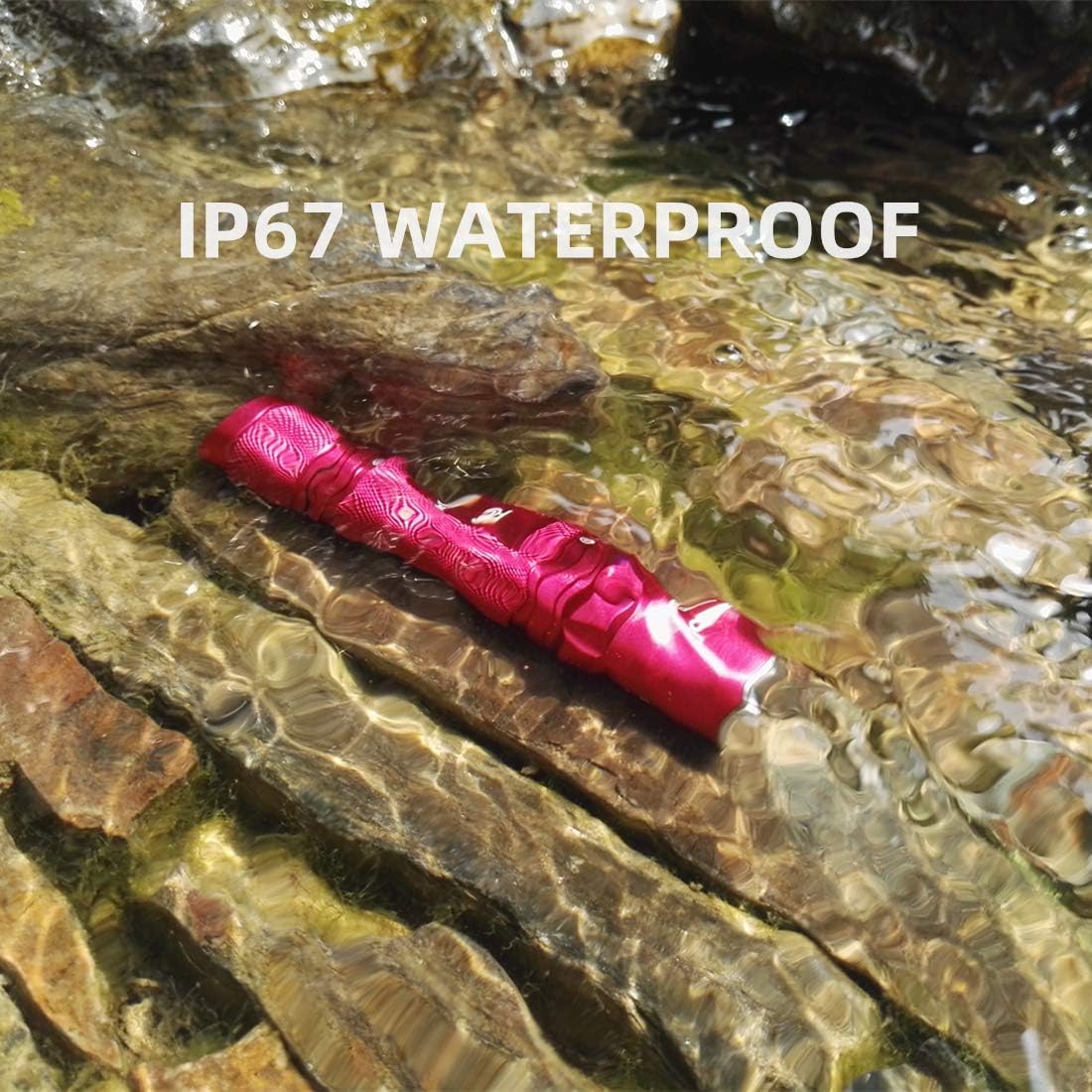

Figure 4.1: The Weltool T1 flashlight submerged in water, illustrating its IP67 waterproof capability.
Impact Resistance Demonstration:
Video 4.1: An official product video demonstrating the Weltool T1's impact resistance by dropping it multiple times.
5. Solución de problemas
If you encounter issues with your Weltool T1 flashlight, please refer to the following common solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La linterna no se enciende. | La batería está muerta o insertada incorrectamente. La tapa de la cola está suelta. | Reemplace la batería o asegúrese de la polaridad correcta. Apriete firmemente la tapa de la cola. |
| La luz es tenue o parpadea. | Batería baja. Contactos sucios. | Reemplazar la batería. Limpie los contactos de la batería y de la linterna con un paño limpio. |
| Tail switch is stiff or unresponsive. | Debris in switch mechanism. | Clean around the tail switch. If problem persists, contact customer support. |
6. Especificaciones
| Característica | Detalle |
|---|---|
| Modelo | 71042 |
| Marca | Herramienta de bienestar |
| Tipo de fuente de luz | CONDUJO |
| Fuente de poder | Battery Powered (1x AA) |
| Brillo | 112 Lumens (High), 40 Lumens (Middle), 3.5 Lumens (Low) |
| Tiempo de ejecución | 1.7 hours (High), 12 hours (Middle), 122 hours (Low) |
| Distancia del haz | 65 metros (máx.) |
| Material | Aluminio, acero inoxidable |
| Nivel de resistencia al agua | IP67 (impermeable) |
| Peso del artículo | 35 gramos |
| Dimensiones (LxAnxAl) | 3.7 x 0.73 x 0.75 pulgadas |
| Primera fecha disponible | 17 de abril de 2018 |
7. Garantía y soporte
Weltool stands behind the quality of its products.
- Garantía: The Weltool T1 flashlight comes with a Lifetime Limited Warranty.
- Money-Back Policy: A 90-day money-back policy is offered.
- Servicio al cliente: For any product-related inquiries, technical support, or warranty claims, please contact Weltool customer service.
- Guía oficial del usuario: For additional detailed information, you may refer to the official User Guide PDF: Weltool T1 User Guide (PDF)
- Weltool Store: Explore other Weltool products and information at the official store: Weltool Store on Amazon
