1. Introducción
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your JAVA WSD18-010B Fully Automatic Espresso Latte Machine. Please read this manual thoroughly before using the appliance and keep it for future reference.
The JAVA WSD18-010B is designed to prepare espresso, cappuccino, and latte beverages using either coffee beans or pre-ground coffee powder. It features a 15-bar pressure extraction system, an integrated conical grinder, and an automatic milk frother.
2. Instrucciones de seguridad
Siga siempre las precauciones básicas de seguridad al utilizar aparatos eléctricos para reducir el riesgo de incendio, descarga eléctrica y lesiones a las personas.
- No sumerja el aparato, el cable de alimentación ni el enchufe en agua ni en otros líquidos.
- Asegúrese del volumentagEl voltaje especificado en el aparato coincide con el suministro eléctrico local.
- Mantenga el aparato fuera del alcance de los niños.
- Desenchufe el aparato antes de limpiarlo y cuando no esté en uso.
- No utilice el aparato con un cable o enchufe dañado.
- Utilice únicamente accesorios recomendados por el fabricante.
- Coloque el aparato sobre una superficie estable y nivelada.
3. Producto terminadoview
Familiarize yourself with the components of your JAVA WSD18-010B machine.
Figura 1: Frente View of the JAVA WSD18-010B. This image displays the front of the espresso machine, highlighting the control panel with its LCD display, buttons for power and coffee selection, the coffee spout, and the drip tray. A white coffee cup with the JAVA logo is placed on the drip tray.
Figure 2: Machine in Use. The JAVA WSD18-010B is shown in a home setting, preparing coffee. Two glasses of coffee, one latte and one espresso, are visible next to the machine, along with coffee beans and pastries, illustrating its use in a daily routine.

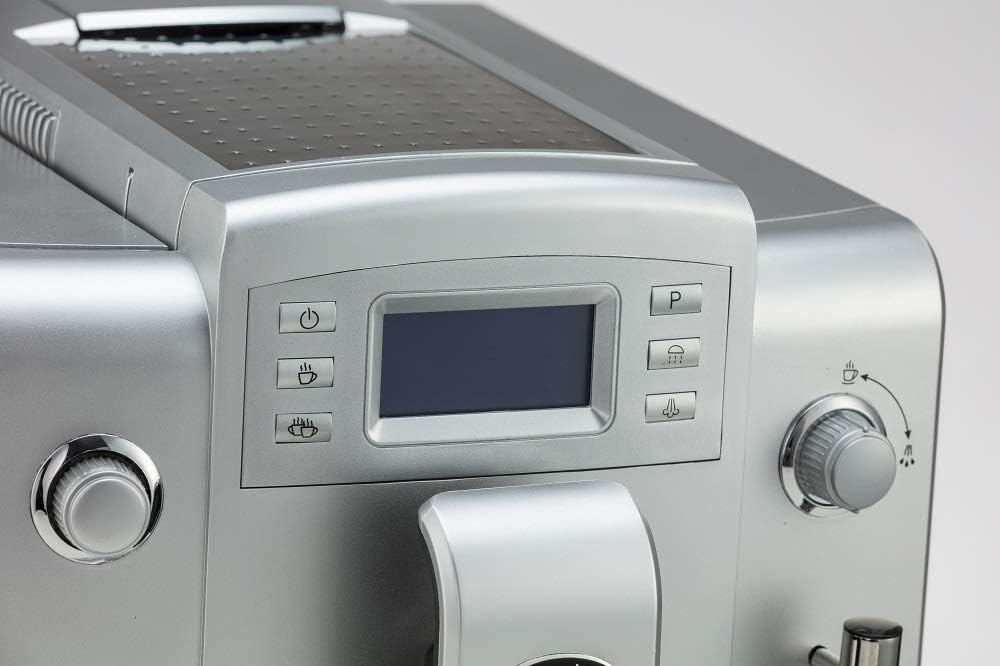

Figura 3: Detalle del panel de control. Un primer plano view of the machine's control panel, featuring the LCD screen and various function buttons. These buttons include power, single cup, double cup, steam, and a program button, allowing for intuitive operation.
Figure 4: Coffee Spout and Frother. This image focuses on the adjustable coffee spout and the integrated milk frother wand. The frother is designed for automatic milk foaming, simplifying the preparation of milk-based coffee drinks.

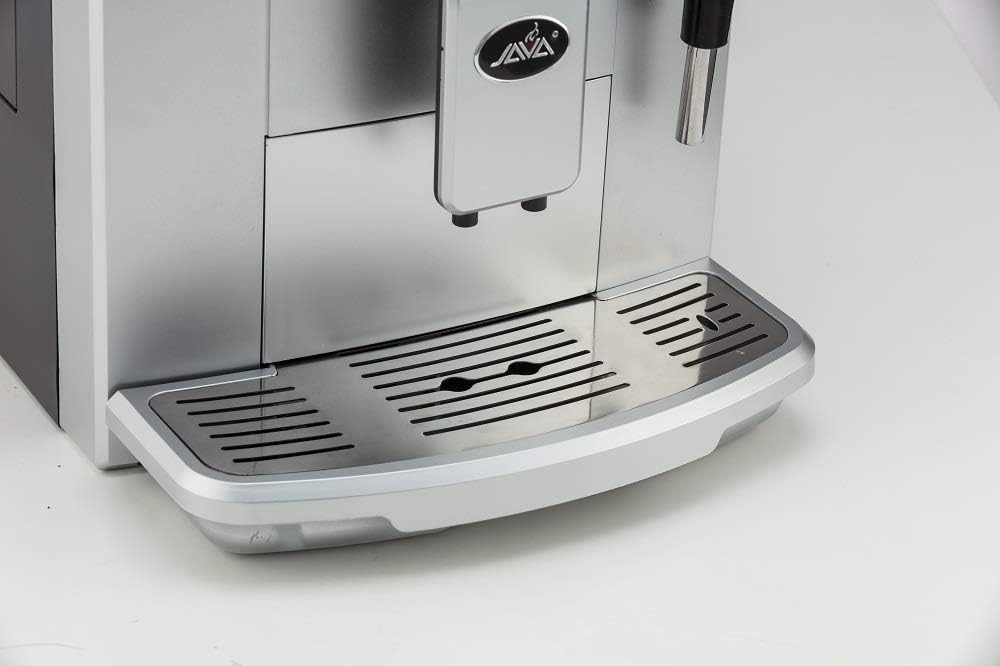

Figure 5: Drip Tray. Un detallado view of the removable drip tray and cup rest area. The design allows for easy cleaning and accommodates various cup sizes, ensuring a tidy coffee preparation experience.

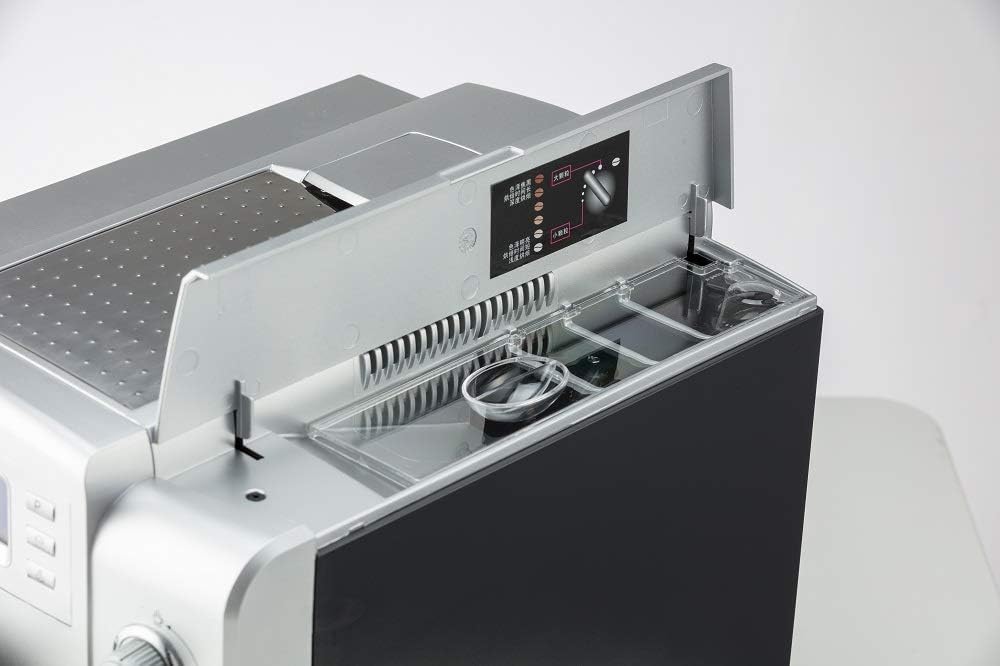

Figure 6: Top Compartments. This image shows the top of the machine with the lid open, revealing the coffee bean hopper and the access point for the water tank. Instructions for grind adjustment are also visible, indicating the machine's integrated grinding capabilities.
Figure 7: Cup Warming Plate. A view of the top surface of the machine, which functions as a cup warming plate. Two clear glass cups are placed upside down, demonstrating how cups can be pre-warmed for optimal coffee temperature.
4. Configuración
- Desembalaje: Retire con cuidado la máquina de su embalaje. Conserve el embalaje para su posterior transporte o almacenamiento.
- Colocación: Coloque el aparato sobre una superficie estable, nivelada y resistente al calor, lejos del agua y de la luz solar directa. Asegúrese de que haya una ventilación adecuada alrededor del aparato.
- Tanque de agua: Remove the 1.9L water tank, rinse it with fresh water, and fill it to the MAX level with clean, cold water. Reinsert the tank securely.
- Tolva de frijoles: Open the lid on top of the machine and fill the coffee bean hopper with fresh coffee beans. Ensure the lid is closed properly.
- Conexión de energía: Enchufe el cable de alimentación a una toma eléctrica con conexión a tierra.
- Ciclo de enjuague inicial: Upon first use or after extended periods of inactivity, the machine may perform an automatic rinse cycle. Follow any on-screen prompts.
5. Instrucciones de funcionamiento
5.1. Making Espresso or Coffee
- Encendido: Press the power button on the control panel. The machine will heat up and perform a brief rinse cycle.
- Seleccione el tipo de café: Use the single cup or double cup buttons to select your desired coffee strength and volume.
- Adjust Grind (Optional): If using whole beans, you can adjust the grinding thickness using the dial inside the bean hopper. There are 6 adjustable settings.
- Copa del lugar: Position a cup under the coffee spout.
- Comience a preparar: Press the selected coffee button again to start brewing. The machine will automatically grind beans, brew, and dispense coffee.
5.2. Using the Automatic Milk Frother
- Preparar leche: Insert the soft suction tube into a container of cold milk.
- Posición del espumador: Place a cup under the milk frother wand.
- Activar el espumador: Press the steam/froth button on the control panel. The machine will automatically froth and dispense milk into your cup.
- Combinar: Once milk is frothed, you can brew espresso into the same cup to create lattes or cappuccinos.
5.3. Uso de café molido previamente
The machine also supports pre-ground coffee. Refer to the specific instructions in the full manual for the dedicated ground coffee compartment and selection process.
6. Mantenimiento y limpieza
La limpieza regular garantiza un rendimiento óptimo y la longevidad de su máquina.
- Sistema de limpieza automático: The machine features an automatic cleaning system that activates after each use.
- Bandeja de goteo: The drip tray should be emptied and cleaned regularly. Remove the tray, discard collected liquid, and wash with warm, soapy water. Rinse thoroughly and dry before reinserting.
- Tanque de agua: Clean the 1.9L separable water tank periodically with warm, soapy water. Rinse well to remove any soap residue.
- Contenedor de posos de café: Empty and clean the used coffee grounds container regularly.
- Vaporizador de leche: After each use, ensure the milk frother is cleaned to prevent milk residue buildup. Run a short steam cycle with a cup of water to clear the nozzle.
- Descalcificar: The machine will indicate when descaling is required. Follow the instructions provided on the LCD display and use a suitable descaling solution.
- Limpieza exterior: Limpie el exterior de la máquina con un paño suave yamp Paño. No utilice limpiadores abrasivos ni disolventes.
7. Solución de problemas
If you encounter issues with your JAVA WSD18-010B, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La máquina no se enciende. | No hay suministro de energía. | Compruebe si el cable de alimentación está bien enchufado a la toma de corriente y a la máquina. |
| El café no se está preparando. | Tanque de agua vacío; granos de café vacíos; unidad de preparación bloqueada. | Refill water tank or bean hopper. Refer to manual for brewing unit cleaning. |
| El espumador de leche no produce espuma. | Frother nozzle blocked; milk too warm; incorrect milk type. | Clean the frother nozzle. Use cold, fresh milk. |
| Aparece el mensaje "Descalcificar". | La máquina requiere descalcificación. | Perform a descaling cycle as per the instructions in the full manual. |
For more complex issues, please consult the full product manual or contact customer support.
8. Especificaciones
- Modelo: WSD18-010B
- Marca: JAVA
- Presión: 15 barras
- Capacidad del tanque de agua: 1.9 litros
- Dimensiones (largo x profundidad x alto): 11.24 x 18.11 x 13.39 pulgadas
- Peso neto: 20.9 libras
- Características especiales: Integrated Coffee Grinder, Automatic Milk Frother, NTC Temperature Control, Instant Boiler, LCD Display (10 languages)
- Modo de operación: Completamente automático
- Componentes incluidos: Vaporizador de leche
- Color: Plata
- Fabricante: Wan Shida
9. Garantía y soporte
For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official JAVA website. Please have your model number (WSD18-010B) and purchase date available when contacting support.
