AMTAST WA-60A Portable Water Activity Meter Instruction Manual

1. Introducción

The AMTAST WA-60A Portable Water Activity Meter is designed for precise measurement of water activity (aw) in various substances, including food products like beef jerky, freeze-dried food, fruits, and vegetables. This device helps assess product preservation and stability by quantifying the free water content. Its portable design and integrated sensor make it a convenient tool for on-site analysis.

2. Producto terminadoview

Figura 2.1: The AMTAST WA-60A Water Activity Meter in use, displaying a water activity reading. This device measures free water activity to assess the preservation and stability of food, medicine, and other products.

Figura 2.2: The AMTAST WA-60A Water Activity Meter with its sample plate. The kit typically includes the meter, sample plate, portable bag, and manual for accurate measurement of free water content.

Características principales:

• Diseño portátil: Weighing approximately 100 grams, this meter is lightweight and suitable for on-the-go testing.
• Medidas precisas: Offers a measurement range of 0-1.0aw with a resolution of ±0.01aw and an accuracy of 0.02aw.
• Sensor integrado: Features a non-conductive humidity sensor and integrated readings in a single unit, simplifying water activity analysis.
• Pruebas rápidas: Provides rapid results, typically completing measurements within 5 minutes.
• Pantalla clara: Equipped with a 6-digit backlit LCD screen that simultaneously displays water activity (aw) and temperature.
• Funciones fáciles de usar: Includes automatic and manual shut-off options, along with a low battery indicator.

Figura 2.3: Detallado view of the meter's backlit LCD screen, showing both the water activity (aw) and temperature values for clear readings.

Figura 2.4: Image showing the battery compartment for 2x1.5V AAA batteries and the non-conductive humidity sensor. The device also features automatic shutdown, manual shutdown, and alarm indication.

3. Especificaciones

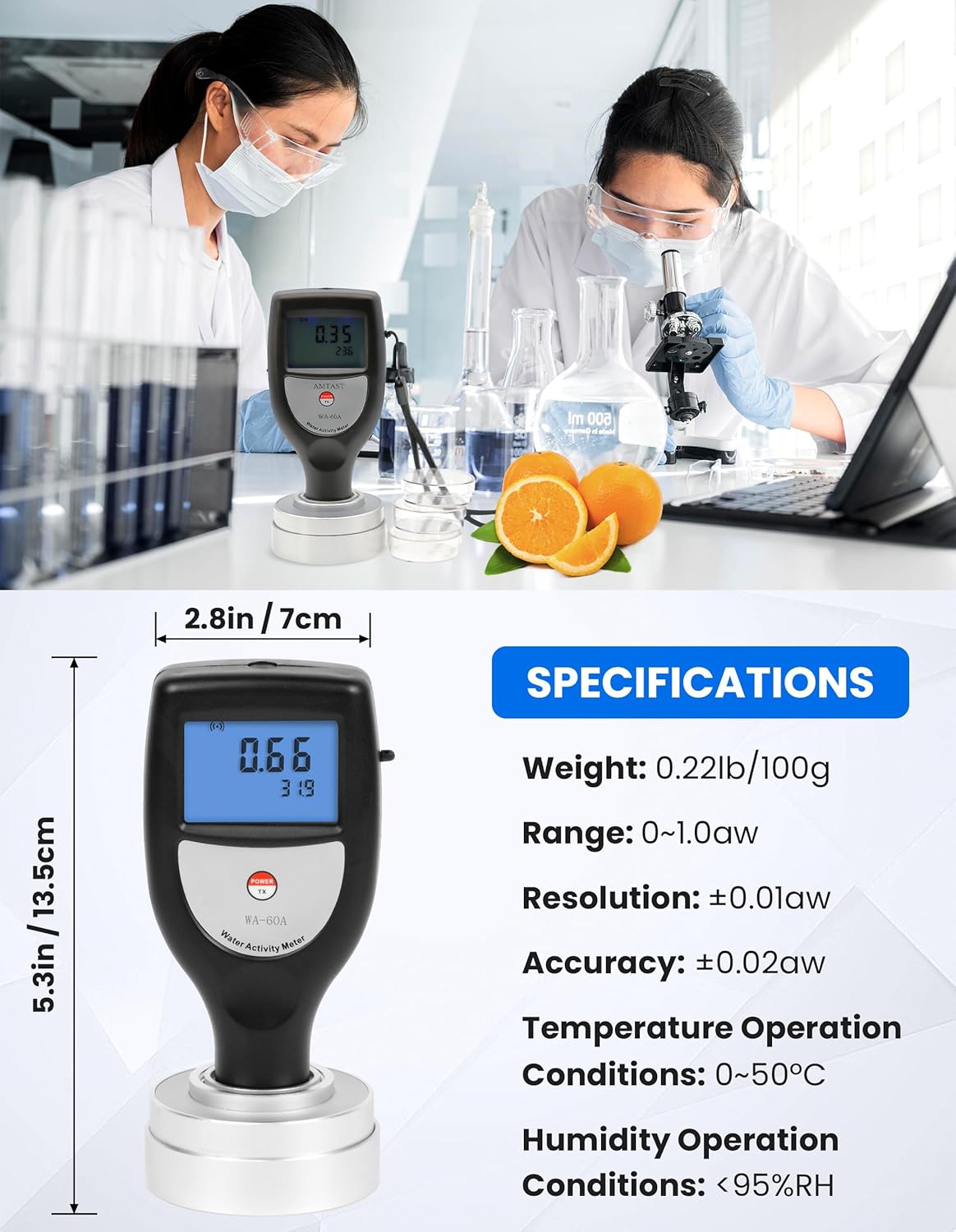

Figura 3.1: The AMTAST WA-60A Water Activity Meter shown alongside its key specifications.

Especificaciones técnicas

Parámetro	Valor
Número de modelo	WA-60A
Rango de medición	0.00 ~ 1.00 aw
Resolución	±0.01 aw
Exactitud	±0.02 aw
Condiciones de funcionamiento de temperatura	0-50 °C
Condiciones de funcionamiento con humedad	<95% HR
Peso del artículo	100 gramos (3.53 onzas)
Fuente de alimentación	2 x 1.5V AAA Size (UM-4) Battery (not included)
Material	abdominales
Dimensiones	Approximately 13.5 cm (5.3 inches) height, 7 cm (2.8 inches) width

4. Configuración

Antes del primer uso, asegúrese de que el dispositivo esté configurado correctamente.

1. Instalación de la batería: Open the battery compartment on the back of the meter. Insert two 1.5V AAA batteries, ensuring correct polarity. Close the compartment securely.
2. Sampel titular: The meter comes with a sample holder featuring a strong magnetic connection. Ensure the sample holder is clean and dry before use.
3. Calibration (Highly Recommended): For accurate and reliable results, especially for food safety applications, it is highly recommended to calibrate the meter using certified water activity standards. This should be done in the range relevant to your testing.

5. Operación

Follow these steps for accurate water activity measurement:

1. Preparar Sampen: Coloque su sample into a clean, dry sample cup. Ensure the sample fills the cup adequately without overflowing.
2. Lugaresampen: Coloque la sample cup onto the base of the meter. The magnetic sample holder will secure it in place.
3. Equilibrio: Paso crucial: After placing the sample and closing the meter, allow sufficient time for the sample to equilibrate with the sensor. This process can take several hours, or even overnight, depending on the sample type and environmental conditions. Do not turn on the meter immediately.
4. Encendido: Una vez que el sample has equilibrated, turn on the meter while it is still closed on the sampel.
5. Leer Medida: The LCD screen will display the water activity (aw) and temperature. Allow the reading to stabilize before recording the final value.
6. Apagado: The device features automatic and manual shut-off options. To manually turn off, press and hold the power button.

Figura 5.1: The meter is designed for quick and efficient testing, providing accurate readings for water activity measurements.

Figura 5.2: The AMTAST WA-60A is widely used for testing water activity in various food products, including dried fruits, beef jerky, cookies, and sausages.

6. Mantenimiento

• Limpieza: Mantén el sample holder and sensor area clean and free from debris. Use a soft, dry cloth to wipe the device. Do not use abrasive cleaners or immerse the device in water.
• Almacenamiento: Store the meter in its protective case in a cool, dry place when not in use. Remove batteries if storing for extended periods to prevent leakage.
• Calibración: Regular calibration with known standards is essential to maintain accuracy. Refer to Section 4 for calibration recommendations.

7. Solución de problemas

8. Información de seguridad

• No intente desmontar ni reparar el dispositivo usted mismo. Contacte con personal cualificado para obtener servicio técnico.
• Mantenga el dispositivo alejado de temperaturas extremas, humedad y luz solar directa.
• Manipule el dispositivo con cuidado para evitar daños físicos.
• Deshazte de las baterías de acuerdo a las regulaciones locales.

9. Garantía y soporte

For warranty information, technical support, or service inquiries, please contact AMTAST customer service. Refer to the product packaging or the official AMTAST websitio para detalles de contacto.

AMTAST Official Store: Visit the AMTAST Store on Amazon
