Introducción
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Pfister Sonterra Kitchen Faucet with Side Spray. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of your product.
Información de seguridad
- Cierre siempre el suministro principal de agua antes de instalar o realizar mantenimiento al grifo.
- Utilice equipo de protección personal adecuado, como gafas de seguridad, durante la instalación.
- Si no está seguro acerca de alguna parte del proceso de instalación, consulte a un plomero calificado.
- Asegúrese de que todas las conexiones estén seguras para evitar fugas.
Contenido del paquete
Verifique que todos los componentes estén presentes antes de comenzar la instalación:

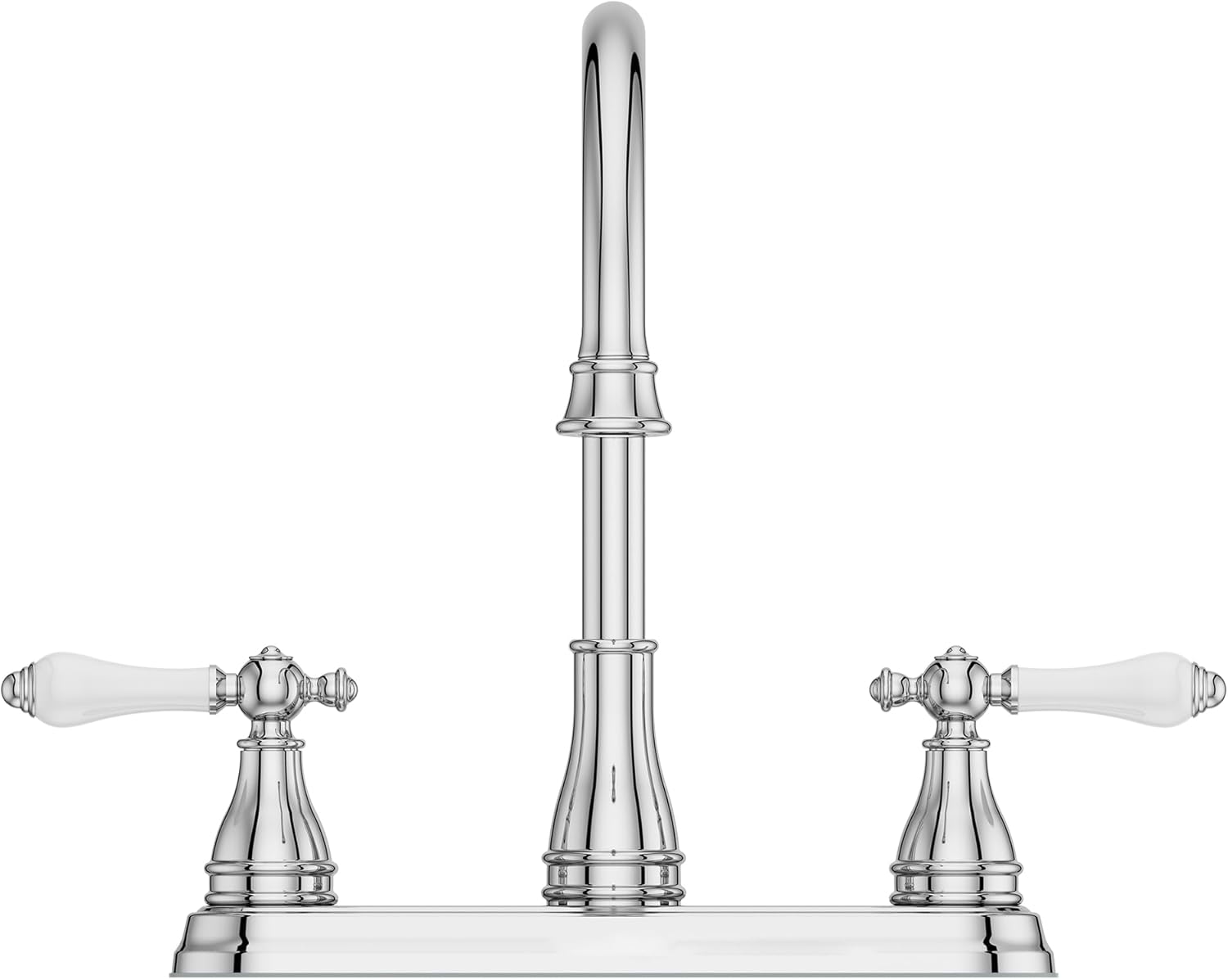

- Kitchen Faucet Assembly (High Arc Spout, 2 Handles)
- Coordinating Side Sprayer
- Herrajes de montaje
- Water Supply Lines (Pfast Connect)
Configuración e instalación
The Pfister Sonterra Faucet is designed for 3 or 4-hole deck mount installations. Follow these steps for a secure setup.
- Prepare el fregadero: Ensure the sink holes are clean and free of debris. The faucet requires a standard 3 or 4-hole configuration.
- Instalar el cuerpo del grifo: Place the main faucet body and handles into the designated holes on the sink or countertop. Secure them from underneath using the provided mounting hardware.
- Conectar las líneas de suministro de agua: Attach the Pfast Connect water supply lines to the hot and cold water valves. Hand-tighten, then use a wrench for a final quarter-turn. Do not overtighten.
- Instalar el pulverizador lateral: Insert the side sprayer into its designated hole. Connect the sprayer hose to the faucet's sprayer port underneath the sink.
- Prueba de fugas: Una vez realizadas todas las conexiones, abra lentamente el suministro principal de agua y compruebe si hay fugas. Apriete las conexiones según sea necesario.
Instrucciones de funcionamiento
Your Pfister Sonterra Kitchen Faucet is designed for ease of use with its two-handle operation and high-arc spout.
- Control de flujo de agua: The left handle controls hot water, and the right handle controls cold water. Turn the handles to adjust water temperature and flow rate.
- Caño de arco alto: The high-arc spout provides ample clearance for large pots and pans. It can swivel 360 degrees for increased maneuverability and reach within your sink area.
- Pulverizador lateral: Press the button on the side sprayer to activate a focused water stream for rinsing dishes or cleaning the sink. Release the button to return water flow to the main spout.
- Eficiencia de agua: This faucet operates at a maximum flow rate of 1.8 Gallons Per Minute (GPM), designed for water conservation.
Mantenimiento
Proper maintenance will ensure the long-lasting performance and appearance of your polished chrome faucet.
- Limpieza del acabado: Clean the polished chrome finish regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Mantenimiento del aireador: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the tip of the spout, clean any debris, and rinse thoroughly before reattaching. For areas with high manganese content in water, weekly cleaning of the aerator screen may be necessary.
- Prevención de fugas: The faucet features Pforever Seal advanced ceramic disc valve technology, designed to prevent leaks. If a leak occurs, ensure all connections are tight.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Bajo caudal de agua | Aireador obstruido; válvula de suministro de agua parcialmente cerrada. | Limpie el aireador. Asegúrese de que las válvulas de suministro de agua estén completamente abiertas. |
| Fugas en el grifo | Conexiones sueltas; juntas tóricas o cartuchos desgastados. | Check and tighten all connections. If leaks persist, contact customer support for replacement parts. |
| Side Sprayer Malfunction | Clogged sprayer head; kinked hose. | Clean the sprayer head. Check the hose for kinks and straighten if necessary. |
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | Pfister |
| Nombre del modelo | F0364SNC |
| Tipo de montaje | Montaje en cubierta |
| Tipo de acabado | Cromo pulido |
| Material | Metal (Faucet Body), Porcelain (Handle Material) |
| Número de manijas | 2 |
| Recuento de hoyos | 4 |
| Característica especial | Pulverizador lateral |
| Caudal máximo | 1.8 galones por minuto |
| Dimensiones del producto | 8.06" de profundidad x 14.31" de ancho x 11.41" de alto |
| Peso del artículo | 3.76 libras (1.71 kilogramos) |
| Longitud de la manguera | 47.63 pulgadas |
| Código Postal | 038877577172 |
Garantía y soporte
Pfister Faucets are backed by a Limited Lifetime Warranty, covering finish and function for as long as you own your home. This warranty reflects Pfister's commitment to quality plumbing products since 1910.
For warranty claims, technical assistance, or to order replacement parts, please visit the official Pfister website or contact their customer support directly. Keep your purchase receipt as proof of ownership.
