Faros antiniebla AUTOWIKI Lamps Manual de usuario

1. Introducción

Figure 1: AUTOWIKI Fog Lights Lamps (Pair).

This manual provides detailed instructions for the installation, operation, and maintenance of your new AUTOWIKI Fog Lights Lamps. Designed as a direct OEM replacement, these fog lights enhance visibility and safety during adverse weather conditions.

1.1. Compatibilidad

These fog lights are specifically designed for the following vehicle models:

• 2006-2010 Lexus IS250
• 2006-2010 Lexus IS350

The package includes a pair of fog lights: one for the left (driver side) and one for the right (passenger side).

Figure 2: Applicable Models - AUTOWIKI Fog Lights installed on a Lexus IS sedan, highlighting compatibility.

2. Características principales

• ✔
  Exact OEM Fit: Direct fitment for fog lights OEM lenses with no complex modifications.
• ✔
  Excelente calidad: Fully sealed, waterproof, dust, and corrosion resistant construction prevents moisture and dust from entering the housing, ensuring long-lasting performance.
• ✔
  Iluminación brillante: Includes one pair of 9006 12V 51W light bulbs (pre-installed) for enhanced visibility in foggy conditions.
• ✔
  Fácil instalación: Diseñado para una instalación rápida y sencilla.
• ✔
  DOT/SAE Compliance: Thoroughly tested to meet federal and international standards, making the fog lamps fully street legal.

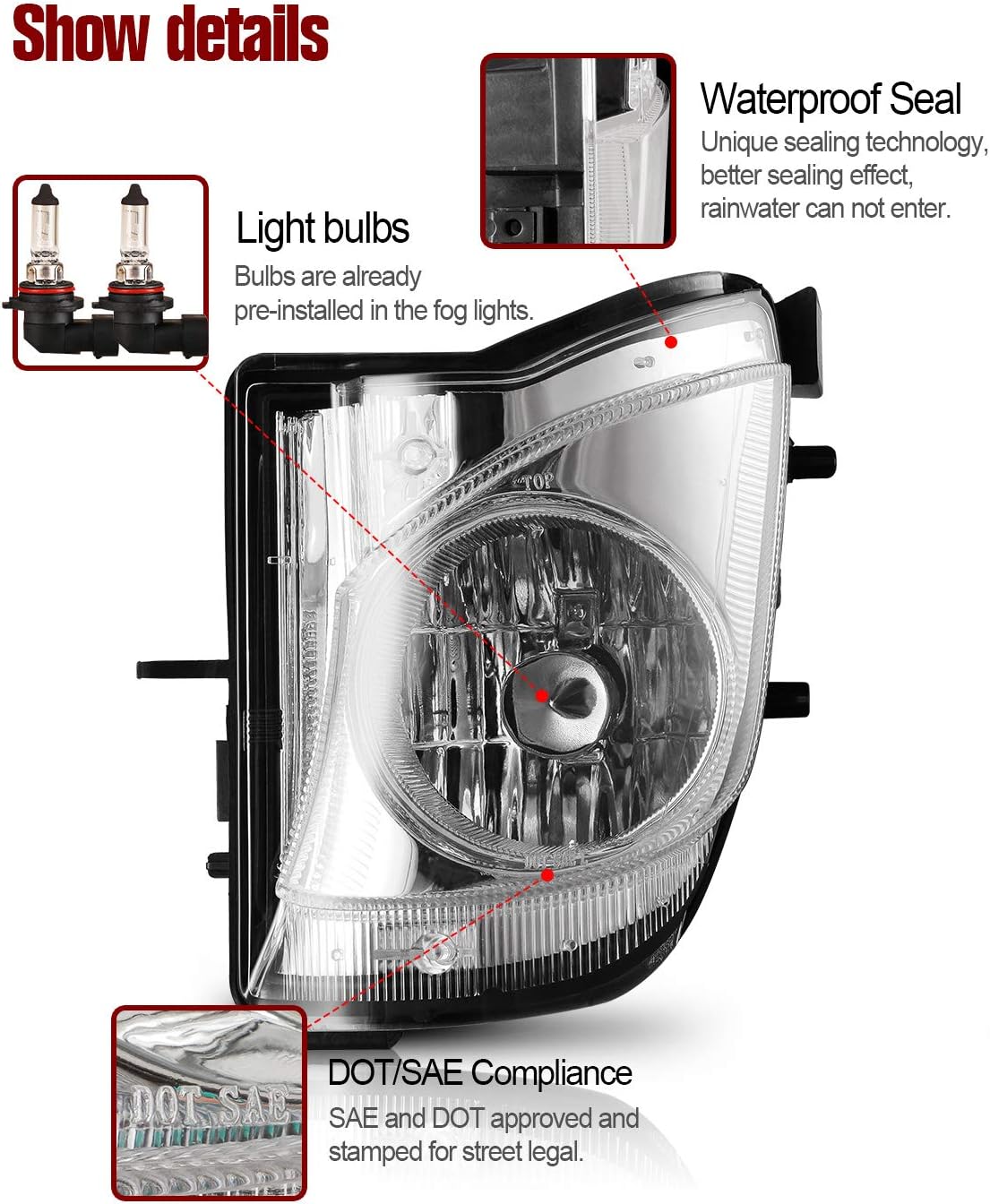

Figura 3: detallada view of the fog light highlighting pre-installed bulbs, waterproof sealing, and DOT/SAE compliance.

Figura 4: Posterior view of the fog light, illustrating the waterproof seal cap and the adjustment screw for beam alignment.

Figure 5: The fog light's waterproof sealing, designed to prevent moisture and dust ingress.

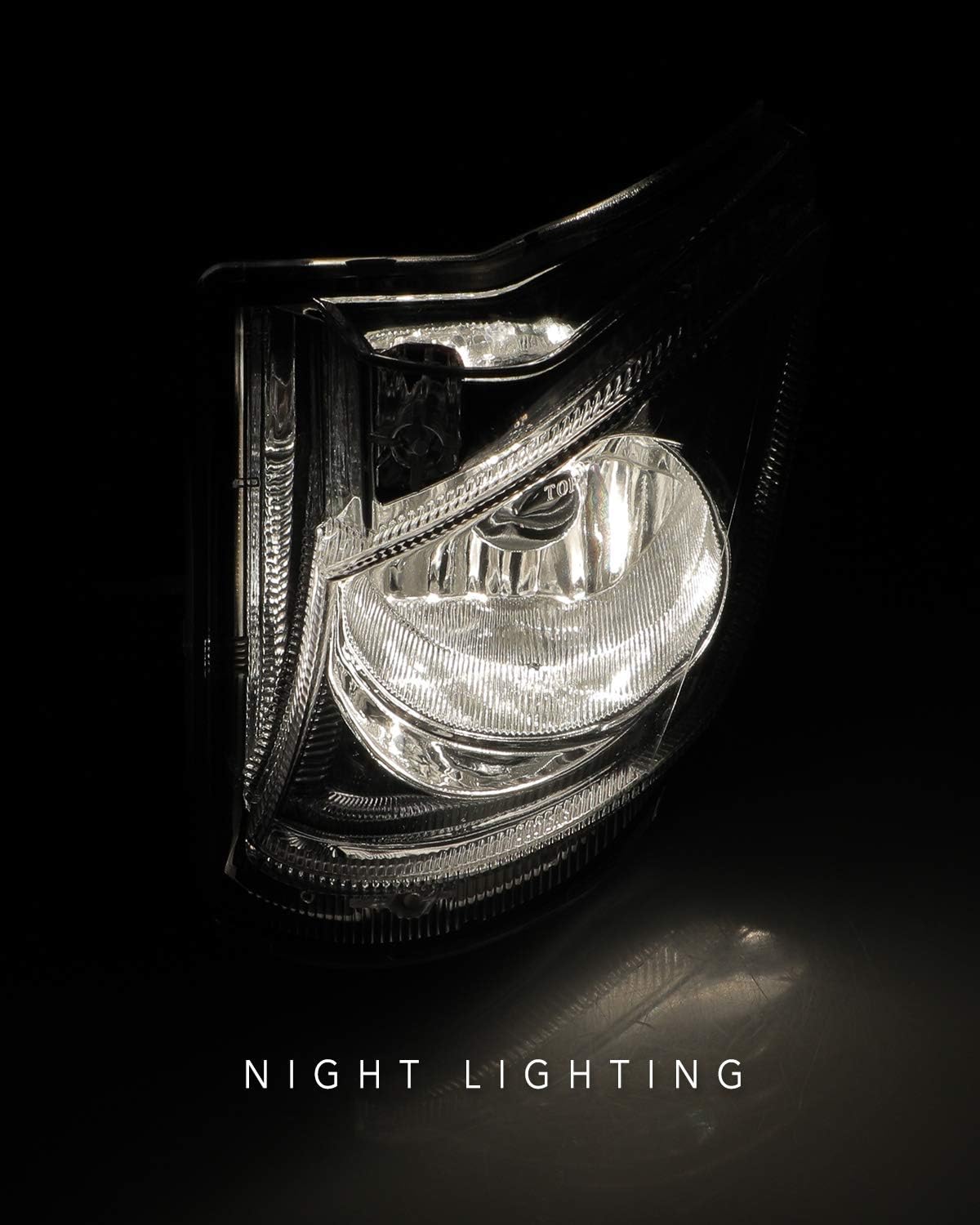

Figure 6: Night lighting performance of the AUTOWIKI Fog Light.

3. Guía de instalación

The AUTOWIKI Fog Lights are designed for easy installation. Please follow these steps carefully. It is recommended to have basic automotive knowledge or seek professional assistance if unsure.

3.1. Herramientas necesarias

• Destornillador (se recomienda de cabeza Phillips)
• Gloves (optional, for handling)

3.2. Pasos de instalación

1. Desempaquetar y preparar: Carefully unpack the fog lights assembly and gather the necessary tools. Ensure the vehicle's engine is off and cool before beginning.
2. Remove Existing Fog Light (if applicable): Depending on your vehicle model, you may need to access the fog light housing from the front bumper or wheel well. Remove any screws or clips securing the old fog light. Disconnect the electrical connector.
3. Install New Fog Light: Position the new AUTOWIKI fog light into the designated opening. Align the mounting points.
4. Tornillos de montaje seguros: Use the provided screws (or original screws if compatible) to firmly secure the fog light in place. Tighten them with a screwdriver.
5. Conecte el cableado eléctrico: Connect the fog light's electrical connector to the vehicle's wiring harness. Ensure a secure connection.
6. Funcionalidad de prueba: Before reassembling any removed parts, turn on your vehicle's fog lights to ensure they illuminate correctly.
7. Ajustar el haz (si es necesario): If the fog light beam needs adjustment, locate the adjustment screw on the back of the fog light housing (refer to Figure 4). Rotate the screw with a screwdriver to adjust the light beam vertically.
8. Volver a montar: Reinstall any bumper covers or other components that were removed during the installation process.

3.3. Vídeo de instalación

4. Instrucciones de funcionamiento

Once installed, operating your AUTOWIKI Fog Lights is straightforward and typically controlled via your vehicle's existing light switch or stalk.

1. Turn On Fog Lights: Locate your vehicle's fog light switch, usually found on the headlight stalk or dashboard. Activate the switch to turn on the fog lights. A corresponding indicator light on your dashboard may illuminate.
2. Turn Off Fog Lights: Deactivate the fog light switch to turn them off.

Nota: Fog lights are designed for use in conditions of reduced visibility, such as fog, heavy rain, or snow. They should be turned off when visibility improves to avoid dazzling oncoming drivers.

5. Mantenimiento y cuidado

To ensure the longevity and optimal performance of your AUTOWIKI Fog Lights, follow these maintenance guidelines:

• Limpieza regular: Clean the fog light lenses regularly with a soft cloth and mild automotive cleaning solution to remove dirt, dust, and road grime. Avoid abrasive cleaners that could scratch the lens.
• Inspeccionar si hay daños: Periodically inspect the fog lights for any signs of damage, such as cracks in the lens, loose connections, or corrosion. Address any issues promptly.
• Reemplazo de bombilla: While the included bulbs are durable, they may eventually require replacement. If a bulb burns out, replace it with a compatible 9006 12V 51W bulb. Refer to your vehicle's service manual for specific bulb replacement procedures if needed.
• Comprobación del cableado: Asegúrese de que todas las conexiones del cableado permanezcan seguras y libres de corrosión.

6. Solución de problemas

If you encounter issues with your AUTOWIKI Fog Lights, refer to the table below for common problems and their solutions.

7. Especificaciones del producto

Figure 7: Product dimensions for the AUTOWIKI Fog Light.

8. Garantía y soporte

AUTOWIKI products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the warranty card included with your product or visit the official AUTOWIKI websitio.

También puedes visitar el AUTOWIKI Store on Amazon Para más información y opciones de contacto.
