Introducción
Thank you for choosing the iDOO Cordless Electric Spin Mop. This manual provides essential information for the safe and efficient operation of your new floor cleaning device. Please read it thoroughly before first use and retain it for future reference.
Qué incluye
Verifique que todos los componentes estén presentes en el paquete:
- 1 x Cordless Electric Mop
- 1 x 2200mAh Detachable Lithium Battery
- 1 x adaptador de corriente
- 2 sets of Cleaning Pads (4 pads total)
- 2 x AAA Batteries (for handle controls)
- 1 x Manual de usuario (este documento)
Configuración
1. Montaje
Connect the two sections of the handle pole. Ensure they click securely into place. Attach the assembled handle to the main mop body. The pole features a telescopic clip and release system for height adjustment.
Image: The iDOO Cordless Electric Spin Mop fully assembled, showing the handle, main body, and cleaning pads.
2. Colocación de las almohadillas de limpieza
The cleaning pads attach to the base of the unit via Velcro. Align the pads with the spinning discs on the mop head and press firmly to secure them.
3. Instalación y carga de la batería
Insert the detachable 2200mAh Lithium-Ion battery into its designated slot on the mop. Connect the power adapter to the battery and a power outlet to charge. The LED battery level indicator will show the charging status. Do not use the mop while it is charging. A full charge takes approximately 2.5 hours.
Image: Close-up of the detachable battery being charged, with LED indicators showing battery level.
Install the two AAA batteries into the handle for the spray function and secondary power button.
Instrucciones de funcionamiento
1. Llenar el tanque de agua
The mop features a built-in 300ml water tank. Open the tank cap and fill it with water for wet mopping, or with wax oil for polishing/waxing. Close the cap securely after filling.
Image: Demonstrates filling the 300ml water tank and the spray function in action.
2. Powering On and Cleaning

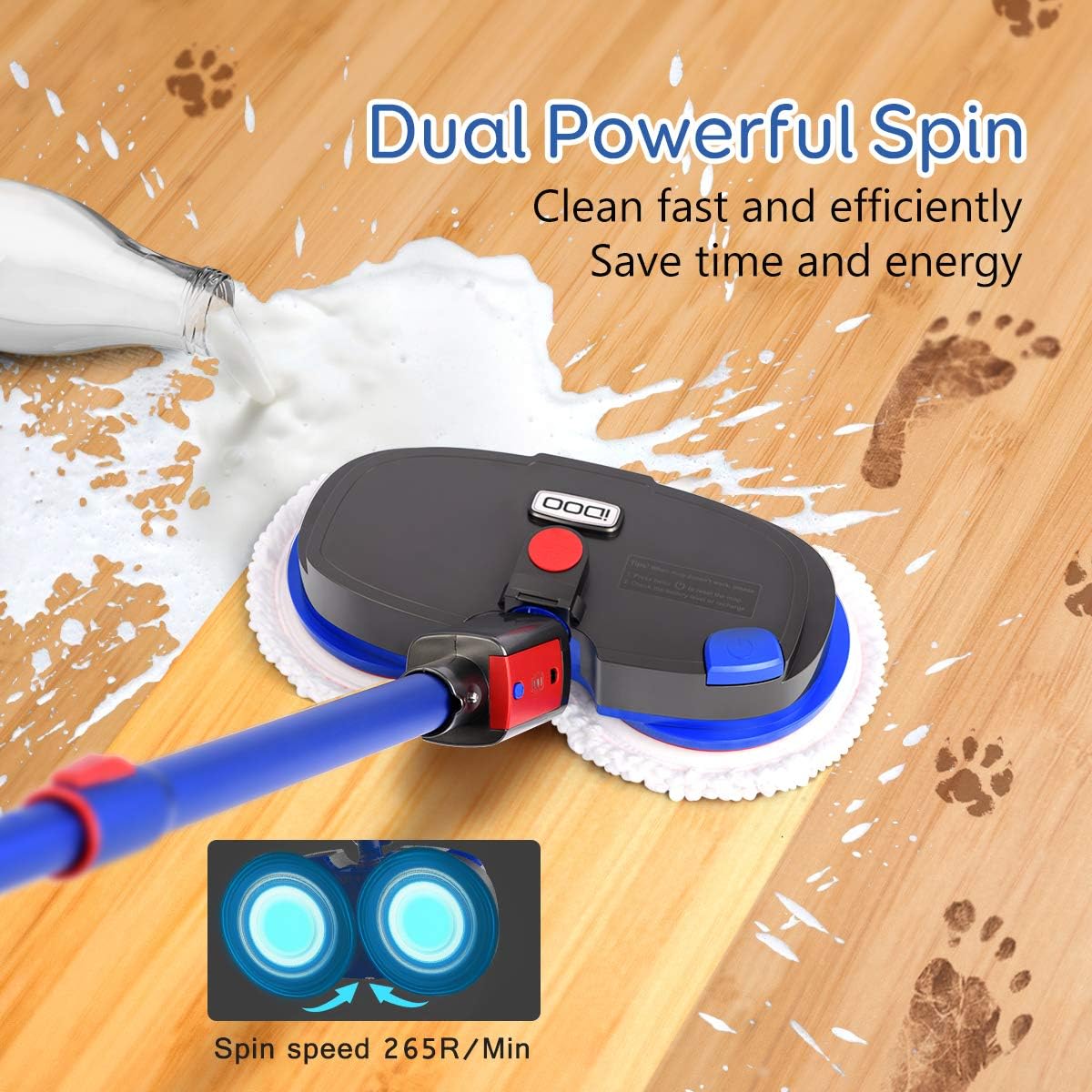

Press the power button to start the dual-spin motor. The mop head will begin to rotate at up to 265 revolutions per minute. Guide the mop across the floor. The flexible head allows for 160-degree horizontal rotation and 90-degree vertical rotation, making it easy to clean under furniture and in corners. The integrated LED headlight illuminates dark areas, helping to identify dirt and debris.

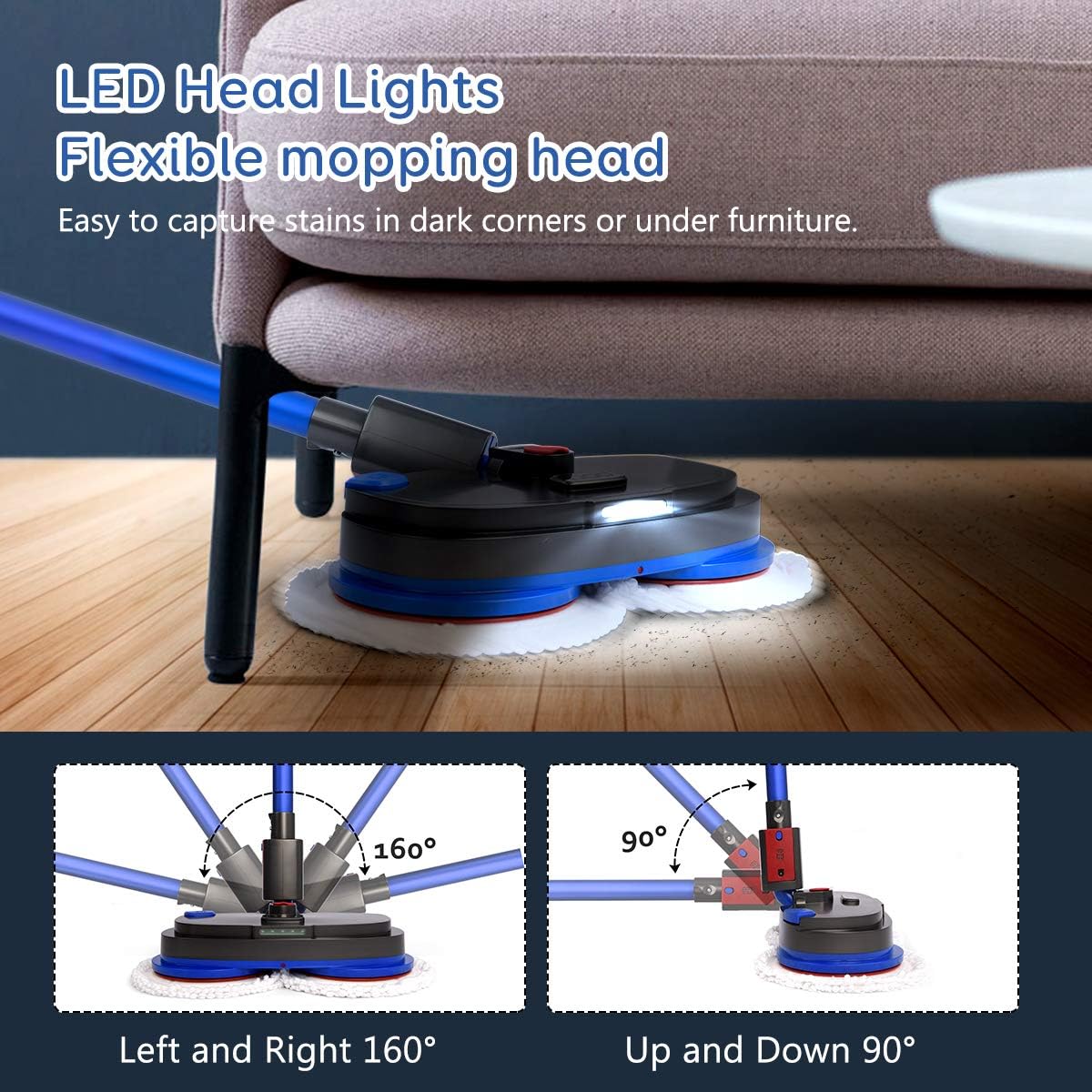

Image: Shows the mop head with LED headlights and illustrates its flexible movement (160° left/right, 90° up/down).
3. Uso de la función de pulverización
To dispense liquid from the water tank, press the "spray" button located on the handle. This function can be used for wet mopping or for applying wax oil.
4. Polishing and Waxing
For polishing or waxing, ensure the water tank is filled with appropriate wax oil. Use the waxing pads provided. Operate the mop as described above, using the spray function to apply the wax oil evenly to the floor surface.
Mantenimiento
1. Almohadillas de limpieza
After each use, remove the cleaning pads from the mop head. The microfiber pads are reusable and can be washed by hand or machine. Allow them to air dry completely before reattaching or storing.
2. Cuidado de la batería
To prolong battery life, fully charge the battery before initial use and after each cleaning session. Store the mop and battery in a cool, dry place. If the mop will not be used for an extended period, it is recommended to charge the battery every 3 months.
3. Mop Body Cleaning
Wipe the exterior of the mop body with a damp paño. No sumerja la unidad principal en agua.
Solución de problemas
If you encounter issues with your iDOO Cordless Electric Spin Mop, please refer to the following common solutions:
- La fregona no enciende: Asegúrese de que la batería esté completamente cargada e insertada correctamente. Compruebe que el botón de encendido esté firmemente presionado.
- Sin pulverización: Verify that the water tank is filled and the AAA batteries in the handle are correctly installed and have sufficient charge. Check for any blockages in the spray nozzle.
- Rendimiento de limpieza reducido: Ensure cleaning pads are clean and properly attached. Replace worn-out pads if necessary.
- Mop stops unexpectedly: The battery may be depleted. Recharge the battery.
For further assistance, please contact iDOO customer support.
Presupuesto
| Característica | Detalle |
|---|---|
| Número de modelo | ID-EM001 |
| Dimensiones del producto | 16 x 6 x 2 pulgadas |
| Peso del artículo | 6.9 libras |
| Tipo de batería | 1 batería de iones de litio (2200 mAh, incluida) |
| Volumen del tanque de agua | 300 mililitros |
| Velocidad de centrifugado | Up to 265 revolutions/minute |
| Nivel de ruido | Menos de 60dB |
| Usos específicos | Tile, Hardwood, Marble, Wood Floor |
Garantía y soporte
The iDOO Cordless Electric Spin Mop comes with a 30-day money-back guarantee and a 1-year warranty from the date of purchase. For warranty claims, technical support, or any questions regarding your product, please contact iDOO customer service through the retailer where the product was purchased or visit the official iDOO websitio.
