Introducción
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Tempur-Pedic 1539761 Mesh Back Fabric Task Chair. Please read these instructions carefully before use to ensure proper function and longevity of your product.
Información importante de seguridad
- No exceda la capacidad máxima de peso de 250 libras (113 kg)Exceder este límite puede causar daños a la silla o lesiones personales.
- Asegúrese de que todos los pernos y tornillos estén bien apretados antes de usar y verifique periódicamente su apriete.
- Mantenga las manos y los dedos alejados de las piezas móviles durante el ajuste.
- Utilice la silla sobre una superficie nivelada para evitar que se vuelque.
Producto terminadoview
The Tempur-Pedic 1539761 Mesh Back Fabric Task Chair is designed for comfort and support in an office environment. Key features include a breathable mesh back, a plush Tempur foam seat cushion, adjustable armrests, and a robust five-star nylon base with rolling casters.

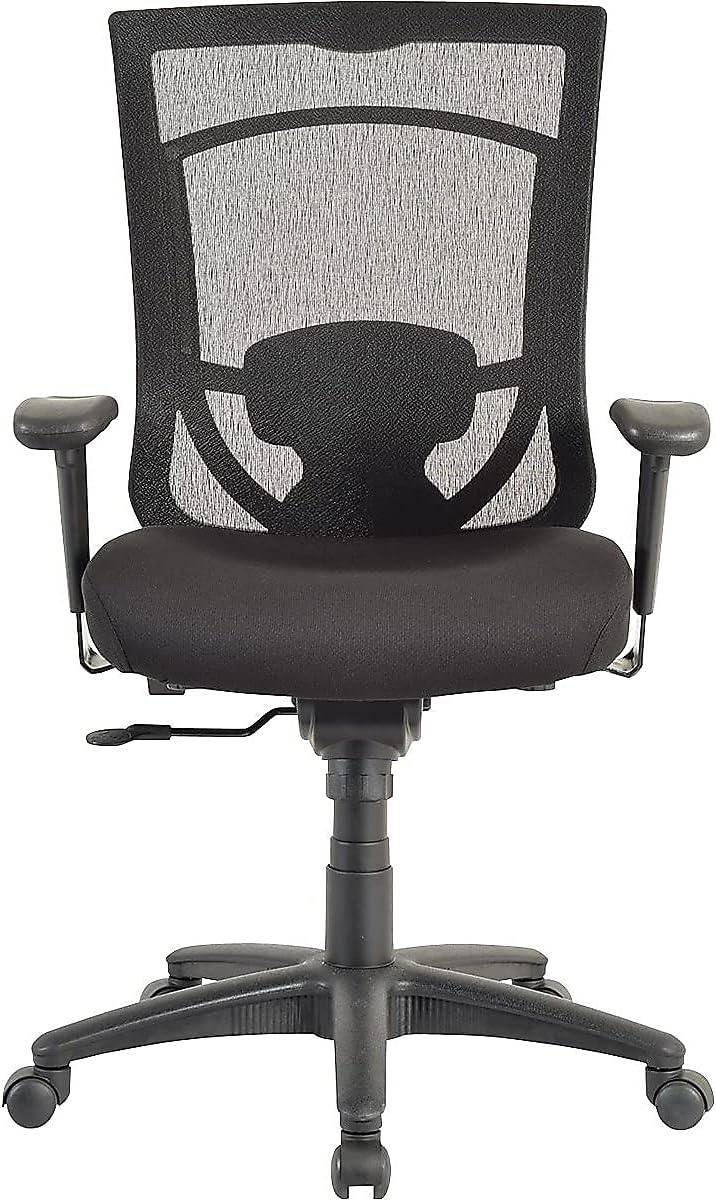

Figura 1: Frente view of the Tempur-Pedic 1539761 Mesh Back Fabric Task Chair. This image displays the chair's overall design, including the mesh back, fabric seat, and adjustable armrests.
Configuración y montaje
Assembly typically requires two people and approximately 30-60 minutes. Ensure all components are present before beginning. Refer to the included assembly diagram for detailed visual instructions.
- Fije las ruedas a la base: Inserte las cinco ruedas en los orificios de cada pata de la base de cinco radios. Presione firmemente hasta que encajen en su lugar.
- Insertar elevador de gas: Coloque el cilindro de elevación de gas en el orificio central de la base de cinco estrellas.
- Assemble Seat and Back: Attach the backrest to the seat mechanism using the provided hardware. Ensure all screws are tightened securely.
- Adjuntar reposabrazos: Fije los apoyabrazos al conjunto del asiento. Note: Pay close attention to the visual diagrams for armrest orientation, as printed arrows may sometimes be misleading. Ensure the armrests are positioned correctly for comfortable use.
- Conecte el asiento al elevador de gas: Carefully place the assembled seat and back onto the gas lift cylinder, ensuring it is centered and stable.
Figure 2: Chair dimensions. This image illustrates the overall height (44.1 inches), width (27.95 inches), and depth (27.2 inches) of the assembled chair.
Instrucciones de funcionamiento
Your chair features several adjustable components to customize your seating experience.
1. Ajuste de la altura del asiento
Para ajustar la altura del asiento:
- To raise the seat, lift the pneumatic seat-height adjustment lever (typically located on the right side, under the seat) while taking your weight off the seat.
- To lower the seat, lift the same lever while remaining seated.
2. Ajuste del reposabrazos
The armrests are both width and height adjustable:
- Ajuste de altura: Press the button located on the side of each armrest support and slide the armrest up or down to your desired height. Release the button to lock.
- Ajuste de ancho: Loosen the knobs or levers located underneath the seat, near the armrest attachment points, to slide the armrests inward or outward. Retighten to secure.
3. Synchro-Tilt Mechanism (Recline, Tension, Lock)
The synchro-tilt mechanism allows the backrest and seat to recline in a synchronized motion.
- Reclinar: To recline, lean back in the chair.
- Tensión de inclinación: Adjust the round knob located underneath the seat, usually at the front. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline). Note: This knob can be stiff; apply firm, steady pressure.
- Bloqueo de inclinación: To lock the chair in an upright or reclined position, push the lever (often the same as the height adjustment lever, pushed inward) to engage the lock. Pull the lever outward to unlock and allow reclining.
4. Soporte lumbar
The chair includes integrated lumbar support. This support can be adjusted vertically (up and down) to better fit the curve of your lower back. Locate the adjustment mechanism on the back of the chair and slide it to your preferred height.
Figura 3: Atrás view of the chair. This image highlights the mesh backrest and the visible lumbar support adjustment mechanism.
Mantenimiento
- Limpieza: For the fabric seat and mesh back, use a damp cloth and mild soap for spot cleaning. Avoid harsh chemicals or abrasive cleaners.
- Inspección: Revise periódicamente todos los tornillos y pernos para asegurarse de que estén bien apretados. Vuelva a apretarlos según sea necesario para mantener la estabilidad y la seguridad.
- Ruedas: Mantenga las ruedas libres de residuos (cabello, polvo) para garantizar un giro suave.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La silla no se ajusta en altura. | Mal funcionamiento del cilindro de elevación de gas o palanca no activada. | Asegúrese de que la palanca de ajuste de altura esté completamente enganchada. Si el problema persiste, es posible que sea necesario reemplazar el cilindro de gas. Contacte con atención al cliente. |
| Chair reclines too easily or not enough. | Tilt tension is incorrectly set. | Ajuste la perilla de tensión de inclinación ubicada debajo del asiento. Gírela en sentido horario para aumentar la tensión y en sentido antihorario para disminuirla. |
| Lumbar support feels uncomfortable. | Lumbar support is not at the correct height for your back. | Adjust the lumbar support vertically to align with the natural curve of your lower back. Experiment with different heights. |
| Armrests are too close/far apart or uneven. | Incorrect assembly or adjustment. | Review assembly instructions for armrest attachment. Adjust armrest width using the knobs/levers under the seat. Ensure both armrests are set to the same height. |
| La silla chirría o se tambalea. | Herrajes sueltos. | Check and tighten all screws and bolts, especially those connecting the seat, back, and armrests. |
Presupuesto
- Marca: Tempur-Pedic
- Número de modelo: 1539761
- Color: Negro
- Dimensiones (totales): 27.2" (profundidad) x 27.95" (ancho) x 44.1" (alto)
- Profundidad del asiento: 20.1 pulgadas
- Peso del artículo: 58.7 libras
- Capacidad de peso: Hasta 250 libras
- Estilo de espalda: Espalda de malla
- Material de relleno: Foam (Tempur foam)
- Características especiales: Arm Rest, Cushion Availability, Lumbar Support, Synchro-Tilt Mechanism
- Cuidado del producto: Lugar limpio
Garantía y soporte
For warranty information, replacement parts, or further assistance, please contact Tempur-Pedic customer support. You can often find contact details on the manufacturer's websitio o a través de su punto de compra.
Visita la página oficial Tempur-Pedic Store para obtener más información sobre el producto.
