Panasonic ER-GB96-K Beard Trimmer Instruction Manual

1. Producto terminadoview

The Panasonic ER-GB96-K electric beard trimmer is designed for precise and comfortable beard and mustache styling at home. It features acute-edge, ultra-sharp stainless-steel blades with wider tips to capture more hair efficiently. Powered by a high-torque motor, it ensures smooth trimming of even dense beards without snagging or pulling. The trimmer offers up to 58 trim length settings (0.5mm to 30mm) using a quick-adjust dial and four comb attachments. A 5mm-wide detail attachment is included for precise styling. The device is IPX7 waterproof, allowing for wet or dry use and easy cleaning under running water. It operates corded or cordless, providing up to 50 minutes of use on a 1-hour charge.

2. Información de seguridad

• Always unplug the trimmer from the electrical outlet when washing or using for wet trimming.
• No utilizar en bebés o niños sin la supervisión de un adulto.
• Keep the trimmer away from water sources while in use.
• Follow recommended cleaning and maintenance procedures to prevent injury from dull or damaged blades.

3. Configuración y carga

3.1 Cargo inicial

Before first use, or if the trimmer has not been used for an extended period, fully charge the device. A single 1-hour charge provides up to 50 minutes of cordless use. The trimmer can also be used while plugged in for continuous operation.

3.2 Colocación de los peines

Select the appropriate comb attachment based on your desired hair length. The trimmer includes four comb attachments for various lengths and a detail attachment for precision.

Image: The four comb attachments and the detail attachment.

3.3 Ajuste de la configuración de longitud

The quick-adjust dial allows for precise length settings from 0.5mm (without attachment) to 30mm. Rotate the dial to select your preferred trimming length.

Image: Quick-adjust trim dial for precise length control.

4. Instrucciones de funcionamiento

Follow these general steps for trimming. For specific styles, refer to the video tutorials provided below.

4.1 Recorte general

1. Asegúrese de que la recortadora esté cargada o enchufada.
2. Attach the desired comb and set the length using the dial.
3. Sostenga la recortadora contra su piel y muévala lentamente en dirección contraria al crecimiento del vello para lograr un corte uniforme.
4. For areas requiring precision, use the 5mm detail attachment.

4.2 Styling Tutorials

5. Mantenimiento

5.1 Limpieza

The Panasonic ER-GB96-K is IPX7 waterproof. For optimal hygiene and performance, rinse the blades under running water after each use. Use the included cleaning brush to remove any trapped hairs.

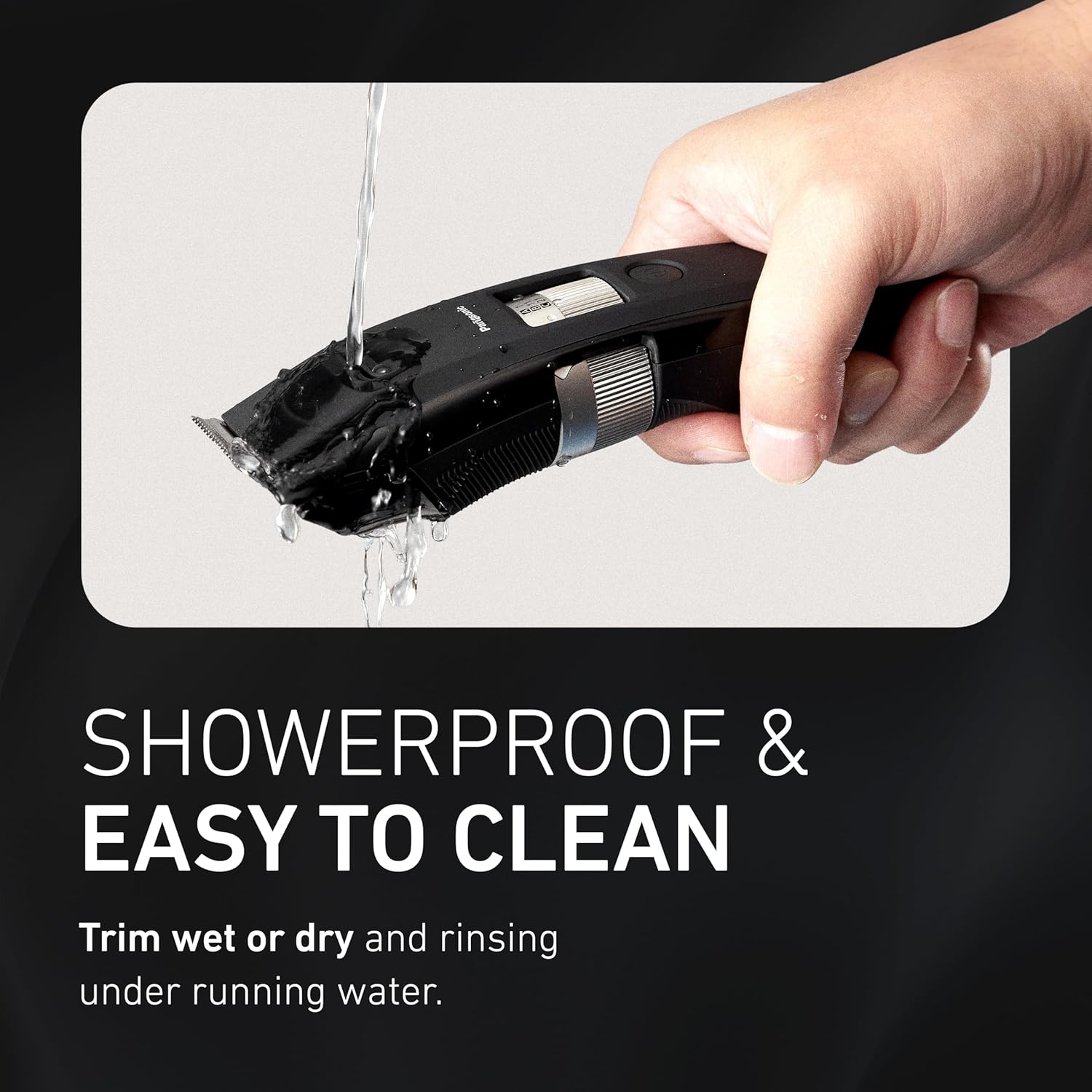

Image: Trimmer being rinsed under water for easy cleaning.

5.2 Reemplazo de cuchilla

To maintain peak performance, replace the blade every 3 years or when it becomes dull. The replacement blade model is WER9620Y.

6. Solución de problemas

If you experience any issues with your Panasonic ER-GB96-K trimmer, please refer to the following common solutions:

• La recortadora no enciende: Ensure the device is fully charged or connected to a power source. Check the power outlet.
• Rendimiento de recorte deficiente: Clean the blades thoroughly to remove any hair buildup. Ensure the blades are properly oiled. If performance does not improve, the blades may need replacement.
• Snagging or pulling hair: This often indicates dull blades. Consider replacing the blade (WER9620Y). Ensure you are trimming against the grain of the hair.
• La batería no retiene la carga: Ensure the charging cable is securely connected. If the issue persists, the battery may need servicing.

Para obtener más ayuda, comuníquese con el servicio de atención al cliente de Panasonic.

7. Especificaciones

• Número de modelo: ER-GB96-K
• Dimensiones del producto: 1.65 x 1.69 x 6.69 pulgadas
• Peso del artículo: 5.6 onzas (0.35 libras)
• Fuente de energía: Eléctrico con cable / Inalámbrico (Recargable)
• Tiempo de ejecución: Hasta 50 minutos (sin cable)
• Tiempo de carga: 1 horas
• Clasificación de impermeabilidad: IPX7
• Configuración de longitud: 58 (0.5 mm a 30 mm)
• Archivos adjuntos: 4 comb attachments, 1 detail attachment
• Color: Negro

8. Garantía y soporte

This product comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For product support, replacement parts, or service inquiries, visit the official Panasonic websitio o comuníquese con su departamento de servicio al cliente.
