Información importante de seguridad
Please read all instructions carefully before using this scale. Failure to follow these instructions may result in inaccurate readings or personal injury.
- Dispositivos médicos: Do not use this scale if you have a pacemaker or other internal medical device. The body analysis feature uses a small electrical current, which may interfere with such devices.
- Colocación: Always place the scale on a hard, flat surface. Using the scale on soft surfaces like carpet can lead to inaccurate weight measurements.
- Foot Contact: For accurate body analysis readings (body fat, body water, BMI, bone mass), ensure proper foot contact with the electrodes on the scale surface. Hard or dry skin can prevent proper contact, resulting in an '----' display. Applying a small amount of moisturizer to your feet before use may help.
- Initial Step-On: If you step on the scale before '0.0' appears on the display, the scale may not function properly or provide accurate readings. Always wait for '0.0' to display.
- Mensajes de error: The scale will display 'Err' if there is improper foot contact during body analysis, such as when wearing socks or shoes.
- Embarazo: Body analysis features are not recommended for pregnant women.
Producto terminadoview
The Conair WW702XF Body Analysis Glass Bathroom Scale is designed to provide comprehensive body composition measurements. It features a durable glass platform and a large digital display for easy reading.
Imagen: Más alláview of the scale's key features, including 4-user memory, 2.0-inch large display, ability to view 5 results at once, and body analysis capabilities.
Características principales:
- Análisis corporal: Measures body fat percentage (BF), body water percentage (BW), Body Mass Index (BMI), and bone mass.
- Capacidad de peso: Soporta hasta 400 libras (182 kg).
- Memoria de usuario: Almacena datos de hasta 4 usuarios individuales.
- Mostrar: Large, easy-to-read 2-inch digital display shows up to 5 results simultaneously.
- Fuerza: Operates on one long-life lithium battery (CR2032), included.
Configuración
1. Instalación de la batería
The scale comes with one CR2032 lithium battery. Ensure it is correctly installed in the battery compartment located on the underside of the scale. If the battery is already installed, remove any protective tab.
2. Initial Activation and Placement
- Place the scale on a hard, flat surface (e.g., bathroom floor, not carpet).
- Quickly tap the scale surface with your foot to turn it on. The display will show '888.8' then '0.0'.
- Wait for '0.0' to appear before proceeding.
3. Setting User Profiles (P1-P4)
The scale can store personal data for up to 4 users to provide accurate body analysis readings.
- With '0.0' displayed, press the 'USER' button to select a user number (P-01 to P-04).
- Press 'SET' to confirm the user number.
- Use the 'UP' or 'DOWN' arrows to set your gender (male/female icon). Press 'SET'.
- Use the 'UP' or 'DOWN' arrows to set your height (in cm or inches). Press 'SET'.
- Use the 'UP' or 'DOWN' arrows to set your age. Press 'SET'.
- The scale will then display '0.0', indicating it is ready for measurement with your profile salvado.
Instrucciones de funcionamiento
Tomando una medida
- Asegúrese de que la báscula esté sobre una superficie dura y plana.
- Quickly tap the scale surface with your foot to turn it on. Wait for '0.0' to appear.
- If you have set up a user profile, press the 'USER' button to select your profile number (P-01, P-02, etc.).
- Súbase a la báscula descalzo, asegurándose de que los pies estén colocados sobre los electrodos metálicos. Permanezca quieto.
- La báscula mostrará primero su peso y luego mostrará su porcentaje de grasa corporal.tage (BF), body water percentage (BW), bone mass (BONE), and Body Mass Index (BMI).
- The readings will flash twice to confirm and then the scale will turn off automatically.

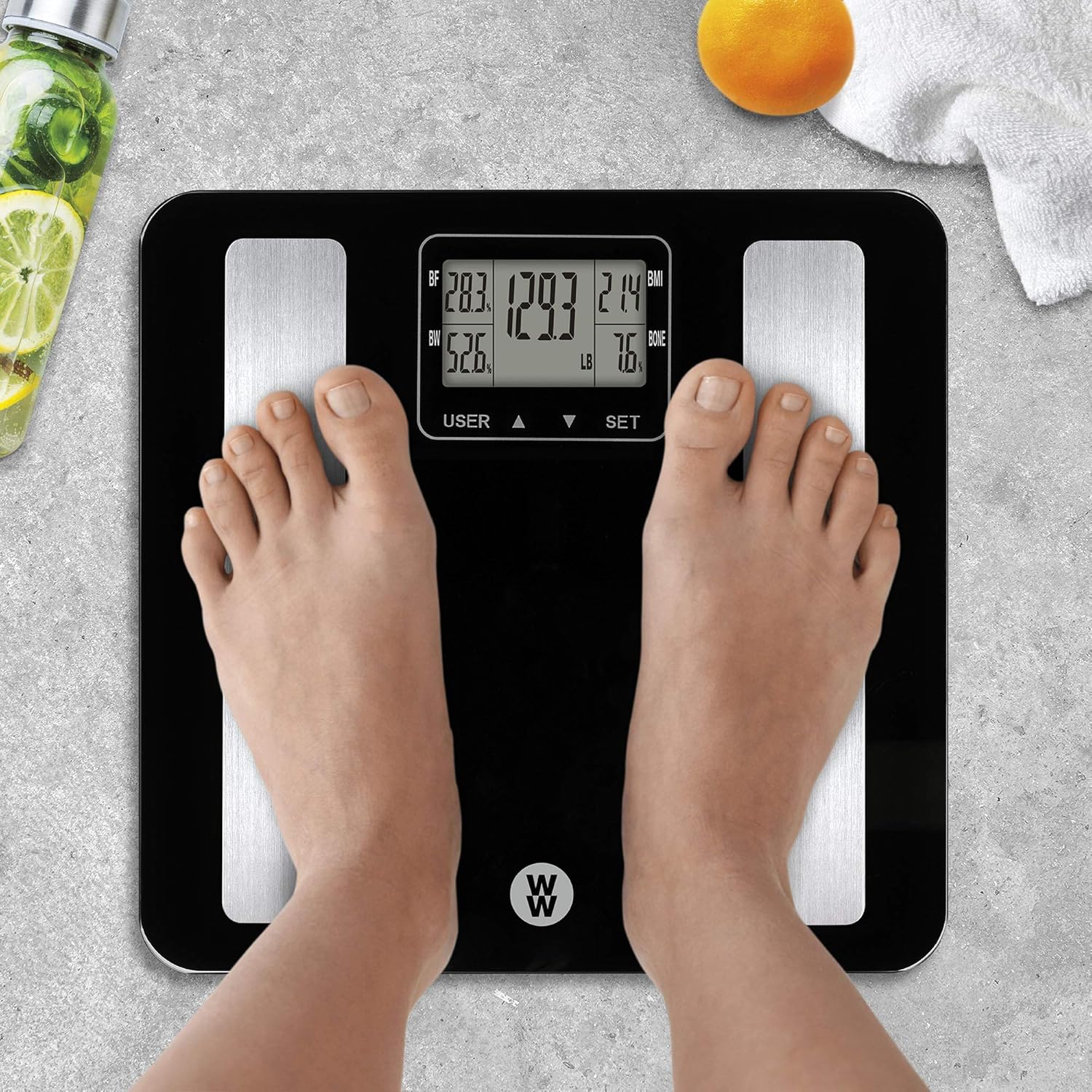

Image: A person standing on the Conair WW702XF scale, with the digital display showing various body analysis metrics like body fat, body water, BMI, and bone mass.
Understanding Your Readings:
Image: A visual explanation of the body analysis metrics displayed on the scale, including Body Fat %, Body Water %, Bone Mass %, and BMI, along with details on the high visibility LCD and durable construction.
- Peso: Su peso corporal actual.
- BF (Body Fat %): El porcentage de su peso corporal total que es grasa.
- BW (Body Water %): El porcentage de su peso corporal total es agua.
- IMC (Índice de masa corporal): Una medida que utiliza su altura y peso para determinar si su peso es saludable.
- BONE (Bone Mass %): El porcentage of your total body weight that is bone.
Mantenimiento
Limpieza de la báscula
To clean your scale, use a damp Paño y detergente suave. No utilice limpiadores abrasivos ni sumerja la báscula en agua.
Reemplazo de batería
When the scale display shows 'Lo', it indicates that the battery is low and needs to be replaced. Replace the CR2032 lithium battery with a new one, ensuring correct polarity.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Scale displays 'Err' | Improper foot contact during body analysis (e.g., wearing socks or shoes). | Step onto the scale with bare feet, ensuring direct contact with the metal electrodes. |
| Scale displays '----' | Hard or dry skin preventing proper electrical contact for body analysis. | Apply a small amount of moisturizer to your feet before using the scale. |
| Scale displays 'Lo' | Batería baja. | Reemplace la batería de litio CR2032. |
| Inaccurate weight readings or scale not turning on. | Scale not on a hard, flat surface; stepping on before '0.0' appears; battery issues. | Ensure scale is on a hard, flat surface. Tap to turn on and wait for '0.0'. Check or replace battery. |
Presupuesto
- Número de modelo: WW702XF
- Dimensiones del producto: 12.6 x 12.2 x 0.9 pulgadas
- Peso del producto: 2.9 libras
- Capacidad de peso: Hasta 400 libras (182 kg)
- Incrementos de medición: 0.1 libras / 50 g
- Tipo de pantalla: Pantalla digital LED
- Fuente de energía: 1 batería de litio CR2032 (incluida)
- Body Analysis Metrics: Body Fat, Body Water, BMI, Bone Mass
- Memoria de usuario: 4 usuarios
- Fabricante: Conair
- Código postal: 074108367228

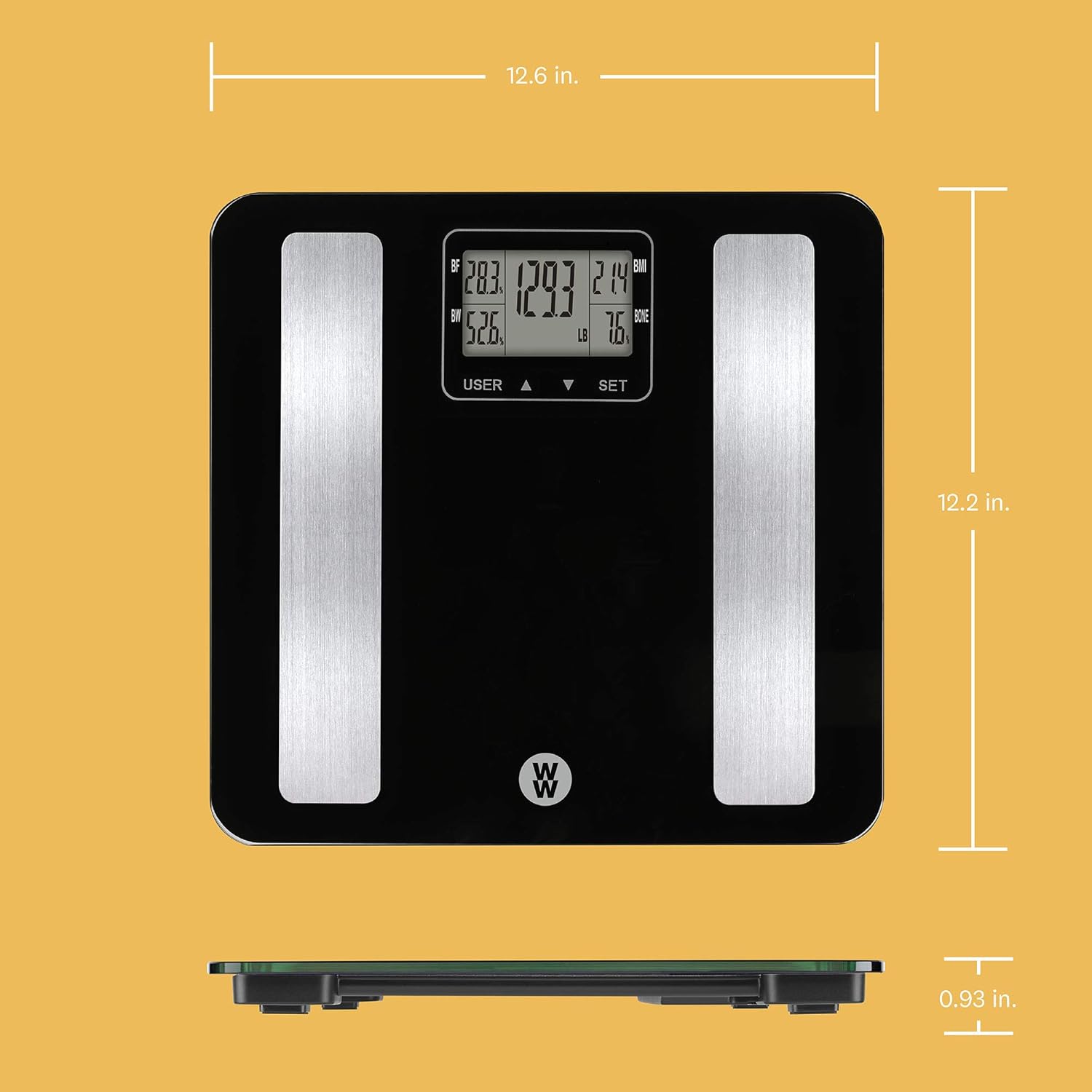

Image: Diagram illustrating the dimensions of the Conair WW702XF Body Analysis Glass Bathroom Scale, showing its length, width, and thickness.
Garantía y soporte
This Conair WW702XF Body Analysis Glass Bathroom Scale comes with a Limited 10-Year Warranty. For detailed warranty information, product support, or any questions regarding your scale, please refer to the official Conair websitio o póngase en contacto con su servicio de atención al cliente.
Image: Product packaging for the Conair WW702XF scale, highlighting features, dimensions, and indicating a Limited 10-Year Warranty and the Conair website for questions.
Soporte en línea: Visita www.conair.com Para obtener recursos adicionales e información de contacto.
