Introducción
Gracias por la compraasing the FILCO Majestouch Lumi S Mechanical Keyboard. This keyboard features durable CHERRY MX Red switches, PBT 2-color molded keycaps, and N-key rollover for a superior typing experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new keyboard.
Image: FILCO Majestouch Lumi S mechanical keyboard, full view, mostrarasing its design and key layout.
Configuración
The FILCO Majestouch Lumi S keyboard offers both USB and PS/2 connectivity, ensuring broad compatibility with various systems. It is compatible with Windows 10 operating systems.
Conexión del teclado
- Conexión USB: Connect the USB cable from the keyboard directly to an available USB port on your computer. The keyboard is plug-and-play and should be recognized automatically.
- Conexión PS/2: For PS/2 compatibility, use the included PS/2 adapter. Attach the adapter to the USB connector of the keyboard cable, then plug the PS/2 connector into the corresponding PS/2 port on your computer. Ensure the computer is powered off before connecting via PS/2, then power it on.
Image: USB to PS/2 adapter and keycap puller, essential accessories for connectivity and maintenance.
Instrucciones de funcionamiento
Cambio de clave N (NKRO)
The Majestouch Lumi S supports N-key rollover, which means all keys pressed simultaneously are registered accurately. This feature is particularly beneficial for fast typists and gamers, preventing ghosting or missed inputs.
Operaciones con teclas de función
The keyboard includes a dedicated Fn key that, when combined with other keys, activates various multimedia and system functions. These functions are designed to enhance user convenience and productivity.
- Fn+Esc: Resets the keyboard to factory default settings (hold for 3 seconds).
- Fn+F9: Silenciar/Activar silencio de audio.
- Fn+F10: Disminuir el volumen.
- Fn+F11: Aumentar el volumen.
- Fn+F12: Activa el modo de suspensión.
- Fn + App Key: Locks the Windows key to prevent accidental presses during gaming or intensive tasks.
Image: Table illustrating various function key combinations and their corresponding actions.
Imagen: Primer plano view of the function keys (F1-F12) and their secondary functions, indicated by icons.
CHERRY MX Red Switches
This keyboard is equipped with CHERRY MX Red mechanical switches, known for their linear feel and light actuation force. This provides a smooth and consistent keystroke, ideal for both typing and gaming.
Image: Diagram illustrating the internal mechanism of a CHERRY MX Red mechanical switch, highlighting its linear operation.
PBT 2-Color Molded Keycaps
The keycaps are made from PBT plastic using a 2-color molding process. This ensures high durability, resistance to shine from finger oils, and legends that will not fade over time.
Image: Close-up of individual PBT 2-color molded keycaps, showing their construction and texture.
Indicadores LED
The keyboard features LED indicators for Num Lock, Caps Lock, and Scroll Lock. These indicators provide clear visual feedback on the status of these functions.

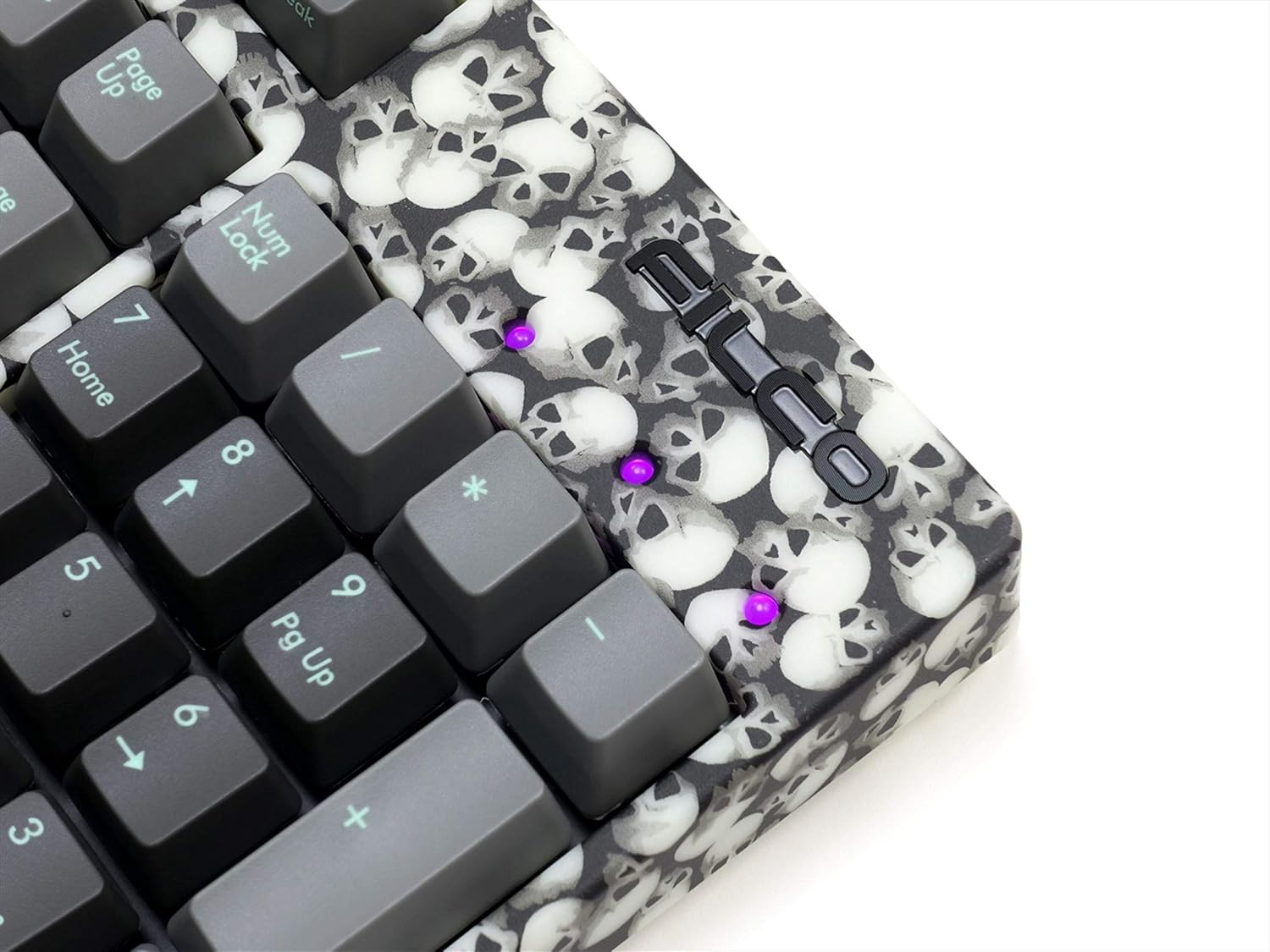

Image: Close-up of the keyboard's LED indicators, showing their placement and illumination.
Pies ajustables
The keyboard is equipped with adjustable feet on the underside, allowing you to set the typing angle for optimal comfort.
Image: The underside of the keyboard, showing the adjustable feet in their extended position.
Vídeo del producto
Vídeo: Una breve presentaciónview video demonstrating key features of the FILCO Majestouch Lumi S keyboard, including its PBT keycaps, N-key rollover, function keys, USB/PS2 connectivity, and CHERRY MX switches.
Mantenimiento
Un mantenimiento adecuado garantiza la longevidad y el rendimiento óptimo de su teclado.
Limpieza de teclas
To clean the keycaps, use the included keycap puller to carefully remove them. Clean the keycaps with a mild soap solution and a soft cloth, then rinse and dry thoroughly before reattaching. The keyboard body can be wiped with a soft, dry cloth.
Image: Several keycaps detached from the keyboard, showing their underside and the keycap puller tool.
Solución de problemas
- El teclado no responde: Ensure the USB or PS/2 cable is securely connected to both the keyboard and the computer. If using PS/2, ensure the computer was off during connection. Try connecting to a different USB/PS/2 port.
- Claves que no se registran: Check for any debris under the keycaps. If a specific key is not working, try removing and reattaching its keycap.
- Comportamiento inesperado: Realice un restablecimiento de fábrica manteniendo presionado Fn + Esc for 3 seconds. This will revert all keyboard settings to their default state.
- N-key rollover issues: Ensure your operating system and software support N-key rollover. Some older systems or BIOS settings might limit simultaneous key presses.
Presupuesto
| Característica | Descripción |
|---|---|
| Nombre del modelo | FILCO Majestouch Lumi S |
| Número de modelo del producto | FKBN108MRL/NCSP2LS-AKP |
| Marca | Filco |
| Conectividad | PS/2, USB |
| Sistema operativo compatible | Ventanas 10 |
| Tamaño del teclado | Tamaño completo (108 teclas) |
| Dimensiones del producto | 13.8 x 44 x 3.85 cm |
| Peso | 960 gramos |
| Tipo de interruptor de llave | CHERRY MX Red |
| Material de las teclas | PBT 2-color molded keycaps |
| Cambio de teclas N | Apoyado |
| Teclas de función | Apoyado |
| Disposición | Japanese (Kana-less) |
Garantía y soporte
For warranty information and technical support, please refer to the official FILCO website or contact your local retailer. FILCO products are manufactured by Diatec.
Puede encontrar más información sobre los productos FILCO en FILCO Brand Store.
