1. Introducción
This manual provides detailed instructions for the installation, operation, and maintenance of your MSI MAG B560M Mortar WiFi Gaming Motherboard. The MAG series is engineered for durability and user-friendliness, offering a straightforward setup process and intuitive interface.
Características principales:
- Soporte de procesador: Compatible with 11th and 10th Generation Intel Core/Pentium/Celeron processors for the LGA 1200 Socket.
- Soporte de memoria: Supports DDR4 Memory for high-speed performance.
- Solución térmica avanzada: Features an Extended Heatsink Design and M.2 Shield Frozr to ensure optimal cooling for high-performance systems and extended gaming sessions.
- Almacenamiento de alta velocidad: Equipped with Turbo M.2, running at PCI-E Gen3 x4, to maximize performance for NVMe based SSDs.
- Instalación conveniente: Includes Pre-installed I/O Shielding for enhanced EMI protection and simplified installation.
Figura 1: Arriba view of the MSI MAG B560M Mortar WiFi Motherboard.
2. Contenido del paquete
Verifique que todos los artículos enumerados a continuación estén incluidos en el paquete de su placa base. Si falta algún artículo o está dañado, comuníquese con su distribuidor.

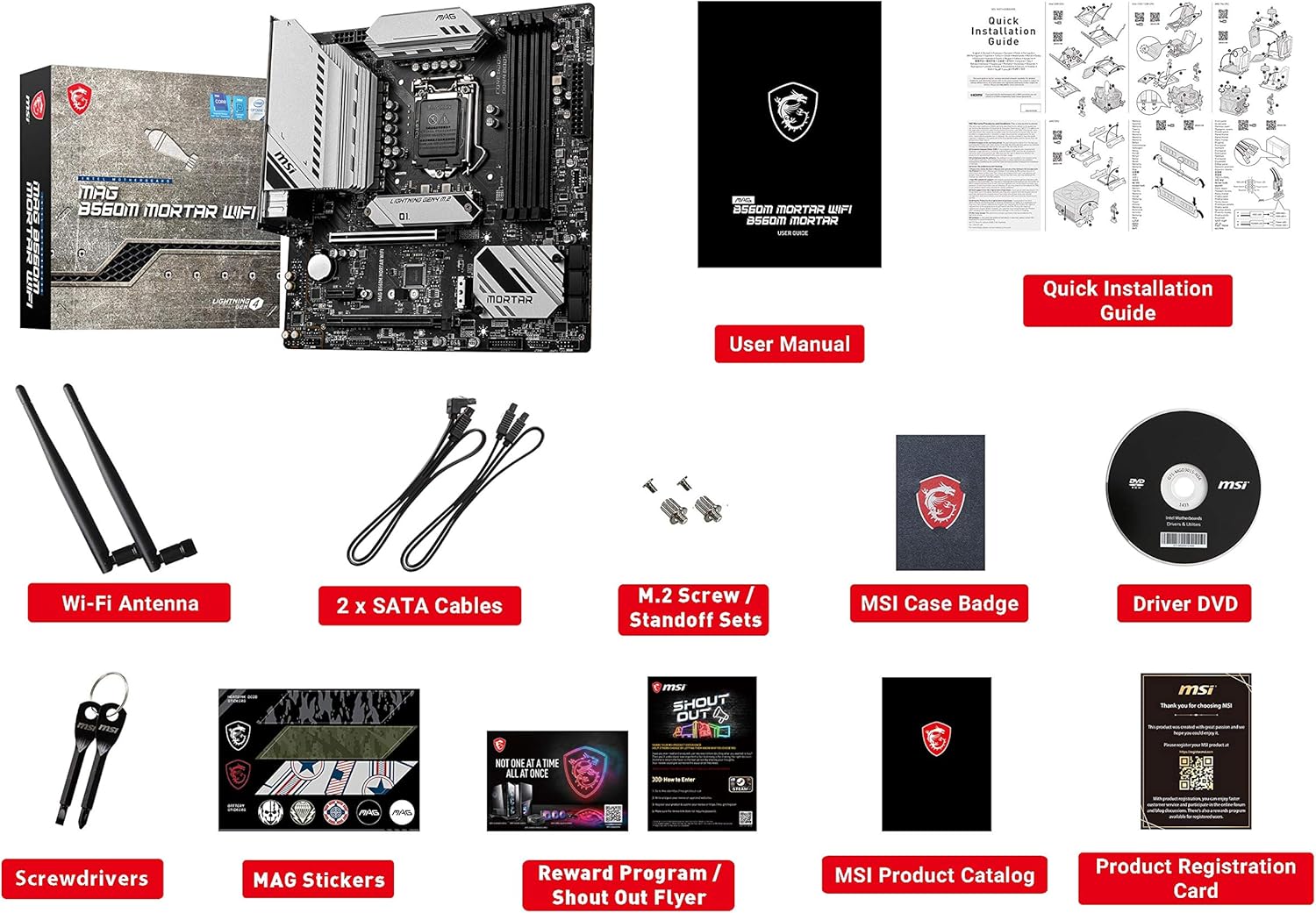

Figure 2: Included accessories with the motherboard.
- MSI MAG B560M Mortar WiFi Motherboard
- Manual de usuario
- Guía de instalación rápida
- Antena Wi-Fi
- 2 cables SATA
- M.2 Screw/Standoff Sets
- MSI Case Badge
- DVD del controlador
- Destornilladores
- MAG Stickers
- Reward Program / Shout Out Flyer
- MSI Product Catalog
- Tarjeta de registro del producto
3. Configuración e instalación
Antes de comenzar la instalación, asegúrese de que el sistema esté apagado y desenchufado de la toma de corriente. Use una pulsera antiestática para evitar daños a los componentes por descargas electrostáticas (ESD).
3.1. Instalación de la CPU
Carefully open the LGA 1200 socket lever. Align the triangular mark on your Intel LGA 1200 processor with the corresponding mark on the socket. Gently place the CPU into the socket without forcing it. Close the lever to secure the CPU.
Figura 3: Primer plano del zócalo de la CPU LGA 1200.
3.2. Instalación de RAM (memoria DDR4)
Locate the four DDR4 memory slots. Open the clips on both ends of the desired memory slot. Align the notch on the DDR4 memory module with the key in the slot. Press down firmly on both ends of the memory module until the clips snap into place.
Figure 4: DDR4 memory slots on the motherboard.
3.3. Instalación de SSD M.2
The motherboard features Turbo M.2 slots with M.2 Shield Frozr for optimal performance and cooling. Remove the M.2 Shield Frozr heatsink. Insert your NVMe M.2 SSD into the slot at an angle, then gently push it down. Secure the SSD with the provided M.2 screw/standoff set. Reattach the M.2 Shield Frozr heatsink.
Figure 5: M.2 slot with M.2 Shield Frozr heatsink.
3.4. Instalación de la tarjeta gráfica (PCIe)
Locate the PCIe 4.0 x16 slot for your graphics card. Open the retention clip at the end of the slot. Align your graphics card with the slot and press down firmly until it is seated correctly and the clip locks. Secure the card to your chassis with screws.
Figure 6: Diagram illustrating PCIe slot configuration.
3.5. Conexión de periféricos y alimentación
Connect your power supply's 24-pin ATX power connector and 8-pin CPU power connector to the motherboard. Connect SATA drives using the provided SATA cables. Attach the Wi-Fi antennas to the rear I/O panel. The motherboard features a pre-installed I/O Shield for ease of installation and improved EMI protection.
Figure 7: Rear I/O panel with various ports and pre-installed shield.
3.6. Producto terminadoview Video
Vídeo 1: Un finalview of the MSI B550M PRO-VDH WiFi Motherboard, demonstrating key features and components. Note: This video is for a related product (B550M PRO-VDH WiFi) and provides a general overview of similar MSI motherboard features.
4. Instrucciones de funcionamiento
4.1. Arranque inicial y configuración del BIOS
After assembling your system, power it on. Press the 'Del' key during startup to enter the BIOS (Basic Input/Output System) setup. In the BIOS, you can configure boot order, system time, and other advanced settings. Ensure your storage drive is recognized and set as the primary boot device.
4.2. Instalación del controlador
Once your operating system is installed, install the necessary drivers for your motherboard components. The included Driver DVD contains most drivers. Alternatively, download the latest drivers from the official MSI websitio para un rendimiento y compatibilidad óptimos.
5. Especificaciones
| Característica | Especificación |
|---|---|
| Marca | MSI |
| Nombre del modelo | MAG B560M MORTAR WIFI |
| Zócalo de CPU | LGA 1200 |
| Procesadores compatibles | 11th/10th Gen Intel Core/Pentium/Celeron |
| Tipo de chipset | Intel B560 |
| Tecnología de memoria RAM | DDR4 |
| Velocidad del reloj de memoria | 2133 MHz (admite frecuencias superiores mediante XMP) |
| Ranuras PCIe | PCIe 4.0 x16, PCIe 3.0 x16, PCIe 3.0 x1 |
| Ranuras M.2 | 2 (Turbo M.2 with M.2 Shield Frozr) |
| Red local | LAN de 2.5G |
| Conectividad inalámbrica | Wi-Fi 6E |
| Salida de vídeo | Puerto de pantalla, HDMI |
| Puertos USB | USB 3.2 Gen 2, USB 2.0 |
| Factor de forma | mATX |
| Dimensiones (LxAnxAl) | 9.6 x 9.6 x 2.5 pulgadas |
| Peso del artículo | 3.39 libras |
6. Mantenimiento
6.1. Keeping Your Motherboard Clean
Regularly clean your motherboard and PC case to prevent dust buildup, which can lead to overheating and reduced performance. Use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.
6.2. Actualizaciones del BIOS
Revise periódicamente el MSI website for BIOS updates. BIOS updates can improve system stability, add support for new hardware, and enhance performance. Follow the instructions provided by MSI carefully when updating the BIOS to avoid potential issues.
6.3. Actualizaciones de controladores
Keep your device drivers updated to ensure optimal performance and compatibility with new software and hardware. Visit the MSI support page for the latest drivers for your motherboard.
7. Solución de problemas
7.1. No hay salida de pantalla
- Ensure your monitor is connected to the graphics card (if installed) or the motherboard's integrated graphics ports.
- Check that the graphics card is properly seated in its PCIe slot and that all necessary power cables are connected.
- Verify that RAM modules are correctly installed in their slots. Try reseating them or testing with one module at a time.
7.2. Inestabilidad o fallos del sistema
- Verifique las temperaturas de la CPU y la GPU con un software de monitoreo. El sobrecalentamiento puede causar inestabilidad.
- Ensure all power connections to the motherboard and components are secure.
- Ejecute herramientas de diagnóstico de memoria para verificar si hay RAM defectuosa.
- Update your BIOS and all device drivers to the latest versions.
7.3. Problemas de conectividad Wi-Fi
- Ensure the Wi-Fi antennas are securely attached to the rear I/O panel.
- Install the latest Wi-Fi drivers from the MSI websitio.
- Check your router settings and ensure the Wi-Fi network is broadcasting.
8. Garantía y soporte
MSI products are built with a focus on quality and durability. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official MSI support websitio. los website also provides access to FAQs, driver downloads, and technical support contact information.
Para obtener más ayuda, visite el sitio web MSI Support Page.
