Introducción
The NEBO DAVINCI 5000 is a versatile, rechargeable LED flashlight designed for various applications, including outdoor activities, automotive repairs, and general home use. It features a powerful 5,000-lumen output, multiple light modes, 3X zoom, and a built-in power bank for charging external devices. Its durable construction ensures reliability in challenging environments.

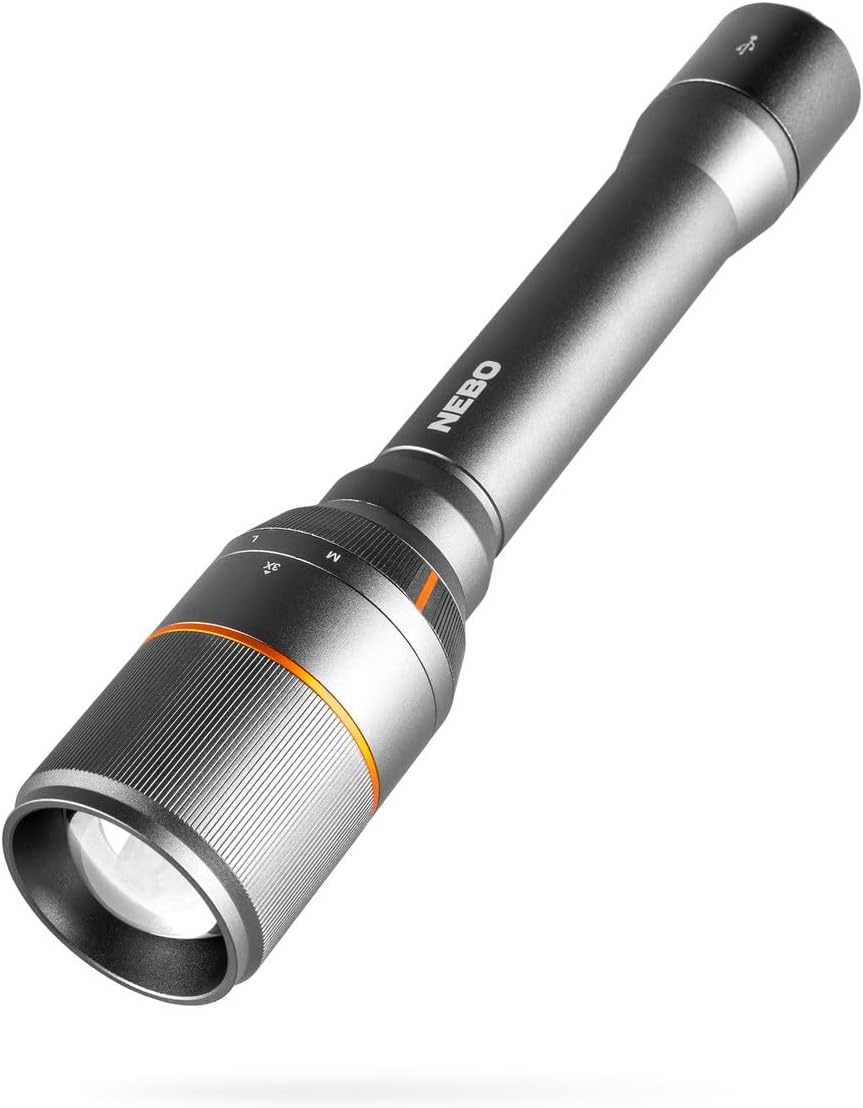

Imagen: La linterna NEBO DAVINCI 5000, mostradaasing su elegante diseño y construcción robusta.
Configuración
- Initial Battery Preparation: Before first use, ensure the battery compartment is free of any protective plastic discs. Unscrew the tail cap to access the battery. Remove any packaging materials from the battery and reinsert it correctly, then securely fasten the tail cap.
- Primer cargo: For optimal performance, fully charge the flashlight before its initial use. Refer to the "Charging the Flashlight" section for detailed instructions.
Instrucciones de funcionamiento
Encendido/apagado
- Para encender la linterna ON, press the power button located on the tail cap.
- Para encender la linterna APAGADO, presione el botón de encendido nuevamente.
Selección de modos de luz
The DAVINCI 5000 features a Mag Dial mode selector for easy switching between light modes.
- Girar el Mag Dial (located near the head of the flashlight) to select between High (H), Medium (M), Low (L), and Strobe modes.
- The selected mode will be active when the flashlight is turned on.
Image: Close-up of the flashlight's mode select dial, indicating different light settings.
Using 3X Zoom
Adjust the beam focus from a wide floodlight to a concentrated spotlight.
- To adjust the zoom, gently slide the head of the flashlight forward or backward.
- Sliding forward narrows the beam for a focused spotlight.
- Al deslizarlo hacia atrás se amplía el haz para lograr una iluminación más amplia.
Image: A person using the flashlight with its 3X zoom feature, illuminating a distant tree.
Light Modes and Performance
The DAVINCI 5000 offers four distinct light modes to suit various needs:
- Alto (5,000 lúmenes): Provides intense illumination for maximum visibility.
- Medio (1,000 lúmenes): Offers a balanced output for general use.
- Bajo (100 lúmenes): Extended runtime, suitable for close-range tasks or conserving battery. Up to 20 hours of use.
- Strobe (5,000 Lumens): Flashing light for emergency signaling or disorientation.
Image: A person walking on a path at night, illuminated by the powerful 5000 lumens of the flashlight.
Función del banco de energía
The NEBO DAVINCI 5000 can function as a portable power bank to charge other USB-powered devices.
- Locate the USB output port on the flashlight (typically under a protective cover).
- Conecte el cable de carga de su dispositivo al puerto de salida USB de la linterna.
- La linterna comenzará a cargar tu dispositivo. Observa el indicador de carga.

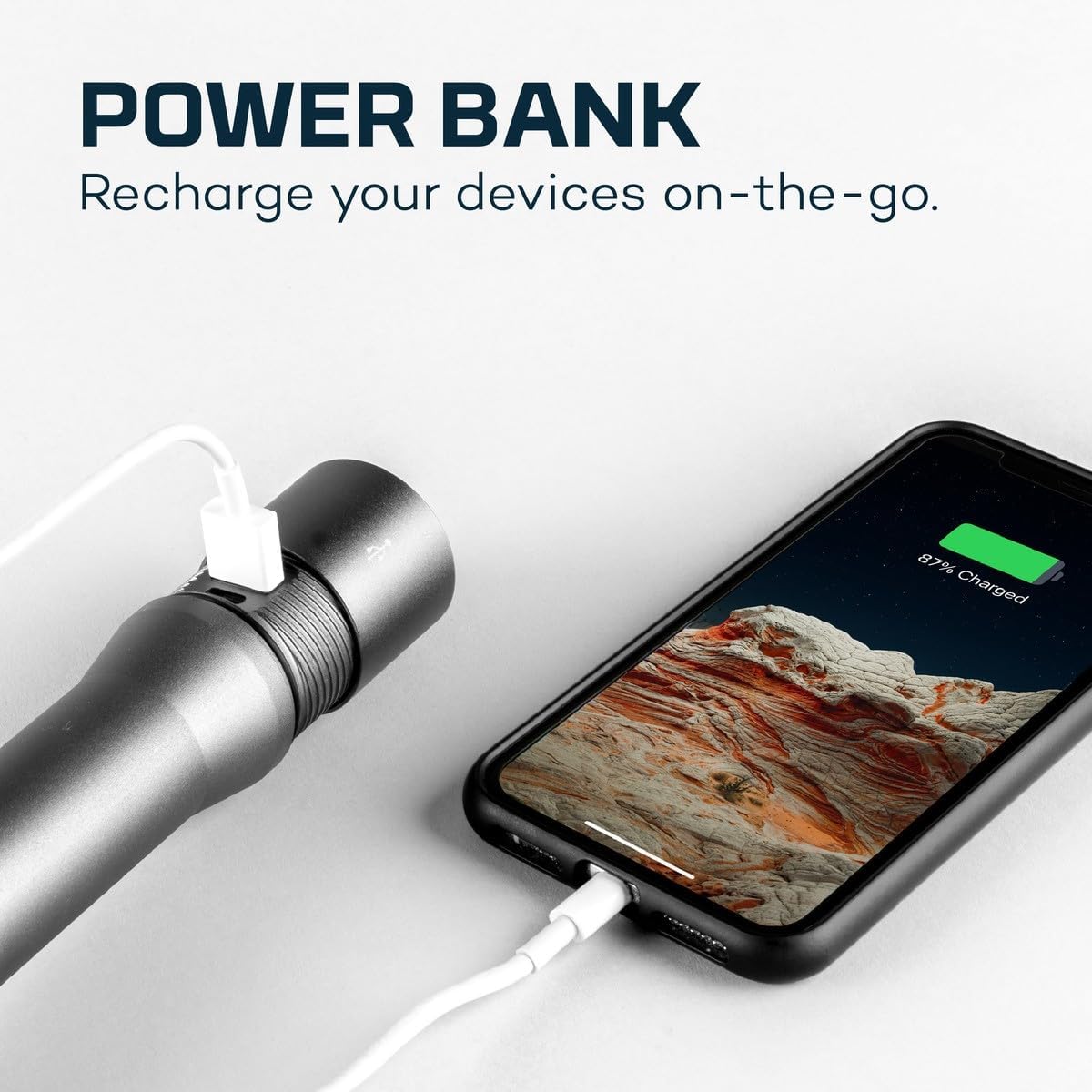

Image: The flashlight connected via USB to a smartphone, demonstrating its power bank capability.
Cargando la linterna
The internal Lithium-ion battery is rechargeable via the included Micro-USB cable.
- Locate the Micro-USB charging port on the flashlight (typically under a protective cover).
- Connect the Micro-USB cable to the flashlight's charging port.
- Connect the other end of the USB cable to a powered USB port (e.g., wall adapter, computer, power bank).
- A charging indicator light will illuminate (e.g., red for charging, blue for fully charged).
- La carga suele tardar aproximadamente 5 horas.
Image: The flashlight connected to a charging cable, with the charging indicator visible.
Mantenimiento
- Limpieza: Limpie el cuerpo de la linterna con un paño suave.amp Paño. No utilice limpiadores abrasivos ni disolventes.
- Cuidado de la batería: To prolong battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it will be stored for extended periods.
- Resistencia al agua: The flashlight is IP67-rated, meaning it is waterproof for up to 30 minutes at a depth of 3.28 feet. Ensure all caps and covers are securely closed before exposure to water.
- Almacenamiento: Guarde la linterna en un lugar fresco y seco, lejos de la luz solar directa y de temperaturas extremas.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La linterna no se enciende. | La batería está agotada o instalada incorrectamente. | Charge the battery. Ensure the battery is inserted with correct polarity and the tail cap is fully tightened. Check for any protective plastic disc that might still be on the battery. |
| La linterna no carga. | Charging cable or power source issue; internal battery issue. | Ensure the Micro-USB cable is securely connected to both the flashlight and a working power source. Try a different cable or power adapter. If the issue persists, contact customer support. |
| La salida de luz es tenue. | Low battery level; incorrect mode selected. | Recharge the battery. Rotate the Mag Dial to select a higher lumen mode (Medium or High). |
Presupuesto
| Característica | Detalle |
|---|---|
| Salida de luz (alta) | 5000 lúmenes |
| Salida de luz (media) | 1000 lúmenes |
| Salida de luz (baja) | 100 lúmenes |
| Salida de luz (estroboscópica) | 5000 lúmenes |
| Zoom | Zoom ajustable 3X |
| Fuente de poder | Rechargeable Lithium-Ion Battery (4500 mAh, 7.4V) |
| Tiempo de carga | Aproximadamente 5 horas |
| Resistencia al agua | IP67 (Resistente al agua hasta 1 metro durante 30 minutos) |
| Material | Aluminio anodizado de calidad aeronáutica |
| Dimensiones | 10.25" de profundidad x 2" de ancho x 2" de alto |
| Peso | 1.37 - 1.5 libras |
| Componentes incluidos | Flashlight, Micro-USB charging cable, detachable lanyard |
Garantía y soporte
For warranty information, product support, or to inquire about replacement parts, please visit the official NEBO webSitio web o contacte con el departamento de atención al cliente. Conserve su comprobante de compra para cualquier reclamación de garantía.
