1. Introducción
The AODELAN Flash Trigger Receiver is designed to wirelessly trigger external flashes and studio strobes. It operates on a 2.4GHz frequency, offering 8 channels for reliable communication up to 200 meters (656 feet) with a maximum sync speed of 1/250s. This receiver features a universal hot shoe, making it compatible with a wide range of camera brands including Canon, Nikon, Sony (with metal hot shoe), Olympus, Panasonic, Pentax, Fuji, and Samsung.
2. Contenido del paquete
Verifique que todos los artículos enumerados a continuación estén incluidos en su paquete:
- Receptor x 1
- 3.5 to 3.5 mm Sync Cable x 1
- 3.5 mm to PC Plug Cable x 1
- 1/4" Mono Plug Socket x 1
- Cordones x 1
Image: Package contents of the AODELAN Flash Trigger Receiver.
3. Producto terminadoview
Familiarize yourself with the components of the AODELAN Flash Trigger Receiver:

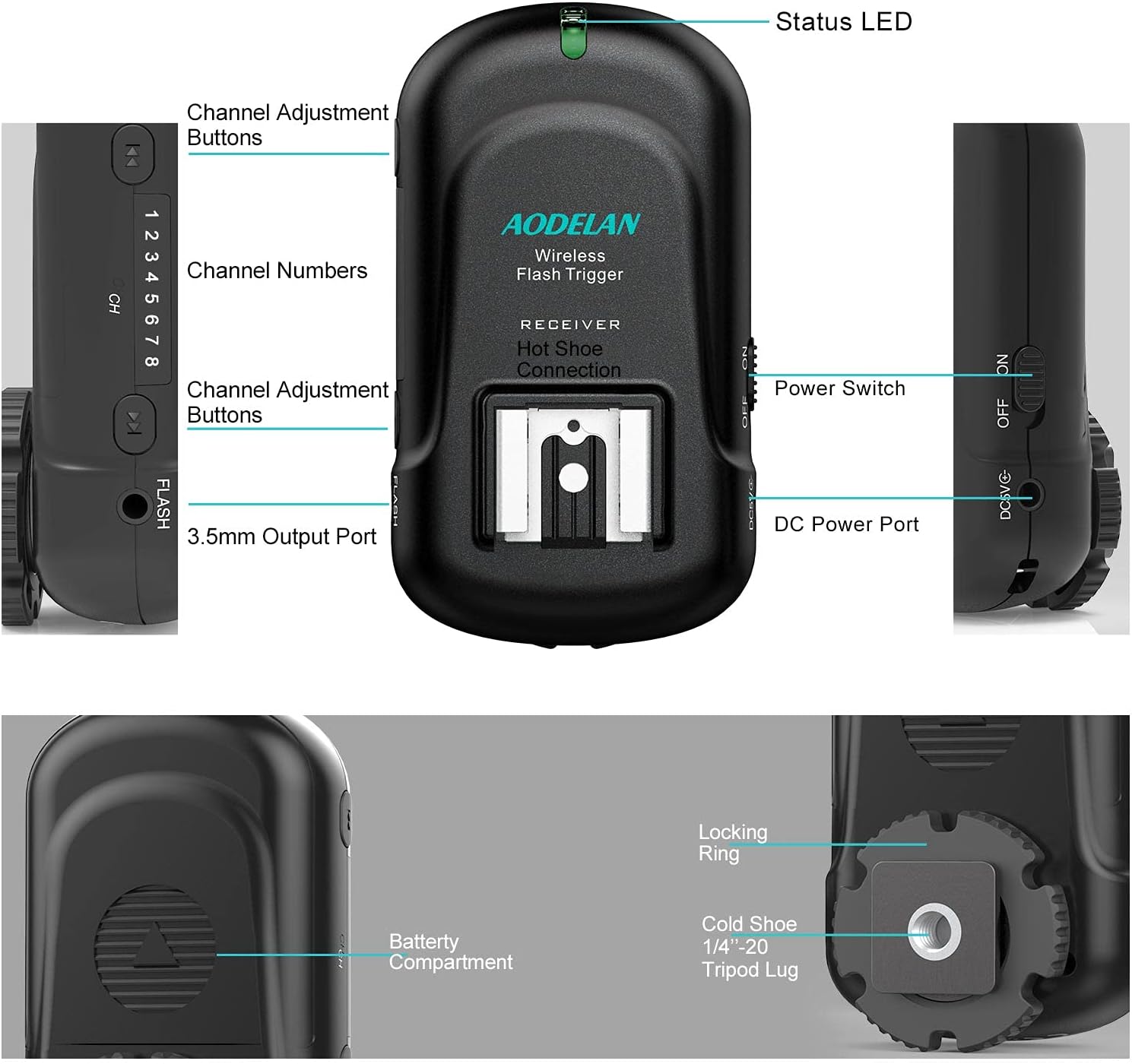

Image: Labeled components of the AODELAN Flash Trigger Receiver.
- LED de estado: Indicates power and trigger status.
- Channel Adjustment Buttons (CH +/-): Used to select the operating channel.
- Channel Numbers (1-8): Muestra el canal seleccionado actualmente.
- 3.5mm Output Port (FLASH): Connects to flashes or strobes via sync cable.
- Compartimento de la batería: Alberga las pilas AA.
- Interruptor de encendido (ON/OFF): Enciende o apaga el receptor.
- DC Power Port (DC 5V): For external power supply (if applicable, not included).
- Anillo de bloqueo: Secures the receiver to a hot shoe or light stand.
- Cold Shoe 1/4"-20 Tripod Lug: For mounting on light stands or tripods.
4. Configuración
4.1 Instalación de la batería
- Locate the battery compartment on the receiver.
- Abra la tapa del compartimiento de la batería.
- Inserte dos pilas AA, asegurándose de la polaridad correcta (+/-).
- Cierre bien la tapa del compartimento de la batería.
4.2 Connecting to a Flash Unit
The receiver can connect to a flash unit in two ways:
- Via Hot Shoe: Slide your flash unit onto the universal hot shoe of the receiver. Ensure it is securely seated.
- Via Sync Cable: For flashes or studio strobes with a 3.5mm sync port, connect one end of the provided 3.5 to 3.5 mm sync cable to the receiver's 3.5mm Output Port and the other end to your flash/strobe's sync port. For PC sync ports, use the 3.5 mm to PC plug cable.
Image: Steps for connecting a flash to the receiver via hot shoe and sync cable.
4.3 Montaje del receptor
The receiver can be mounted on a light stand or tripod using its 1/4"-20 tripod lug, or placed on a flat surface.
4.4 Configuración de canales
Ensure the receiver and your AODELAN flash trigger transmitter (sold separately) are set to the same channel (1-8) for proper communication. Use the Channel Adjustment Buttons (CH +/-) on the receiver to select the desired channel.
5. Instrucciones de funcionamiento
5.1 Encendido / Apagado
Slide the Power Switch to the "ON" position to turn on the receiver. The Status LED will illuminate. To turn off, slide the switch to "OFF".
5.2 Wireless Flash Triggering
Once the receiver is powered on, connected to a flash, and set to the same channel as your transmitter, it is ready to receive trigger signals. When the transmitter sends a signal, the receiver will trigger the connected flash unit. The maximum sync speed is 1/250s.
Image: Multiple receivers in a studio environment, demonstrating multi-flash control.
5.3 Notas de compatibilidad
The receiver is compatible with most hot shoe flashes, with the exception of Sony flashes that use a proprietary hot shoe design. For Sony cameras with a metal hot shoe, the receiver itself is compatible, but specific Sony flash units may not be directly compatible with the receiver's hot shoe.
6. Mantenimiento
To ensure the longevity and optimal performance of your AODELAN Flash Trigger Receiver:
- Mantenga el dispositivo seco y limpio. Evite la exposición a la humedad, el polvo y las temperaturas extremas.
- Limpie el exterior con un paño suave y seco. No utilice productos químicos agresivos ni limpiadores abrasivos.
- Retire las baterías si el dispositivo no se utilizará durante un período prolongado para evitar fugas.
- Conservar en un lugar fresco y seco, alejado de la luz solar directa.
7. Solución de problemas
Si tiene problemas con su receptor, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| El flash no se dispara | 1. El receptor está apagado. 2. Baterías bajas o agotadas. 3. Incorrect channel. 4. Loose connection to flash. 5. Transmitter not working or out of range. | 1. Encienda el receptor. 2. Reemplace las baterías. 3. Ensure receiver and transmitter are on the same channel. 4. Securely attach flash to hot shoe or sync cable. 5. Check transmitter functionality and reduce distance. |
| Limited range or intermittent triggering | 1. Obstructions between transmitter and receiver. 2. Interferencia electromagnética. 3. Batteries low. | 1. Ensure clear line of sight. 2. Move away from sources of interference. 3. Reemplace las baterías. |
| Flash sync issues | La velocidad de obturación excede la velocidad máxima de sincronización. | Ensure camera shutter speed is 1/250s or slower. |
8. Especificaciones
- Modelo: AODELAN-XXXX
- Dimensiones del producto: 1.34 x 2 x 3.4 pulgadas
- Peso del artículo: 2.08 onzas
- Frecuencia inalámbrica: 2.4 GHz
- Canales: 8
- Alcance de comunicación: Hasta 200 metros (656 pies)
- Velocidad máxima de sincronización: 1/250 s
- Fuente de energía: 2 pilas AA (no incluidas)
- Montajes compatibles: Universal Hot Shoe (compatible with Canon, Nikon, Sony (metal hot shoe), Olympus, Panasonic, Pentax, Fuji, Samsung)
- Componentes incluidos: Receiver, 3.5 to 3.5mm sync cable, 3.5mm to PC plug cable, 1/4" mono plug socket, Lanyards
Image: Key features and included cables.
9. Garantía y soporte
For warranty information or technical support, please refer to the official AODELAN webSitio web o contacte a su vendedor. Conserve su recibo de compra como comprobante.
