MOOER GWF4 Wireless Footswitch Driver User Manual

1. Introducción

The MOOER GWF4 Wireless Footswitch Driver is designed to enhance your control over compatible MOOER intelligent devices such as the Prime P1, SD30i, Hornet 05i, and GTRS Guitar. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and a seamless user experience.

2. Información de seguridad

• Lea atentamente todas las instrucciones antes de utilizar el dispositivo.
• No exponga el dispositivo al agua, humedad excesiva o temperaturas extremas.
• Avoid attempting to disassemble or repair the unit yourself. Refer to qualified service personnel for any maintenance or repair needs.
• Use only specified power adapters and cables to prevent damage and ensure safe operation.

3. Producto terminadoview

The GWF4 is a compact and versatile wireless footswitch designed for seamless integration with your MOOER intelligent devices. It features four footswitches (A, B, C, D) and a clear LED display for status and preset indication.

Características principales

• Wireless connectivity (2.4GHz)
• Batería recargable (720 mAh)
• Toque la función de tempo
• Conmutación preestablecida
• Looper and Drum machine control
• Función de sintonizador

Image: A black MOOER GWF4 wireless footswitch with four silver footswitch buttons and a central display. The image highlights its compact design.

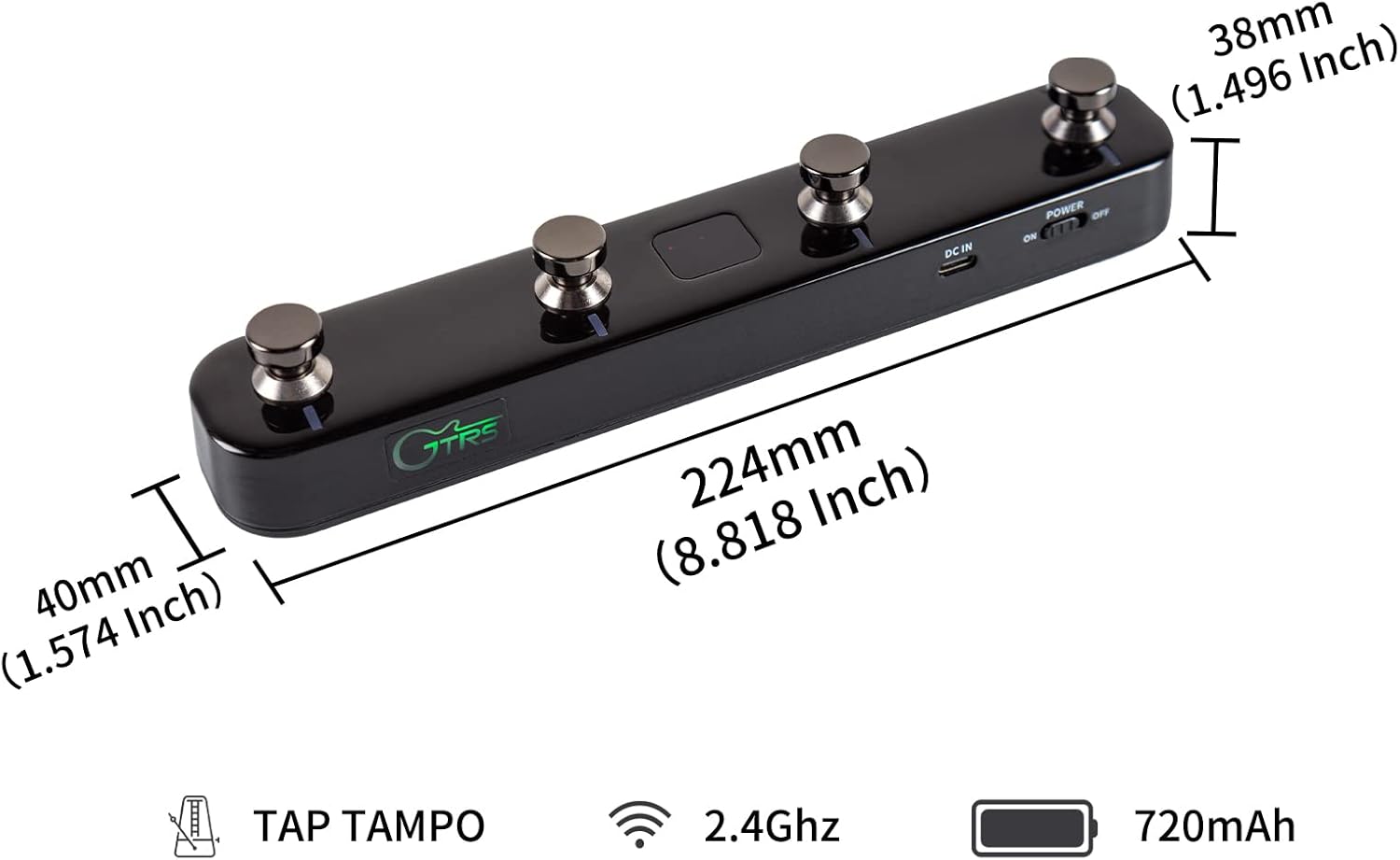

Image: The MOOER GWF4 wireless footswitch shown with its dimensions: 224mm (8.818 Inch) length, 40mm (1.574 Inch) width, and 38mm (1.496 Inch) height.

4. Configuración y emparejamiento

4.1 Carga del dispositivo

Connect the provided USB charging cable to the DC IN port on the GWF4 footswitch and a suitable USB power source. The power indicator will show the charging status.

4.2 Encendido / Apagado

Use the ON/OFF switch located on the side of the footswitch to power the device on or off.

4.3 Pairing with MOOER Prime P1 App

1. Ensure your MOOER Prime P1 device is powered on.
2. Open the MOOER Prime P1 App on your mobile device.
3. Turn on Bluetooth in your mobile device's system settings.
4. In the Prime P1 App, select the Bluetooth icon and confirm connection to "Prime P1".
5. On the GWF4 footswitch, press and hold footswitches A and C simultaneously until the footswitch LEDs start blinking, indicating pair mode.
6. In the app, click on the wireless footswitch icon to initiate pairing.
7. Once connected, the footswitch display will show the currently selected preset slot.

Video: This video demonstrates the process of connecting the GTRS GWF4 Guitar Wireless Footswitch to a mobile device via the MOOER Prime P1 app, showing the pairing steps and successful connection.

5. Instrucciones de funcionamiento

5.1 Preset Switching

Once paired, you can use the footswitches to navigate through presets:

• Press footswitches A and B simultaneously to scroll up through preset banks.
• Press footswitches C and D simultaneously to scroll down through preset banks.
• Individual footswitches (A, B, C, D) can be assigned to specific presets or functions within the app.

5.2 Función del sintonizador

Press and hold footswitch B to enter tuner mode. You can view the tuning on the app display or the footswitch's LED display.

5.3 Tap Tempo

If a selected preset includes a delay effect, the LED of footswitch B will blink to indicate the delay time. Press footswitch B multiple times (more than three) to set the delay time via tap tempo.

5.4 Looper y caja de ritmos

To enter Looper and Drum Machine mode, press footswitches B and C simultaneously. The footswitch display will show "Ld".

• In drum machine mode, press footswitch D to start playing a drum groove.
• Press footswitch C to set the playing speed via tap tempo.
• Press and hold footswitch C to enter drum groove select mode. The LEDs of C and D will blink simultaneously. Use C or D to switch between grooves. The mode will exit automatically after 3 seconds of inactivity.
• Footswitches A and B are used for looper control. Press A to start recording. If a guitar signal is detected, the looper will begin recording.
• Press B to stop recording. Press and hold B to delete tracks.
• To use the looper and drum machine simultaneously, ensure "SYNC" is turned on in the drum machine page of the app.

Video: This tutorial demonstrates the various functions of the MOOER Prime P1 app, including firmware management, effect chain editing, preset selection, and the use of built-in tools like tap tempo, drum machine, tuner, and looper.

6. MOOER Prime P1 App Interface Guide

The MOOER Prime P1 App provides comprehensive control over your device and its functionalities.

6.1 Gestión del firmware

The Prime P1 has A, B, C three different firmware slots for loading various firmwares (e.g., guitar, bass). You can select a firmware to load to a target slot and overwrite the currently installed firmware. Switching firmware usually takes approximately 1 minute.

6.2 Effect Chain and Presets

The app allows for an editable effect chain for both guitar and bass signals. You can select target modules to turn them on/off, drag modules to change their order (for guitar firmware), and select preset patches. Remember to click the SAVE button to store any changes. A quick preset menu is also available for easy access.

6.3 Mixer and Guide Mode

Adjust the mixer for all signals to fine-tune your sound. The app also features a guide mode (accessed via the "?" icon) to help you understand its various functions quickly.

6.4 System Menu and Tools

Access the system menu via the "P1" icon. Here you can upload or download presets to/from the cloud, adjust system settings (e.g., output mode, global EQ, input gain, sleep settings, Bluetooth rename), and access built-in tools like tap tempo, drum machine, tuner, and looper.

7. Función de audio Bluetooth

The Prime P1 supports Bluetooth audio, allowing you to play backing tracks from your mobile device.

1. Open the Bluetooth menu on your mobile device.
2. Buscar "Prime P1 Audio" and confirm the connection.
3. Once connected, you can play audio from your mobile device through the Prime P1.

8. OTG Recording Tutorial

The Prime P1 can be used for direct recording to your mobile device via OTG (On-The-Go) functionality.

8.1 Requisitos

• Cable USB 3.0 tipo C
• OTG cable (Type-C for Android, Lightning for iOS)

8.2 Pasos de conexión

1. Connect the type-C USB port of the USB 3.0 cable to the Prime P1.
2. Connect the type-A port of the USB 3.0 cable to the OTG cable.
3. Connect the OTG cable to your mobile device.
4. The indicator on the Prime P1 will light up, confirming connection.

8.3 Grabación

For Android devices supporting OTG, you can use the native camera app for recording. If your Android device does not support OTG, please use a third-party recording app. iOS/iPadOS users can use the native camera app directly for recording.

Video: This video provides a tutorial on how to use the OTG function with the MOOER Prime P1, demonstrating the necessary cables and connection steps for recording audio directly to mobile devices.

9. Mantenimiento

• Limpie el dispositivo con un paño suave y seco. Evite el uso de limpiadores abrasivos o disolventes.
• Guarde el dispositivo en un lugar fresco y seco, lejos de la luz solar directa.
• Asegúrese de que el dispositivo esté completamente cargado antes de almacenarlo durante un período prolongado para mantener la salud de la batería.

10. Solución de problemas

10.1 El dispositivo no se enciende

• Check the battery level and charge the device using the provided USB cable.
• Asegúrese de que el interruptor de encendido esté firmemente en la posición "ENCENDIDO".

10.2 Footswitch Not Pairing

• Asegúrese de que Bluetooth esté habilitado en su dispositivo móvil.
• Verify the MOOER Prime P1 app is open and the correct device is selected for pairing.
• Re-enter pair mode on the GWF4 footswitch by pressing and holding footswitches A and C simultaneously.
• Ensure the footswitch is within effective Bluetooth range of the Prime P1.

10.3 Problemas de audio

• Check all cable connections (instrument input, audio output, headphones).
• Adjust volume levels on the Prime P1, the app, and any connected audio devices.
• Ensure the correct firmware (guitar or bass) is loaded for your instrument in the app.

10.4 App Not Responding

• Close and restart the MOOER Prime P1 app.
• Reinicia tu dispositivo móvil.
• Check for any available app updates in your device's app store.

11. Especificaciones

12. Garantía y soporte

For detailed warranty information, technical support, and service inquiries, please refer to the official MOOER website or contact your local authorized distributor. It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.
