1. Instrucciones de seguridad
Read and understand all safety warnings and instructions before using this battery pack. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Use only with compatible Ingco 20V P20S tools and chargers.
- Do not expose the battery pack to water or extreme temperatures (above 40°C / 104°F or below 0°C / 32°F).
- No provoque cortocircuito en los terminales de la batería.
- No intente abrir, desmontar ni modificar el paquete de baterías.
- Dispose of batteries responsibly according to local regulations. Do not dispose of in fire.
- Mantenga la batería fuera del alcance de los niños.
- If the battery pack is damaged, do not use it. Contact customer support.
- Avoid dropping the battery pack. If dropped, inspect for damage before further use.
2. Producto terminadoview
The Ingco FBLI2001A is a 20V 2.0Ah Lithium-Ion battery designed for use with all Ingco 20V P20S power tools. It features an LED power indicator and multiple internal protection mechanisms to ensure safe and reliable operation.
Características principales
- Compatible with all INGCO P20S Tools.
- No memory effect, ensuring the battery is always ready to use.
- Low self-discharge rate for extended shelf life.
- LED battery power indicator for precise battery level monitoring.
- Protection against over-discharge, over-heating, and overload.
- Extremely long life thanks to balance charge technology.
Componentes de la batería
This image highlights the key external features of the Ingco 20V 2.0Ah battery, including the battery replacement button, power indicator, and mounting slot.

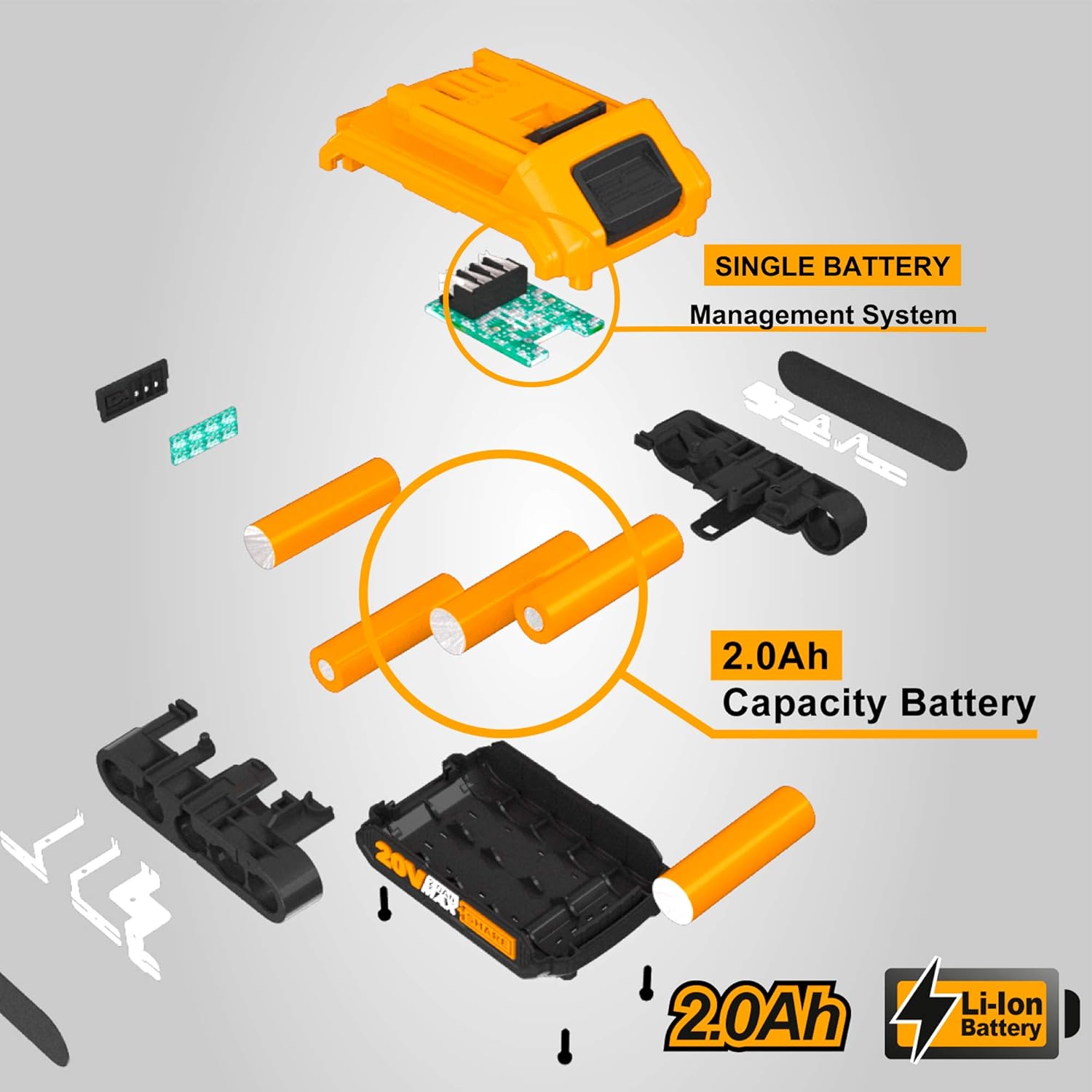

Esta imagen muestra una explosión view of the Ingco 20V 2.0Ah Lithium-Ion battery, illustrating its internal components including the 2.0Ah capacity cells and the single battery management system.
3. Configuración y carga
Instalación de la batería
- Align the battery pack with the battery slot on your Ingco 20V P20S tool.
- Deslice la batería en la herramienta hasta que encaje firmemente. Asegúrese de que esté bien colocada para evitar que se suelte accidentalmente durante el uso.
Quitar la batería
- Press and hold the battery release button, typically located on the front or side of the battery pack (refer to the 'Battery Components' image in Section 2).
- Deslice la batería fuera de la herramienta.
Cargando la batería
The Ingco FBLI2001A battery requires a compatible Ingco 20V charger (not included). Always use an original Ingco charger for optimal performance and safety.
- Conecte el cargador a una toma de corriente estándar.
- Slide the battery pack onto the charger, ensuring it is properly aligned and seated.
- The charger's indicator lights will display the charging status. Refer to your specific charger's manual for detailed information on light patterns (e.g., solid red for charging, solid green for fully charged).
- A full charge for the 2.0Ah battery typically takes approximately 1 hour.
- Una vez completamente cargada, retire la batería del cargador.
This image illustrates the charging process for the Ingco 20V 2.0Ah battery, showing the battery connected to a charger and indicating a fast charge time of 1 hour.
4. Instrucciones de funcionamiento
Comprobación de la carga de la batería
The Ingco 20V 2.0Ah battery features an LED power indicator. To check the current charge level, press the button located next to the indicator lights. The number of illuminated LEDs will indicate the remaining battery capacity.
Using with Ingco 20V P20S Tools
This battery is designed for seamless integration with all Ingco 20V P20S series power tools. Ensure the battery is fully charged before use for optimal performance and to maximize tool run time.
This video demonstrates the Ingco 20V 2.0Ah battery powering various Ingco 20V P20S tools, showcasing its versatility and compatibility across the tool range.
5. Mantenimiento y almacenamiento
Limpieza
Keep the battery contacts clean and free from debris. Use a dry, soft cloth to wipe away any dust or dirt. Do not use liquids or solvents.
Almacenamiento
- Store the battery pack in a cool, dry place, away from direct sunlight, moisture, and flammable materials.
- For long-term storage, it is recommended to charge the battery to approximately 50-70% capacity.
- Avoid storing the battery in temperatures below 0°C (32°F) or above 40°C (104°F).
- If storing for extended periods, periodically check the charge level and recharge to 50-70% if necessary.
Funciones de protección de la batería
The Ingco 20V 2.0Ah battery is equipped with advanced internal protection mechanisms to ensure longevity and safe operation:
- exceso de volumentagy Protección: Prevents damage to the battery cells from excessive charging voltage.
- Protección contra la sobretensión: Safeguards the battery against high current draw that could lead to overheating or damage.
- Protección contra sobretemperatura: Shuts down battery operation if the internal temperature exceeds safe limits, preventing thermal damage.
- Protección de carga: Manages the charging process to prevent overcharging, which can degrade battery life.
This image displays icons representing the various protection features of the Ingco 20V 2.0Ah battery, including over-voltage, sobrecorriente, sobretemperatura y protección de carga.
This image illustrates the efficient cooling system of the Ingco 20V 2.0Ah battery, designed to protect it from high-temperature operation and enhance its lifespan.
6. Solución de problemas
If you encounter issues with your Ingco 20V 2.0Ah battery, refer to the table below for common problems and solutions.
| Problema | Posible causa | Solución |
|---|---|---|
| La batería no se carga | Charger not connected, faulty charger, battery too hot/cold | Ensure the charger is securely plugged into a working power outlet. Check the charger for any visible damage. Allow the battery to reach room temperature (between 0°C and 40°C) before attempting to charge. |
| La herramienta no funciona | Battery not fully inserted, battery discharged, faulty tool | Ensure the battery is securely clicked into place in the tool. Check the battery's charge level using the LED indicator and recharge if necessary. If the issue persists, test the tool with another known-good battery or contact tool support. |
| Tiempo de ejecución corto | Battery not fully charged, battery nearing end of life, heavy load on tool | Ensure the battery is fully charged before use. Battery capacity naturally decreases over time with repeated charge cycles. Consider replacing an aging battery. Reduce the load on the tool if possible. |
| La batería se calienta durante el uso/carga | Normal operation under heavy load, overcharging, faulty battery | Some heat is normal during heavy use or charging. If it feels excessively hot, stop use/charging immediately and allow it to cool. Ensure you are using a compatible charger. If overheating persists, discontinue use and contact support. |
7. Especificaciones
Detailed technical specifications for the Ingco 20V 2.0Ah Lithium-Ion Battery (Model FBLI2001A).
| Característica | Detalle |
|---|---|
| Volumentage | 20 V |
| Tipo de batería | Iones de litio |
| Capacidad | 2.0 Ah |
| Número de modelo | FBLI2001A |
| Peso del artículo | 7.4 onzas |
| Dimensiones del producto | 4.92 x 3.35 x 1.18 pulgadas |
| Fabricante | INGCO |
| Usos recomendados | INGCO Power Tools |

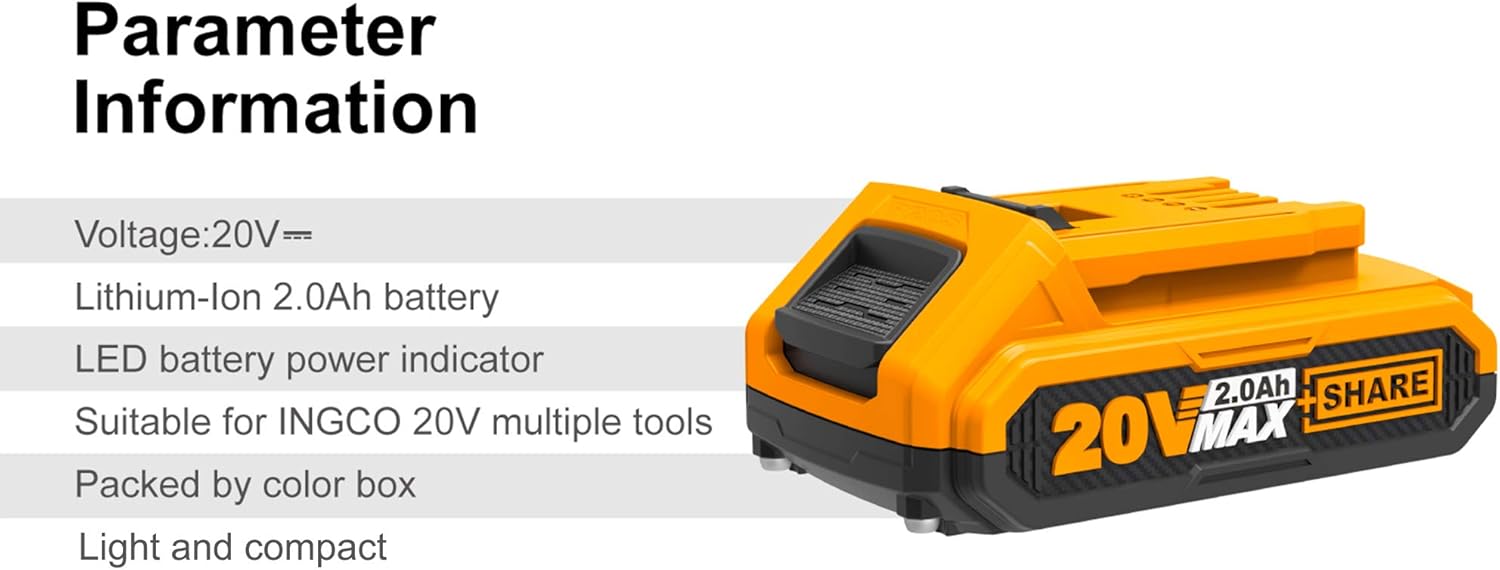

This image provides a summary of the Ingco 20V 2.0Ah battery's key parameter information, including voltage, battery type, capacity, and compatibility.
8. Garantía y soporte
For detailed warranty information regarding your Ingco 20V 2.0Ah Lithium-Ion Battery, please refer to the warranty card included with your purchase or visit the official Ingco webSitio. Conserve su recibo de compra como comprobante de compra para cualquier reclamación de garantía.
For technical support, service, or inquiries, please contact your local authorized Ingco dealer or Ingco customer service through their official channels.
