VOUNOT 10x10ft Pop Up Gazebo Tent Instruction Manual

1. Producto terminadoview

The VOUNOT 10x10ft Pop Up Gazebo Tent is designed for various outdoor activities, offering a shaded area and flexible enclosure options. It features a robust steel frame and a PA-coated polyester roof for sun protection.

Características principales:

• Construcción sólida: The upgraded frame is made of high-quality powder-coated steel for rust resistance and enhanced durability. The 160g/㎡ PA-coated polyester roof provides effective sun protection.
• 4 Detachable Side Panels: Includes two side panels with windows and two side panels with zippers for entrance. These panels can be removed individually or entirely to adapt to weather conditions or usage needs.
• Uso versátil: Provides a 10x10ft shaded area, suitable for family gatherings, picnics, parties, outdoor events, camping y aplicaciones comerciales.
• Fácil de instalar: Features a pop-up design for quick setup without tools. The gazebo is compact and easy to store when folded.
• Contenido del paquete: 1 folding pavilion frame, 4 side panels, 4 sandbags, 4 pegs, 4 ropes, 1 carrying bag, and 1 set of assembly instructions.

Important Note: This Pop Up Gazebo is not intended for use unattended or in inclement weather conditions.

2. Instrucciones de configuración

Follow these steps for proper assembly of your VOUNOT Pop Up Gazebo Tent. It is recommended that two people perform the setup for ease and safety.

2.1 Unpacking and Initial Frame Setup

1. Remove all components from the carrying bag.
2. Place the folded frame in the desired location.
3. With two people, grasp opposite corners of the frame and slowly pull outwards, partially extending the frame.
4. Place the canopy fabric over the partially extended frame. Ensure the canopy is correctly oriented with the VOUNOT logo facing the front.
5. Continue to pull the frame outwards until it is fully extended. The frame will click into place.
6. Secure the canopy to the frame using the attached Velcro straps or ties.

Ayuda visual:

Figure 2.1: Proper two-person frame extension for stability and to prevent damage.

Figure 2.2: Details of roof attachment, frame connection, and weight bag placement.

2.2 Attaching Side Panels

1. Identify the window panels and zipper entrance panels.
2. Attach the side panels to the gazebo frame using the integrated Velcro fasteners. Ensure a snug fit.
3. The zipper panels can be rolled up and secured with ties for an open entrance.

Ayuda visual:

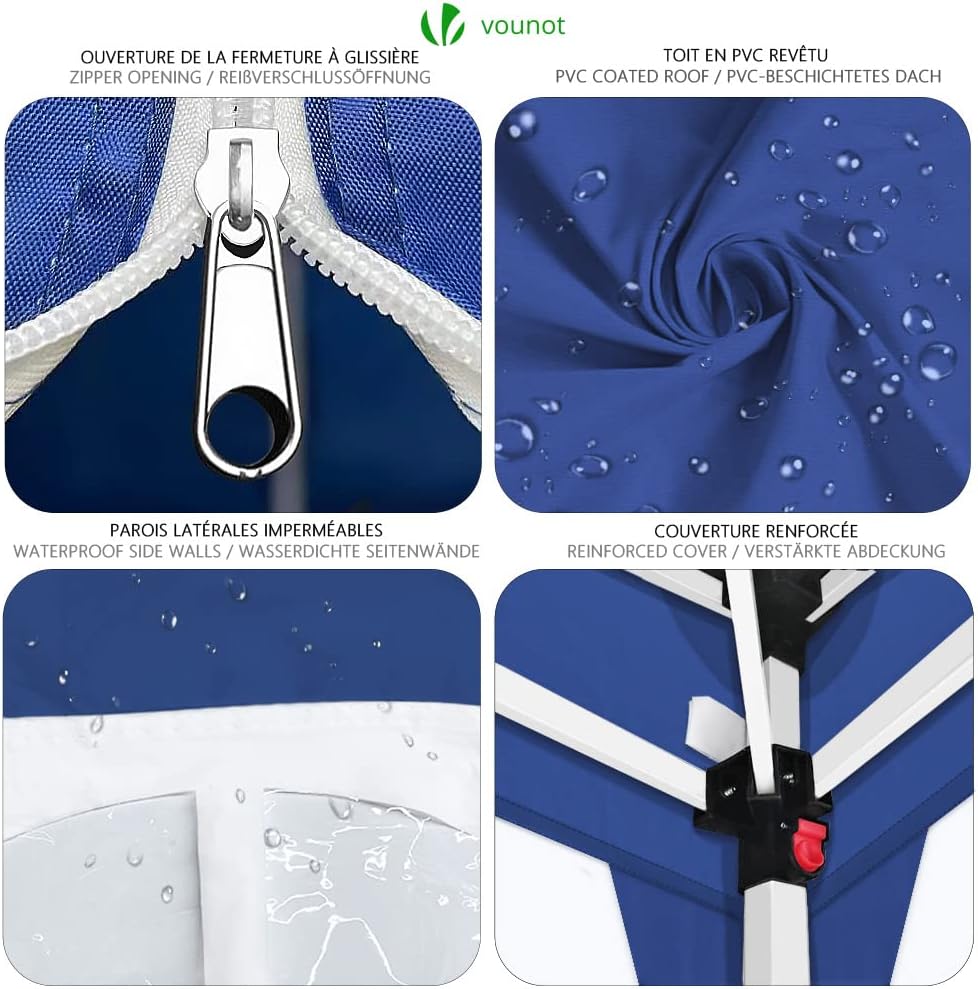

Figure 2.3: Details of side panel features including zippers and waterproof material.

2.3 Asegurar el cenador

To ensure stability, especially in light wind conditions, use the provided sandbags, pegs, and ropes.

1. Fill the sandbags with sand or other heavy material and attach them to the gazebo legs.
2. Use the pegs to anchor the gazebo legs to the ground.
3. Attach the ropes to the gazebo frame and secure them to the ground with additional pegs, pulling taut to provide extra stability.

Ayuda visual:

Figure 2.4: Gazebo fully set up with accessories.

Configuración de vídeo:

Video 2.1: Demonstrates the quick setup process of the VOUNOT Pop Up Gazebo Tent.

3. Instrucciones de funcionamiento

The VOUNOT Pop Up Gazebo Tent offers flexibility for various outdoor needs.

3.1 Adjusting Side Panels

• To create an open space, detach all side panels.
• To block wind or sun, attach the desired number of side panels. The window panels allow light while providing shelter.
• Use the zippered panels as entrances, rolling them up and securing them with ties when open.

Ayuda visual:

Figure 3.1: Different configurations of the gazebo for various uses.

3.2 Protección UV

The gazebo's PA-coated polyester roof provides ultraviolet light protection, offering a shaded retreat from direct sunlight.

Ayuda visual:

Figure 3.2: The gazebo roof provides protection from UV rays.

4. Mantenimiento

Un mantenimiento adecuado prolongará la vida útil de su cenador.

4.1 Limpieza

• Clean the canopy and side panels with a mild soap solution and water. Do not use harsh chemicals or abrasive cleaners.
• Rinse thoroughly and allow all fabric components to air dry completely before storage to prevent mildew.
• Limpie el marco de acero con publicidad.amp paño.

4.2 Almacenamiento

• Ensure all parts are clean and dry before disassembling.
• Carefully fold the canopy and side panels.
• Collapse the frame according to the reverse of the setup instructions.
• Store all components in the provided carrying bag in a dry, cool place away from direct sunlight.

5. Solución de problemas

Esta sección aborda problemas comunes que puede encontrar con su cenador.

5.1 Problemas de estabilidad

• Gazebo feels wobbly: Ensure all frame joints are fully extended and locked into place. Verify that sandbags are filled and properly attached to each leg. Use all provided pegs and ropes to anchor the gazebo securely to the ground.
• Gazebo is unstable in wind: The gazebo is not designed for use in strong winds. Always disassemble and store the gazebo during inclement weather. If light winds are present, ensure all anchoring methods (sandbags, pegs, ropes) are fully utilized.

5.2 Fugas de agua

• Water dripping through canopy: While the roof is PA-coated for sun protection, the product specifications state it is "Not Water Resistant." It is designed for sun shade and light drizzle, not heavy rain. For prolonged rain, it is recommended to take down the gazebo.

5.3 Dificultades de montaje

• Frame not extending smoothly: Ensure two people are involved in the setup, pulling opposite corners evenly. Uneven pressure can cause the frame to bind. Refer to Figure 2.1 for correct technique.
• Side panels not fitting: Check that the gazebo frame is fully extended and the canopy is properly seated. Ensure you are attaching the correct panels to the corresponding sides.

6. Especificaciones

Ayuda visual:

Figura 6.1: Dimensiones del mirador.
