ZEVNI Black Vanity Light Instruction Manual

1. Introducción

This manual provides detailed instructions for the installation, operation, and maintenance of your ZEVNI Black Vanity Light. Please read this manual thoroughly before installation and retain it for future reference. This 4-light vanity light is designed for modern spaces, featuring a metal construction with a rectangle backplate and a horizontal arm, complemented by clear cylinder glass shades.

2. Información de seguridad

ADVERTENCIA: Riesgo de descarga eléctrica. Desconecte la alimentación en la caja de fusibles o el disyuntor antes de realizar cualquier instalación o mantenimiento.

• All electrical connections must be in accordance with local codes and ordinances, and the National Electric Code (NEC).
• Consulte a un electricista calificado si no está seguro acerca del proceso de instalación.
• Manipule los componentes de vidrio con cuidado para evitar roturas.
• Asegúrese de que la superficie de montaje pueda soportar el peso del accesorio.
• No exceda el máximo de agua.tage especificado para las bombillas.

3. Contenido del paquete

Verifique que todos los componentes estén presentes antes de comenzar la instalación:

• Vanity Light Fixture (1)
• Pantallas de vidrio transparente (4)
• Kit de hardware de montaje (1)
• Manual de instrucciones (1)

Nota: Las bombillas no están incluidas y deben comprarse por separado.

4. Especificaciones

Figure 1: Product Dimensions. This diagram illustrates the overall length (27 inches), width (6 inches), and height (8 inches) of the vanity light, along with individual shade dimensions and canopy measurements.

5. Configuración e instalación

Antes de comenzar:

• Desconecte la alimentación en el disyuntor o en la caja de fusibles.
• Ensure you have all necessary tools (screwdriver, wire strippers, electrical tape, etc.) and safety equipment (safety glasses).

Pasos de instalación:

1. Coloque la placa de montaje: Secure the mounting plate to the junction box in the wall using the provided screws. Ensure it is firmly attached.
2. Conexiones de cable: Connect the fixture's wires to the corresponding house wires. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the ground wire to the ground wire. Use wire nuts to secure connections and wrap with electrical tape for added safety.
3. Accesorio de montaje: Carefully align the fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is flush against the wall. The fixture can be mounted with shades facing up or down.
4. Instalar cortinas de vidrio: Gently attach each clear glass shade to the fixture. Ensure they are securely fastened but do not overtighten.
5. Insertar bombillas: Screw in four E26 base bulbs (max 40W each, not included) into the sockets. Type T bulbs are recommended.
6. Restaurar energía: Vuelva a encender la energía en el disyuntor.

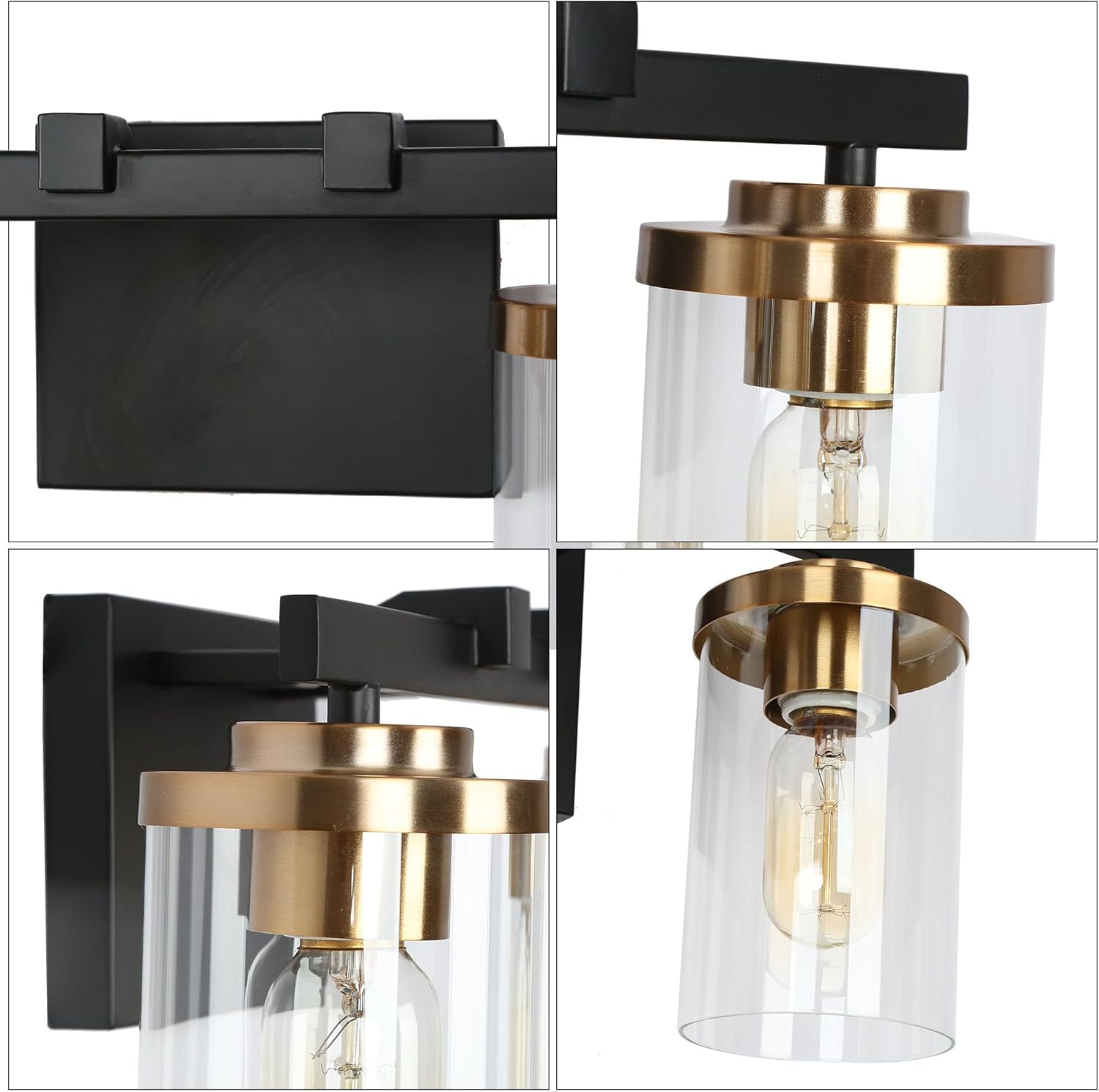

Figure 2: Component Detail. This image shows a detailed view of the fixture's construction, highlighting the black metal backplate, gold accents, and clear glass shade attachment points.

6. Instrucciones de funcionamiento

Once installed, the ZEVNI Black Vanity Light operates like any standard wall-mounted light fixture.

• Encender/Apagar: Utilice el interruptor de pared conectado al artefacto para encender o apagar la luz.
• Funcionalidad de atenuación: If you have installed compatible dimmable E26 bulbs and a dimmer switch (both not included), you can adjust the brightness level of the light by operating the dimmer switch.

Figure 3: Light On/Off Comparison. This image illustrates the appearance of the vanity light when it is off (top) and when it is illuminated (bottom), showcasing the warm glow.

7. Mantenimiento

• Limpieza: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish. The glass shades can be removed and washed with mild soap and water, then dried thoroughly before reinstallation.
• Reemplazo de bombilla: Ensure power is off before replacing bulbs. Allow bulbs to cool completely before touching. Unscrew old bulbs and screw in new E26 base bulbs (max 40W).
• Inspección: Revise periódicamente todas las conexiones y el hardware de montaje para asegurarse de que permanezcan seguros.

8. Solución de problemas

9. Garantía y soporte

This ZEVNI product comes with a manufacturer's warranty. For specific warranty details or technical support, please refer to the warranty card included with your purchase or contact ZEVNI customer service directly.

Manufacturer: KSANA LLC

10. Imágenes del producto

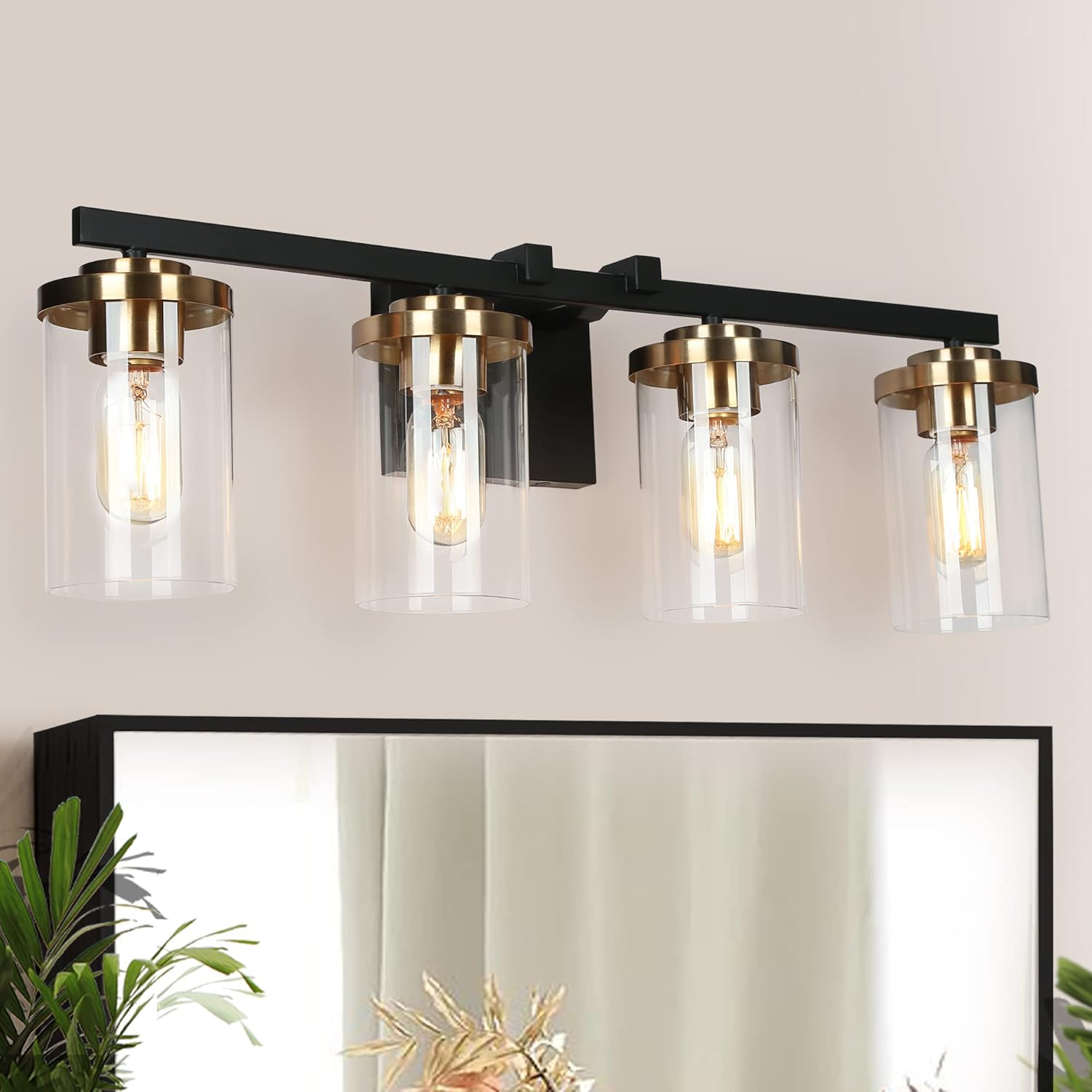

Figure 4: ZEVNI Black Vanity Light in a modern bathroom setting. This image displays the 4-light fixture mounted above a mirror, showcasing su diseño e iluminación.

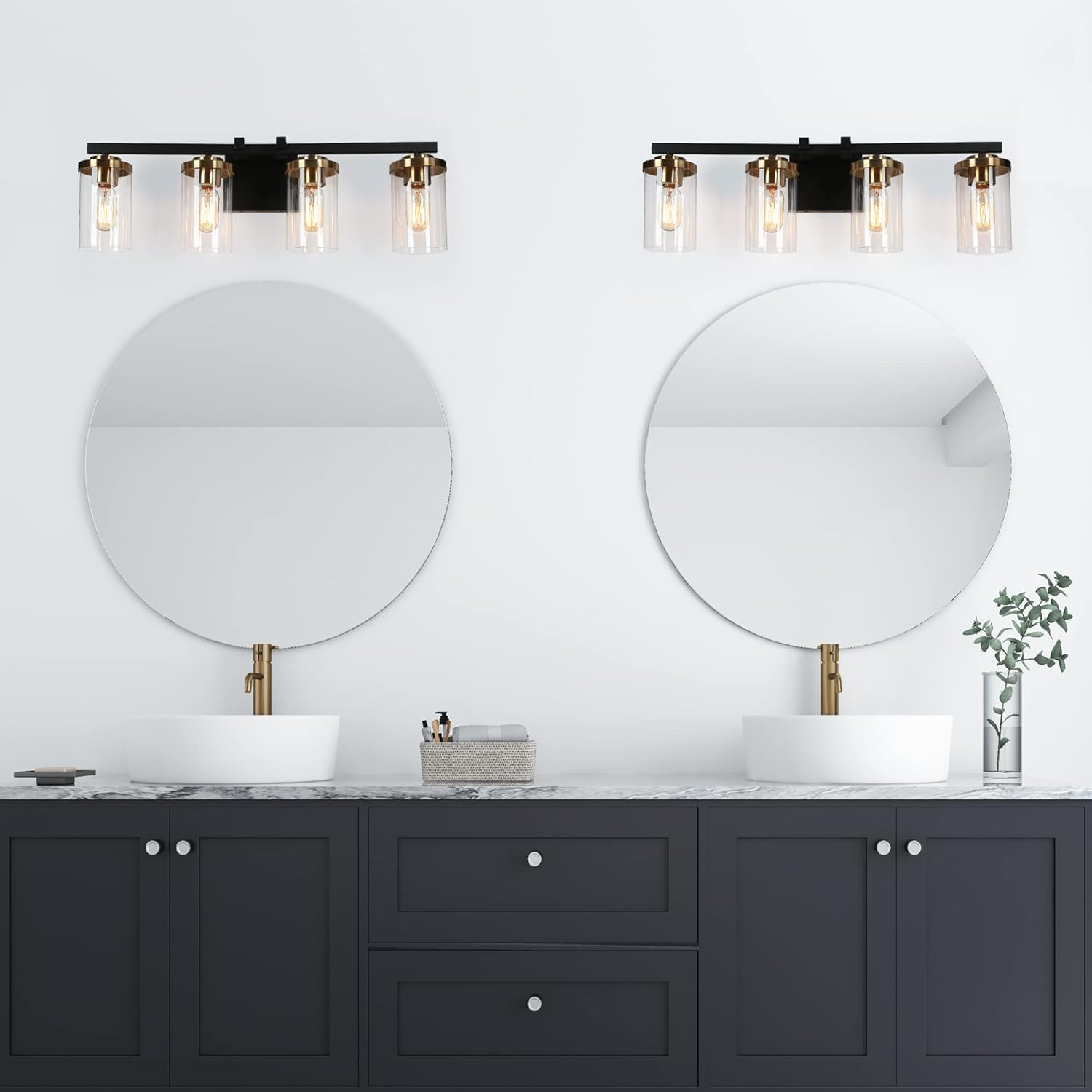

Figure 5: Dual installation of ZEVNI Black Vanity Lights. This image shows two fixtures complementing a double vanity setup with round mirrors.

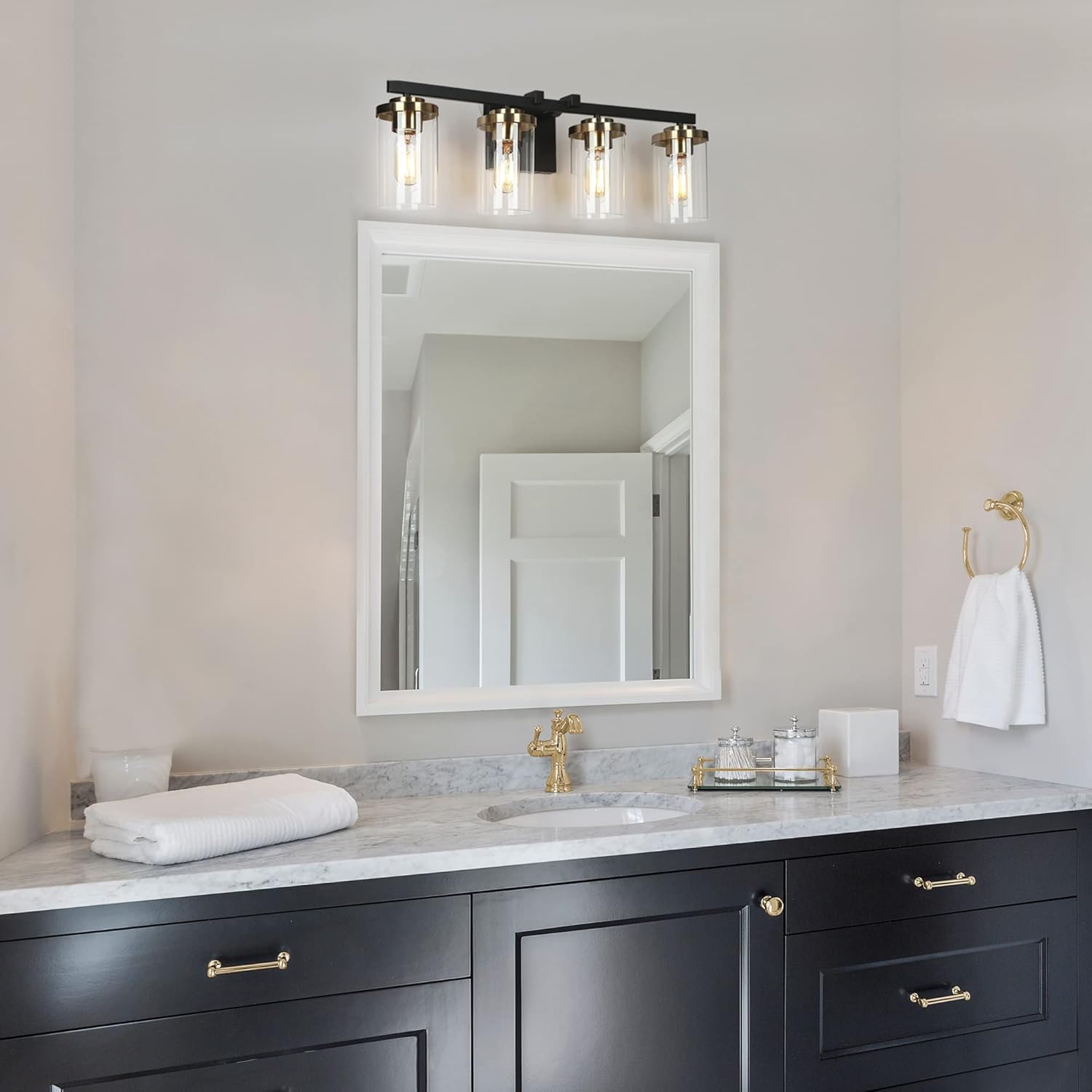

Figure 6: ZEVNI Black Vanity Light above a rectangular mirror. This image provides another perspective of the fixture in a bathroom, highlighting its versatility with different mirror styles.

Figure 7: ZEVNI Black Vanity Light with a round mirror. This image demonstrates the fixture's aesthetic appeal when paired with a circular mirror and a grey vanity.

Figure 8: Finish Compatibility. This image illustrates the compatible finishes (black and gold) for the fixture, indicating that other finishes are not applicable.
