1. Introducción
This manual provides instructions for the ARSUK 27-Watt 6500K Daylight Compact Fluorescent Light Bulb, Model ARS-DL215. This bulb is designed for fixtures requiring a CFML27W / GX10Q-4 base and provides 6500K daylight white light, suitable for various task lighting applications.
Image: The ARSUK 27-Watt 6500K Daylight CFL Bulb, showing its quad-tube design.
2. Información de seguridad
- Always disconnect power to the fixture before installing or removing the bulb.
- Asegúrese de que la bombilla esté encendida.tage and base type match the fixture's requirements (27W, GX10Q-4 base).
- Do not use this bulb with dimmers unless the fixture and bulb are specifically rated for dimmable CFLs. This bulb is not dimmable.
- Handle the bulb by its plastic base, not the glass tubes, to prevent breakage.
- If the bulb breaks, follow local guidelines for mercury cleanup and disposal.
- This bulb requires a working electronic ballast in the lamp. It will not operate if the ballast is faulty.
3. Configuración e instalación
The ARSUK 27W CFL bulb features an easy plug-in 4-pin design for straightforward replacement.
- Verificar compatibilidad: Before installation, confirm that your lamp or fixture is designed for a 27W GX10Q-4 4-pin CFL bulb. Check the existing bulb or fixture specifications.
- Desconectar la energía: Apague la alimentación del lamp or fixture at the switch and, if possible, unplug it from the wall outlet.
- Quitar la bombilla vieja: Carefully grasp the base of the old bulb and pull it straight out from the socket. Avoid twisting the glass tubes.
- Insertar bombilla nueva: Align the four pins of the new ARSUK CFL bulb with the corresponding slots in the GX10Q-4 socket. Gently push the bulb straight into the socket until it is firmly seated. Do not force the bulb.
- Restaurar energía: Enchufe el lamp or restore power to the fixture.
- Prueba: Enciende la lamp para garantizar que la nueva bombilla funcione correctamente.
Video: This video demonstrates the installation process for the ARSUK 27W Replacement Fluorescent Light Bulb, showing how to correctly insert the 4-pin base into a compatible lamp accesorio.

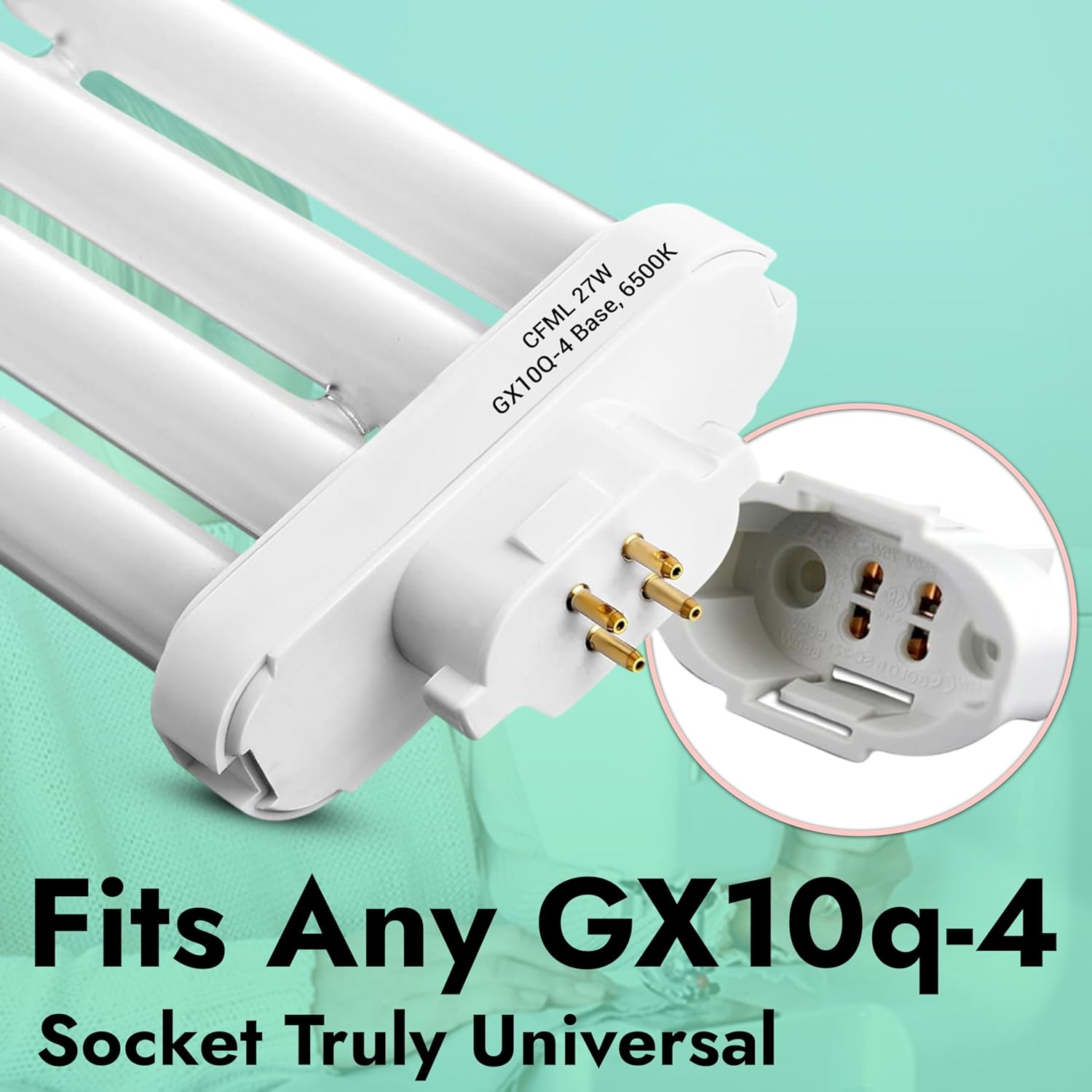

Imagen: Primer plano view of the ARSUK CFL bulb's 4-pin GX10Q-4 base being inserted into a compatible socket, illustrating the plug-in installation method.
Imagen: Trasera view of the ARSUK 27W CFL bulb, highlighting its 4-pin GX10Q-4 base for proper identification and compatibility.
4. Operación
The ARSUK 27W CFL bulb provides bright, 6500K daylight white illumination, ideal for tasks requiring clear visibility.
- Salida de luz: Emits 1700 lumens of 6500K daylight white light, designed to reduce eye strain during extended use.
- Requisito de energía: Operates on 27 watts and requires a functional electronic ballast within the lamp accesorio.
- Aplicaciones: Suitable for desk lamps, magnifying lamps, hobby workstations, and reading lights.
Image: The ARSUK 27W CFL bulb installed in a desk lamp, providing bright light for a person engaged in work, demonstrating its use in task lighting.
Image: An infographic detailing key features of the ARSUK GX10Q-4 fluorescent light bulb, including wattage, lumen output, color temperature, and lifespan.
5. Mantenimiento
The ARSUK 27W CFL bulb is designed for long-lasting performance with minimal maintenance.
- Esperanza de vida: This bulb has an average lifespan of up to 10,000 hours.
- Limpieza: To clean the bulb, ensure the power is off and the bulb is cool. Gently wipe with a dry, soft cloth. Do not use liquid cleaners.
- Reemplazo: Replace the bulb when its light output significantly diminishes or it ceases to function. Follow the installation steps for replacement.
Image: The ARSUK 27W CFL bulb overlaid with a clock graphic, illustrating its extended lifespan of 10,000 hours compared to incandescent bulbs.
6. Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La bombilla no se enciende. |
|
|
| La bombilla parpadea o se atenúa. |
|
|
7. Especificaciones
| Característica | Detalle |
|---|---|
| Marca | ARSUK |
| Nombre del modelo | 27w Replacement Fluorescent Bulb (ARS-DL215) |
| Tipo de luz | CFL, Fluorescent |
| Quétage | 27 vatios |
| Tamaño de la forma del bulbo | T4, 4U / Quad Tube |
| Base de la bombilla | GX10Q-4 |
| Color claro | Luz blanca diurna |
| Temperatura de color | 6500 Kelvin (6400 Kelvin listed in some specifications) |
| Brillo | 1700 lúmenes |
| Volumentage | 230 voltios (Volumen aceptado)tage frequency: 100 to 240 Volts) |
| Vida media | 10,000 horas |
| Dimensiones del producto | 3.27" de ancho x 5.63" de alto (aprox. 8.3 cm de ancho x 14.3 cm de alto) |
| Peso del artículo | 4.9 onzas (aprox. 140 gramos) |
| Material | Lead (internal components) |
| Características especiales | Energy Efficient, Eye-Friendly, Lightweight |
| Uso en interiores y exteriores | Interior |
Image: Detailed diagram illustrating the dimensions of the ARSUK 27W CFL bulb, including its length, width, and the specific measurements of the GX10Q-4 base pins.
Imagen: Explotada view diagram of the ARSUK 27W Fluorescent Replacement Bulb, highlighting its tubular shape, glass construction, ABS plastic base, and 4-pin connector.
8. Garantía y soporte
For warranty information or technical support regarding your ARSUK 27-Watt 6500K Daylight CFL Bulb, please contact ARSUK customer service directly. Refer to the product packaging or the ARSUK official websitio para detalles de contacto.
Fabricante: ARSUK
