KOHLER Tone Widespread Bathroom Sink Faucet

1. Producto terminadoview

The KOHLER Tone widespread bathroom sink faucet combines clean lines with a soft teardrop base, offering a modern aesthetic. This 3-hole widespread faucet is designed for easy installation and features two lever handles for precise control of hot and cold water. It is engineered to provide efficient water usage while maintaining performance.

Image: The KOHLER Tone widespread bathroom sink faucet, showcasing su diseño y acabado en níquel cepillado vibrante.

Características principales:

• Two Lever Handles: Offers separate control for hot and cold water.
• Optimal Spout Reach: Features a 5-15/16" (151 mm) spout reach.
• Caudal eficiente: Provides a 1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
• Válvulas de disco de cerámica duraderas: Exceeds industry longevity standards for reliable, leak-free performance.
• Integrated Clicker Drain: Includes a clicker drain with tailpiece and overflow for convenient operation.

2. Configuración e instalación

This faucet is designed for 3-hole widespread installation. The unit comes preassembled for simplified setup. For detailed step-by-step instructions, please refer to the installation guide included in your product packaging. Ensure all local plumbing codes are followed during installation.

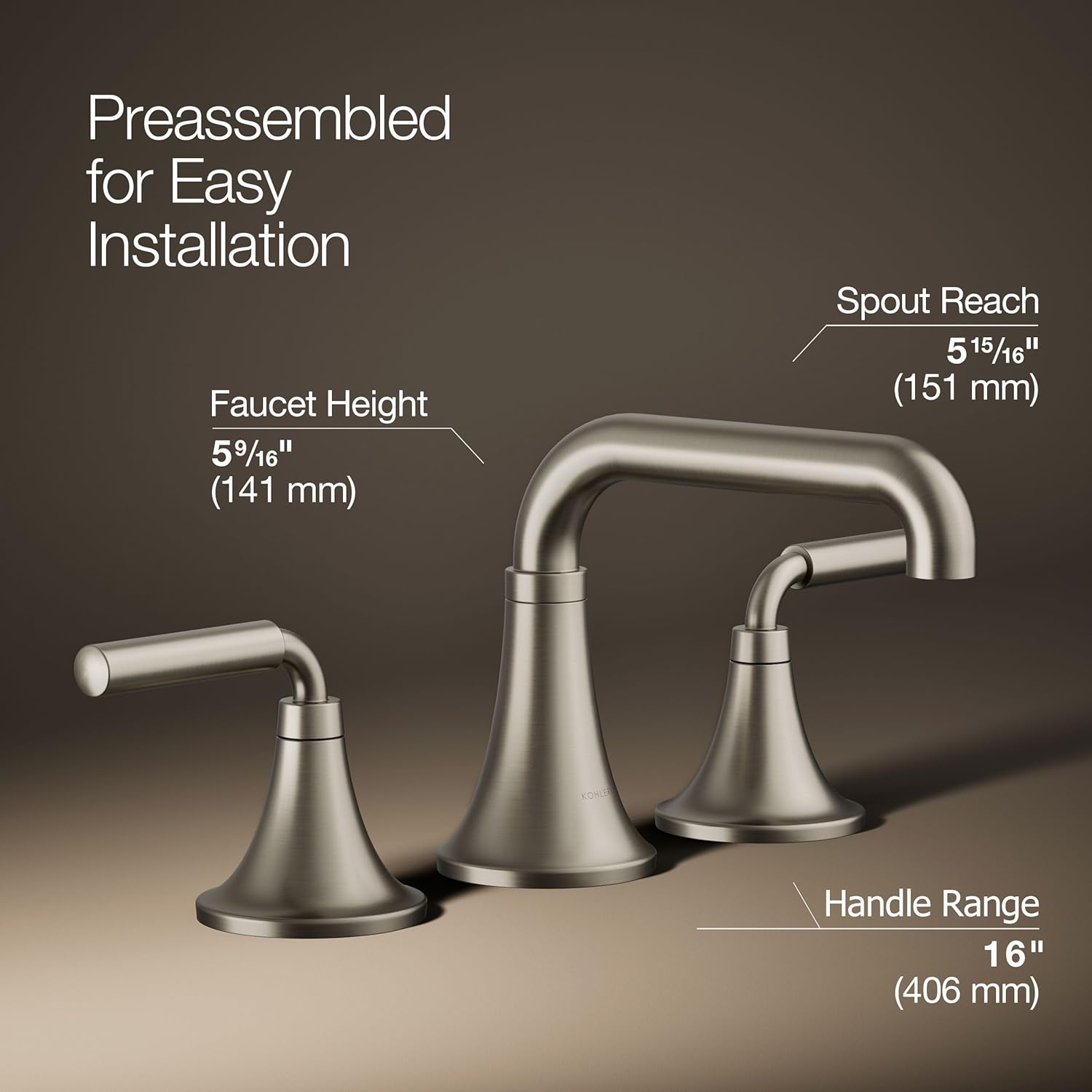

Image: Dimensional diagram of the faucet, indicating faucet height, spout reach, and handle range for installation planning.

¿Qué hay en la caja?

• Fully assembled faucet.
• Touch-activated pop-up drain.
• Preassembled supply lines.

Image: Visual representation of the components included with the faucet, highlighting the faucet body, pop-up drain, and supply lines.

3. Instrucciones de funcionamiento

The KOHLER Tone faucet features two lever handles for independent control of water temperature and flow. The left handle typically controls hot water, and the right handle controls cold water. The integrated clicker drain allows for easy opening and closing of the sink drain with a simple press.

Control de flujo de agua:

• Para abrir el agua, levante cualquiera de las manijas.
• Adjust the water temperature by moving the handles inward (for mixed water) or using them independently.
• To increase flow, lift the handles further. To decrease flow, lower the handles.
• To turn off the water, push the handles down to their original position.

Operación de drenaje:

• To close the drain, press the top of the clicker drain assembly.
• To open the drain, press the top of the clicker drain assembly again.

Image: The KOHLER Tone faucet in operation, demonstrating water flow from the spout.

4. Mantenimiento y cuidado

Proper care and maintenance will ensure the longevity and appearance of your KOHLER Tone faucet. The Vibrant Brushed Nickel finish features ScratchShield Technology, designed to resist tarnish, corrosion, and scratches.

Instrucciones de limpieza:

• Limpie el grifo periódicamente con un paño suave.amp paño.
• Para manchas difíciles, utilice una solución de agua y jabón suave, luego enjuague bien y seque con un paño suave.
• Evitar: Abrasive cleaners, harsh chemicals, scouring pads, or polishes, as these can damage the finish.
• Wipe away water spots after each use to maintain the finish's luster.

Image: An illustration detailing the ScratchShield Technology, showing three layers of metal coating designed to resist tarnish, corrosion, and scratches.

Válvulas de disco cerámico:

The faucet is equipped with durable ceramic disc valves, engineered to prevent leaks and ensure long-lasting performance. These valves typically require no maintenance under normal operating conditions.

Imagen: Un primer plano view of the durable ceramic valve, highlighting its robust construction designed to prevent leaks.

5. Solución de problemas

If you encounter issues with your KOHLER Tone faucet, review the following common troubleshooting steps. For problems not resolved here, contact Kohler customer service.

Problemas comunes:

• Bajo caudal de agua: Check if the water supply valves under the sink are fully open. Inspect the aerator for mineral buildup and clean if necessary.
• Grifo que gotea: Ensure all connections are tight. While ceramic disc valves are designed to be leak-free, persistent leaks may indicate a need for professional inspection or replacement of internal components.
• Problemas de temperatura del agua: Verify that both hot and cold water supply lines are connected correctly and that the water heater is functioning properly.
• Drain Not Sealing: Check the clicker drain for any obstructions or debris that might prevent a proper seal. Ensure the drain assembly is correctly installed.

6. Especificaciones

7. Garantía y soporte

The KOHLER Tone Widespread Bathroom Sink Faucet is backed by a Limited Lifetime Warranty. This warranty covers defects in material and workmanship for as long as the original consumer/purchaser owns their home. For complete warranty details and terms, please refer to the documentation included with your product or visit the official Kohler websitio.

Image: The official KOHLER Lifetime Limited Warranty badge, signifying product quality and support.

Atención al cliente:

For technical assistance, replacement parts, or warranty claims, please contact Kohler customer service. You can find contact information on the Kohler websitio o en el embalaje de su producto.
