Saker Cordless Mini Angle Grinder SK1201D User Manual

Introducción

This manual provides essential information for the safe and effective operation of your Saker Cordless Mini Angle Grinder SK1201D. Please read it thoroughly before first use and keep it for future reference.

The Saker Cordless Mini Angle Grinder is designed for cutting, grinding, sanding, polishing, and removing grout. Its compact and lightweight design allows for single-handed operation, making it ideal for working in small spaces or overhead. It features a powerful brushless motor for efficient performance.

Image: The Saker Cordless Mini Angle Grinder actively grinding metal, demonstrating its high efficiency in rust removal and polishing. The image shows a "Before" and "After" comparison of a metal piece, highlighting the tool's effectiveness.

Instrucciones de seguridad

ADVERTENCIA: Siga siempre las precauciones básicas de seguridad para reducir el riesgo de incendio, descarga eléctrica y lesiones personales.

• Utilice siempre el equipo de protección personal (EPP) adecuado, que incluya gafas de seguridad, guantes y protección auditiva.
• Asegúrese de que la pieza de trabajo esté bien sujeta.amped or stabilized before operation.
• Mantenga las manos y la ropa suelta alejadas de las piezas giratorias.
• No opere la herramienta en damp o condiciones húmedas.
• Disconnect the battery before changing accessories, performing maintenance, or when the tool is not in use.
• Use only Saker-approved accessories and discs that are rated for the tool's maximum RPM.
• Guarde la herramienta y la batería en un lugar seco y seguro, fuera del alcance de los niños.
• Evite aplicar una presión excesiva ya que puede provocar que el disco se atasque o se rompa.

Contenido del paquete

Your Saker Cordless Mini Angle Grinder package includes the following items:

• Cordless Mini Angle Grinder Unit
• 12V Lithium-ion Battery (2000mAh)
• Cargador de batería
• Llave en L
• Assorted Cutting and Grinding Discs (5 pieces, including metal cutting, shutter grinding, tile joint cleaner, multi-function cutting, and metal grinding discs)
• Manual de instrucciones

Image: A visual representation of the complete accessories included with the Saker Cordless Mini Angle Grinder, such as various cutting and grinding discs, the battery, charger, and L-wrench.

Producto terminadoview

Familiarize yourself with the components of your angle grinder before operation:

Image: Labeled diagram of the Saker Cordless Mini Angle Grinder, highlighting key components such as the protection guard, spindle lock button (Red "C" Ring), On/Off switch, battery charge indicator, battery pack, and battery unlocking button.

• Protection Guard: Provides protection during grinding and cutting operations.
• Red "C" Ring (Spindle Lock Button): Used to lock the spindle for safe and easy disc changes.
• Interruptor de encendido/apagado: Activates and deactivates the tool's motor.
• Battery Charge-Control Indicator: Muestra la vida útil restante de la batería.
• Paquete de baterías: The removable power source for the cordless tool.
• Battery Unlocking Button: Libera el paquete de baterías de la herramienta.

Configuración y montaje

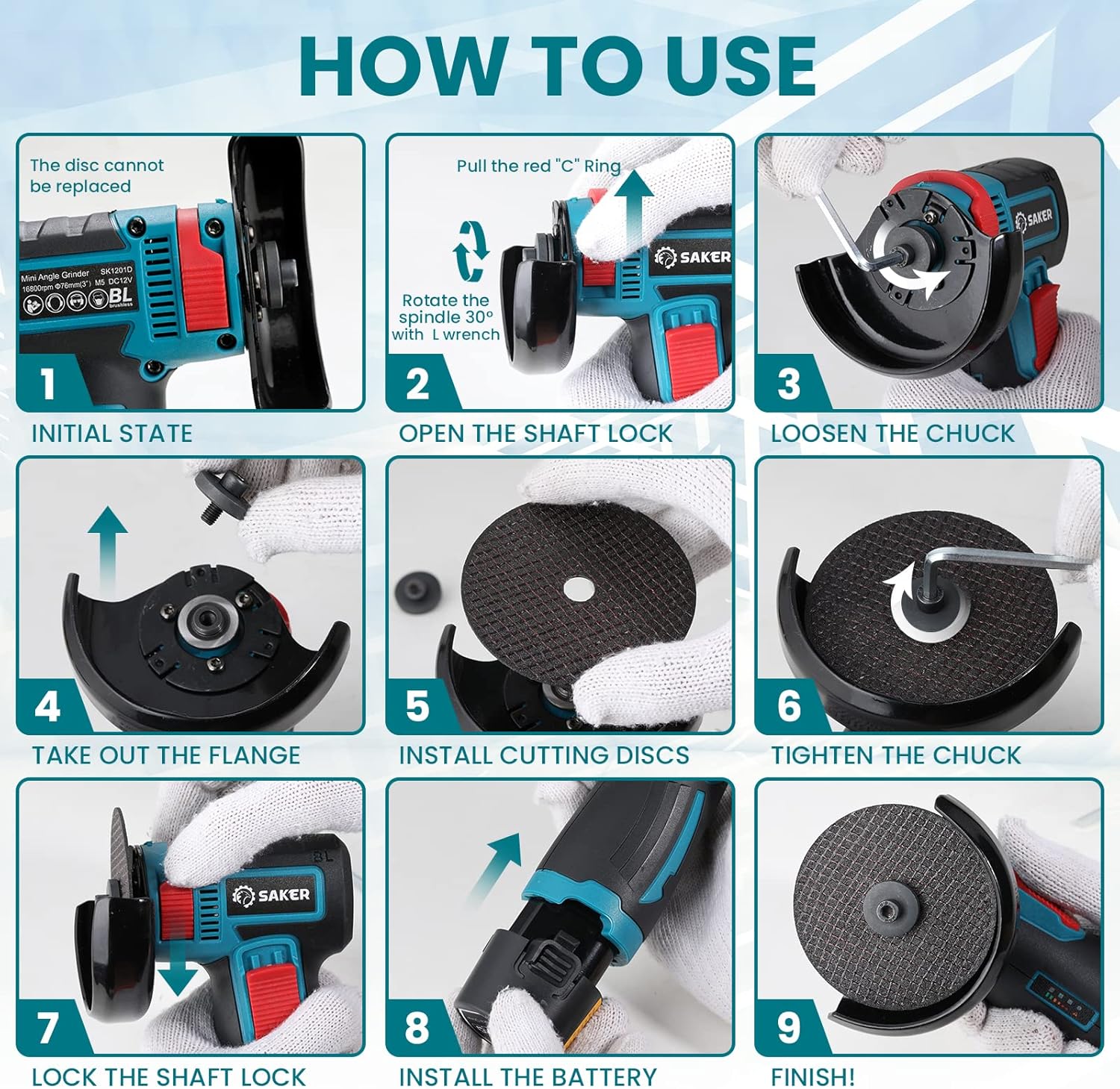

Follow these steps to properly install the cutting/grinding disc and battery:

1. Estado inicial: Ensure the tool is off and the battery is removed. The disc cannot be replaced if the tool is powered or the shaft is not locked.
2. Open the Shaft Lock: Pull the red "C" Ring (spindle lock button) and hold it. Rotate the spindle approximately 90 degrees using the provided L-wrench until the shaft lock engages.
3. Afloje el mandril: While the spindle is locked, use the L-wrench to loosen the chuck nut counter-clockwise.
4. Take Out the Flange: Remove the outer flange from the spindle.
5. Install Cutting Discs: Place the desired cutting or grinding disc onto the spindle, ensuring it is properly seated and centered.
6. Apriete el mandril: Re-install the outer flange and tighten the chuck nut clockwise firmly with the L-wrench. Do not overtighten.
7. Lock the Shaft Lock: Release the red "C" Ring to disengage the spindle lock.
8. Instale la batería: Slide the fully charged battery pack into the base of the tool until it clicks securely into place.
9. Finalizar: La herramienta ya está lista para funcionar.

Image: A step-by-step visual guide demonstrating the assembly process, from opening the shaft lock to installing the battery and finishing the setup.

Instrucciones de funcionamiento

To operate the Saker Cordless Mini Angle Grinder safely and effectively:

1. Ensure the correct disc is installed and securely tightened according to the setup instructions.
2. Verify the battery is fully charged and properly installed. Check the battery charge indicator.
3. Hold the tool firmly with both hands, maintaining a secure grip. Ensure your stance is stable.
4. Position the tool so the disc is clear of the workpiece and any obstructions.
5. Press the On/Off switch to start the tool. Allow the disc to reach full operating speed before contacting the workpiece.
6. Gently bring the rotating disc into contact with the material. Apply steady, even pressure. Do not force the tool, as this can lead to kickback or damage.
7. For cutting, make shallow, controlled passes. For grinding or polishing, move the tool smoothly across the surface, maintaining consistent contact.
8. After completing the task, release the On/Off switch and allow the disc to stop completely before setting the tool down.

Guardia ajustable

The protection guard can be adjusted to suit different working angles and provide optimal safety. To adjust, loosen the guard, rotate it to the desired position (up to 90 degrees), and then secure it firmly before operation.

Image: The adjustable guard feature of the Saker Cordless Mini Angle Grinder, illustrating its ability to rotate up to 90 degrees for versatile use and enhanced safety.

Mantenimiento

Regular maintenance ensures the longevity and safe operation of your tool. Always disconnect the battery before performing any maintenance.

• Limpieza: After each use, clean the tool with a dry cloth to remove dust, debris, and metal particles. Do not use solvents or abrasive cleaners.
• Inspección del disco: Regularly inspect cutting and grinding discs for wear, cracks, chips, or damage. Replace worn or damaged discs immediately to prevent injury and ensure optimal performance.
• Cuidado de la batería: Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures. Charge the battery fully before storage if not used for extended periods. Avoid fully discharging the battery.
• Ventilación: Keep the tool's ventilation slots clear of obstructions to prevent overheating of the motor. Use compressed air if necessary to clear dust.
• Motor sin escobillas: This tool features a brushless motor, which requires less maintenance compared to brushed motors. No carbon brush replacement is needed.

Solución de problemas

If you encounter issues with your Saker Cordless Mini Angle Grinder, refer to the table below for common problems and solutions.

Presupuesto

Key technical specifications for the Saker Cordless Mini Angle Grinder SK1201D:

Garantía y soporte

Para obtener información sobre la garantía o asistencia técnica, consulte los datos de contacto proporcionados con su compra o visite el sitio web oficial de Saker. webSitio. Conserve su recibo de compra como comprobante de compra.

The included 2000 mAh battery features protection against overcharge, over-discharge, and high temperature to ensure safety and durability. If the battery becomes hot after prolonged use, allow it to rest and cool down for safety and to prolong its lifespan.
