Introducción
This user manual provides comprehensive instructions for the NANAMI 7-in-1 Charging Station, Model HM002. This versatile charging dock is designed to efficiently charge multiple devices simultaneously, including smartphones, tablets, smartwatches, and wireless earbuds. Its compact design helps maintain an organized charging area.

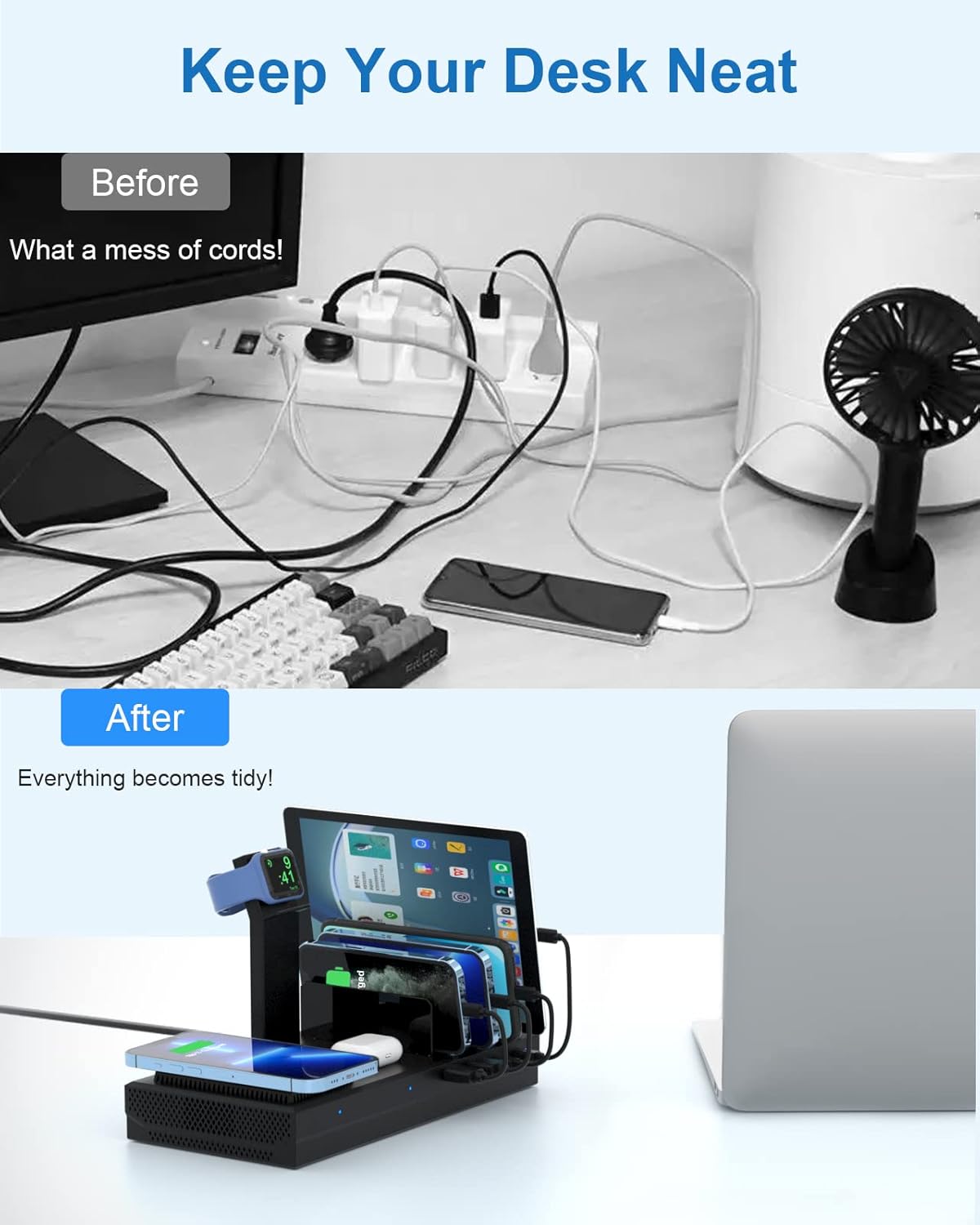

Image showing the NANAMI charging station organizing multiple devices on a desk, contrasting a cluttered setup with a tidy one.
¿Qué hay en la caja?
Verifique que todos los componentes estén presentes en su paquete:
- 1 x NANAMI Wireless Charging Station
- 2 x cables micro USB
- 2 cables USB tipo C
- 1 x Manual de usuario
Image displaying the contents of the package: the charging station, various charging cables, and the user manual.
Guía de configuración
Identificación de componentes
Familiarize yourself with the main components of your charging station:
Diagram illustrating the various parts of the charging station, including the watch wireless charging stand, wireless fast charging pad, AirPods charging base, USB-C ports, USB-A ports, and removable baffles.
Installing the Apple Watch Charging Stand
The Apple Watch charging stand requires your original Apple Watch charger (not included) for functionality. Follow these steps to install it:
- Carefully insert your Apple Watch magnetic charging cable into the designated slot on the stand.
- Route the cable through the channel to ensure a neat and secure fit.
- Attach the stand to the main charging station base.
- Connect the Apple Watch charging cable to one of the USB ports on the charging station.
Step-by-step diagram showing how to install an Apple Watch charger into the dedicated stand on the charging station.
Conexión del adaptador de corriente
Connect the provided power adapter to the DC input port on the back of the charging station, then plug it into a wall outlet. The indicator lights on the station will illuminate, indicating it is powered on.
Instrucciones de funcionamiento
The NANAMI charging station offers multiple charging options for various devices:
Image showing the multi-functional charging station with a phone on the wireless pad, AirPods on their base, and tablets/phones in the vertical slots.
Wireless Charging Pad (15W Max)
Place your Qi-compatible smartphone on the wireless charging pad. Ensure the phone is centered on the pad for optimal charging. The indicator light will confirm charging status.
Close-up image of a smartphone wirelessly charging on the pad of the NANAMI station.
AirPods Charging Base (5W Max)
Place your AirPods case on the designated AirPods charging base. Ensure proper alignment for charging to begin.
USB Charging Ports (161W Max Total)
The station features multiple USB ports (USB-A and USB-C) for wired charging of various devices. Use the provided micro USB and Type-C cables, or your device's original cables, to connect your smartphones, tablets, Kindle, or other USB-powered devices to the available ports.
The sturdy partitions and wide spacing accommodate devices with thick cases.
Image illustrating the universal compatibility of the charging station with icons for smartphones, cameras, Kindles, iPads, gamepads, AirPods, Bluetooth speakers, and iWatch.
Apple Watch Charging Stand (2.5W Wireless)
Once your Apple Watch charger is installed (as per the Setup Guide), place your Apple Watch on the stand. Ensure it is correctly positioned to initiate charging. Note: Apple Watch Series 7 and newer models may not be fully supported by the stand's design for optimal charging.
Close-up image of the iWatch charger holder on the NANAMI charging station, with an Apple Watch placed on it.
Información de seguridad
The NANAMI Charging Station incorporates advanced safety features to protect your devices and ensure safe operation:
- exceso de volumentagy Protección: Previene daños por exceso de volumen.tage entrada.
- Prevención de cortocircuitos: Corta automáticamente la energía en caso de cortocircuito.
- Protección contra sobrecarga: Safeguards against current overload.
- Control de temperatura: Regulates internal temperature to prevent overheating.
- Detección de objetos extraños: Detects metallic objects on the wireless charging pad to prevent heating.
- Fire-Resistance: Constructed with fire-resistant materials.
- Base antideslizante: Asegura estabilidad en superficies.
Para garantizar un funcionamiento seguro:
- No desmonte ni modifique el producto.
- Mantener alejado del agua, la humedad y las altas temperaturas.
- Utilice únicamente el adaptador de corriente proporcionado.
- Avoid placing metallic objects on the wireless charging pad.
Image highlighting the advanced safety features of the charging station, including over-voltage, short-circuit, overload, over-current protection, fire-resistance, and anti-slip design.
Mantenimiento
To ensure the longevity and optimal performance of your NANAMI Charging Station:
- Limpie la superficie con un paño suave y seco. No utilice limpiadores abrasivos ni disolventes.
- Asegúrese de que todos los puertos estén libres de polvo y residuos.
- Guárdelo en un lugar fresco y seco cuando no lo utilice durante períodos prolongados.
- Evite dejar caer o someter el dispositivo a impactos fuertes.
Solución de problemas
Si tiene problemas con su estación de carga, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa / solución |
|---|---|
| El dispositivo no se carga (con cable) | Ensure the cable is securely connected to both the device and the charging station. Try a different cable or USB port. Verify the charging station is powered on. |
| El dispositivo no se carga (inalámbrico) | Ensure your device is Qi-compatible and properly centered on the wireless charging pad. Remove any thick phone cases or metallic objects that may interfere with wireless charging. Check for foreign object detection indicator. |
| El Apple Watch no se carga | Confirm your original Apple Watch charger is correctly installed and connected to a USB port. Ensure the Apple Watch is properly seated on the magnetic charger. Some watch bands may prevent proper contact; try removing the band if necessary. Note: Apple Watch Series 7 and newer models may not fit perfectly. |
| La carga es lenta | Ensure your device supports fast charging and that you are using a compatible cable. Multiple devices charging simultaneously may distribute power. |
| Las luces indicadoras están apagadas | Check if the power adapter is securely plugged into both the station and the wall outlet. Try a different power outlet. |
| Devices vibrate out of slots | Ensure devices are placed firmly in the slots. The baffles are designed to hold devices securely, but strong vibrations might cause movement. |
Presupuesto
| Característica | Detalle |
|---|---|
| Número de modelo | HM002 |
| Dimensiones del producto | 9.96 x 4.88 x 2.76 pulgadas |
| Peso del artículo | 12.8 onzas |
| Vol de entradatage | 110 voltios |
| Tecnología de conectividad | USB; Wireless |
| Tipo de conector | USB tipo C |
| Salida de carga inalámbrica | 15 W máx. (para teléfonos) |
| Salida de carga de los AirPods | 5W Max |
| Salida de carga del Apple Watch | 2.5W Wireless (requires user's own charger) |
| Producción total | 161W Max |
| Dispositivos compatibles | iPhone 8/X/XS/XR/11/12/13/14/15 series, Samsung Galaxy S6-S23 series, Note series, Google Pixel, HTC, Nexus, LG, Apple iPad, iPad mini, iPad Air, Samsung Galaxy Tab, Amazon Fire, Kindle, AirPods Pro/2, Galaxy Buds/Buds+, Pixel Buds, Apple Watch SE/6/5/4/3/2/1. |
| Componentes incluidos | Charging Station, 2 Micro Cables, 2 Type C Cables, User Manual |
| Características especiales | Multiple Security Protection, Wireless Charger, Strong Baffle, Fast Charging |
Garantía y soporte
NANAMI provides a 12-month warranty for this product, covering manufacturing defects from the date of purchase. Additionally, a 30-day full money-back guarantee is offered for any product issues.
For technical support, warranty claims, or any inquiries, please contact NANAMI customer support. Refer to the contact information provided on the product packaging or the official NANAMI websitio.
Visit the official NANAMI Store for more information: NANAMI Store
