Manual de instrucciones del grabador láser SCULPFUN S30 Pro

1. Información de seguridad

ADVERTENCIA: Laser engravers produce a high-power laser beam that can cause severe injury, blindness, or fire if not used properly. Always follow these safety guidelines:

• Protección ocular: Always wear certified laser safety goggles (OD 6+) when operating the machine. Never look directly at the laser beam.
• Peligro de incendio: Do not leave the machine running unattended. Keep a fire extinguisher nearby. Ensure proper ventilation to prevent smoke and fumes accumulation.
• Compatibilidad de materiales: Only engrave or cut materials approved for laser processing. Avoid highly reflective, flammable, or PVC-containing materials.
• Área de trabajo: Operate in a well-ventilated area. Keep the work area clear of flammable objects and debris.
• Niños y mascotas: Mantenga a los niños y a las mascotas alejados del grabador láser durante su funcionamiento.
• Parada de emergencia: Familiarícese con la ubicación y el funcionamiento del botón de parada de emergencia.
• Fuente de alimentación: Use only the provided power adapter. Ensure the power supply is stable and grounded.

2. Producto terminadoview

The SCULPFUN S30 Pro is a 10W optical power laser engraver designed for precision engraving and cutting. It features an automatic air assist system, a replaceable protective lens, and an expandable engraving area, making it suitable for various creative and industrial applications.

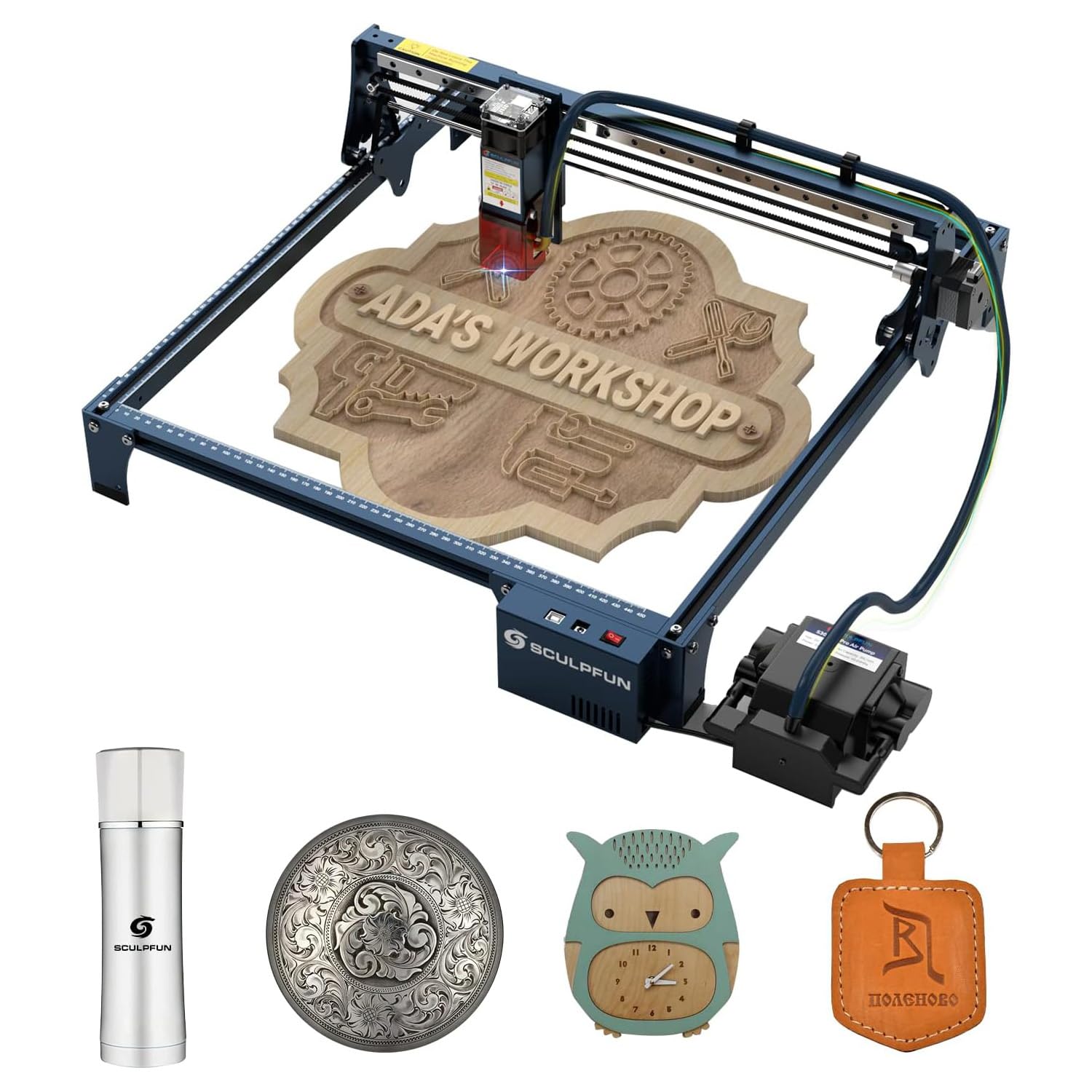

Figure 2.1: Fully assembled SCULPFUN S30 Pro Laser Engraver.

Características principales:

• 10W Ultra-thin Laser Output: Utilizes advanced laser shaping technology for a fine 0.08x0.06mm laser focus, enabling powerful and precise engraving and cutting. Capable of cutting 10mm Balsa wood or 6mm plywood in a single pass.
• Sistema automático de asistencia de aire: Equipped with a 32-bit motherboard and a full air assist kit, including a high-pressure air assist nozzle and a control-type air pump. This system intelligently controls air assist via LightBurn software (M8 button), switching it on for cutting and off for engraving, ensuring clean results without manual intervention.
• Área de grabado expandible: Innovative XY axis expandable design allows the original 370x360mm engraving area to be expanded to 900x370mm with a Y-axis expansion kit, or up to 900x890mm with an XY-axis expansion kit (kits sold separately) for large-scale projects.
• Industrial-grade Cutting Accuracy: Features a solid and high-precision linear slide rail X-axis, achieving industrial-grade engraving accuracy without the wavy patterns common in ordinary machines. The high-strength aluminum alloy frame ensures durability and stability.
• Lente protectora reemplazable: The laser module incorporates a replaceable lens design, significantly extending the laser's lifespan. A damaged or worn lens can be easily replaced to restore cutting power. An extra lens is included.
• Limit Switch Device: Includes an XY limit switch for homing and positioning functions, useful for repeated positioning tasks. Users can choose to install it based on their needs.

3. Contenido del paquete

Carefully unpack the box and verify that all items listed below are present and undamaged. If any items are missing or damaged, please contact customer support.

Figura 3.1: Sobreview of the SCULPFUN S30 Pro package contents.

• Laser Module (10W Optical Power)
• Bomba de asistencia de aire automática
• Adaptador de corriente y cable
• Cable USB
• X-axis and Y-axis Frame Components
• Limit Switches (2 pcs)
• Transmission Belts (2 pcs)
• Tool Kit (wrenches, screwdrivers, cable ties)
• Gafas de seguridad láser
• Test Materials (wood, metal plate)
• Manual de usuario
• Spare Lens and Cleaning Kit

4. Configuración y montaje

Follow the steps below to assemble your SCULPFUN S30 Pro Laser Engraver. Refer to the video for visual guidance.

4.1 Montaje del marco

1. Desempaquetar componentes: Carefully remove all frame components from the packaging. Identify the left, front, and right beams.
2. Attach Corner Brackets: Secure the corner brackets to the frame beams using the provided screws. Ensure screws are tightened evenly to prevent misalignment.
3. Assemble Gantry and Back Beam: Connect the gantry (X-axis assembly) to the side beams and then attach the back beam.
4. Adjust Eccentric Nuts: The X-axis has eccentric nuts that control the tightness of the movement. Use a 10mm wrench to adjust these nuts. Turning the eccentric nut downwards loosens the axis, while turning it upwards tightens it. Adjust both sides to allow smooth movement without excessive looseness or sticking.

Figure 4.1.1: Initial frame assembly, showing the left, front, and right beams.

4.2 Instalación de la correa

1. Enrutar el cinturón: Carefully route the transmission belt around the pulleys on the X-axis and Y-axis.
2. Secure Belt Ends: Use the T-shaped nuts and screws to secure the ends of the belt. Ensure the belt is taut but not overly tight to allow smooth movement.

4.3 Limit Switch Installation (Optional)

The limit switches provide homing and precise positioning. Install them if needed for your workflow.

1. Conectar interruptores: Mount the limit switches to the designated positions on the frame using the provided screws.
2. Conectar el cableado: Connect the limit switch wires to the main control board. Ensure correct polarity and secure connections.

Figure 4.3.1: Limit switch components and their attachment points.

4.4 Laser Module and Air Assist Installation

1. Monte el módulo láser: Attach the laser module to the gantry. Secure it with the hand screws.
2. Conectar Air Assist: Connect the air assist hose from the air pump to the laser module's nozzle. Secure the air pump near the main control board.
3. Sistema de organización de cables: Use cable ties to neatly organize all wires and hoses, ensuring they do not interfere with the laser's movement. Avoid overtightening the air assist hose to prevent blockage.

Figure 4.4.1: Automatic air assist system integrated with the laser module.

5. Instrucciones de funcionamiento

The SCULPFUN S30 Pro is compatible with LightBurn software for controlling engraving and cutting operations. Ensure your software version is at least 1.0.0 to utilize all features, especially the automatic air assist.

5.1 Software Setup (LightBurn)

1. Conectar dispositivo: Conecte el grabador láser a su computadora a través de USB.
2. Agregar dispositivo: In LightBurn, use the "Device Discovery Wizard" to find your SCULPFUN S30 Pro. If automatic discovery fails, manually add a GRBL device with the correct work area dimensions (e.g., 400x410mm for standard S30).
3. Enable Air Assist (M8): Go to "Device Settings" and ensure "Air Assist" is set to use the M8 mode. This allows LightBurn to control the air pump automatically.
4. Enable Limit Switches (Optional): If you installed limit switches, enable "Hard Limits" and "Homing Cycle" in "Machine Settings" within LightBurn. Remember to write these settings to the controller.

5.2 Enfoque del láser

Un enfoque preciso es crucial para obtener resultados óptimos de grabado y corte.

1. Colocar material: Position your material on the honeycomb panel.
2. Use Focus Bar: Place the provided metal focus bar between the laser module and the material surface.
3. Adjust Laser Height: Loosen the thumb screws on the laser module and slide it up or down until the focus bar just touches the material surface. Tighten the thumb screws.

5.3 Grabado y corte

1. Diseño de carga: Import or create your design in LightBurn.
2. Establecer parámetros: Configure layer settings (speed, power, passes) for engraving and cutting. For cutting, enable air assist. For engraving, disable air assist to prevent blurring.
3. Preview Área de trabajo: Use the "Frame" function in LightBurn to preview the laser's path on your material. Adjust material position or design as needed.
4. Iniciar trabajo: Click "Start" to begin the engraving or cutting process. Monitor the machine closely during operation.

Figure 5.3.1: Visual comparison of engraving quality with and without automatic air assist. Air assist helps achieve cleaner cuts and prevents burnt edges.

6. Mantenimiento

El mantenimiento regular garantiza la longevidad y el rendimiento óptimo de su grabador láser.

6.1 Laser Lens Cleaning and Replacement

Over time, the laser lens can accumulate dust and debris, affecting laser performance. Clean or replace the lens as needed.

1. Apagado: Always power off the machine before performing any maintenance.
2. Quitar la boquilla: Carefully unscrew the air assist nozzle from the laser module.
3. Quitar lente: Use the provided tweezers to gently remove the protective lens from its housing.
4. Lente limpia: Use a soft, lint-free cloth and lens cleaning solution (e.g., isopropyl alcohol) to gently wipe the lens. Avoid touching the lens with bare hands.
5. Replace Lens: If the lens is scratched or cannot be cleaned, replace it with a new one from the spare kit. Ensure the lens is correctly oriented and seated.
6. Volver a montar: Reinstall the lens, then screw the air assist nozzle back into place.

Figure 6.1.1: The replaceable lens design and included tools for maintenance.

6.2 Limpieza general

• Limpie los rieles: Regularly wipe down the linear guide rails with a clean cloth to remove dust and debris.
• Comprobar cinturones: Inspect transmission belts for wear or damage. Ensure they are properly tensioned.
• Limpiar escombros: Remove any accumulated debris from the work area and honeycomb panel.

7. Solución de problemas

If you encounter issues with your SCULPFUN S30 Pro, refer to the common problems and solutions below.

8. Especificaciones

• Dimensiones del producto: 22.05 x 20.08 x 10.43 pulgadas
• Número de modelo del artículo: SCULPFUN S30 Pro
• Peso del artículo: 15.27 libras
• Clase de láser: IV
• Salida láser: 10000mW (10W Optical Power)
• Engraving Area (Standard): Approximately 370x360mm
• Área de grabado expandible: Up to 900x890mm (with optional expansion kits)
• Placa madre: 32-bit with air assist control
• Conectividad: USB
• Fabricante: ESCULTURA
• Fecha de primera disponibilidad: 23 de septiembre de 2022

9. Garantía y soporte

For warranty information, technical support, or to purchase replacement parts and expansion kits, please visit the official SCULPFUN websitio o póngase en contacto con su distribuidor.

Always refer to the latest version of the user manual available on the manufacturer's websitio para obtener la información más actualizada.
