COLAMY Executive Office Chair Model 2822 Instruction Manual

1. Información de seguridad

Please read all safety information before assembly and use of the COLAMY Executive Office Chair. Retain this manual for future reference.

• Asamblea: This product requires assembly. Always follow the assembly instructions carefully to ensure safe and proper installation.
• Capacidad de peso: No exceda la capacidad máxima de peso de 275 libras (125 kg) para mantener la estabilidad y la seguridad.
• Ajustes: Be cautious when adjusting the tilt and tension control to prevent injury. Ensure all adjustments are securely locked before use.
• Estabilidad: Do not stand on the chair. Do not use the chair as a step stool.
• Niños: Mantenga a los niños alejados del área de montaje. Las piezas pequeñas pueden suponer un peligro de asfixia.

2. Producto terminadoview y características

The COLAMY Executive Office Chair Model 2822 is designed for comfort and ergonomic support, suitable for home and office environments. It features durable construction and multiple adjustment options.

Image 2.1: The COLAMY Executive Office Chair Model 2822 in a modern office environment.

Características principales:

• Bonded Leather Upholstery: Resistant to scratches, stains, peeling, and cracking.
• Flip-up Arm Design: Allows arms to rotate 90 degrees, enabling the chair to fit under desks for space-saving.
• Inflatable Lumbar Support: An adjustable airbag provides effective support to the lumbar area, enhancing sitting comfort.
• Synchro Tilt & Tension Control: Pneumatic controls for seat height adjustment and a rocking function with adjustable tension.
• Construcción sólida: Features a 360-degree swivel, heavy-duty nylon base, and smooth-rolling casters. BIFIMA certified for reliability.

Imagen 2.2: Másview of the chair's multifunctional features including padded headrest, lumbar support, double padded seat, flip-up armrests, height adjustor, tilt tension knob, and rocking function.

Image 2.3: Illustration of bonded leather construction, highlighting wear-resistant quality, breathability, high rebound, spring for rebound & comfort, high density, and natural wood components.

3. Instrucciones de montaje

Detailed assembly instructions with diagrams are typically included in the product packaging. Please refer to those specific instructions for step-by-step guidance. Ensure all components are present and undamaged before beginning assembly.

Consejos para la Asamblea General:

• Coloque todas las piezas y el hardware sobre una superficie limpia y suave para evitar rayones.
• No apriete completamente los tornillos hasta que todos los componentes estén ensamblados de forma flexible.
• Seek assistance if needed, especially for attaching the backrest to the seat.

4. Instrucciones de funcionamiento

Familiarize yourself with the chair's adjustment mechanisms to optimize your comfort and posture.

4.1. Ajuste de la altura del asiento

To adjust the seat height, locate the lever on the right side of the chair, beneath the seat. Pull the lever upwards while seated to lower the seat, or pull the lever upwards while standing to raise the seat. Release the lever at the desired height to lock it in place.

4.2. Apoyabrazos abatibles

The armrests can be rotated upwards by 90 degrees. This feature allows the chair to be pushed closer to a desk, saving space when not in use, or to provide an armless option.

4.3. Inflatable Lumbar Support

To activate the lumbar support, locate the airbag pump (a small bulb) typically found on the side or underneath the seat. Press the bulb repeatedly to inflate the lumbar area to your desired firmness. To deflate, press the small button on the bulb.

Image 4.1: Illustration of the inflatable lumbar support system, showing the decompression valve and how to press the bulb to boost support.

4.4. Tilt and Tension Control

The chair features a synchro tilt mechanism allowing you to rock back. Pull out the lever (usually the same one for height adjustment) to enable the rocking function. Push the lever in to lock the chair in an upright position.

To adjust the tension of the rocking motion, turn the round knob located underneath the seat, at the front. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).

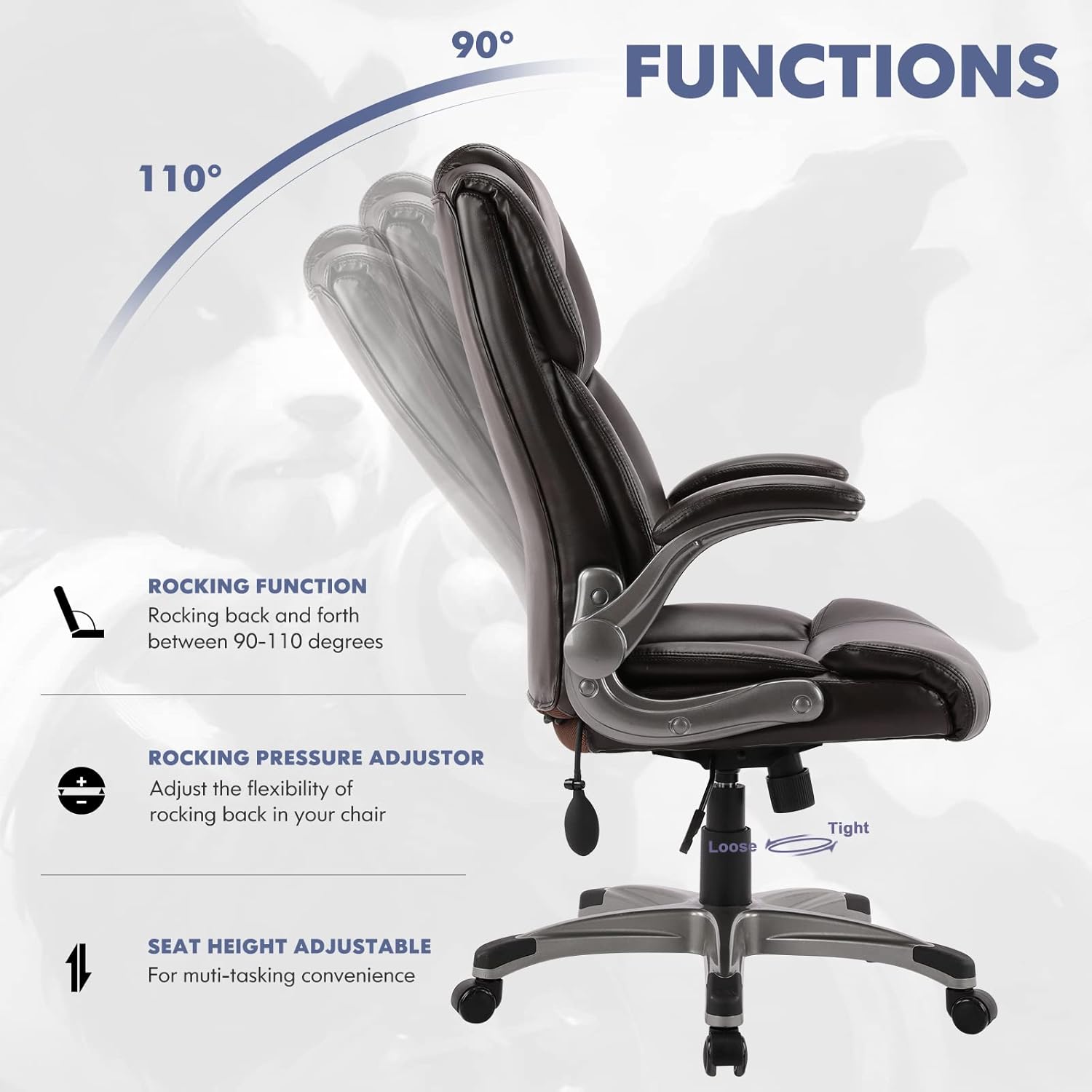

Image 4.2: Illustration of the rocking function (90-110 degrees) and the rocking pressure adjustor (tilt tension knob).

5. Mantenimiento

Proper care will extend the life and appearance of your COLAMY Executive Office Chair.

• Limpieza: Limpie las manchas de la tapicería de cuero regenerado según sea necesario. Use un paño suave y seco.amp cloth to wipe clean. Avoid harsh chemicals or abrasive cleaners that may damage the material.
• Inspección: Revise periódicamente todos los tornillos y pernos para asegurarse de que estén bien apretados. Vuelva a apretarlos si es necesario.
• Ruedas: Mantenga las ruedas libres de residuos (cabello, polvo, etc.) para garantizar un rodaje suave.
• Evite la luz solar directa: La exposición prolongada a la luz solar directa puede provocar que la tapicería se decolore o se agriete.

6. Solución de problemas

If you encounter any issues with your COLAMY Executive Office Chair, refer to the following common problems and solutions:

• La silla no ajusta la altura: Ensure the height adjustment lever is fully engaged. Check if the gas lift cylinder is functioning correctly.
• La silla se tambalea: Verify that all assembly screws are securely tightened. Ensure the base is properly attached to the gas lift.
• Las ruedas no giran con suavidad: Revise si hay cabello o residuos enredados en las ruedas. Límpielas a fondo.
• Lumbar support does not inflate/deflate: Check the pump bulb and its connection for any leaks or damage. Ensure the button for deflation is pressed correctly.

If the problem persists, please contact COLAMY customer support for further assistance.

7. Especificaciones

Image 7.1: Detailed dimensions of the COLAMY Executive Office Chair, including height, width, depth, seat height, seat width, seat depth, arm length, and backrest height.

8. Garantía y soporte

For warranty information, please refer to the documentation included with your purchase or contact COLAMY customer service directly. COLAMY is committed to providing quality products and support.

If you require assistance, have questions, or need to report a missing part, please contact COLAMY customer support through their official websitio o el minorista donde se compró el producto.
