MONDAWE 12-Inch Thermostatic Ceiling Mounted Shower System

1. Introducción

Thank you for choosing the MONDAWE 12-Inch Thermostatic Ceiling Mounted Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read it thoroughly before installation and keep it for future reference.

Características principales:

• Thermostatic Anti-Scald Valve: Equipped with a thermostatic shower valve that can be locked at 38°C (100°F) to prevent scalding from sudden water pressure changes.
• Rotating Body Jets: Features 6 spa body jets that rotate 360 degrees for a full-range massage experience.
• 3-Function Shower Faucet Set: Effortlessly switch between rainfall shower head, body jets, or handheld spray. All functions can be used separately or simultaneously.
• Materiales de primera calidad: Valve body, handheld holder, and body jets are made of solid brass. Shower head, shower arm, handheld shower, and shower hose are made of 304 stainless steel.
• Fácil instalación: Adopts American standard 1/2 inch NPT thread, compatible with most standard U.S. plumbing connections.

2. ¿Qué hay en el paquete?

Verifique que todos los componentes estén presentes y sin daños antes de continuar con la instalación.

Image: All components of the MONDAWE 12-Inch Thermostatic Shower System laid out, including the shower head, body jets, control panel, handheld shower, hoses, and mounting hardware.

1. Cabezal de ducha de 12 pulgadas
2. 6 pcs Massage Body Jets
3. Placa de cubierta
4. Ducha de mano
5. Cuerpo de válvula termostática
6. Valve Panel
7. Handheld Shower Holder
8. 59-Inch Shower Hose
9. brazo de ducha
10. Herrajes de montaje
11. Manual de usuario

3. Especificaciones

4. Información de seguridad

• Cierre siempre el suministro principal de agua antes de comenzar cualquier instalación o mantenimiento.
• Si no está seguro acerca de alguna parte del proceso de instalación, consulte a un plomero calificado.
• The thermostatic valve is designed to prevent scalding by maintaining a consistent water temperature. Do not tamper with the factory-set temperature limit of 38°C (100°F) unless you fully understand the risks.
• Asegúrese de que todas las conexiones sean seguras y estancas para evitar fugas.
• Utilice equipo de protección personal (EPP) adecuado durante la instalación.

5. Guía de instalación

Proper installation is crucial for the optimal performance and longevity of your MONDAWE shower system. Follow these steps carefully.

5.1 Consideraciones previas a la instalación

• Ensure your wall structure can support the weight of the shower system.
• Verify that your plumbing connections are 1/2 inch NPT standard.
• The installation depth of the main body and shower components must be within specified limits relative to the finished wall line. Refer to the diagrams below.

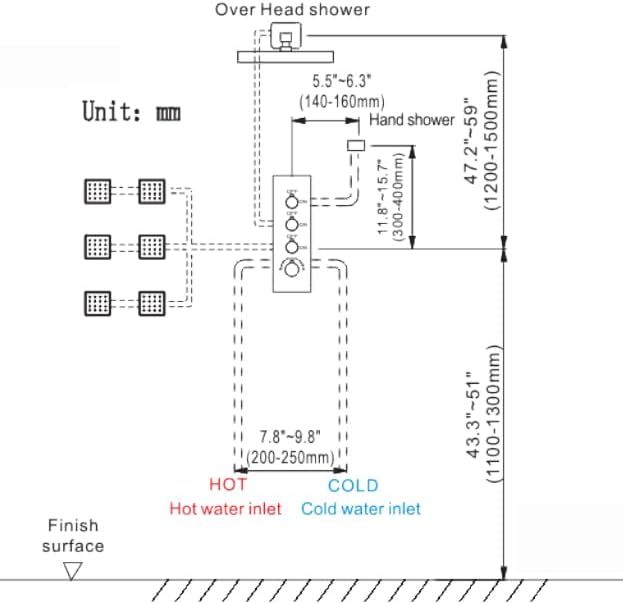

Image: Recommended height dimensions for shower components.

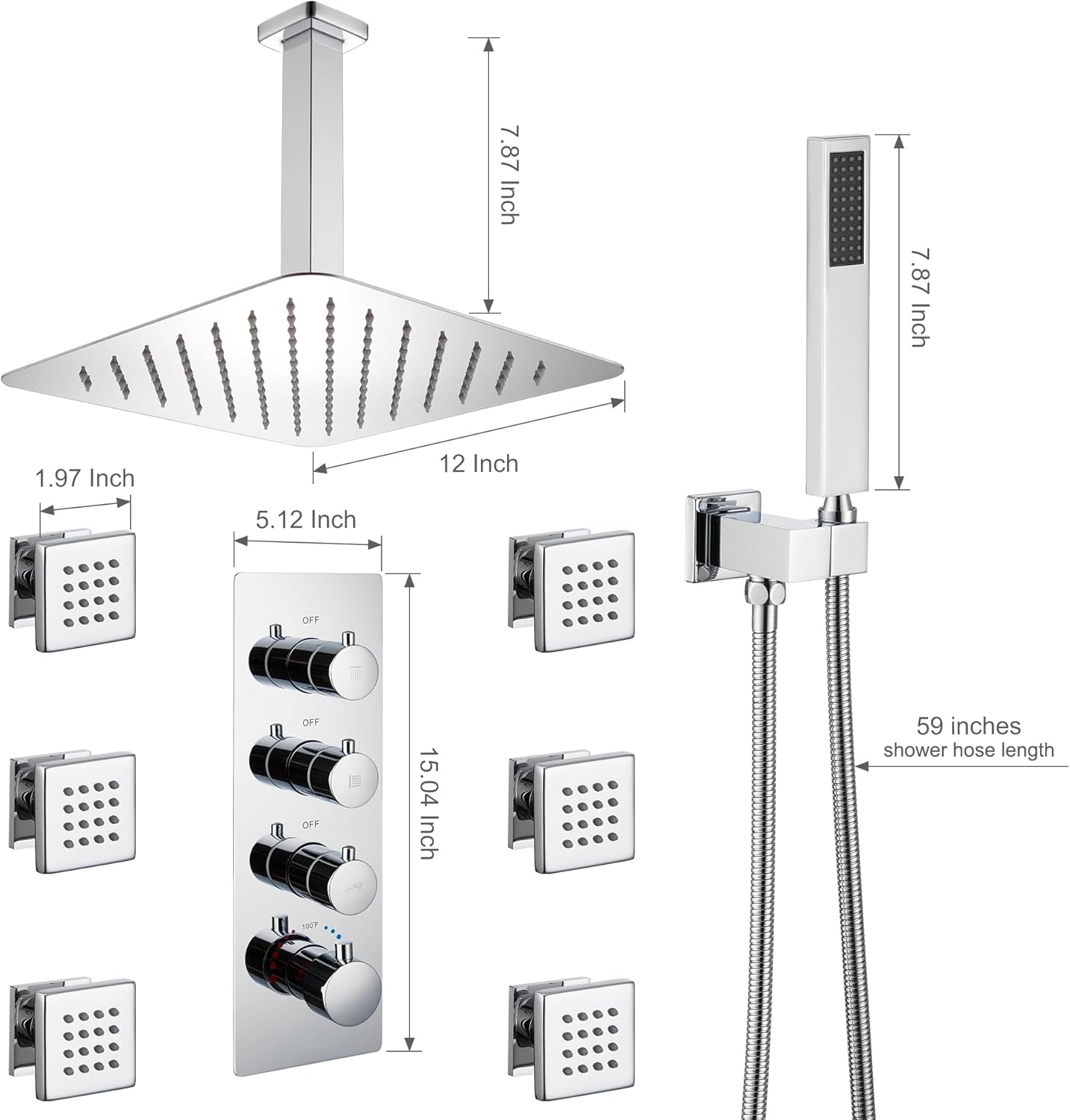

Image: Installation depth requirements for shower arm, holder, and body jets.

5.2 Guía de instalación en vídeo

For a visual step-by-step guide, please watch the official installation video provided by MONDAWE:

5.3 Pasos generales de instalación:

1. Prepara la pared: Ensure the wall framing is ready for the main valve body and other components. Mark precise locations for the shower head, body jets, and handheld shower holder according to your desired layout and the provided diagrams.
2. Install Main Valve Body: Secure the thermostatic valve body within the wall, ensuring it is properly aligned and at the correct depth relative to the finished wall surface. Connect the hot and cold water inlets (NPT 1/2") and outlets for the shower head, handheld, and body jets.
3. Conectar tuberías: Run the necessary plumbing lines from the main valve body to the locations of the shower head, handheld shower holder, and body jets. Use appropriate NPT 1/2" fittings and ensure all connections are sealed with Teflon tape for a watertight fit.
4. Install Shower Head and Arm: Mount the ceiling-mounted shower arm securely to the ceiling structure. Connect the 12-inch shower head to the arm.
5. Install Body Jets: Install the 6 solid brass body jets into their designated wall openings. Ensure they are flush with the finished wall.
6. Instalar el soporte de ducha de mano y la manguera: Mount the handheld shower holder to the wall. Connect the 59-inch stainless steel shower hose to the handheld shower and the wall outlet.
7. Prueba de agua: Before closing the wall, perform a thorough water test. Turn on the main water supply and check all connections for leaks. Operate each function (shower head, handheld, body jets) to ensure proper flow and temperature control.
8. Install Control Panel and Trim: Once water testing is complete and no leaks are found, install the decorative valve panel and handles onto the main valve body. Install the covers for the body jets and handheld holder.

6. Instrucciones de funcionamiento

Your MONDAWE shower system offers versatile control over your showering experience.

6.1 Control de temperatura:

• The bottom knob on the control panel is for temperature adjustment. Rotate it to select your desired water temperature.
• The thermostatic valve is factory-set with a safety stop at 38°C (100°F) to prevent accidental scalding. To exceed this temperature, press the safety button and continue rotating the knob.

6.2 Function Selection:

The upper knobs on the control panel allow you to select and activate different shower functions:

• Each knob corresponds to a specific shower outlet (e.g., rainfall shower head, handheld shower, body jets).
• Turn a knob to the 'ON' position to activate the corresponding function.
• You can use individual functions or combine them for a customized experience.

6.3 Body Jet Adjustment:

• The 6 body jets feature 360-degree rotation. Adjust their direction to target specific areas for a personalized massage.

6.4 Vídeo de demostración del producto:

See the shower system in action and understand its various functions:

7. Mantenimiento

Regular cleaning and maintenance will ensure your MONDAWE shower system remains in excellent condition and functions optimally.

7.1 Cleaning the Chrome Finish:

• Utilice un paño suave y un jabón suave o un limpiador no abrasivo diseñado específicamente para acabados cromados.
• Evite el uso de limpiadores abrasivos, estropajos o productos químicos fuertes, ya que pueden dañar el acabado.
• Enjuague bien con agua limpia y seque con un paño suave para evitar manchas de agua.

7.2 Cleaning Shower Head and Body Jet Nozzles:

• Over time, mineral deposits can build up in the nozzles, affecting water flow.
• Many nozzles are made of rubber and can be easily cleaned by gently rubbing them with your finger or a soft brush to dislodge deposits.
• For stubborn buildup, a solution of white vinegar and water can be used. Soak the affected parts (if removable) or apply the solution with a cloth, then rinse thoroughly.

8. Solución de problemas

Si encuentra algún problema con su sistema de ducha, consulte los siguientes problemas y soluciones comunes:

If you are unable to resolve an issue using these troubleshooting steps, please contact MONDAWE customer support for assistance.

9. Garantía y soporte

MONDAWE is committed to providing high-quality products and excellent customer service. Your shower system is manufactured with durable materials to ensure longevity.

Atención al cliente:

If you have any questions regarding installation, operation, maintenance, or require assistance with your product, please do not hesitate to contact us. Our customer service team is ready to help.

You can reach us via email at the address provided in your purchase documentation or visit the MONDAWE store on Amazon for more information and support resources.
