Bellemave L-Shaped Bunk Bed with Storage Stairs, Twin Over Full & Twin Loft Bed - Instruction Manual

1. Introducción

This manual provides detailed instructions for the assembly, operation, and maintenance of your Bellemave L-Shaped Bunk Bed. This bed system features a twin over full bunk bed combined with a twin size loft bed, integrated storage stairs, and three under-bed drawers. Please read all instructions carefully before assembly and use to ensure safe and proper installation.

Figura 1.1: Sobreview of the Bellemave L-Shaped Bunk Bed in an espresso finish.

2. Información de seguridad

Adherence to these safety guidelines is crucial for preventing injury and ensuring the longevity of your bunk bed. Failure to follow these instructions may result in serious injury.

• Lee todas las instrucciones: Ensure all assembly steps are followed precisely.
• Límites de peso: Be aware of and adhere to the weight limits for each bed section. Overloading can cause structural failure.
• Barandillas: The upper bunk features a full-length guardrail. Ensure it is always securely in place.
• Seguridad en escaleras: Always use the provided ladders and stairs for access to the upper bunks. Do not jump on or off the beds.
• Compatibilidad del colchón: Use only mattresses of the specified size and thickness to ensure guardrail effectiveness. No box spring is needed.
• Controles periódicos: Revise periódicamente todos los pernos y conexiones para asegurarse de que estén bien apretados. Vuelva a apretarlos si es necesario.
• Puntos de pinchazo: Exercise caution during assembly and use, as the product may have pinch points or sharp edges.
• Ventilación: Ensure adequate ventilation around the bed, especially for the upper bunk.
• Seguridad de los niños: No se permiten niños menores de 6 años en la litera superior.

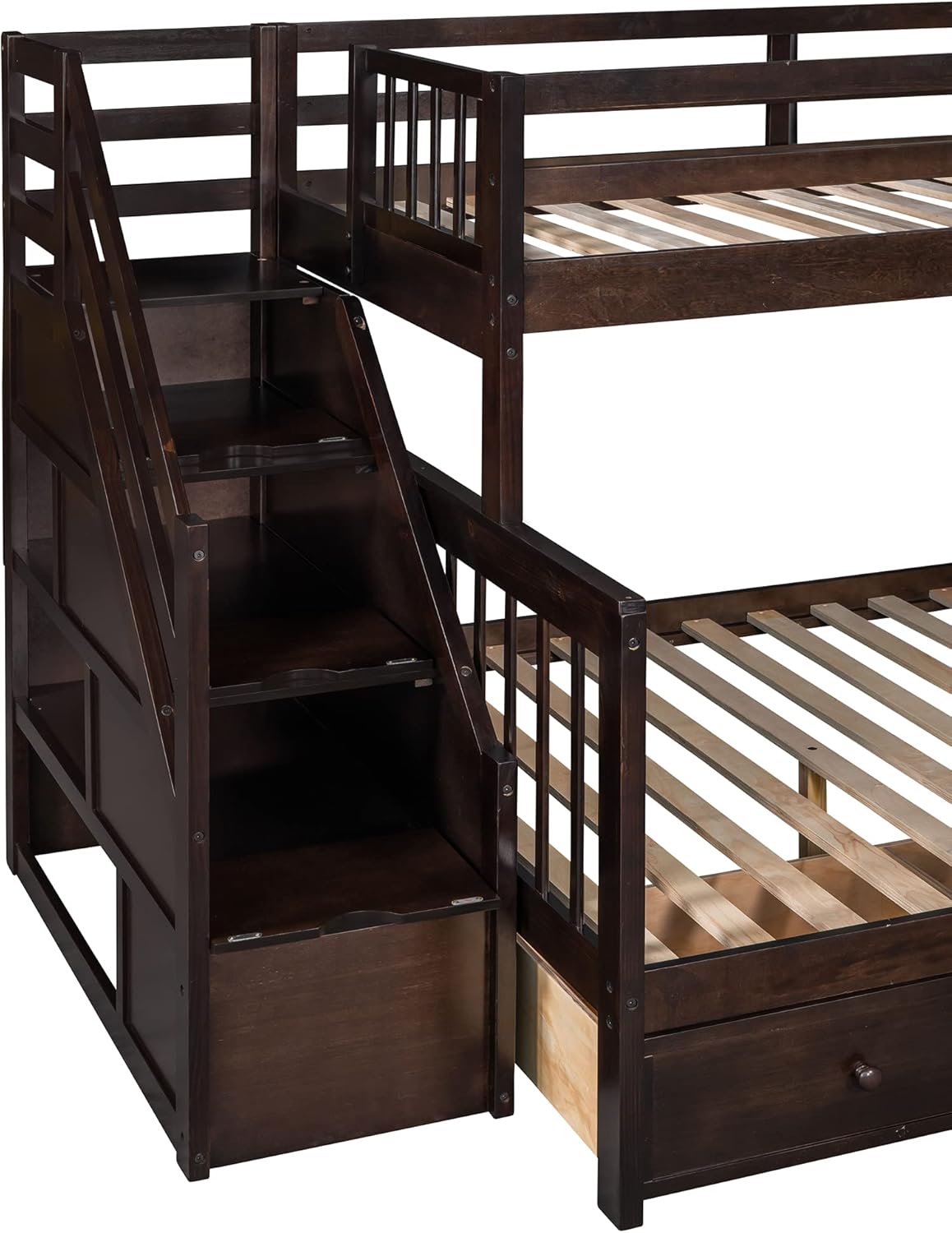

Figure 2.1: Close-up of the integrated storage stairs and upper bunk guardrail, highlighting safety features.

3. Contenido del paquete

Antes de comenzar el montaje, verifique que todos los componentes enumerados a continuación estén presentes y sin daños. Si alguna pieza falta o está dañada, no continúe con el montaje y contacte con atención al cliente.

• Twin Over Full Bunk Bed Frame components
• Twin Size Loft Bed Frame components
• Integrated Storage Stairs unit
• Three Under-Bed Drawers
• Wooden Slats for all bed sections
• Guardrails for upper bunks
• Assembly Hardware (bolts, screws, nuts, etc.)
• Herramientas de montaje (normalmente una llave Allen)
• Manual de instrucciones (este documento)

Figure 3.1: The three under-bed drawers, part of the package contents.

4. Instrucciones de montaje

Assembly requires at least two adults. Clear a large area for assembly and keep all parts organized. Do not fully tighten bolts until instructed to do so.

1. Desembalaje e identificación de las piezas: Carefully unpack all components and lay them out. Refer to the parts list in your physical manual to identify each piece.
2. Assemble the Twin Over Full Bunk Bed Base: Begin by assembling the headboards, footboards, and side rails for the twin over full bunk bed. Ensure all connections are secure but do not overtighten.
3. Attach Slats to Twin Over Full Bunk Bed: Install the wooden slats onto the bed frames. Ensure even spacing and secure attachment.
4. Assemble the Twin Size Loft Bed Base: Follow similar steps to assemble the twin size loft bed frame, including its headboard, footboard, and side rails.
5. Attach Slats to Twin Size Loft Bed: Install the wooden slats for the loft bed.
6. Assemble Storage Stairs: Construct the integrated storage stairs unit. Ensure drawers slide smoothly into their compartments.
7. Connect Bed Sections: Carefully position and connect the twin over full bunk bed, the twin size loft bed, and the storage stairs unit to form the L-shaped configuration. Refer to the overall diagram for correct orientation.
8. Instalar barandillas y escaleras: Securely attach the guardrails to the upper bunks and install the ladders for access.
9. Instalar cajones debajo de la cama: Place the three under-bed drawers beneath the full-size bed.
10. Ajuste final: Una vez instalados y alineados todos los componentes, apriete sistemáticamente todos los pernos y tornillos. No los apriete demasiado.

Figure 4.1: Overall dimensions and layout of the L-shaped bunk bed system.

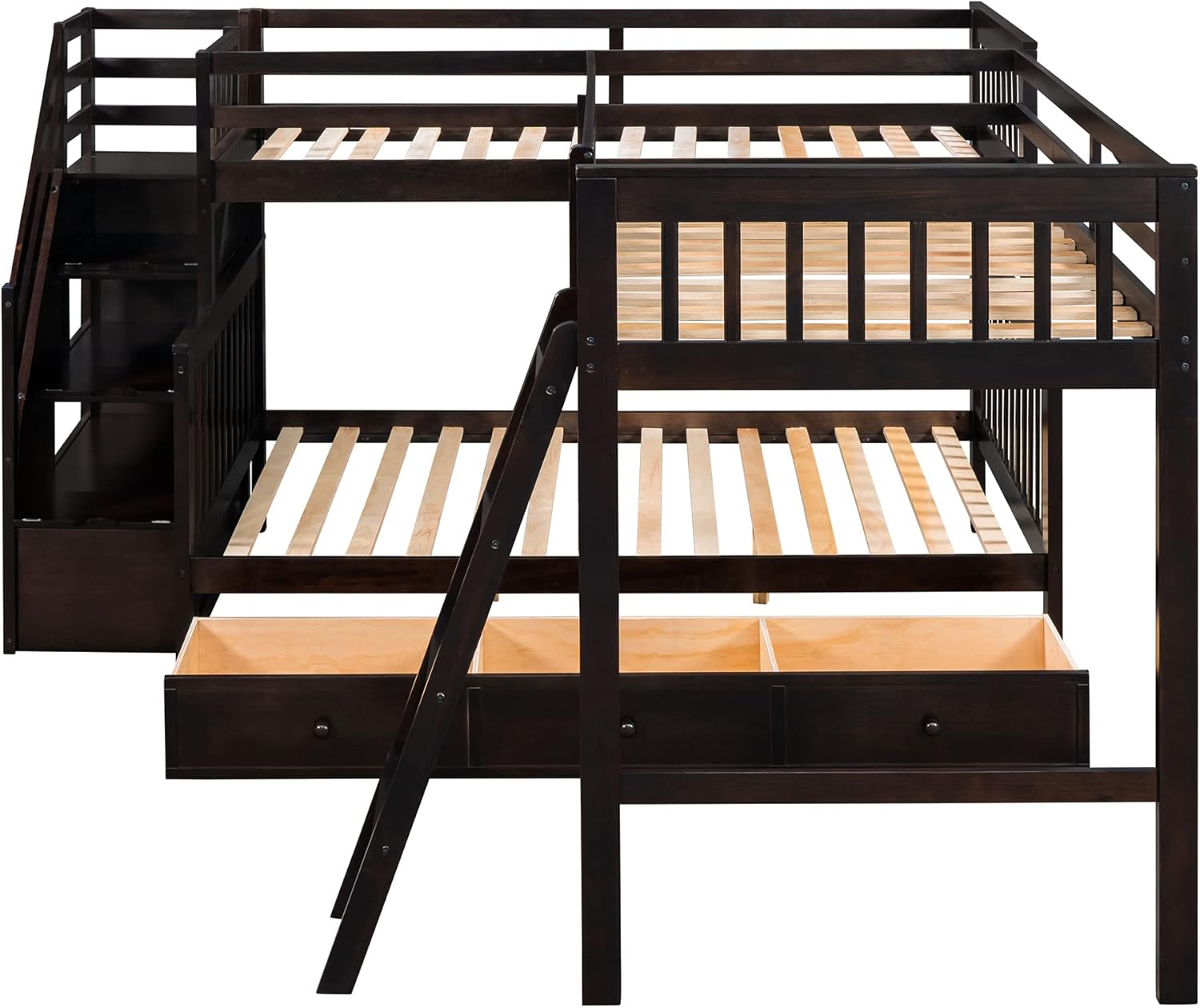

Figura 4.2: Lado view illustrating the under-bed drawers and bed structure.

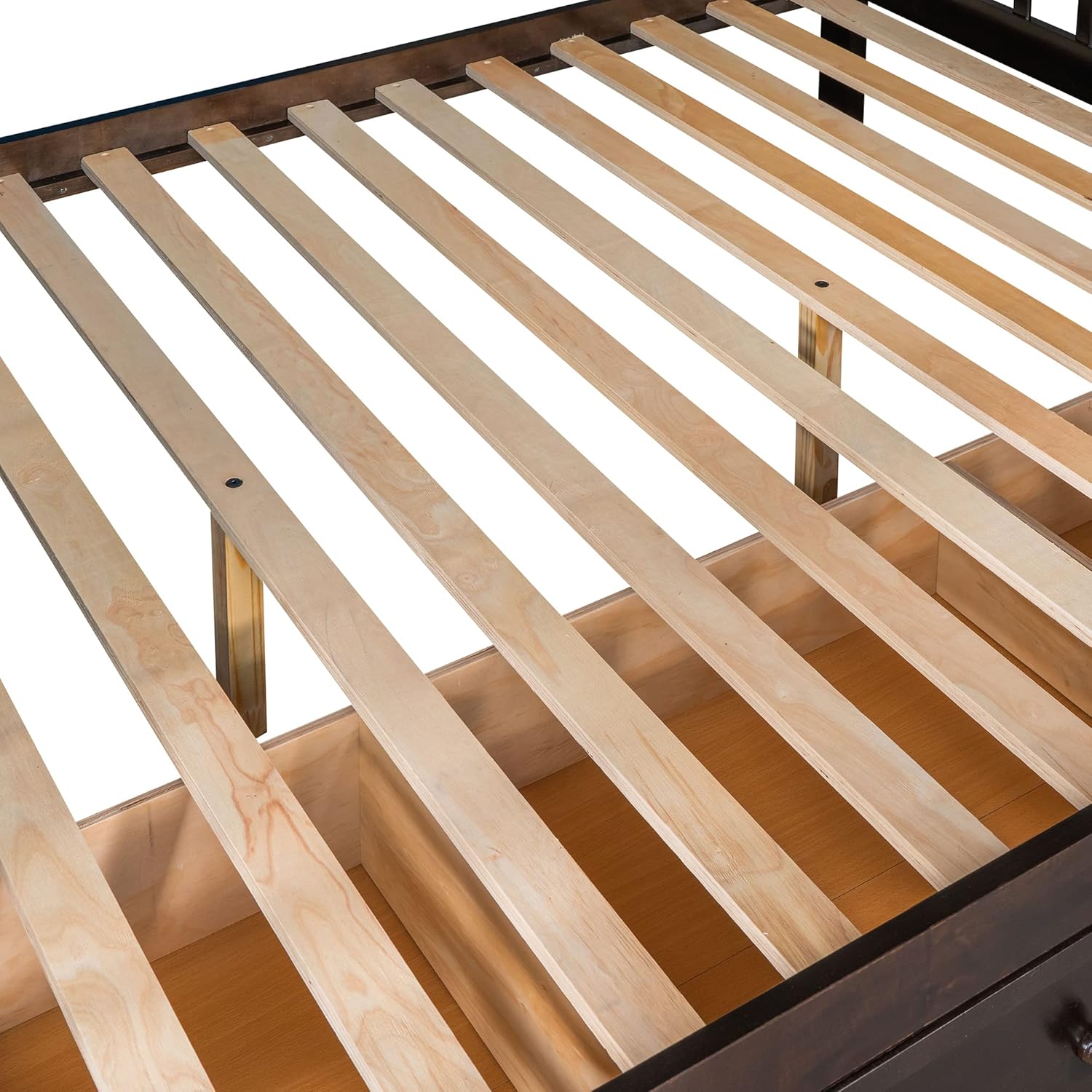

Figura 4.3: Detalle de los listones de madera que sirven de soporte al colchón.

5. Pautas de uso

To ensure safe and effective use of your Bellemave L-Shaped Bunk Bed, please observe the following guidelines:

• Colocación del colchón: Place a standard Twin size mattress on the upper bunk and loft bed, and a standard Full size mattress on the lower bunk. No box spring is required as the bed is designed with supportive wooden slats.
• Uso de la escalera: Use the integrated staircase for safe access to the upper bunk and loft bed. The stairs also provide convenient storage compartments.
• Funcionalidad del cajón: The three under-bed drawers offer additional storage space. Ensure they slide smoothly and are not overloaded.
• Distribución del peso: Distribute weight evenly across the bed surfaces. Avoid concentrating heavy loads in one area.
• Actividades prohibidas: Do not allow jumping on the beds, rough play, or hanging from any part of the bed structure.

Figure 5.1: The storage stairs providing access to the upper bunk and additional storage.

6. Mantenimiento

Regular maintenance will help preserve the appearance and structural integrity of your bunk bed.

• Limpieza: Limpie las superficies con un paño suave yamp paño. Evite productos químicos agresivos o limpiadores abrasivos que puedan dañar el acabado.
• Comprobación del hardware: Periodically inspect all bolts, screws, and connections. Retighten any loose hardware to maintain stability and safety.
• Correderas para cajones: Ensure drawer slides are clean and free of obstructions for smooth operation.
• Cuidado de la madera: Proteja el acabado de la madera de la luz solar directa y de los cambios extremos de temperatura para evitar que se deforme o se decolore.

7. Solución de problemas

8. Especificaciones del producto

• Marca: Bellemave
• Modelo: L Shaped Bunk Bed with Storage Stairs and 3 Drawers
• ASIN: B0BVB4T33D
• Color: Café exprés
• Material: Madera de pino macizo
• Dimensiones generales (L x W x H): 118.3" x 96.8" x 61.2"
• Tamaño de colchón compatible: Twin (upper bunk, loft bed), Full (lower bunk)
• Requiere ensamblaje: Sí
• Característica especial: Durable construction, integrated storage stairs, 3 under-bed drawers, no box spring needed.

Figura 8.1: Lado view of the L-shaped bunk bed, highlighting the loft bed and storage stairs.

9. Garantía y atención al cliente

Si tiene alguna pregunta sobre el montaje, piezas faltantes o problemas con el producto, póngase en contacto con el servicio de atención al cliente de Bellemave. Consulte la documentación de compra para obtener información específica sobre la garantía y la información de contacto.

Please have your model number (B0BVB4T33D) and purchase date available when contacting support.
