1. Producto terminadoview
The klarus XT11S is a high-performance, rechargeable tactical flashlight designed for reliability and versatility. It delivers a powerful 1100 lumens with a beam distance of up to 330 meters, making it suitable for a wide range of applications from outdoor adventures to tactical operations. Its intuitive dual tail switches and side switch provide quick access to various lighting modes, including Turbo, High, Medium, Low, Strobe, and SOS.
Key features include a 2600mAh rechargeable battery with extended runtime, convenient USB-C fast charging, and an intelligent battery capacity indicator. The flashlight also incorporates an Innovative Temperature Protection System (ITS) to prevent overheating and is constructed from durable aircraft-grade aluminum, offering IPX8 waterproofing and 1-meter impact resistance.
Image: The Klarus XT11S Tactical Flashlight, showcasing its sleek design and powerful LED emitter.
2. Configuración y carga
2.1 Instalación de la batería
The klarus XT11S typically comes with a 2600mAh 18650 Lithium-Ion battery. To install or replace the battery:
- Desenrosque la tapa trasera de la linterna en sentido antihorario.
- Inserte la batería 18650 con el extremo positivo (+) orientado hacia el cabezal de la linterna.
- Enrosque nuevamente la tapa de la cola girándola en el sentido de las agujas del reloj hasta que quede bien apretada.
2.2 Carga inicial
Before first use, it is recommended to fully charge the battery. The XT11S features a convenient USB-C charging port.
- Localice el puerto de carga USB-C en el costado de la linterna, generalmente protegido por una cubierta de goma.
- Levante suavemente la cubierta de goma para exponer el puerto.
- Connect the provided USB-C cable to the flashlight and plug the other end into a compatible USB power source (e.g., wall adapter, power bank, computer USB port).
- La luz indicadora de la batería mostrará el estado de carga:
- Luz roja: Carga en curso.
- Luz verde: Carga completa.
- Luz naranja: Abnormal condition (e.g., charging error).
- Una vez completada la carga, desconecte el cable y cierre bien la cubierta de goma para mantener la resistencia al agua.

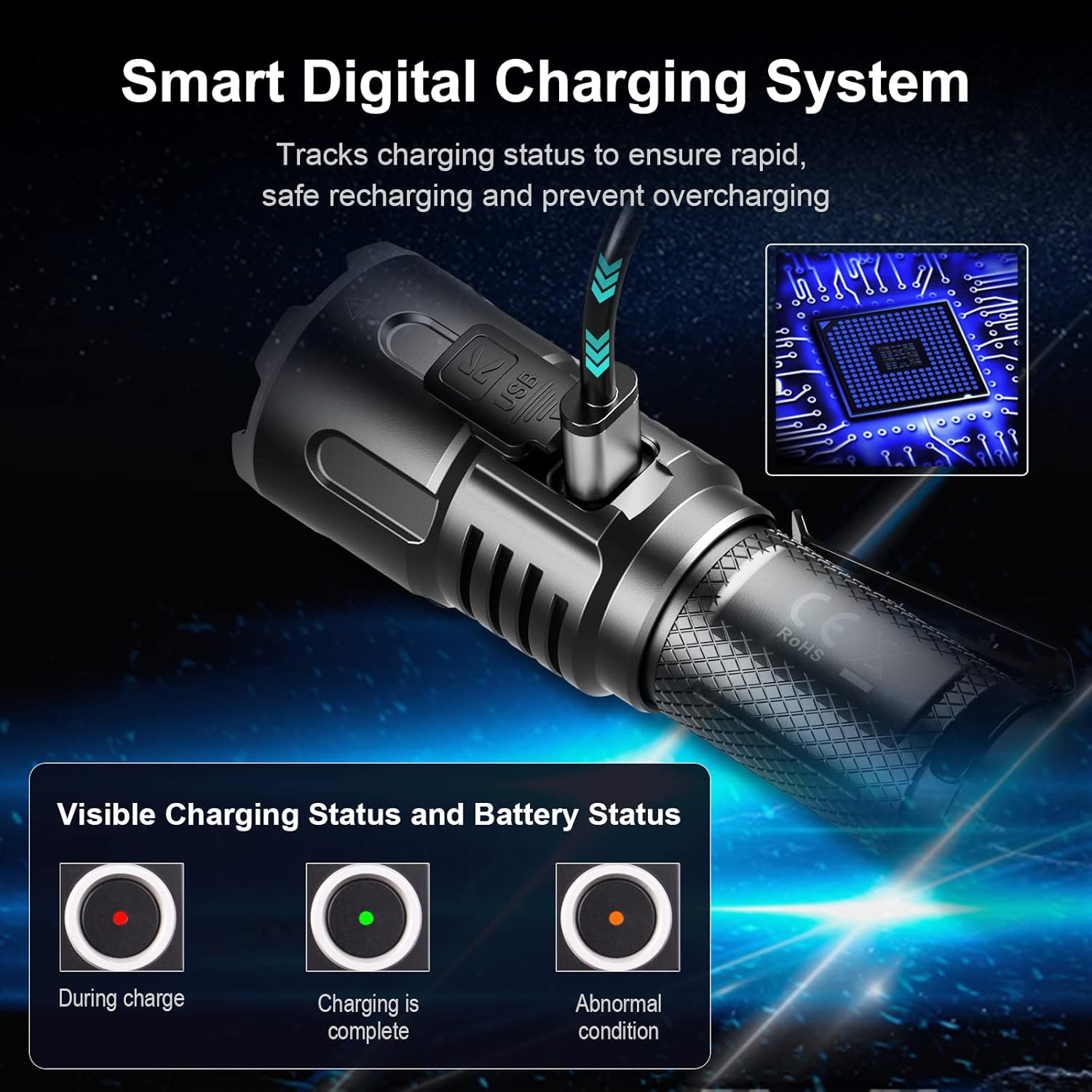

Image: Visual representation of the smart digital charging system and battery status indicators.
Image: The USB-C charging port with its protective cover, illustrating various compatible charging sources like PC/Laptop, Mains Socket, and Vehicle.
Imagen: Detallada view of the USB-C charging port and the battery indicator light, showing different charge levels (Green: 70%-100%, Orange: 30%-70%, Red Flashing: <10%).
3. Instrucciones de funcionamiento
The klarus XT11S features a versatile triple switch design for intuitive control.
3.1 Funciones del interruptor
Image: Diagram illustrating the Primary Switch (tail cap), Mode Switch (tail cap), and Side Switch functions.
- Primary Switch (Tail Cap): Used for Momentary-ON, ON/OFF, and Constant-ON functions.
- Mode Switch (Tail Cap): Provides quick access to Instant Strobe or Instant Low-light, depending on the selected user setting.
- Interruptor lateral: Controls ON/OFF, Mode Change, Instant Low-light, STROBE, SOS, LOCK Function, and Memorized Function.
3.2 Lighting Modes and Output
The XT11S offers multiple lighting modes to suit various needs:
- Turbo: 1100 Lumens (maximum output)
- Alto: 400 lúmenes
- Medio: 100 lúmenes
- Bajo: 10 lúmenes
- Luz estroboscópica: 1100 Lumens (for disorienting)
- LLAMADA DE SOCORRO: 100 Lumens (for signaling)
The flashlight features a constant current output to prevent flickering, ensuring stable illumination.
Image: Comparison showing stable light from constant current versus flickering from PWM circuit.
3.3 Mode Operation Demonstration
Video: A demonstration of the Klarus XT11S flashlight's various lighting modes, including Turbo, High, Medium, Low, Strobe, and SOS, showcasing their respective lumen outputs and effects.
3.4 Operación con una sola mano
The tactical design of the XT11S, with its enlarged contact area, allows for easy one-handed operation, even when wearing gloves.
Image: A person demonstrating one-handed operation of the Klarus XT11S flashlight while wearing gloves, highlighting its ergonomic design.
4. Mantenimiento
Proper maintenance ensures the longevity and optimal performance of your klarus XT11S flashlight.
- Limpieza: Regularly wipe the flashlight body with a clean, soft cloth. For stubborn dirt, use a slightly damp paño. No utilice productos químicos agresivos ni materiales abrasivos.
- Roscas y juntas tóricas: Periodically lubricate the threads and O-rings with silicone grease to maintain water resistance and smooth operation. Inspect O-rings for wear and tear and replace if necessary.
- Cuidado de la batería: Charge the battery regularly, even if the flashlight is not in frequent use, to prevent deep discharge. If storing for an extended period, charge the battery to approximately 50% and remove it from the flashlight. Store in a cool, dry place.
- Contactos: Ensure the battery contacts and the flashlight's internal contacts are clean and free of debris. Use a cotton swab with a small amount of rubbing alcohol if necessary.
5. Solución de problemas
If you encounter issues with your klarus XT11S, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La linterna no se enciende. | Low or depleted battery. Incorrect battery installation. Loose tail cap. Dirty contacts. | Charge the battery fully. Ensure battery is inserted with positive (+) end towards the head. Tighten the tail cap securely. Clean battery and flashlight contacts. |
| La luz es tenue o parpadea. | Low battery. Poor contact. | Recharge the battery. Clean battery and flashlight contacts. Ensure tail cap is fully tightened. |
| La linterna se calienta rápidamente. | Operating on Turbo mode for extended periods. | This is normal for high-output flashlights. The Intelligent Temperature Protection System (ITS) will automatically reduce output to prevent damage. Switch to a lower mode if prolonged use is required. |
| Charging indicator shows orange. | Abnormal charging condition. | Check the USB cable and power source. Ensure the battery is correctly inserted. If the issue persists, try a different battery or contact customer support. |
6. Especificaciones
Detailed specifications for the klarus XT11S Tactical Flashlight:
- Modelo: XT11S
- Fuente de luz: CONDUJO
- Brillo máximo: 1100 lúmenes
- Distancia máxima del haz: 330 metros
- Batería: 1 batería de iones de litio 18650 de 2600 mAh (incluida)
- Cargando: Carga rápida USB-C
- Tiempo máximo de ejecución: Up to 260 hours (on Low mode)
- Material: Aleación de aluminio de grado aeronáutico
- Resistencia al agua: IPX8 (sumergible hasta 2 metros)
- Resistencia al impacto: 1 metros
- Dimensiones: Aproximadamente 1" de profundidad x 1" de ancho x 3.93" de alto (25.4 mm x 34.9 mm x 139 mm)
- Peso: Approximately 4.4 ounces (124.3 grams) excluding battery
- Características especiales: Dual Tail Switches, Side Switch, Intelligent Temperature Protection System (ITS), Battery Capacity Indicator.
Image: The Klarus XT11S flashlight next to a smartphone, illustrating its compact and lightweight dimensions (139mm length, 34.9mm head diameter, 25.4mm body diameter).
Image: The Klarus XT11S flashlight submerged in water, demonstrating its IPX8 waterproof rating, suitable for use in severe weather conditions.
Image: The Klarus XT11S flashlight next to metalworking tools, emphasizing its construction from high-quality aviation aluminum alloy for strength and durability.
Image: The Klarus XT11S flashlight with icons indicating its IPX8 waterproof rating (up to 2m underwater) and 1-meter drop protection, highlighting its resilience in harsh environments.
Image: A collage of images showing the Klarus XT11S flashlight being used in various scenarios such as camping, tactical operations, walking, repairing, and duty, demonstrating its versatility.
7. Garantía y soporte
klarus products are manufactured to high quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official klarus website. Generally, klarus offers a limited warranty against defects in materials and workmanship.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact klarus customer service through their official website or the retailer from whom you purchased the product. Keep your proof of purchase for warranty purposes.
Note: The warranty description provided in the product data was minimal ("1."). Please consult the official Klarus website or product packaging for comprehensive warranty terms and conditions.
