Yaheetech Nightstand with Charging Station (Set of 2)

Producto terminadoview

This manual provides instructions for the assembly, operation, and maintenance of your Yaheetech Nightstand with Charging Station. Please read these instructions carefully before assembly and use to ensure proper function and longevity of your product.

Image: Two black Yaheetech nightstands, each featuring a top surface, a drawer, an open lower shelf, and an integrated charging station with power cord.

Información de seguridad

• Asegúrese de que todos los componentes estén presentes y sin daños antes del montaje. No lo utilice si alguna pieza falta o está rota.
• Montar sobre una superficie suave y limpia para evitar rayones.
• No apriete demasiado los tornillos durante el montaje para evitar dañar el material.
• Mantenga las piezas pequeñas fuera del alcance de los niños durante el montaje.
• Do not exceed the maximum weight capacities for the tabletop, drawer, and shelf.
• Only use the charging station with compatible devices and within specified electrical ratings.
• Mantenga los líquidos lejos de la estación de carga para evitar riesgos eléctricos.

Contenido del paquete

Verifique que todas las piezas enumeradas a continuación estén incluidas en su paquete:

• Nightstand components (MDF boards, solid rubberwood legs)
• Componentes del cajón
• Integrated charging station (2 AC outlets, 2 USB ports, 1 switch)
• 6.5-foot power cord with hook & loop strap
• Herrajes para montaje (tornillos, tacos, etc.)
• Herramientas de montaje (si se proporcionan)
• Manual de instrucciones

Configuración y montaje

Assembly is required for this product. Follow the included illustrated instructions carefully. It is recommended to have two people for assembly.

Pasos de la Asamblea General:

1. Desembalaje e identificación de las piezas: Carefully remove all components from the packaging. Lay them out on a clean, soft surface. Compare all parts and hardware against the provided parts list in the separate assembly guide to ensure nothing is missing.
2. Montar el marco: Attach the legs to the side panels and then connect the top and bottom panels to form the main frame of the nightstand. Ensure all connections are secure but do not overtighten.
3. Instalar las correderas del cajón: Secure the drawer slides to the interior of the nightstand frame according to the instructions.
4. Ensamblar el cajón: Construct the drawer box using the provided panels and hardware. Install the drawer knob.
5. Insertar el cajón: Carefully slide the assembled drawer into the installed drawer slides.
6. Instalar la estación de carga: Place the charging station into the designated cutout on the top surface of the nightstand. Ensure it is flush and secure.
7. Conecte el cable de alimentación: Route the power cord as desired, utilizing the included hook and loop strap for cable management.

Image: A diagram illustrating the dimensions of the nightstand (16 inches wide, 12 inches deep, 24 inches high) and its weight capacities: 66 lbs for the tabletop, 4.4 lbs for the drawer, and 22 lbs for the open shelf. The power cord length is 6.5 feet.

Instrucciones de funcionamiento

Usando la estación de carga:

1. Conectar: Connect the nightstand's 6.5-foot power cord to a standard 125V AC wall outlet.
2. Activar energía: Flip the switch on the integrated charging station to the 'ON' position. An indicator light may illuminate.
3. Conectar dispositivos:
   • For AC powered devices, plug them into the two 125V/12A AC outlets.
   • For USB powered devices, plug them into the two 5V/2A USB ports.
4. Cargando: Your devices should now begin charging. Monitor device charging status as per device manufacturer guidelines.
5. Apagado: When not in use, flip the switch on the charging station to the 'OFF' position to conserve energy and for safety.

Imagen: Un detalle view of the integrated charging station on the nightstand's top surface, showing two AC outlets, two USB ports, and a power switch. A smartphone is shown connected to one of the USB ports.

Using the Drawer and Shelf:

• Cajón: The drawer is suitable for storing small, private items. Do not overload the drawer; its maximum capacity is 4.4 lbs.
• Estantería abierta: The lower open shelf can be used to display decorative objects, store books, magazines, or other items. Do not exceed the shelf's maximum capacity of 22 lbs.

Image: The drawer of the nightstand is shown partially open, revealing a book stored inside. This demonstrates the internal storage capacity.

Mantenimiento

Limpieza:

• Limpie las superficies de la mesita de noche con un paño suave.amp Paño. Evite productos químicos fuertes o limpiadores abrasivos, que pueden dañar el acabado.
• The nightstand features a water-resistant painting. Promptly wipe up any spills to prevent water damage.

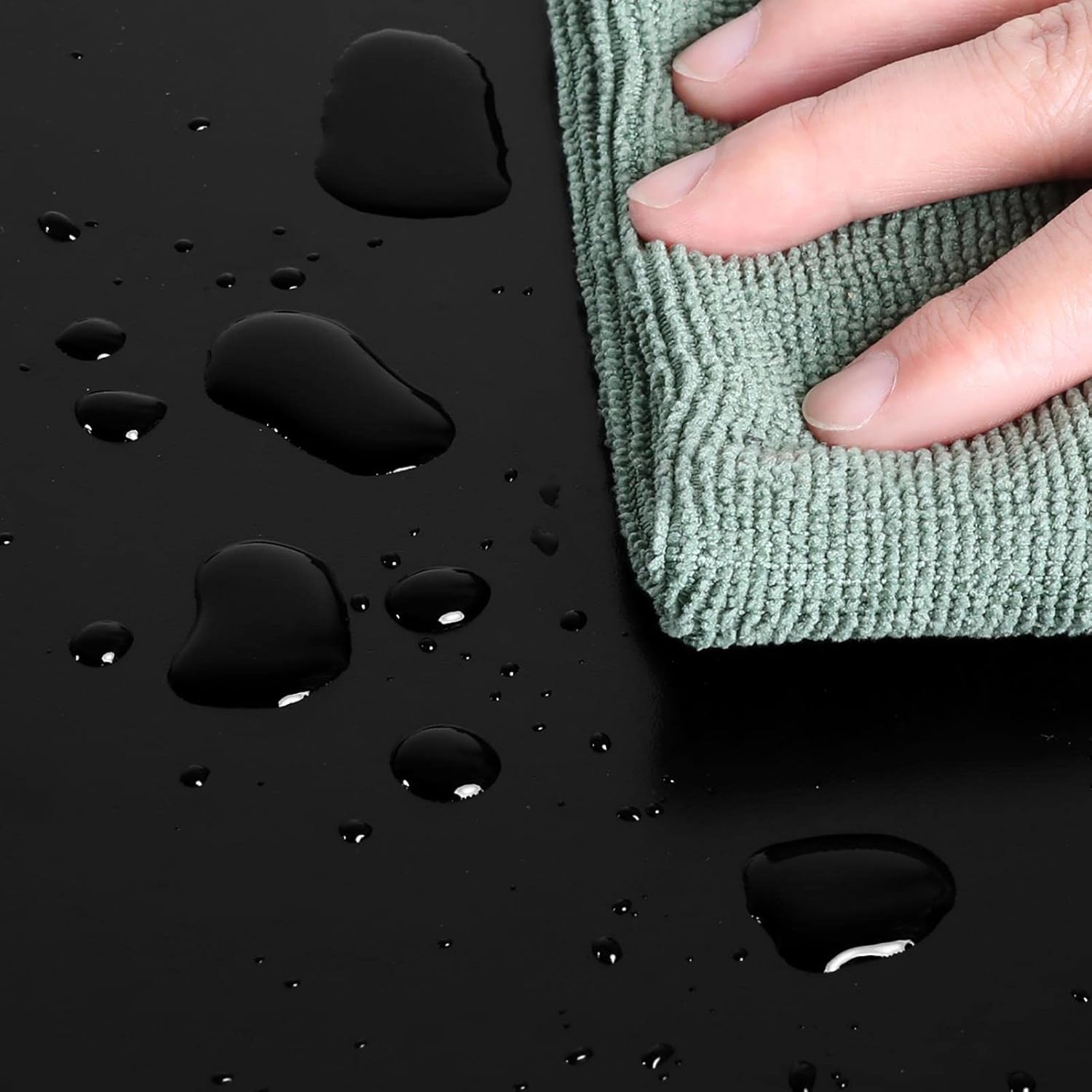

Image: A hand is shown wiping water droplets from the black surface of the nightstand with a green microfiber cloth, demonstrating the water-resistant feature.

Cuidado general:

• Revise periódicamente todos los tornillos y conexiones para asegurarse de que estén bien apretados. Vuelva a apretarlos si es necesario.
• Evite colocar objetos calientes directamente sobre la superficie. Utilice posavasos o almohadillas protectoras.
• Keep the nightstand away from direct sunlight and excessive humidity to prevent warping or fading.

Solución de problemas

Charging Station Issues:

• No hay alimentación en los enchufes/puertos USB:
  • Asegúrese de que el cable de alimentación de la mesita de noche esté enchufado de forma segura a un tomacorriente de pared que funcione.
  • Check if the power switch on the charging station is in the 'ON' position.
  • Verify the wall outlet is receiving power by testing with another device.
  • If the charging station has a reset button (often combined with the power switch), try pressing it.
• Carga lenta:
  • Ensure your device's charging cable is not damaged and is fully inserted.
  • Some devices require specific charging protocols; the 5V/2A USB ports provide standard charging.
  • Avoid charging too many high-power devices simultaneously if it causes a noticeable drop in performance.

Problemas estructurales:

• Mesita de noche tambaleante:
  • Revise todos los tornillos de montaje y apriete los que estén flojos.
  • Ensure the nightstand is placed on a level surface.
• El cajón se atasca o no cierra con suavidad:
  • Asegúrese de que las correderas del cajón estén correctamente alineadas y libres de obstrucciones.
  • Check that the drawer is not overloaded.
  • Verify the drawer was assembled correctly and is not warped.

Presupuesto

Garantía y soporte

Para obtener información sobre la garantía o asistencia al cliente, consulte la documentación incluida con su compra o comuníquese directamente con Yaheetech a través de su sitio web oficial. websitio o el minorista donde se compró el producto. También puede visitar el Tienda Yaheetech en Amazon Para más información.
