YATO YT-72985 Brake Fluid Tester Instruction Manual

1. Introducción

This instruction manual provides detailed guidance for the safe and effective use of the YATO YT-72985 Brake Fluid Tester. This device is designed to accurately measure the water content in automotive brake fluid, helping to determine its quality and ensure optimal braking performance. Regular testing of brake fluid is crucial for vehicle safety and longevity of the braking system components.

2. Información de seguridad

Always observe the following safety precautions when using the YATO YT-72985 Brake Fluid Tester:

• Lea este manual completamente antes de utilizar el dispositivo.
• Wear appropriate personal protective equipment, including safety glasses and gloves, when handling brake fluid.
• El líquido de frenos es corrosivo. Evite el contacto con la piel, los ojos y las superficies pintadas. En caso de contacto, enjuague inmediatamente con abundante agua.
• Do not immerse the entire tester unit in brake fluid or any other liquid. Only the probe tip should be submerged.
• Mantenga el dispositivo fuera del alcance de los niños y del personal no autorizado.
• Store the tester in a dry, clean environment when not in use.
• Do not attempt to modify or repair the device. Refer all servicing to qualified personnel.

3. Producto terminadoview

The YATO YT-72985 Brake Fluid Tester is a compact and easy-to-use device designed for quick assessment of brake fluid quality. It features an LCD display for percentage readings and LED indicators for a quick visual interpretation of results.

Figura 1: Frente view of the YATO YT-72985 Brake Fluid Tester, showing the LCD display, LED indicators, and control buttons.

Componentes:

• Unidad principal: Houses the electronics, display, and controls.
• Pantalla LCD: Shows the measured water content percentage.
• Indicadores LED: Provide a quick visual status of brake fluid quality (Good, Warning, Stop).
• Botón ON/OFF: Enciende o apaga el dispositivo.
• Botón SELECCIONAR: Used to cycle through different brake fluid types (DOT3, DOT4, DOT5.1).
• Sonda flexible: The sensing element that is immersed in the brake fluid.
• Compartimento de la batería: Located on the rear (requires 2x AAA batteries, not included).

4. Configuración

Before first use, install the batteries:

1. Localice la tapa del compartimiento de la batería en la parte posterior del probador.
2. Deslice o desenganche la cubierta para abrir.
3. Inserte dos (2) pilas AAA, asegurándose de la polaridad correcta (+/-).
4. Vuelva a colocar la tapa del compartimiento de la batería de forma segura.

El dispositivo ya está listo para funcionar.

5. Instrucciones de funcionamiento

5.1. Performing a Brake Fluid Test

1. Prepare el vehículo: Ensure the vehicle is on a level surface and the engine is off. Locate the brake fluid reservoir.
2. Clean the Reservoir Area: Carefully clean around the brake fluid reservoir cap to prevent contaminants from entering the system.
3. Remove Reservoir Cap: Gently remove the brake fluid reservoir cap.
4. Encendido: Presione el ENCENDIDO/APAGADO button to turn on the tester. The LCD display will illuminate.
5. Seleccione el tipo de fluido: Presione el SELECCIONAR button repeatedly to choose the correct brake fluid type (DOT3, DOT4, or DOT5.1) for your vehicle. The corresponding LED will light up.
6. Sonda de inmersión: Carefully immerse the flexible probe tip into the brake fluid reservoir. Ensure the probe is fully submerged in the fluid but does not touch the bottom or sides of the reservoir.
7. Leer resultados:
   • The LCD display will show the percentage of water content in the brake fluid.
   • Simultaneously, the LED indicators will provide a quick visual assessment:
     • BUENO (LED verde): Water content is below 1% (0.1% - <1%). Brake fluid is in good condition.
     • WARNING (Yellow LED): Water content is between 1.5% and 2.5%. Brake fluid quality is deteriorating; consider replacement soon.
     • STOP (Red LED): Water content is 3.0% or greater (>4%). Brake fluid is severely contaminated and requires immediate replacement.
     • LOW BAT (Red LED): Indicates low battery power. Replace batteries for accurate readings.
8. Quitar la sonda: Once the reading stabilizes, carefully remove the probe from the brake fluid.
9. Limpiar sonda: Wipe the probe clean with a lint-free cloth.
10. Apagado: Mantenga pulsado el ENCENDIDO/APAGADO Botón para apagar el probador.
11. Replace Reservoir Cap: Securely replace the brake fluid reservoir cap.

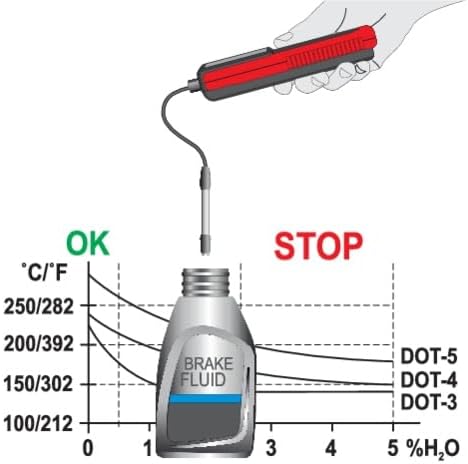

Figure 2: Illustration of the brake fluid tester probe being correctly immersed into a brake fluid reservoir for testing.

Figura 3: detallada view of the tester's LCD screen showing percentage readings and the various LED indicators for fluid quality (Good, Warning, Stop) and battery status.

6. Mantenimiento

• Limpieza: After each use, wipe the probe thoroughly with a clean, dry, lint-free cloth to remove any brake fluid residue. Do not use solvents or abrasive cleaners.
• Almacenamiento: Store the tester in its original packaging or a protective case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Reemplazo de batería: If the "LOW BAT" indicator illuminates, replace the batteries promptly to ensure accurate readings. Remove batteries if the device will not be used for an extended period to prevent leakage.

7. Solución de problemas

8. Especificaciones

• Modelo: YATO YT-72985 (BF-100D)
• Brake Fluid Types Supported: DOT3, DOT4, DOT5.1
• Mostrar: LCD with percentage reading, LED indicators
• Longitud del cable: Aproximadamente 1800 mm (1.8 metros)
• Temperatura de funcionamiento: Hasta 40°C
• Fuente de alimentación: 2 pilas AAA (no incluidas)
• Dimensiones (L x An x Al): 20.6 x 11.7 x 6.6 cm (unidad principal)
• Peso: 246 gramos

9. Garantía y soporte

YATO products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact your local YATO distributor. Keep your purchase receipt as proof of purchase.
