iDOO Space Heater I-H-03 Instruction Manual

1. Introducción

Thank you for choosing the iDOO Space Heater Model I-H-03. This portable 1500W PTC ceramic heater is designed to provide efficient and comfortable warmth for indoor spaces such as bedrooms, offices, living rooms, and more. It features a digital thermostat, remote control, multiple operating modes, and advanced safety mechanisms to ensure a safe and pleasant user experience. Please read this manual thoroughly before operation and retain it for future reference.

Image: The iDOO Space Heater, Model I-H-03, showcasing its sleek design in a typical indoor environment.

2. Información de seguridad

Your safety is paramount. This heater is equipped with several safety features, but proper usage is essential to prevent hazards.

• Protección contra vuelcos: El calentador se apagará automáticamente si se vuelca accidentalmente.
• Protección contra sobrecalentamiento: The heater will power off if internal components reach an unsafe temperature.
• Bloqueo para niños: Evita que los niños realicen cambios accidentales en la configuración.
• 24-Hour Timer & Auto Power Off: Allows for scheduled operation and automatic shutdown.
• Materiales ignífugos V0: Constructed with high-quality, fire-resistant materials.

Recordatorios importantes:

• Ensure the heater is placed at least 3 feet (0.9 meters) away from walls or any objects to allow proper airflow.
• Never cover the heater, as this can lead to overheating.
• Do not use this heater in the surroundings of a bath, shower, or swimming pool.
• The heater will automatically stop working if the surrounding temperature is higher than the set temperature.

Image: Visual representation of the iDOO Space Heater's comprehensive safety features, including ETL certification.

3. Contenido del paquete

Al desembalar, asegúrese de que todos los elementos enumerados a continuación estén presentes y en buenas condiciones:

• iDOO Space Heater (Model I-H-03)
• Mando a distancia
• Pilas AAA (2) para control remoto
• Manual de usuario

4. Características del producto

The iDOO Space Heater is designed with user comfort and efficiency in mind:

• Fast & Wide-Angle Heating: Powerful 1500W PTC ceramic heating system warms up quickly and provides 70° oscillation for broad heat distribution.
• Funcionamiento silencioso: Operates as quietly as 40 dB, ensuring minimal disturbance. The remote control also supports a mute function for silent operation.
• Energy Saving Eco Mode: Automatically adjusts heat levels to maintain your desired temperature efficiently, helping to save on energy bills.
• Termostato digital: Personalize your comfort with a digital thermostat adjustable from 40°F to 99°F in 1°F increments.
• Función de memoria: Retains your last used settings for convenience.
• 5 modos de funcionamiento: Choose from H1 (Low), H2 (Medium), MAX (High/Continuous), ECO, and Fan Only modes.
• Portátil y compacto: Weighing only 4.3 lbs and standing 15 inches tall, with a hidden handle for easy transport and storage.

Image: The iDOO Space Heater's quiet operation, illustrated with a noise level comparison.

Imagen: Más alláview of the smart touch panel and remote control functionalities.

Image: The heater's 70° oscillating function distributing 1500W of heat.

Image: Illustration of the 2-second PTC instant heating capability.

5. Configuración

Setting up your iDOO Space Heater is quick and easy:

1. Unpack the heater and all accessories from the box.
2. Place the heater on a firm, level surface, ensuring it is at least 3 feet (0.9 meters) away from any walls, furniture, or flammable materials.
3. Insert the AAA batteries into the remote control, observing correct polarity.
4. Enchufe el cable de alimentación a una toma eléctrica de CA de 120 V con conexión a tierra.
5. El calentador ahora está listo para funcionar.

6. Instrucciones de funcionamiento

Control your iDOO Space Heater using either the touch control panel on top of the unit or the included remote control.

Panel de control y funciones remotas:

• Botón de encendido (⏻): Enciende o apaga el calentador.
• Botón de modo (∿): Cycles through the 5 operating modes: H1 (Low), H2 (Medium), MAX (High/Continuous), ECO, and Fan Only.
• Botones para subir y bajar la temperatura (+ / -): Adjusts the desired temperature in 1°F increments (40°F - 99°F).
• Botón de oscilación (⟳): Activates or deactivates the 70° oscillating function.
• Botón del temporizador (◷): Establece el temporizador de apagado automático de 1 a 24 horas.
• Mute Button (Remote Only): Toggles the sound feedback for button presses.
• Child Lock Button (Touch Panel Only): Press and hold the oscillation button for 3 seconds to activate/deactivate.

Image: The heater's control panel and remote control for easy operation.

Modos de funcionamiento:

• H1 (fuego lento): Proporciona 900W de calor.
• H2 (fuego medio): Proporciona 1200W de calor.
• MAX (High Heat): Provides 1500W of continuous heat.
• Modo ecologico: Automatically adjusts heating power (between 900W and 1500W) to maintain the set temperature, optimizing energy consumption.
• Solo ventilador: Circula el aire sin calentar.

Image: The ECO mode feature for energy-efficient heating.

Configuración del termostato:

In H1, H2, or ECO mode, use the Temperature Up/Down buttons to set your desired room temperature. The heater will cycle on and off to maintain this temperature.

Image: The digital display showing the adjustable temperature range.

Uso del temporizador:

Press the Timer button to set the desired operating duration (1-24 hours). The heater will automatically turn off once the set time has elapsed.

Operación de control remoto:

The remote control allows you to conveniently adjust all settings from a distance. Ensure the remote has fresh AAA batteries installed.

7. Mantenimiento

El mantenimiento regular garantiza un rendimiento óptimo y la longevidad de su calentador:

• Desenchufe siempre el calentador y déjelo enfriar completamente antes de limpiarlo.
• Utilice un paño suave y seco.amp Paño para limpiar las superficies exteriores. No utilice limpiadores abrasivos ni disolventes.
• Utilice una aspiradora con un accesorio de cepillo para eliminar el polvo de las rejillas de entrada y salida de aire.
• Guarde el calentador en un lugar fresco y seco cuando no esté en uso, preferiblemente en su embalaje original.

8. Solución de problemas

If you encounter issues with your iDOO Space Heater, refer to the following common problems and solutions:

• El calentador no se enciende: Ensure the power cord is securely plugged into a working outlet. Check if the tip-over switch has been activated (reposition the heater on a flat surface). Verify the room temperature is below the set temperature.
• El calentador se detiene inesperadamente: The overheat protection may have been activated. Unplug the heater, let it cool down for 30 minutes, and then restart. Ensure there are no obstructions to airflow.
• Heat output is low: Check the selected mode (H1, H2, MAX). Ensure the thermostat is set to a temperature higher than the current room temperature.
• El control remoto no funciona: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the heater.

If problems persist, please contact iDOO customer support.

9. Especificaciones

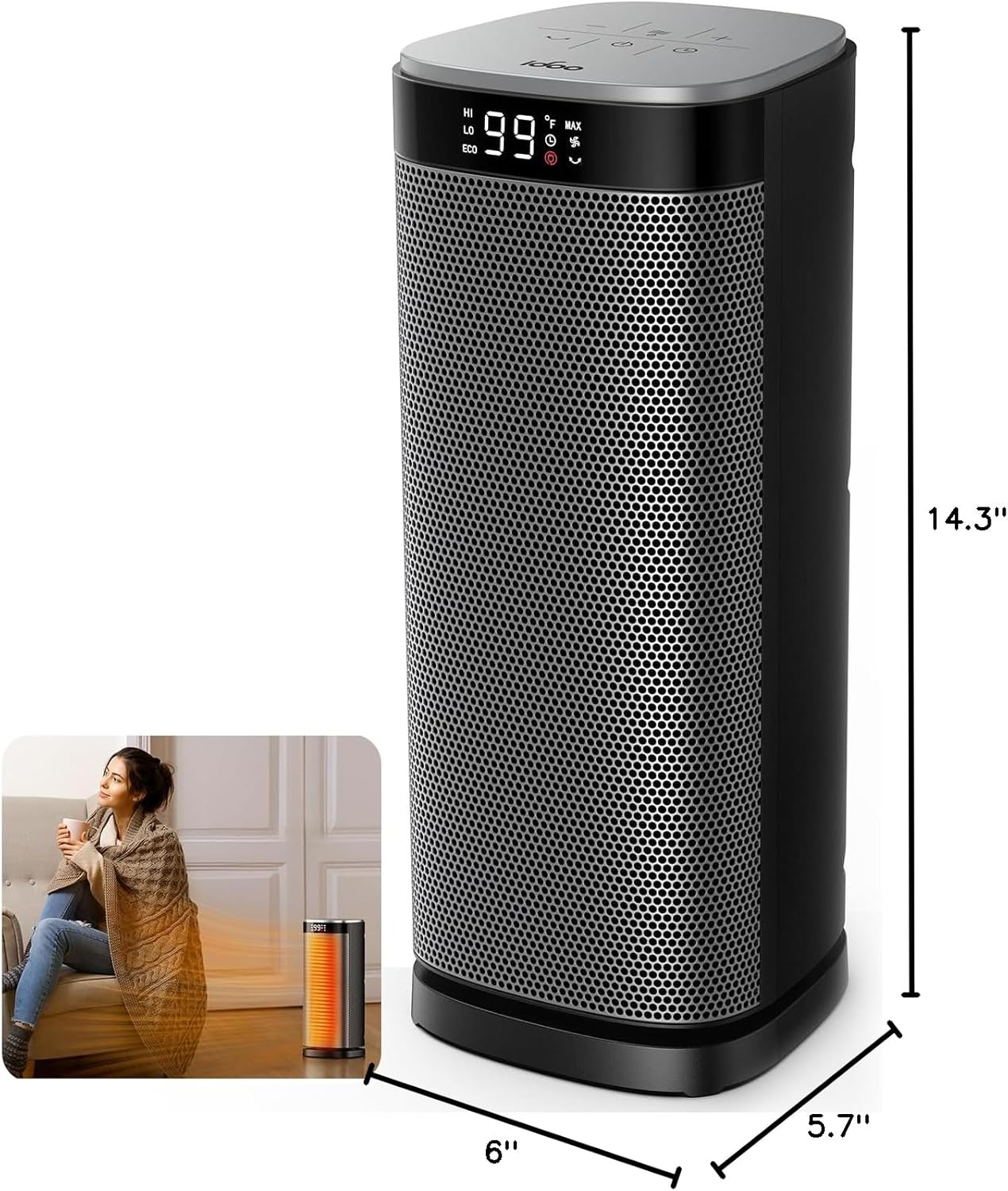

Image: Detailed dimensions of the iDOO Space Heater.

10. Garantía y soporte

For warranty information, product registration, or technical support, please refer to the contact details provided in your product packaging or visit the official iDOO webSitio. Conserve su recibo de compra como comprobante para reclamaciones de garantía.
