1. Introducción
Thank you for choosing the ACT AC5101 Wireless Ergonomic Vertical Mouse. This manual provides detailed instructions for setting up, operating, and maintaining your new mouse. Designed for right-handed users, this ergonomic mouse aims to reduce hand and wrist strain during extended computer use, promoting a more natural and comfortable posture.

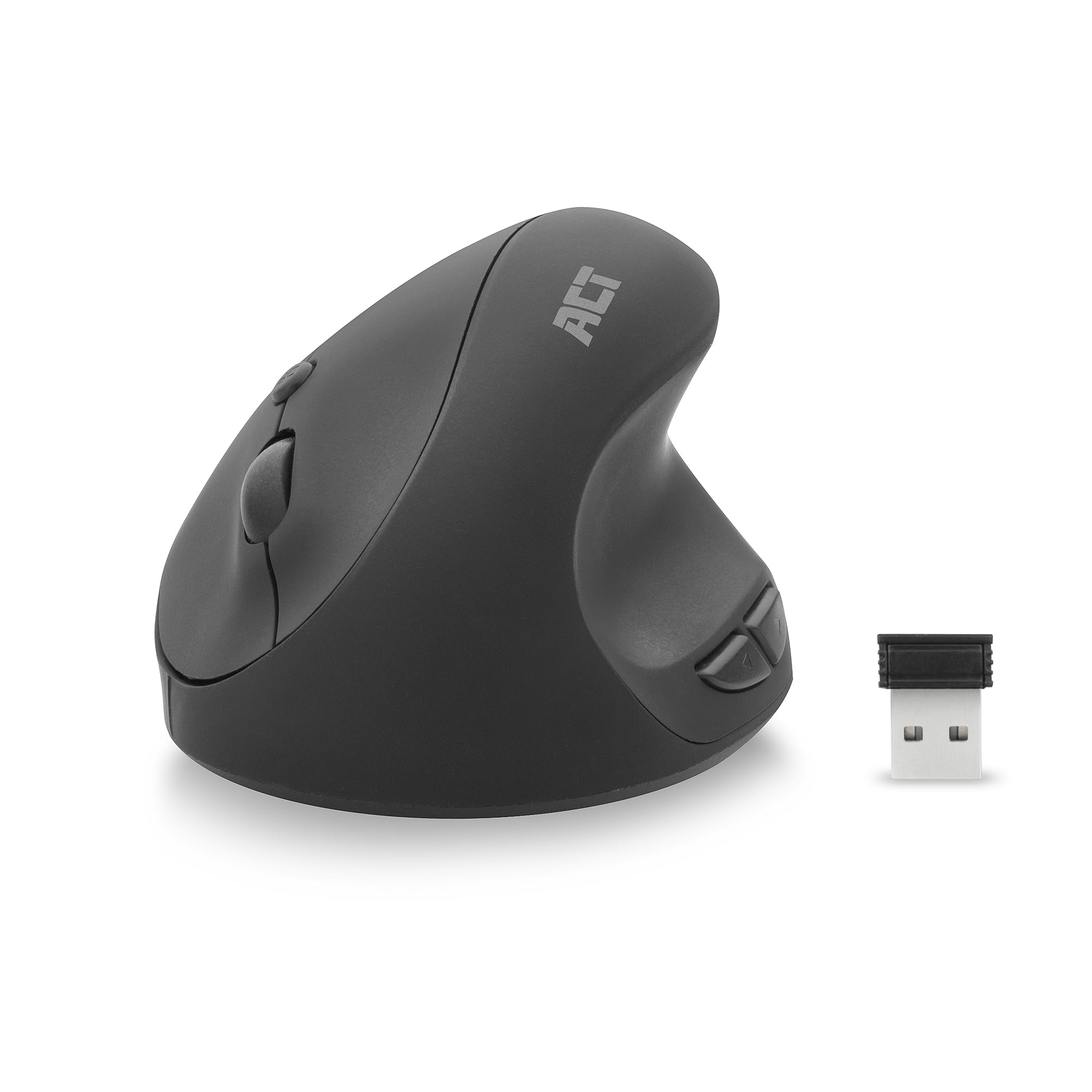

Image 1.1: The ACT AC5101 Wireless Ergonomic Vertical Mouse with its USB receiver.
2. Contenido del paquete
Por favor revise el paquete para ver los siguientes artículos:
- 1 x ACT AC5101 Wireless Ergonomic Vertical Mouse
- 1 x USB-A Nano Receiver (stored in the mouse battery compartment)
- 1 x pila AA (incluida)
- 1 x Manual de usuario (este documento)
3. Producto terminadoview
The ACT AC5101 mouse features a vertical design for improved ergonomics and includes multiple buttons for enhanced functionality.
Image 3.1: Diagram showing the buttons on the ACT AC5101 mouse. These include the Left Key, Right Key, Scroll Wheel, DPI Button, Forward Button, and Back Button.
- Llave izquierda: Función de clic izquierdo estándar.
- Llave correcta: Función estándar de clic derecho.
- Rueda de desplazamiento: Para desplazamiento vertical y función de clic central.
- Botón PPP: Recorre las configuraciones de DPI (800/1200/1600).
- Botón de avance: Navega hacia adelante en web navegadores o file exploradores.
- Botón Atrás: Navega hacia atrás en web navegadores o file exploradores.
- Interruptor de encendido/apagado: Located on the bottom of the mouse to conserve battery life.
4. Instrucciones de configuración
Follow these steps to set up your ACT AC5101 Wireless Ergonomic Vertical Mouse:
- Insertar batería:
Locate the battery compartment on the bottom of the mouse. Open the cover and insert the included AA battery, ensuring correct polarity (+/-). Close the battery compartment cover securely.
Image 4.1: The bottom of the mouse showing the battery compartment and the USB-A Nano Receiver storage slot.
- Conecte el receptor USB:
Remove the USB-A Nano Receiver from its storage slot next to the battery compartment. Plug the receiver into an available USB-A port on your computer.
Image 4.2: The USB-A Nano Receiver.
- Encendido:
Flip the On/Off switch, located on the bottom of the mouse, to the "On" position. Your computer should automatically detect and install the necessary drivers. The mouse is now ready for use.
5. Instrucciones de funcionamiento
5.1 Agarre ergonómico
The vertical design of the ACT AC5101 mouse promotes a natural handshake position, reducing pronation of the forearm and wrist strain. Place your hand over the mouse so your thumb rests comfortably on the thumb rest, and your fingers align with the main buttons.
Image 5.1: Comparison illustrating how a traditional mouse twists the arm and wrist, while the ACT ergonomic mouse allows for a relaxed shoulder and neutral wrist position.
5.2 Ajuste de la sensibilidad de DPI
The DPI (Dots Per Inch) button allows you to adjust the mouse cursor speed. Press the Botón DPI (refer to Image 3.1) to cycle through the available sensitivity settings: 800 DPI, 1200 DPI, and 1600 DPI. Select the setting that best suits your preference and task.
5.3 Uso de los botones laterales
El Botón de avance y Botón Atrás are conveniently located for thumb access. These buttons are typically used for navigation in web navegadores (por ejemplo, retroceder o avanzar una página) o file exploradores.
6. Mantenimiento
To ensure the longevity and optimal performance of your ACT AC5101 mouse, follow these maintenance guidelines:
- Limpieza: Utilice un paño suave y seco para limpiar la superficie del ratón. Para la suciedad difícil, limpie ligeramenteampLave el paño con agua o una solución limpiadora suave. Evite usar productos químicos agresivos o materiales abrasivos.
- Reemplazo de batería: When the mouse performance degrades or it stops responding, replace the AA battery. Ensure the On/Off switch is in the "Off" position before replacing the battery.
- Almacenamiento: When not in use for extended periods, turn off the mouse using the On/Off switch to conserve battery life. Store the USB receiver in its dedicated slot on the bottom of the mouse to prevent loss.
7. Solución de problemas
If you encounter issues with your ACT AC5101 mouse, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| El ratón no responde |
|
|
| Movimiento errático del cursor |
|
|
| Los botones laterales no funcionan |
|
|
8. Especificaciones
Technical details for the ACT AC5101 Wireless Ergonomic Vertical Mouse:
- Nombre del modelo: AC5101
- Marca: ACTO
- Tecnología de conectividad: 2.4 GHz inalámbrico (radiofrecuencia)
- Receptor: Receptor nano USB-A
- Tecnología de detección de movimiento: Óptico
- Configuración de DPI: 800 / 1200 / 1600 DPI (adjustable via DPI button)
- Número de botones: 6 (Izquierda, Derecha, Rueda de desplazamiento, DPI, Adelante, Atrás)
- Orientación de la mano: Diestro
- Fuente de energía: 1 x pila AA (incluida)
- Color: Negro
- Dispositivos compatibles: Ordenador personal
- Dimensiones: Approximately 105mm (Length) x 77mm (Height) x 60mm (Width)
Image 8.1: Approximate dimensions of the ACT AC5101 mouse.
9. Garantía y soporte
Garantía: The ACT AC5101 Wireless Ergonomic Vertical Mouse comes with a manufacturer's warranty of 2 years. This warranty covers defects in materials and workmanship under normal use.
Apoyo: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your retailer or visit the official ACT website for support information. Please have your product model number (AC5101) and proof of purchase ready when contacting support.
