MONDAWE 10x13Ft Metal Patio Gazebo with Mosquito Netting and Curtains User Manual

1. Introducción

Thank you for choosing the MONDAWE 10x13Ft Metal Patio Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This gazebo is designed to provide a shaded and comfortable outdoor space, featuring a durable steel frame, a weather-resistant canopy, and integrated mosquito netting and privacy curtains.

2. Información de seguridad

• Lee todas las instrucciones: Ensure you understand all assembly steps and safety warnings before installation.
• Montaje para dos personas: Assembly requires at least two adults for safety and ease of installation.
• Instalación segura: Always anchor the gazebo securely to the ground using appropriate hardware for your surface (e.g., wooden deck, concrete patio, lawn).
• Condiciones climáticas: Do not assemble or use the gazebo in strong winds, heavy rain, or snow. Remove the canopy and curtains during severe weather to prevent damage.
• Seguridad contra incendios: Mantenga la tela del gazebo alejada de cualquier llama o fuente de calor. Esta no es ignífuga.
• Inspección periódica: Revise periódicamente todos los pernos, tuercas y conexiones para asegurarse de que estén bien apretados y seguros.
• Capacidad de peso: Do not hang heavy objects from the gazebo frame or roof. The roof hanging weight capacity is 100 lbs.

3. Contenido del paquete

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Steel Frame Components (legs, beams, roof supports)
• Tela del dosel principal
• Ventilated Roof Canopy Fabric
• Mosquito Netting (4 panels)
• Cortinas de privacidad (4 paneles)
• Hardware Kit (bolts, nuts, washers, ground stakes)
• Assembly Tools (basic wrench, hex key – specific tools may vary)

4. Instrucciones de instalación y montaje

Siga estos pasos cuidadosamente. Se recomienda al menos dos personas para el montaje.

4.1 Preparar el área

Choose a flat, level surface for assembly. Ensure there is enough space around the gazebo for safe installation and future use. Refer to the dimensions below for planning.

This diagram illustrates the key dimensions of the gazebo, including its length (13.0 feet), width (9.7 feet), and height, along with roof overhangs. These measurements are crucial for planning the installation space.

4.2 Ensamble el marco

1. Unpack all steel frame components and lay them out. Identify the different types of poles and connectors.
2. Begin by assembling the base frame. Connect the horizontal base poles to the corner posts using the provided bolts and nuts. Do not fully tighten bolts until the entire frame is assembled.
3. Fije los postes de soporte verticales al marco base.
4. Assemble the roof frame structure. This typically involves connecting the upper beams and roof support bars.
5. Carefully lift the roof frame onto the vertical support posts and secure it with bolts. Ensure all connections are aligned before tightening.

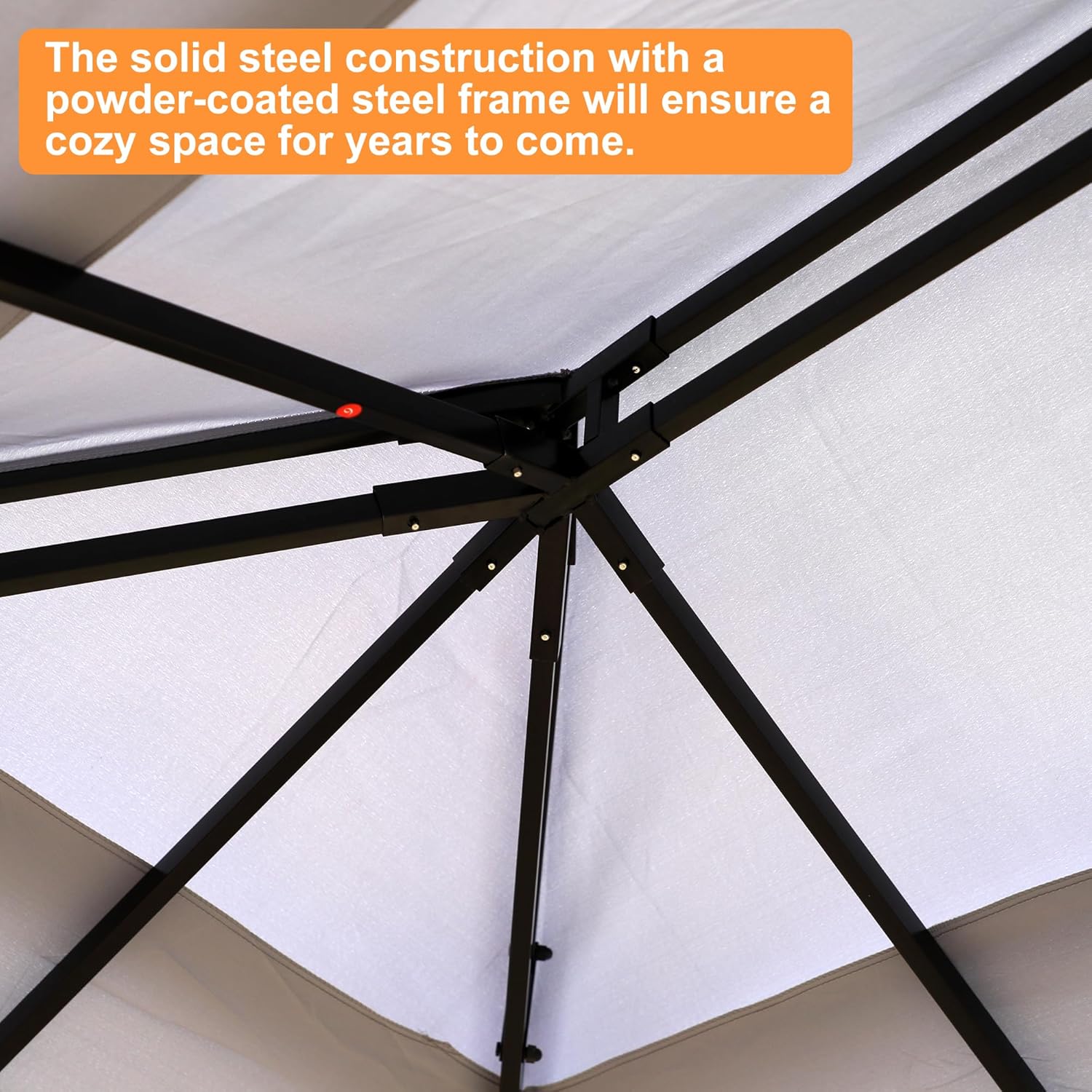

Un detallado view of the gazebo's internal steel frame structure, highlighting the powder-coated finish and the robust connections that provide stability and durability. This is a key component for assembly.

4.3 Install the Canopy

1. Unfold the main canopy fabric and the smaller ventilated roof canopy.
2. Place the smaller ventilated roof canopy onto the top tier of the roof frame, ensuring it is centered and secured.
3. Drape the main canopy fabric over the larger roof frame. Align the corners and secure the canopy to the frame using the integrated ties or fasteners. Ensure the canopy is taut to prevent water pooling.

4.4 Attach Mosquito Netting and Curtains

1. Identify the mosquito netting panels and the privacy curtain panels.
2. Attach the mosquito netting to the designated tracks or rings on the inside of the gazebo frame. Ensure the zippers are facing inwards for easy access.
3. Attach the privacy curtains to the outer tracks or rings.
4. Once all fabric components are in place, fully tighten all bolts on the frame.

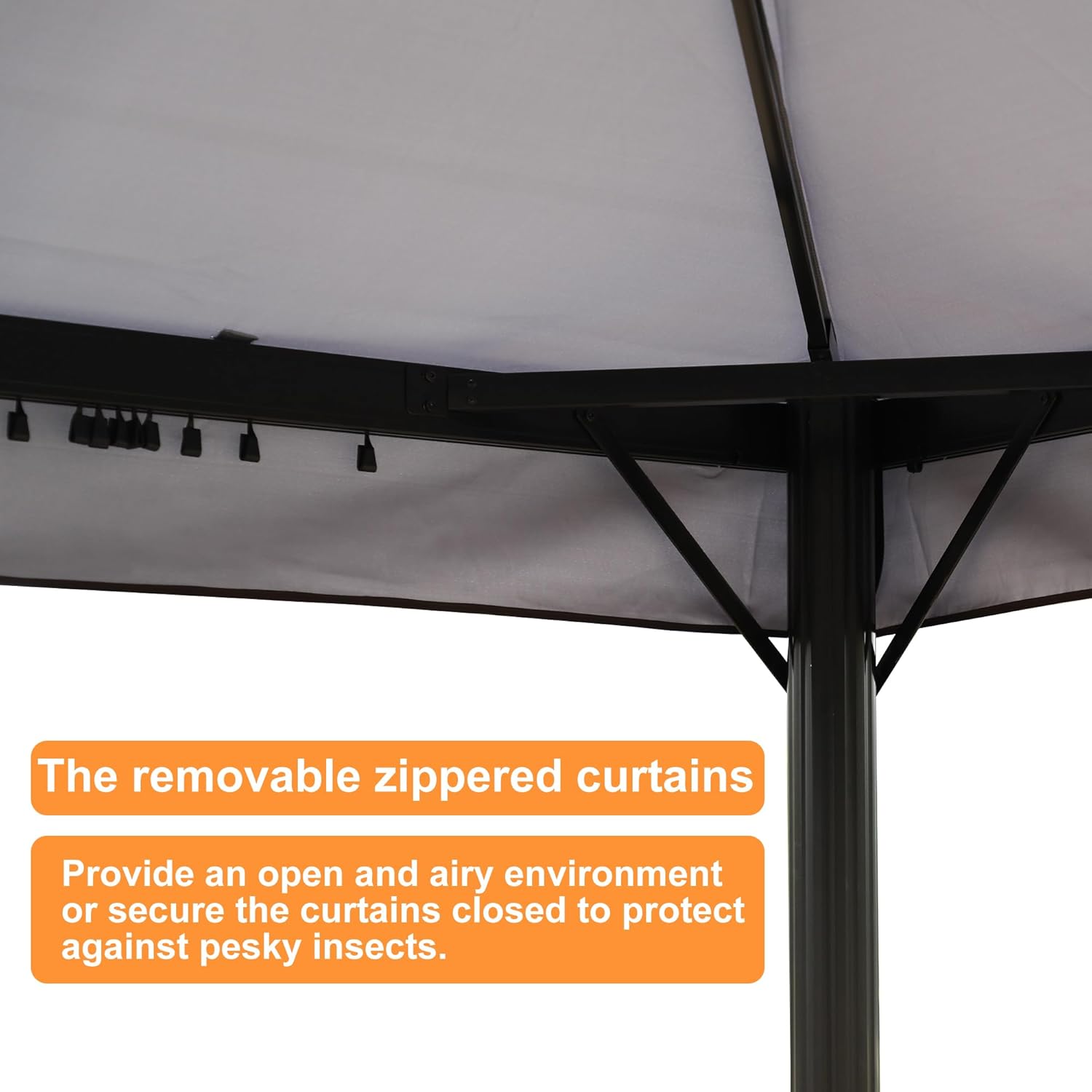

This image focuses on the mechanism for attaching and securing the removable zippered curtains, showing the hooks and rings that allow for easy adjustment and removal. It also shows the top edge of the canopy fabric.

4.5 Secure the Gazebo

Use the provided ground stakes to anchor the gazebo legs firmly to the ground. For wooden decks or concrete patios, consider using appropriate anchor bolts (not included) for maximum stability.

This image displays the fully assembled MONDAWE 10x13Ft Metal Patio Gazebo, showcasing its double-roof design, gray canopy, and pulled-back curtains. It is set up on a wooden deck, providing an outdoor living space.

5. Instrucciones de funcionamiento

5.1 Using the Mosquito Netting

The gazebo includes four mosquito netting panels that can be zipped together to create an enclosed space, protecting against insects. The netting is attached to the inner track of the gazebo frame.

5.2 Using the Privacy Curtains

Four privacy curtains are provided, attached to the outer track of the gazebo frame. These curtains can be zipped closed for privacy or protection from light wind and sun. They can also be tied back to the gazebo legs when not in use.

This composite image presents four different states of the gazebo: top-left shows curtains tied back, top-right shows curtains fully closed, bottom-left shows the frame structure without fabric, and bottom-right shows the mosquito netting in use. This illustrates the versatility of the gazebo's design.

This image shows the gazebo with its gray curtains fully closed, providing privacy and protection from elements. This configuration is useful for creating an enclosed outdoor space.

6. Mantenimiento y cuidado

• Limpieza del dosel y las cortinas: Clean fabric components with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storing.
• Cuidado del marco: Limpie el marco de acero con publicidad.amp cloth to remove dirt. The powder-coated finish helps prevent rust, but regular cleaning and inspection for scratches can prolong its life.
• Almacenamiento estacional: For prolonged periods of non-use or during winter months, it is recommended to disassemble the canopy, netting, and curtains and store them in a dry, protected area.
• Precauciones climáticas: Always remove the canopy and curtains during strong winds, heavy rain, or snow to prevent damage to the gazebo structure and fabric.

7. Solución de problemas

• El mirador se siente inestable: Ensure all bolts are fully tightened. Verify that the gazebo is anchored securely to the ground. Check that the installation surface is level.
• Acumulación de agua en el dosel: Ensure the canopy is installed tautly and correctly. The double-roof design is intended to allow airflow and prevent pooling, but extreme weather may still cause issues. Remove accumulated water promptly.
• Curtains/Netting not closing properly: Check for obstructions in the tracks. Ensure zippers are aligned and not snagged.
• Manchas de óxido en el marco: While the frame is powder-coated, prolonged exposure to moisture can cause rust. Clean any rust spots with a wire brush and apply rust-inhibiting paint if necessary.

8. Especificaciones

9. Garantía y soporte

For any questions, missing parts, or assistance with assembly, please contact MONDAWE customer support. Please have your model number (WF-ZY-840-0020-000-001) and purchase information ready when contacting support.

While specific warranty details are not provided in this manual, MONDAWE stands behind the quality of its products. Please refer to your purchase documentation or the MONDAWE official websitio para obtener información detallada sobre la garantía.
