Parryware Reeve Range One-Piece Rimless Western Commode

Introducción

Thank you for choosing the Parryware Reeve Range One-Piece Rimless Western Commode. This product is designed for superior hygiene, efficient performance, and modern aesthetics in your bathroom. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new commode. Please read this manual thoroughly before installation and keep it for future reference.

Información de seguridad

• Asegúrese siempre de que el suministro de agua esté cerrado antes de comenzar cualquier trabajo de instalación o mantenimiento.
• Utilice equipo de protección personal (EPP) adecuado, como guantes y protección para los ojos, durante la instalación.
• Manipule los componentes cerámicos con cuidado para evitar que se astillan o se rompan.
• Asegúrese de que todas las conexiones sean seguras y estancas para evitar fugas.
• Do not use abrasive cleaners or harsh chemicals on the commode surface, as this may damage the finish.

Contenido del paquete

Verifique que todos los componentes estén presentes y sin daños antes de continuar con la instalación:

• One-Piece Toilet Bowl
• Accesorios de conexión rápida
• Slim Soft-Close Seat Cover

Configuración e instalación

The Parryware Reeve Range Commode is a floor-mounted, one-piece unit designed for straightforward installation. It features a standard S-Trap outlet (220mm) suitable for typical bathroom setups.

Comprobaciones previas a la instalación:

• Confirm the rough-in dimensions (distance from the wall to the center of the waste pipe) match the 220mm S-Trap requirement.
• Ensure the floor surface is level and clean where the commode will be installed.
• Verify that the water supply line is accessible and has a shut-off valve.

Pasos de instalación:

1. Posicionamiento: Carefully place the commode over the waste pipe opening, aligning the S-Trap outlet.
2. Asegurando: Use the provided quick connect fixtures to securely fasten the commode to the floor. Ensure it is stable and does not rock.
3. Conexión de agua: Connect the water supply line to the commode's inlet valve. Use appropriate sealing tape or compound to ensure a watertight connection.
4. Instalación de la funda del asiento: Attach the slim soft-close seat cover according to the instructions provided with the seat.
5. Comprobación de fugas: Turn on the water supply slowly and check for any leaks around the connections. Flush the commode several times to ensure proper operation and check for leaks from the waste outlet.

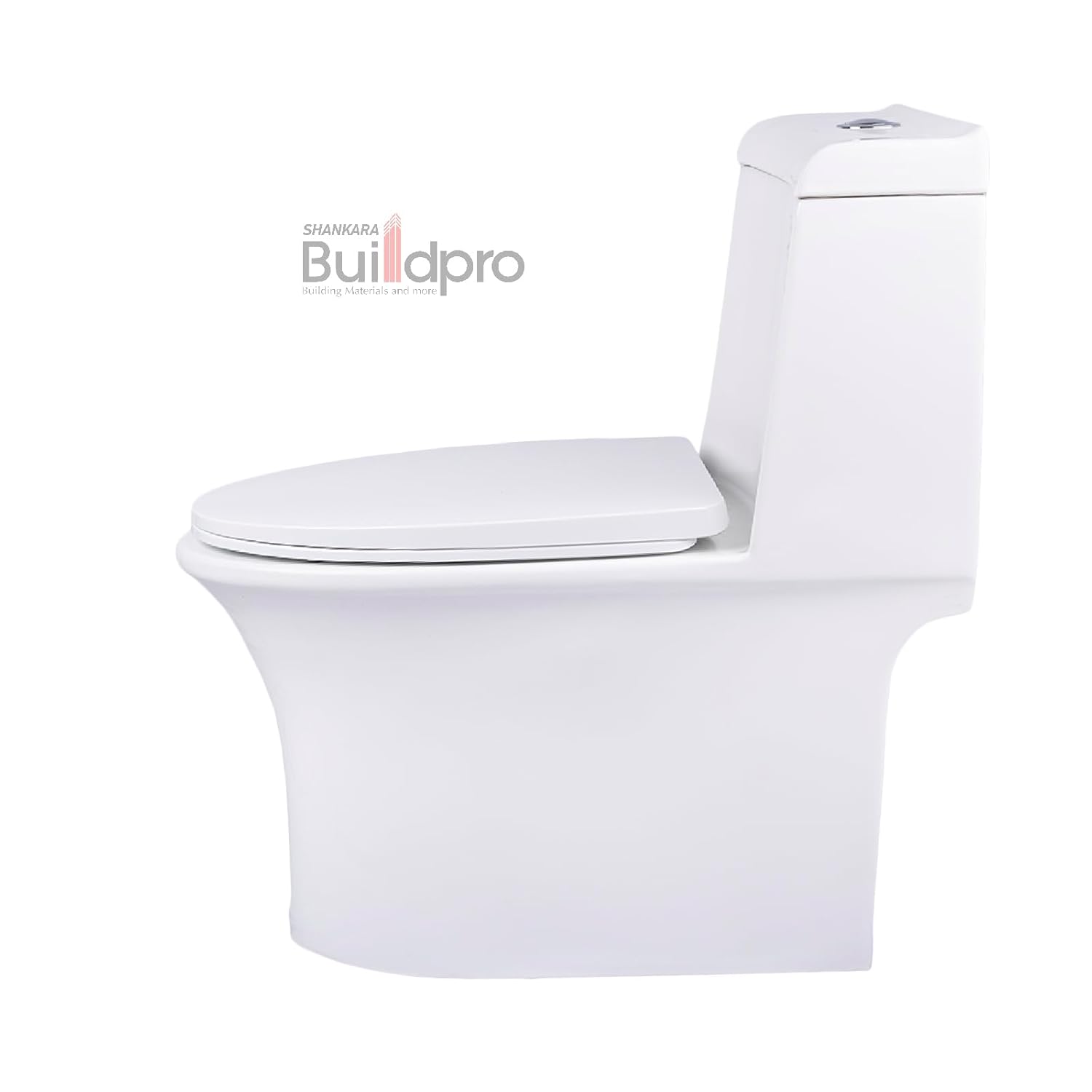

Figura 1: Lado view of the commode, illustrating its dimensions and floor-mounted design.

Instrucciones de funcionamiento

The Parryware Reeve Range Commode features a rimless bowl design with vortex/siphonic flushing for efficient and hygienic operation.

Enrojecimiento:

• To flush, press the flush button located on top of the tank. The vortex/siphonic flushing system creates a powerful swirl of water to ensure thorough cleaning of the bowl.
• The rimless design ensures that water reaches all parts of the bowl, preventing hidden crevices where germs can accumulate.

Funda de asiento de cierre suave:

• The commode is equipped with a slim soft-close seat cover. To close the seat or lid, gently push it downwards. The anti-slam hinges will ensure a slow and silent descent, preventing sudden drops and potential damage.

Figura 2: View of the commode with the seat open, highlighting the rimless bowl for easy cleaning.

Mantenimiento y limpieza

Regular cleaning and proper maintenance will ensure the longevity and hygienic performance of your Parryware commode. The vitreous china with anti-germ glaze makes cleaning easier.

Cleaning the Commode:

• Utilice un paño suave o una esponja con un limpiador de baño suave, no abrasivo.
• Wipe down all ceramic surfaces, including the exterior and interior of the bowl.
• For the seat cover, use a damp cloth with mild soap. Avoid harsh chemicals that can damage the polypropylene material.
• Enjuague bien con agua limpia y seque con un paño suave para evitar manchas de agua.
• Do not use abrasive pads, scouring powders, or cleaners containing strong acids or alkalis, as these can scratch or damage the glaze.

Mantenimiento general:

• Periodically check all water connections for any signs of leaks. Tighten connections if necessary.
• Inspect the seat hinges for any looseness and tighten them if required.
• If the flush mechanism appears to be malfunctioning, consult a qualified plumber.

Solución de problemas

This section addresses common issues you might encounter with your commode.

Presupuesto

Detailed specifications for the Parryware Reeve Range One-Piece Rimless Western Commode:

Figura 3: Frente view of the commode, showcasing its one-piece design.

Información de garantía

Parryware stands behind the quality of its products. The Reeve Range One-Piece Rimless Western Commode comes with the following warranties:

• 10-Year Ceramic Warranty: Covers manufacturing defects in the vitreous china ceramic body.
• 2-Year Fittings Warranty: Covers manufacturing defects in the internal fittings and seat cover mechanism.

Conserve su comprobante de compra para reclamaciones de garantía. Se aplican los términos y condiciones de la garantía.

Atención al cliente

For further assistance, technical support, or warranty claims, please contact Parryware customer service. Refer to the official Parryware websitio o su documentación de compra para obtener la información de contacto más actualizada.

Websitio: www.parryware.in
