Manual de instrucciones de los auriculares con cancelación de ruido Arrowmax AHDH0032-BK-AX

Introducción

This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Arrowmax AHDH0032-BK-AX Noise Cancelling Headset. Please read this manual thoroughly before using the headset to ensure optimal performance and safety. This headset is designed for use with various Motorola radio models, offering clear communication in noisy environments.

Información de seguridad

• No exponga los auriculares a temperaturas extremas, humedad o sustancias corrosivas.
• Evite dejar caer o someter los auriculares a impactos fuertes.
• Do not attempt to disassemble or modify the headset. Repairs should only be performed by authorized personnel.
• Ensure the headset is securely connected to your radio before operation.
• Clean the headset with a soft, dry cloth. Do not use harsh chemicals.

Contenido del paquete

Verifique que todos los artículos estén presentes en su paquete:

• Arrowmax AHDH0032-BK-AX Noise Cancelling Headset
• Venda
• Earpiece (pre-attached)

Características del producto y másview

The Arrowmax AHDH0032-BK-AX headset is engineered for reliable communication and comfort in demanding environments.

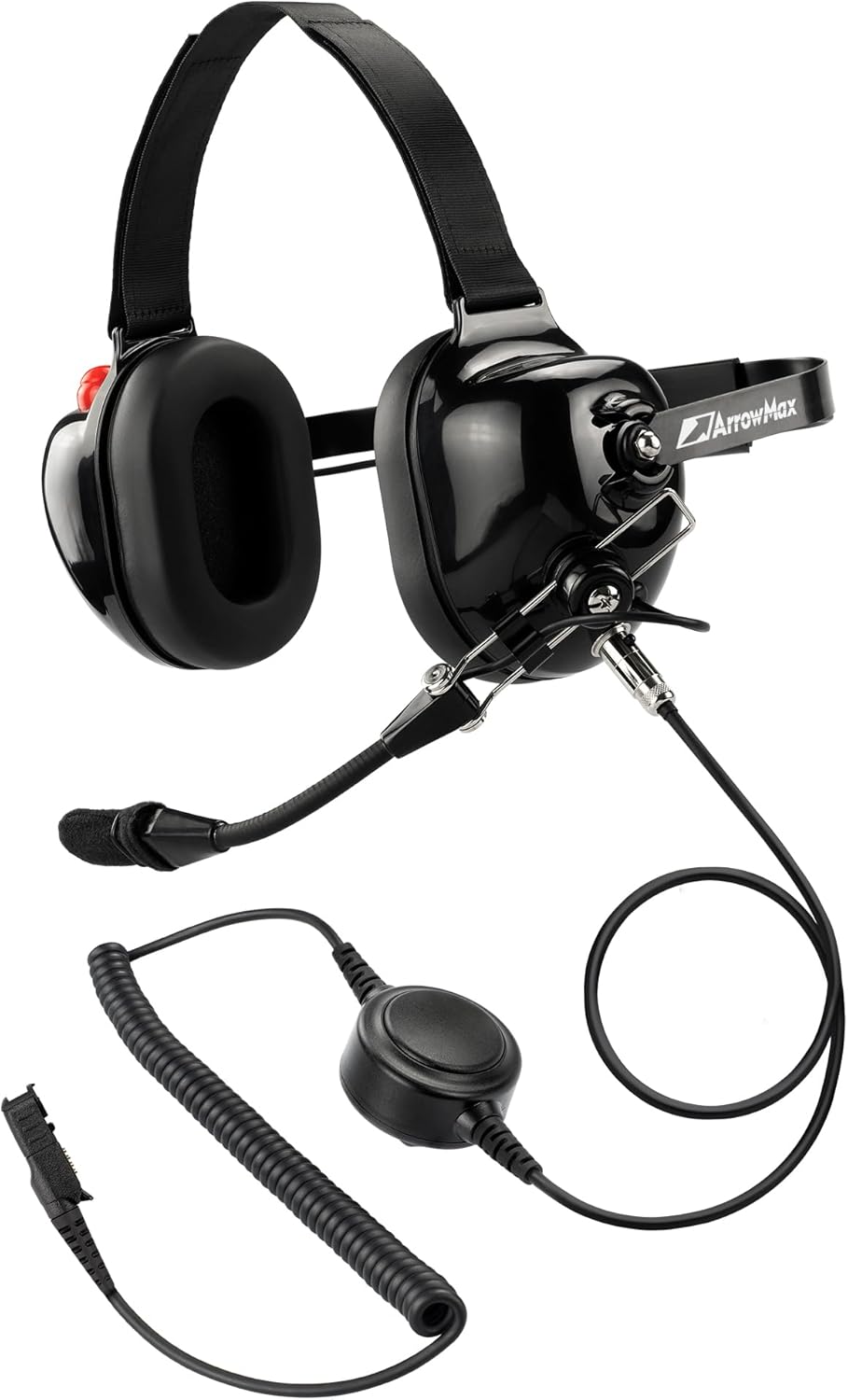

Figure 1: Arrowmax AHDH0032-BK-AX Noise Cancelling Headset, showcasing su diseño robusto y micrófono integrado.

Comodidad y diseño

The headset features an ergonomic design for maximum and lasting comfort, even during extended use. The ear pads are high-quality and exchangeable, providing long-lasting comfort and effective noise isolation.

Figure 2: Headset emphasizing its ergonomic design for comfort and noise isolation.

Quick PTT Button

A quick access Push-To-Talk (PTT) button is conveniently located on the right ear-cup for immediate communication.

Multi-Axis Wire Boom Microphone

The skeletal style boom with multi-axis construction is made of durable metal, ensuring longevity and optimal microphone sound. The microphone is exchangeable to meet various sound demands.

Figure 3: Headset illustrating the exchangeable microphone feature.

5-Pin Modular Design

The headset features a universal 5-pin industry standard cable connector port, allowing for interchangeability with various 5-pin cables, with or without PTT, to support different types of two-way radios.

Figura 4: detallada view of the 5-pin modular connector on the headset.

Figure 5: The AX Plug, compatible with various Motorola radio models.

Altavoces HD

Equipped with high-definition audio speakers for clear sound transmission and reception.

Reducción de ruido

The headset provides 24dB noise attenuation and active noise cancellation, along with sound isolation, to ensure clear communication in loud environments.

Compatibilidad

Compatible with Motorola Radio R5, XPR3300, XPR3500, XPR3300E, XPR3500E, DEP550, DEP570, DEP550E, DEP570E, DP2000, DP2400, DP3441, DP2000E, DP2400E, DP2600E, DP3441E, DP3661E. Also compatible with XiRP6600, XiRP6620, XiRP6600i, XiRP6620i, XiRE8600, XiRE8608, XiRE8600i, XiRE8608i, DGP8050E, DGP8550E, TETRA: MTP3100, MTP3150, MTP3200, MTP3250, MTP3500, MTP3550.

Configuración

1. Ajustar la diadema: The headset features a behind-the-head metal band with an overhead strap. Adjust the straps for a secure and comfortable fit. The Velcro straps allow for easy adjustment.
2. Cable de conexión: Insert the 5-pin modular cable into the corresponding port on the headset. Ensure a firm connection.
3. Conectarse a la radio: Connect the other end of the cable to your compatible Motorola two-way radio.
4. Ajustar el micrófono: Position the multi-axis wire boom microphone appropriately for clear voice transmission. The boom length is adjustable and rotatable.

Instrucciones de funcionamiento

1. Encendido/apagado: The headset draws power from the connected radio. Ensure your radio is powered on.
2. Ajustar el volumen: Use the volume control on your radio or the wired volume control on the cable (if applicable) to adjust the listening volume.
3. Transmitir (PTT): Press and hold the Push-To-Talk (PTT) button on the right ear-cup or the in-line PTT button on the cable to transmit. Release the button to listen.
4. Uso del micrófono: Speak clearly into the boom microphone. Ensure it is positioned close to your mouth for optimal voice pickup.

Mantenimiento

• Limpieza: Wipe the headset exterior with a soft, slightly damp cloth. Do not use abrasive cleaners or immerse the headset in water.
• Reemplazo de almohadillas para los oídos: The ear pads are exchangeable. If they become worn or damaged, they can be replaced to maintain comfort and hygiene.
• Cuidado de cables: Avoid sharp bends or excessive pulling on the cable to prevent damage. The cable features a retractable design for convenience.
• Almacenamiento: Guarde los auriculares en un lugar limpio y seco, alejados de la luz solar directa y de temperaturas extremas cuando no estén en uso.

Solución de problemas

Presupuesto

Garantía y soporte

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official Arrowmax webSitio. Conserve su comprobante de compra para reclamaciones de garantía.
