Dibea H8 Cordless Wet Dry Smart Washer & Vacuum Cleaner Instruction Manual

1. Introducción

Thank you for choosing the Dibea H8 Cordless Wet Dry Smart Washer & Vacuum Cleaner. This appliance is designed for efficient cleaning of various hard floor surfaces, combining vacuuming and mopping functions. Please read this manual thoroughly before use to ensure proper operation and maintenance.

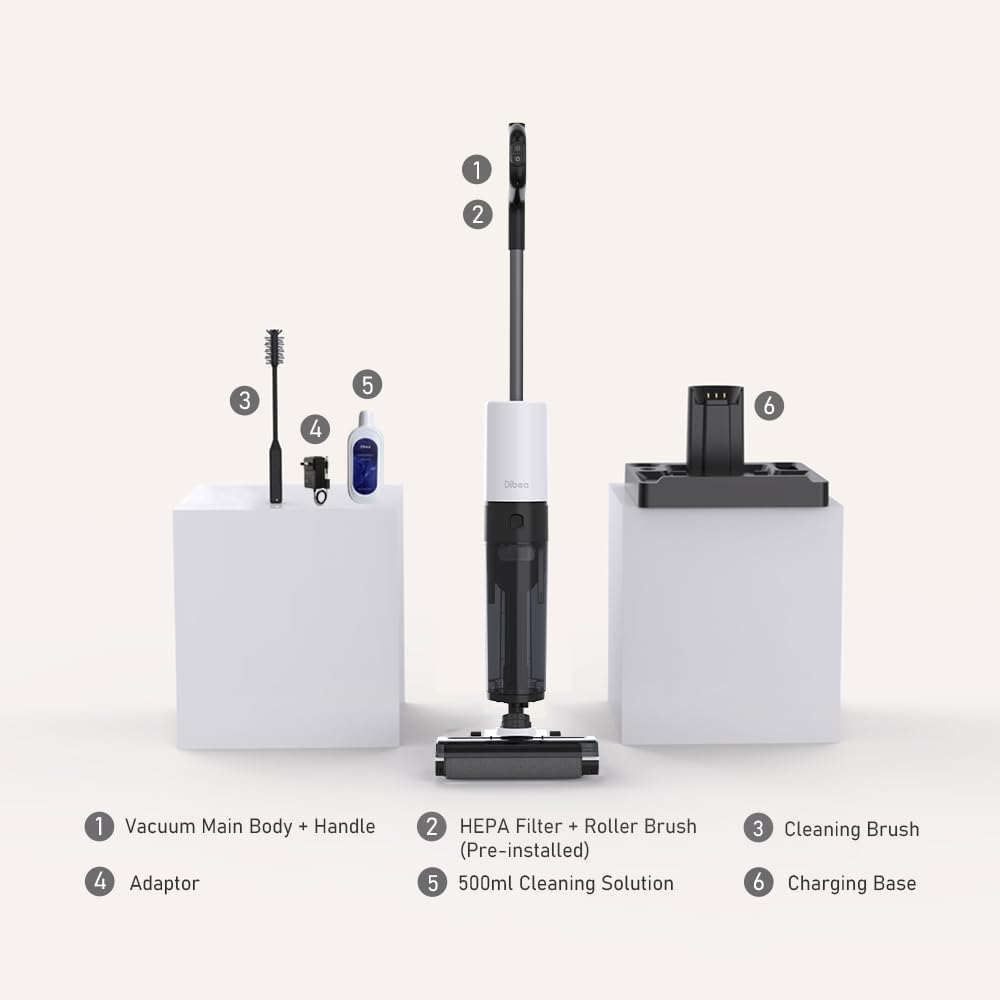

2. Contenido del paquete

Carefully unpack your Dibea H8 and ensure all items listed below are present and in good condition. If any items are missing or damaged, please contact customer support.

• 1 x Dibea H8 Main Body
• 1 x Handheld Handle
• 1 x Dirty Water Tank (DWT)
• 1 x Clean Water Tank (CWT)
• 1 x Roller Brush & HEPA Filter (Pre-installed)
• 1 x Base de carga
• Adaptador 1 x
• 1 x cepillo de limpieza
• 1 solución de limpieza (500 ml)

3. Configuración

3.1 Asamblea

1. Insert the handheld handle into the main body until it clicks securely into place.
2. Ensure the Clean Water Tank (CWT) and Dirty Water Tank (DWT) are correctly installed.
3. Verify that the roller brush and HEPA filter are pre-installed in their respective compartments.

3.2 Carga

1. Place the Dibea H8 onto the charging base.
2. Connect the adaptor to the charging base and plug it into a power outlet.
3. La pantalla LED indicará el estado de carga. Una carga completa suele tardar entre 4 y 5.5 horas.

3.3 Llenado del tanque de agua limpia

1. Remove the Clean Water Tank (CWT) from the main body.
2. Open the tank cap and fill with clean tap water. For enhanced cleaning, add a small amount of the provided cleaning solution. Do not exceed the MAX fill line.
3. Close the cap securely and re-install the CWT into the main body.

4. Funcionamiento del dispositivo

The Dibea H8 offers versatile cleaning for various hard surfaces including hardwood, tile, ceramic, and marble. It features a smart LED digital display and voice prompts for real-time information.

4.1 Encendido / Apagado

Press the power button on the handle to turn the appliance on or off. The LED display will illuminate upon activation.

4.2 Modos de limpieza

The Dibea H8 features four cleaning modes to suit different cleaning needs:

• Modo automático: Ajusta automáticamente la potencia de succión y el caudal de agua según los niveles de suciedad detectados. Ideal para limpieza general.
• Modo de alta potencia: Provides maximum suction (up to 13,000Pa) for stubborn dirt and heavy spills.
• Modo de succión: Focuses solely on liquid suction, useful for drying wet areas or picking up large liquid spills without scrubbing.
• Modo de autolimpieza: Initiates an automatic cleaning cycle for the roller brush and internal tubes while the unit is on its charging base.

4.3 Smart LED Digital Display and Voice Prompts

The user-friendly LED display provides real-time information, including the current working mode, battery life, and water tank status. Voice guidance assists with operational instructions and alerts.

4.4 Self-Propelled Design

The Dibea H8 is equipped with a self-propulsion system that reduces the effort required to push the vacuum, making cleaning easier and less strenuous.

4.5 Battery Life and Water Tanks

Powered by a 2,200mAh lithium battery, the appliance offers up to 38 minutes of continuous cleaning in Auto Mode. It features 500ml clean and dirty water tanks, minimizing the need for frequent refills and emptying during cleaning sessions.

5. Mantenimiento

Regular maintenance ensures optimal performance and extends the lifespan of your Dibea H8.

5.1 Función de autolimpieza

After each use, it is recommended to activate the self-cleaning mode:

1. Coloque el aparato en su base de carga.
2. Ensure there is sufficient clean water in the CWT.
3. Press the self-cleaning button (often integrated with the High Power mode button) to start the cycle. The appliance will automatically clean the roller brush and internal tubes.
4. Once complete, empty the Dirty Water Tank.

5.2 Vaciado del tanque de agua sucia (DWT)

1. Remove the DWT from the main body.
2. Abra el tanque y vierta con cuidado el agua sucia.
3. Rinse the DWT thoroughly with clean water and allow it to air dry before re-installing.

5.3 Limpieza del cepillo giratorio y del filtro HEPA

1. Periodically remove the roller brush and HEPA filter for manual cleaning.
2. Use the provided cleaning brush to remove hair and debris from the roller brush. Rinse under running water.
3. Tap the HEPA filter gently to dislodge dust. If heavily soiled, rinse under water, ensuring it is completely dry before re-installation to prevent mold growth and maintain suction power.

6. Solución de problemas

If you encounter issues with your Dibea H8, refer to the following common problems and solutions:

7. Especificaciones

Detailed technical specifications for the Dibea H8 Cordless Wet Dry Smart Washer & Vacuum Cleaner:

8. Garantía y soporte

8.1 Información de garantía

The Dibea H8 comes with a Garantía del fabricante de 2 años. Please note that specific components, such as the battery, may have a shorter warranty period (e.g., 6 months). Retain your proof of purchase for warranty claims.

8.2 Atención al cliente

For technical assistance, warranty claims, or spare parts, please contact Dibea customer support through their official website or the retailer where the product was purchased. Provide your model number (H8) and purchase date for efficient service.
