MEIKEE SL-SP03 Solar Spotlights (3-Pack, 2700K Warm White) Instruction Manual

Introducción

Thank you for choosing MEIKEE SL-SP03 Solar Spotlights. This 3-pack of 2700K warm white outdoor lights is designed to provide efficient and versatile illumination for your garden, lawn, trees, and other outdoor areas. Featuring high-efficiency solar charging, IP66 waterproofing, adjustable brightness, and unique lighting modes, these spotlights offer a reliable and aesthetically pleasing lighting solution. Please read this manual carefully before installation and use to ensure optimal performance and longevity of your product.

Información de seguridad

Asegúrese de que todos los componentes estén conectados de forma segura antes de su uso.
No intente desmontar ni modificar el producto, ya que esto puede anular la garantía y representar riesgos de seguridad.
Mantenga el panel solar limpio para garantizar una carga eficiente.
Evite colocar el panel solar en áreas sombreadas, ya que esto reducirá la eficiencia de carga.
This product is designed for outdoor use and is IP66 waterproof. However, avoid submerging the control box or spotlights in water.
Deseche las baterías y los componentes electrónicos de forma responsable de acuerdo con las regulaciones locales.

Contenido del paquete

Por favor revise el paquete para asegurarse de que todos los artículos estén presentes:

1 x Panel solar
1 x caja de control
3 x Spotlights
1 x Paquete de tornillos (para montaje)
1 x Manual de instrucciones (inglés)

Diagram showing the MEIKEE solar panel, control box, three spotlights, and connecting cables with dimensions. — This image illustrates the complete set of MEIKEE solar spotlights, including the solar panel, the central control box, three individual spotlights, and the various cable lengths for connection. Dimensions for the solar panel and spotlights are also provided.

Presupuesto

Característica	Detalle
Marca	MEIKEE
Número de modelo	SL-SP03
Dimensiones del producto	14 x 10 x 24 cm (largo x ancho x alto)
Peso del artículo	1.13 kilogramos
Número de luces	3
Estilo	Blanco cálido 2700K
Material	Acrilonitrilo butadieno estireno (ABS)
Tipo de acabado	Cepillado
Volumentage	6 voltios
Usos específicos	Garden, Lawn, Tree, Outdoor
Color de sombra	Blanco
Tipo de fuente de luz	CONDUJO
Fuente de poder	Alimentado por energía solar
Tipo de instalación	Montaje en suelo, montaje en pared
Flujo luminoso	200 Lumen (per spotlight, max)
Quétage	3 vatios (total)
Capacidad de la batería	5000 mAh
Eficiencia de los paneles solares	Tasa de conversión del 22%
Clasificación de impermeabilidad	IP66
Longitud del cable (total)	11 metros

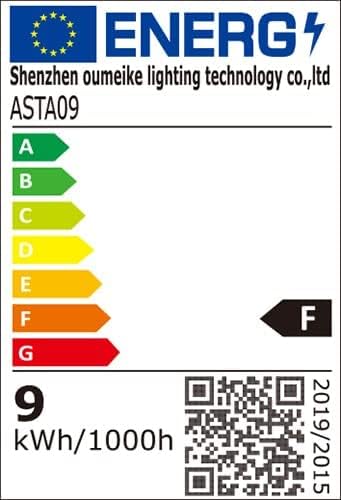

EU Energy Label for the MEIKEE solar spotlight, showing energy efficiency class F and 9 kWh/1000h consumption. — This is the EU Energy Label for the product, indicating its energy efficiency class as F and an energy consumption of 9 kWh per 1000 hours of operation. A QR code is included for more detailed product information on the EPREL database: https://eprel.ec.europa.eu/qr/1037453

Configuración

Desempaquetar componentes: Retire con cuidado todos los elementos del embalaje.
Connect Spotlights: Connect the three spotlights to the central control box. Ensure the connections are firm.
Conectar el panel solar: Connect the solar panel to the control box.
Carga inicial: Before first use, place the solar panel in direct sunlight for 6-8 hours to fully charge the internal battery. The lights will automatically turn on at dusk once charged.

Illustration of the MEIKEE solar panel charging during the day and the spotlights automatically illuminating at night. — This diagram shows how the solar panel converts sunlight into energy during the day (6-8 hours charging time) and how the spotlights automatically turn on at dusk, providing illumination for 8-20 hours depending on the brightness mode.

Instalación

The MEIKEE solar spotlights offer flexible installation options:

Instalación de tierra: Attach the ground stakes to the spotlights and solar panel. Insert them firmly into soft ground such as lawns or garden beds.
Montaje en pared: Use the provided screws and anchors to mount the spotlights or solar panel on a wall or other hard surface.
Ángulo ajustable: El lamp heads can be rotated up to 180° and the solar panel angle can be adjusted manually by 180° to optimize light direction and sun exposure.
Sistema de organización de cables: The total cable length of 11 meters allows for flexible placement of the solar panel and spotlights across your outdoor area.

MEIKEE solar spotlight showing 180-degree rotation, wall mounting, and ground installation. — This image illustrates the versatile installation options for the MEIKEE solar spotlights. The lamp head can be rotated up to 180 degrees for precise lighting, and the units can be installed either by staking them into the ground or mounting them on a wall.

Instrucciones de funcionamiento

The MEIKEE solar spotlights are designed for automatic operation and offer various lighting modes:

Atardecer automático al amanecer: The lights will automatically turn on at dusk and turn off at dawn, provided the solar panel receives sufficient sunlight during the day.
Niveles de brillo: The spotlights feature 3 adjustable brightness levels. Press the button on the control box to cycle through the modes:

Modo de alto brillo: Provides maximum illumination for approximately 8 hours.
Modo de brillo medio: Offers balanced illumination for approximately 12 hours.
Modo de bajo brillo: Extends illumination time to approximately 20 hours.

Unique Lighting Modes: In addition to standard brightness, the spotlights offer two special modes:

SMOOTH Mode: The brightness gradually transitions from strong to weak, then from weak to strong, creating a continuous cycle.
FLASH Mode: The light blinks on and off, providing a dynamic flashing effect.

Función de memoria: The lights will remember the last selected mode (brightness or special mode) and activate it automatically the next night.

Comparison of three brightness levels (High, Medium, Low) of MEIKEE solar spotlights illuminating a garden path at night. — This image demonstrates the three adjustable brightness levels of the MEIKEE solar spotlights: High (8+ hours illumination), Medium (12+ hours illumination), and Low (20+ hours illumination). Users can select the desired brightness to suit their needs and extend operating time.

Illustrations of MEIKEE solar spotlights operating in SMOOTH mode (gradual brightness change) and FLASH mode (blinking light). — This image demonstrates the two unique operating modes: SMOOTH mode, where the light gradually transitions from dim to bright and back, and FLASH mode, which provides a blinking light effect. These modes add dynamic ambiance to your outdoor space.

Mantenimiento

Panel solar limpio: Limpie regularmente el panel solar con un paño suave y seco.amp paño para eliminar el polvo, la suciedad o los residuos que puedan obstaculizar la eficiencia de la carga.
Comprobar conexiones: Inspeccione periódicamente todas las conexiones de cables para asegurarse de que estén seguras y libres de corrosión.
Resistencia a la intemperie: The IP66 rating ensures the product is protected against dust and powerful water jets. It is designed to withstand rain, heat, and snow, making it suitable for all seasons.
Almacenamiento: If storing the lights for an extended period, ensure the battery is fully charged before storage and recharge it every few months to maintain battery health.

MEIKEE solar spotlight being sprayed with water, demonstrating IP66 waterproof rating, and shown in hot and snowy conditions. — This image highlights the IP66 waterproof rating of the MEIKEE solar spotlights, showing them resistant to water spray. It also illustrates their ability to withstand various weather conditions, including high temperatures and snow, making them suitable for year-round outdoor use.

Solución de problemas

Problema	Posible causa	Solución
Las luces no se encienden por la noche.	Carga solar insuficiente.	Asegúrese de que el panel solar esté expuesto a la luz solar directa de 6 a 8 horas diarias. Limpie la superficie del panel solar.
Las luces se apagan demasiado rápido.	Battery not fully charged or set to high brightness mode.	Ensure adequate charging time. Switch to a lower brightness mode for longer illumination.
Las luces parpadean o son tenues.	Carga de batería baja o panel solar sucio.	Allow the solar panel to charge fully. Clean the solar panel. Check all connections.
Lights remain on during the day.	Solar panel is in a shaded area or sensor is obstructed.	Relocate the solar panel to an area with full sunlight. Ensure nothing is covering the light sensor on the solar panel.

Garantía y soporte

MEIKEE products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the product packaging or contact MEIKEE customer support.

If you encounter any issues or have questions regarding your MEIKEE SL-SP03 Solar Spotlights, please contact our customer support team through the retailer where you purchased the product or visit the official MEIKEE webSitio para obtener ayuda.

MEIKEE Customer Support: Visita la tienda MEIKEE en Amazon
