Ocina Hot Water Dispenser

1. Introducción

Thank you for choosing the Ocina Hot Water Dispenser. This instant kettle is designed to provide hot water quickly and efficiently for various uses, from beverages to baby formula. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

2. Instrucciones de seguridad

Lea atentamente todas las instrucciones de seguridad antes de utilizar el aparato. Si no las sigue, podría sufrir una descarga eléctrica, un incendio o lesiones graves.

• Always place the dispenser on a stable, flat, heat-resistant surface, away from the edge of the countertop.
• No sumerja el aparato, el cable de alimentación ni el enchufe en agua ni en ningún otro líquido.
• Keep out of reach of children. This appliance features a child safety lock, but adult supervision is always recommended.
• No utilice el aparato si el cable de alimentación o el enchufe están dañados, o si el aparato no funciona correctamente o ha sufrido algún daño de algún modo.
• Always unplug the dispenser from the power outlet before cleaning, filling, or when not in use.
• Exercise extreme caution when handling hot water. Steam and hot water can cause severe burns.
• No llene el tanque de agua por encima de la línea de llenado máximo.
• Only use cold tap water in the water tank. Do not add other liquids or additives.
• Ensure the drip tray is correctly positioned before dispensing water.
• Este aparato es sólo para uso doméstico.

3. Producto terminadoview

The Ocina Hot Water Dispenser is designed for convenience and efficiency. Familiarize yourself with its main components and features.

Características principales:

• Tanque de agua de 3 litros: Large capacity for multiple uses without frequent refilling.
• Pantalla digital: Intuitive interface for easy control and monitoring.
• Removable Drip Tray and Water Tank: Diseñado para una fácil limpieza y rellenado.
• Bloqueo de seguridad para niños: Mejora la seguridad durante la operación.
• Baby Milk Function: Specific temperature setting for preparing baby formula.
• Función de memoria: Remembers your last used settings for quick dispensing.
• Anti-Limescale Notification: Alerts you when descaling is needed to maintain performance.
• Volumen ajustable: Dispense water in volumes from 100 ml to 500 ml.
• Temperatura ajustable: Select temperatures from 25°C to 100°C.
• Diseño moderno: Sleek black finish to complement any kitchen.
• Eficiencia energética: 2500 Watts power for rapid heating, designed to be more efficient than traditional kettles.

Componentes:

• Unidad principal con pico dispensador
• Tanque de agua extraíble
• Bandeja de goteo extraíble
• Panel de control digital
• Cable de alimentación

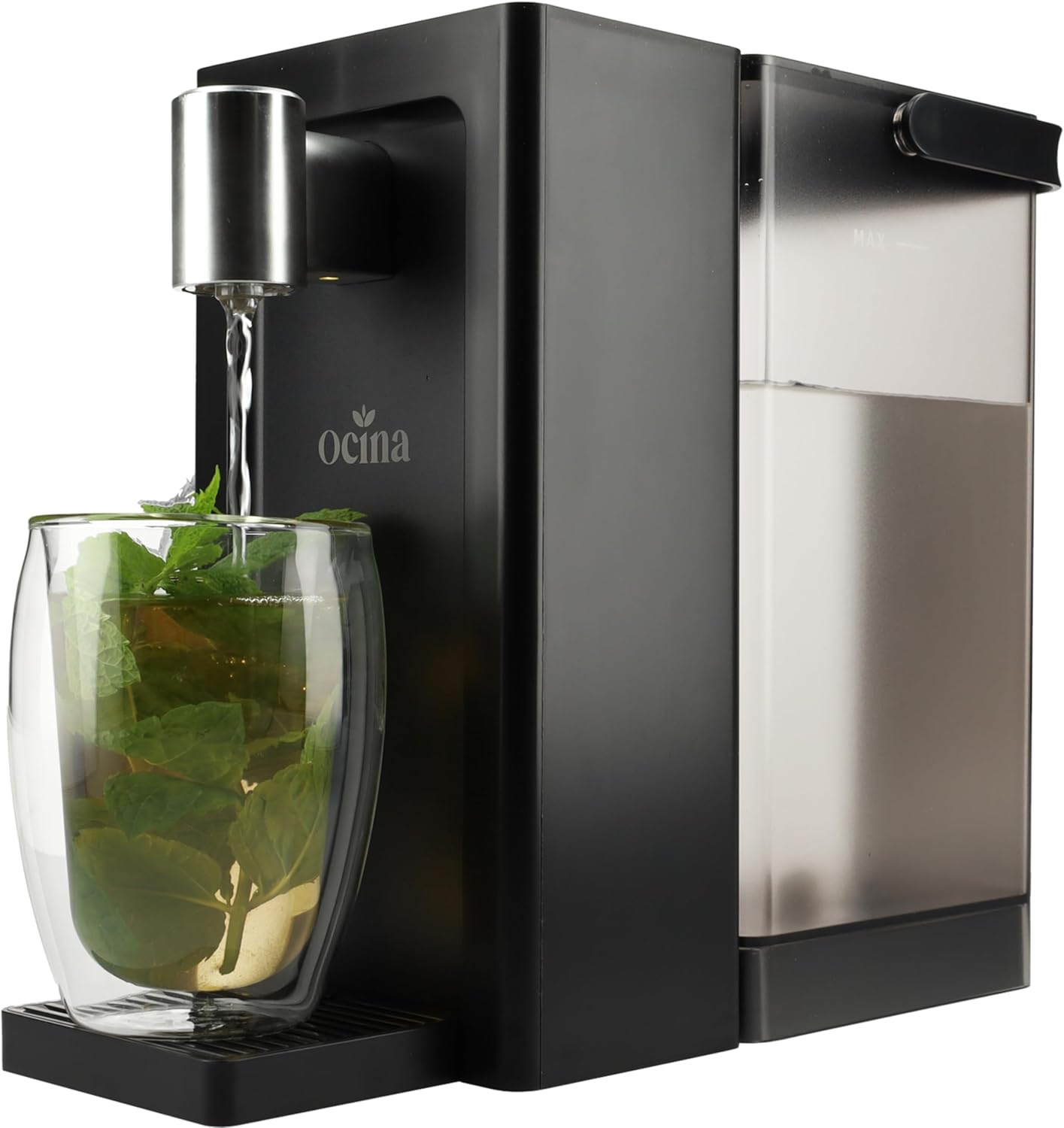

Figure 3.1: The Ocina Hot Water Dispenser in operation, showing water being dispensed into a glass of mint tea. This image highlights the sleek black design and the dispensing spout.

Figura 3.2: Una vista superiorview of the Ocina Hot Water Dispenser highlighting its main features, including the 3-liter capacity, touch operation, anti-limescale notification, removable drip tray and water tank, child lock, and memory function.

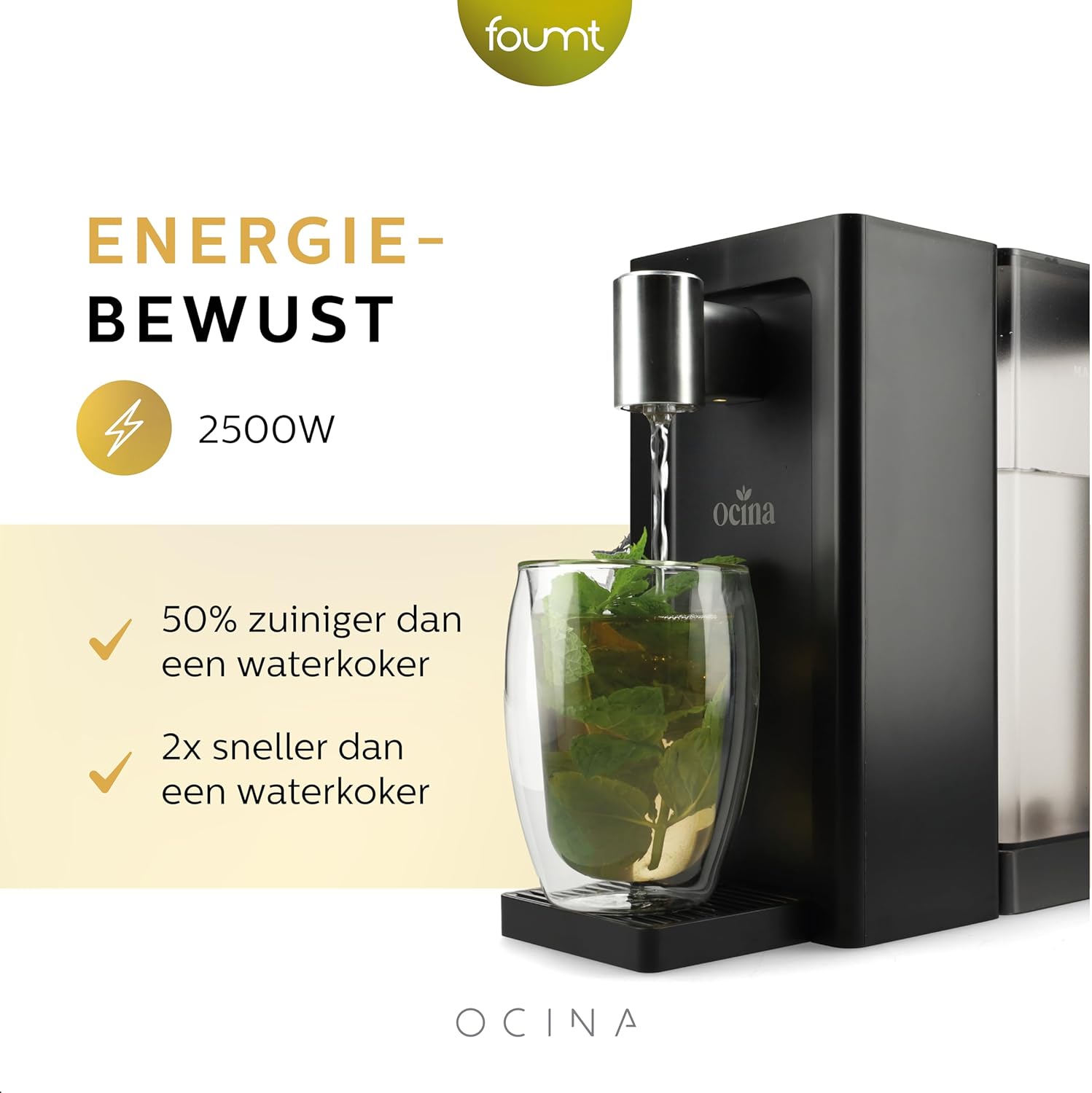

Figure 3.3: The dispenser emphasizing its energy-efficient design with 2500W power, indicating it is 50% more efficient and 2 times faster than a standard kettle.

4. Configuración

1. Desembalaje: Carefully remove the dispenser from its packaging. Retain packaging for future storage or transport.
2. Colocación: Place the appliance on a dry, stable, and level surface, ensuring adequate ventilation around the unit. Keep it away from walls and other appliances.
3. Limpieza inicial: Before first use, remove the water tank and drip tray. Wash them with warm soapy water, rinse thoroughly, and dry. Wipe the exterior of the main unit with a damp paño.
4. Llena el tanque de agua: Remove the water tank from the main unit. Fill it with fresh, cold tap water up to the MAX line. Do not overfill.
5. Vuelva a colocar el tanque de agua: Securely place the filled water tank back onto the main unit. Ensure it clicks into place.
6. Posición de la bandeja de goteo: Place the drip tray onto the base of the dispenser.
7. Conexión de energía: Conecte el cable de alimentación a una toma de corriente con conexión a tierra. La pantalla digital se iluminará.
8. First Use Cycle (Cleaning): For the first use, it is recommended to run at least two full cycles of hot water (100°C, 500ml) without consuming the water, to clean the internal components. Dispose of this water safely.

Figure 4.1: Demonstrates the ease of filling the 3-liter removable water tank. The tank can be easily detached and filled under a tap.

5. Instrucciones de funcionamiento

The Ocina Hot Water Dispenser features an intuitive digital display for easy operation.

Operación general:

1. Encendido: Ensure the dispenser is plugged in and the water tank is filled. The display will show the default settings or the last used settings (Memory Function).
2. Seleccionar temperatura: Use the temperature control buttons on the digital display to select your desired water temperature (from 25°C to 100°C).
3. Seleccionar volumen: Use the volume control buttons to choose the desired water volume (from 100 ml to 500 ml).
4. Dispensar agua: Place your cup or container on the drip tray. Press the dispense button to start heating and dispensing. The appliance will stop automatically once the selected volume is reached.
5. Detener la dispensación: Para detener la dispensación antes de alcanzar el volumen seleccionado, presione nuevamente el botón de dispensación.

Funciones especiales:

• Bloqueo de seguridad para niños: To activate or deactivate the child safety lock, press and hold the designated lock button on the control panel for a few seconds. When activated, the dispense button will not function until unlocked.
• Baby Milk Function: This function provides water at an optimal temperature for preparing baby formula (typically around 40°C). Select this preset function from the digital display for precise preparation.
• Función de memoria: The dispenser automatically saves your last used temperature and volume settings, allowing for quick and convenient dispensing without re-adjusting settings each time.

Figure 5.1: The digital display and control panel, illustrating icons for child lock, baby milk function, anti-limescale notification, volume adjustment (100ml to 500ml), and temperature control (25°C to 100°C).

Figure 5.2: Visual representation of choosing the right volume (200ml, 320ml, 500ml) and the memory function, which recalls the last used settings.

Figure 5.3: Shows the versatility of the dispenser for various uses like baby milk, noodles, tea, and coffee, along with a visual cue for easy descaling.

6. Mantenimiento

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Ocina Hot Water Dispenser.

Limpieza diaria:

• Bandeja de goteo: Empty and clean the drip tray regularly, especially after each use if spills occur. The drip tray is removable for easy cleaning.
• Exterior: Limpie el exterior del aparato con un paño suave yamp Paño. No utilice limpiadores abrasivos ni disolventes.

Limpieza de tanques de agua:

• Retire el tanque de agua de la unidad.
• Wash the tank with warm soapy water and a soft brush or sponge.
• Enjuague bien con agua limpia para eliminar cualquier residuo de jabón.
• Dry completely before reattaching to the main unit. The water tank is dishwasher compatible.

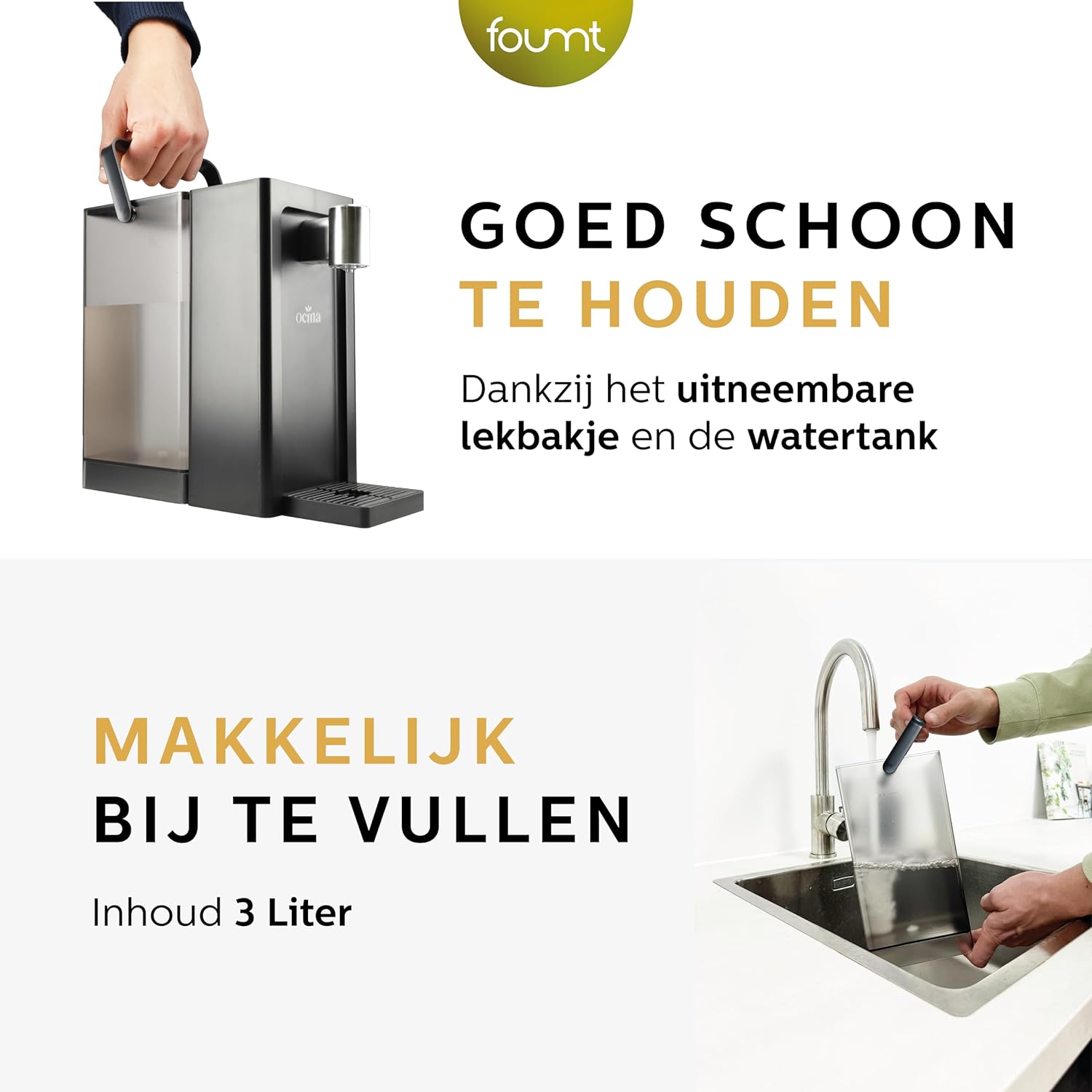

Figure 6.1: Illustrates how the removable drip tray and water tank make the dispenser easy to clean and maintain.

Descalcificar:

Limescale buildup can affect the performance and lifespan of your dispenser. The anti-limescale notification will alert you when descaling is necessary.

1. Unplug the appliance and ensure it has cooled down.
2. Vacíe el agua restante del tanque.
3. Fill the water tank with a descaling solution suitable for kettles (e.g., white vinegar and water, or a commercial descaler) according to the descaler's instructions.
4. Place a large heat-resistant container under the dispensing spout.
5. Run a full dispensing cycle (100°C, 500ml) to allow the descaling solution to pass through the system.
6. Repeat the process if necessary, or let the solution sit for a recommended time as per descaler instructions.
7. After descaling, rinse the water tank thoroughly and run at least two full cycles with fresh, clean water to flush out any descaling residue. Dispose of this water safely.

7. Solución de problemas

If you encounter issues with your dispenser, refer to the following table for common problems and solutions.

8. Especificaciones

9. Garantía y soporte

For warranty information, technical support, or service inquiries, please contact Ocina customer service. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the product packaging or the official Ocina websitio.

Nota: No se proporciona información sobre la disponibilidad de piezas de repuesto.
