Manual de instrucciones del procesador multiefectos FLAMMA FX200

Introducción

The FLAMMA FX200 is a versatile multi-effects processor designed for guitarists, offering a wide range of features for practice, studio recording, and live performance. This manual provides essential information for setting up, operating, and maintaining your device.

Características principales:

• Enhanced footswitches for intuitive preset bank switching and effects control.
• Expanded I/O options including Aux In, Expression Pedal input, Stereo FX Loop, Stereo Out, Headphones Out, XLR Out, 5-pin MIDI In/Out, and USB-C.
• 58 preamplificadores integradosamp models and 30 IR-based factory speaker cabinet simulations.
• Support for third-party impulse response (IR) files, with 50 empty slots for custom loading (up to 1024 sampling points each).
• USB-C connectivity for PC connection, enabling use with specialized editing software for tone editing, preset management, firmware updates, and IR loading.
• Battery-powered operation for portability and convenience.

Configuración

Opciones de energía

The FX200 can be powered by its internal Lithium Polymer battery or an optional AC adapter. Ensure the device is adequately charged or connected to a stable power source before use.

Image: FLAMMA FX200 showcasing its battery-powered capability with 3000mAh capacity, 2.5 hours charging time, and 5.6 hours battery life. It also highlights the option for AC adapter power.

Conexiones

The FX200 offers extensive input/output options to integrate into various setups. Refer to the diagram below for common connection scenarios.

Imagen: Trasera view of the FLAMMA FX200 showing all input and output jacks, including Aux In, EXP 2, Input, FX Loop (Send/Return), Output (L/Mono, R), Phones, XLR Out (L/Mono, R), MIDI In/Out, USB-C, DC In, and Power Switch.

• Aporte: Conecta tu guitarra o bajo aquí.
• Entrada auxiliar: Connect an external audio player for backing tracks.
• EXP 2: Connect an external expression pedal for additional control.
• Bucle de efectos (envío/retorno): Integre pedales de efectos externos en su cadena de señal.
• Salida (L/Mono, R): Conectarse a un amplifier, mixer, or audio interface. Supports mono or stereo output.
• Teléfonos: Conecte los auriculares para practicar en silencio.
• XLR Out (L/Mono, R): Balanced outputs for direct connection to a mixer or PA system.
• Entrada/Salida MIDI: Connect MIDI devices for external control or to control other MIDI gear.
• USB-C: Connect to a PC/Mac for editing software, firmware updates, and USB audio recording.
• Interruptor de alimentación: Enciende y apaga la unidad.

Image: Diagram illustrating various connection possibilities for the FLAMMA FX200, including music player, expression pedal, guitar, effector, guitar power amp/monitor/sound card, mixer, MIDI device, power, and PC/Mac.

Operating the FX200

Pantalla táctil

The FX200 features a 5-inch LCD touchscreen for intuitive navigation and control. You can touch, swipe, drag-and-drop elements to customize your effects chain and settings.

Image: A hand interacting with the touchscreen of the FLAMMA FX200, demonstrating the touch, swipe, drag-and-drop functionality for managing effects.

Pedales y pedales de expresión

The unit is equipped with multiple footswitches for preset selection, effects toggling, and looper/tuner functions. The integrated expression pedal can be assigned to control various parameters like volume or wah effects.

Presets and Effects

The FX200 includes 58 preamp models, 30 cabinet simulations, and 160 different types of effects. You can create and store up to 200 editable user preset slots. The editable effects chain allows you to change the order of modules for precise tone shaping.

Image: Visual representation of the FLAMMA FX200's capabilities, highlighting 160 effects, 50 IR loading slots, 44.1 kHz sampvelocidad de archivo, 24 bitsample accuracy, 30 cab simulations, and 1024 sample puntos.

Looper y caja de ritmos

An integrated 52-second looper and a drum machine with 80 variations and 10 metronome styles are available for practice and creative use.

Programa de edición

Connect the FX200 to your PC/Mac via USB-C to use the specialized editing software. This software allows for comprehensive tone editing, preset management, preset backup, firmware updates, and IR loading.

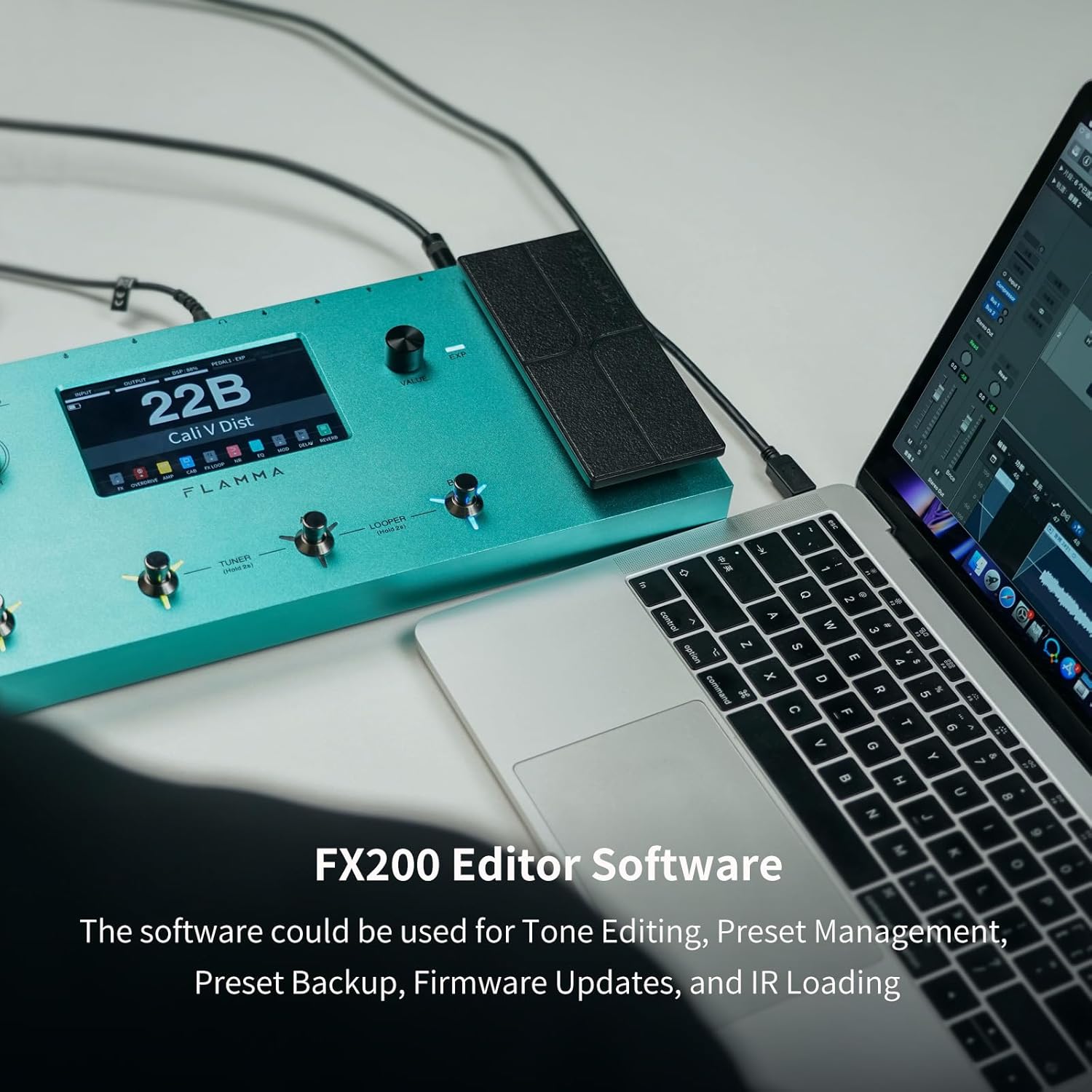

Image: The FLAMMA FX200 connected to a laptop, displaying the editor software interface for tone editing, preset management, backup, firmware updates, and IR loading.

Mantenimiento

Actualizaciones de firmware

Firmware updates can be performed by connecting the FX200 to a PC/Mac via USB-C and using the dedicated editing software. Regularly check the FLAMMA webSitio para obtener las últimas versiones de firmware para garantizar un rendimiento óptimo y acceso a nuevas funciones.

Limpieza

Use a soft, dry cloth to clean the unit. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.

Solución de problemas

Problemas de puesta a tierra

If you experience unwanted noise or hum, check the grounding of your setup. The FX200 includes a ground lift switch on the rear panel (near the XLR outputs) that can help resolve grounding issues.

Presupuesto

Garantía y soporte

Los detalles específicos de la garantía y la información de contacto de soporte directo no se proporcionan en los datos disponibles del producto. Consulte la información oficial del fabricante. website or your retailer for warranty terms and customer support options.
