Introducción
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ledvion LED Wall Light with Motion Sensor. Please read these instructions carefully before use and retain them for future reference.
The Ledvion LED Wall Light is designed for both indoor and outdoor applications, offering a modern aesthetic and functional illumination. It features an integrated motion sensor for automatic operation and provides warm white light (3000K) with an Up&Down lighting effect.
Image: Ledvion LED Wall Light installed, showcasing its Up&Down illumination.
Instrucciones de seguridad
- Seguridad eléctrica: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation, maintenance, or repair.
- Volumentage: Este producto funciona a 230 voltios. Verifique que su fuente de alimentación cumpla con este requisito.
- Uso en exteriores: The fixture is IP44 rated, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. While suitable for outdoor use, avoid direct high-pressure water jets.
- Montaje: Mount the fixture securely on a stable surface. Use appropriate screws and wall plugs for the mounting surface.
- Calor: Do not cover the light fixture with insulating material. Ensure adequate ventilation around the fixture.
- Limpieza: Desconecte la alimentación antes de limpiar. Utilice un paño suave y seco.amp Paño. No utilice limpiadores abrasivos ni disolventes.
Contenido del paquete
Verifique que todos los componentes estén presentes en el paquete:
- 1x Ledvion LED Wall Light (LED cube)
- 2x tacos de pared para tornillos
- 2x tornillos
- 1x Manual de instrucciones
Image: Contents of the Ledvion LED Wall Light package, including the LED fixture, mounting screws, wall plugs, and the instruction manual.
Configuración e instalación
- Preparación: Asegúrese de que el suministro de energía al área de instalación esté apagado en el disyuntor principal.
- Ubicación de montaje: Choose a suitable wall location, considering the desired lighting effect and motion sensor coverage. The fixture is designed for wall mounting.
- Calificación: Hold the fixture against the wall at the desired mounting height and mark the drilling points for the screws.
- Perforación: Drill holes at the marked points. Insert the supplied wall plugs into the drilled holes.
- Alambrado: Connect the electrical wires from the wall to the terminals of the fixture. Ensure correct polarity (Live, Neutral, Earth) according to local electrical codes. Secure all connections.
- Fijación del accesorio: Attach the fixture to the wall using the supplied screws, ensuring it is firmly secured.
- Adjusting Beam Angle (Optional): The light features an adjustable beam angle from 0° to 120°. Adjust the internal flaps to achieve your desired Up&Down lighting pattern.
Image: The adjustable beam angle feature allows customization of the Up&Down light distribution.

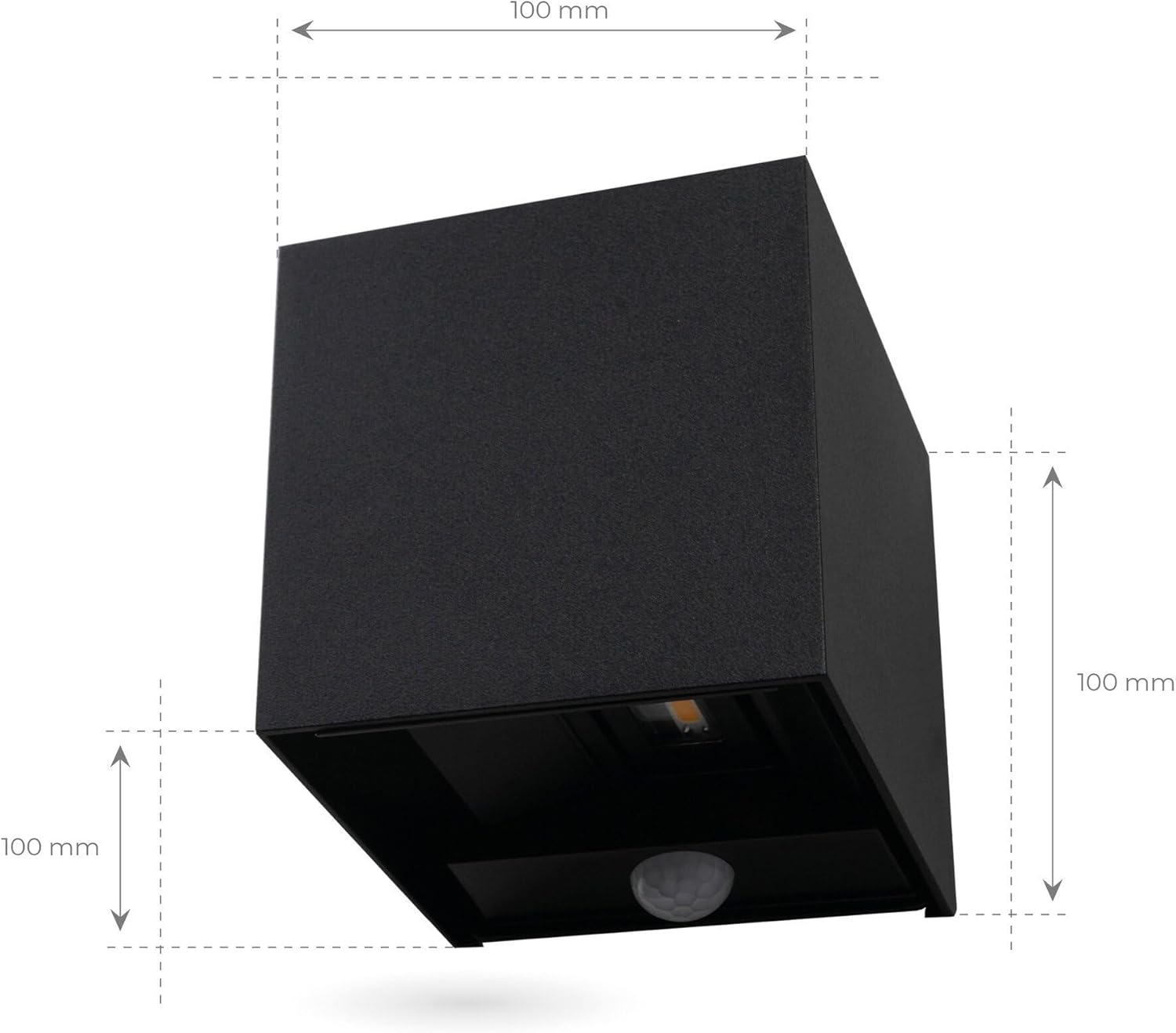

Imagen: Dimensiones del producto para la planificación de la instalación.
Instrucciones de funcionamiento
The Ledvion LED Wall Light is equipped with an integrated motion sensor for automatic operation.
- Encendido: After installation, restore power to the circuit. The light may briefly turn on as it initializes.
- Detección de movimiento: The integrated sensor detects movement within its range. When motion is detected, the light will automatically switch on.
- Apagado automático: After a period of no detected motion, the light will automatically switch off. The duration of this period is typically pre-set and not user-adjustable for this model.
- Salida de luz: The fixture provides 2x3W of warm white (3000K) LED light, illuminating both upwards and downwards.
Image: The wall lamp automatically activates when motion is detected.
Mantenimiento
Regular maintenance ensures the longevity and optimal performance of your Ledvion LED Wall Light.
- Limpieza: Disconnect the power supply before cleaning. Wipe the exterior of the fixture with a soft, damp Paño. No utilice productos químicos agresivos, limpiadores abrasivos ni disolventes, ya que pueden dañar el acabado o los componentes electrónicos.
- Inspección: Inspeccione periódicamente la luminaria para detectar cualquier signo de daño, conexiones sueltas o desgaste. Si encuentra algún problema, desconecte la alimentación y consulte a un electricista calificado.
- Durabilidad: The fixture is constructed from high-quality aluminum and plastic, designed to be anti-rust and anti-moisture, contributing to its durability in outdoor environments.
Image: The IP44 rating ensures protection against dust and splashing water.
Solución de problemas
If you encounter issues with your Ledvion LED Wall Light, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La luz no se enciende. | No power supply, faulty wiring, sensor malfunction. | Check circuit breaker. Verify wiring connections. Ensure sufficient ambient light for sensor to activate (if applicable, though this model has a motion sensor). |
| La luz permanece encendida continuamente. | Movimiento continuo detectado, mal funcionamiento del sensor. | Ensure no objects are continuously moving within the sensor's field of view. If problem persists, consult a qualified electrician. |
| La luz parpadea. | Fuente de alimentación inestable, conexión suelta. | Check power supply stability. Inspect wiring for loose connections. |
| El sensor de movimiento no responde. | Sensor obstructed, incorrect placement, sensor malfunction. | Ensure the sensor lens is clean and unobstructed. Verify the light is placed in an optimal location for motion detection. |
If these solutions do not resolve the issue, please contact Ledvion customer support or a qualified electrician.
Presupuesto
| Marca | Ledvión |
| Número de modelo | LVO10072 |
| Dimensiones del producto (L x An x Al) | 11 x 11 x 11 cm |
| Peso del artículo | 410 gramos |
| Material | Aluminio, Plástico |
| Color | Negro |
| Volumentage | 230 voltios |
| Quétage | 2x3 Watts (Total 6W) |
| Tipo de fuente de luz | Integrated LED (COB LED) |
| Temperatura de color | 3000 Kelvin (blanco cálido) |
| Característica especial | Detector de movimiento |
| Clasificación IP | IP44 |
| Tipo de instalación | Montaje en pared |
Garantía y soporte
The Ledvion LED Wall Light (Model LVO10072) comes with a 2 año de garantía a partir de la fecha de compra, cubriendo defectos de fabricación en condiciones normales de uso.
Imagen: Información de garantía de 2 años.
For warranty claims, technical support, or further assistance, please contact Ledvion customer service through their official website or the retailer where the product was purchased. Please have your proof of purchase and model number (LVO10072) ready.
You can visit the Ledvion store for more information: Ledvion Official Store
