Lacidoll LCD-MH-J18 Cool and Warm Mist Humidifier User Manual

Introducción

The Lacidoll LCD-MH-J18 Cool and Warm Mist Humidifier is designed to enhance indoor air quality and comfort by adding moisture to the air. This versatile appliance offers both warm and cool mist options, making it suitable for various seasonal needs and personal preferences. It helps alleviate dry skin, respiratory issues, and allergies, ensuring optimal humidity levels throughout your living space.

Información de seguridad

Please read all safety instructions carefully before using the humidifier to prevent injury or damage.

• No sobrellene el tanque de agua.
• Turn off and unplug the device when not in use or when the water level is low.
• Always place the humidifier on a firm, flat, water-resistant surface at least 6 inches away from walls and furniture.
• No coloque el humidificador cerca de fuentes de calor o bajo la luz solar directa.
• Mantener fuera del alcance de los niños y las mascotas.
• Use only clean, cool tap water or distilled water. Do not add essential oils directly into the water tank unless specified by the manufacturer.
• No bloquee la salida de niebla ni la entrada de aire.
• Desenchufe la unidad antes de limpiarla o rellenarla.

Producto terminadoview

The Lacidoll LCD-MH-J18 humidifier features a large 5.3-gallon (20L) capacity water tank, providing up to 48 hours of continuous operation. It is designed for whole-house humidification, covering areas up to 3000 sq.ft. The unit operates quietly at 35dB or less, making it suitable for bedrooms and offices. It includes a customizable timer (1-24 hours), automatic shut-off for water shortage protection, and adjustable humidity settings from 45% to 90% with three spray volumes.

Figura 1: Encimaview of Lacidoll Humidifier features including 20L/5.3Gal capacity, no water leakage, 3 spray volumes, 1-24H timer, cool & warm mist, sleep mode, and water shortage protección.

Figura 2: Illustration of the humidifier's 5.3 Gallon capacity and ability to humidify large spaces up to 3000 sq.ft for 48 hours.

Figura 3: Depiction of the dual mist functionality, offering both healthy warm mist (high temp kills bacteria, 25% faster humidification, quick stuffiness relief) and refreshing cool mist (hydrates air, soothes skin, enhances sleep) through a 360° dual nozzle.

Figura 4: De cerca view of the humidifier's control panel and dual mist outlets, highlighting features like Warm Mist, Sleep, Timer, Humidity, Max-Min mist output, and Power buttons.

Figura 5: Diagram illustrating the faster and safer warm mist feature, showing how it reaches 104°F in just 5 minutes.

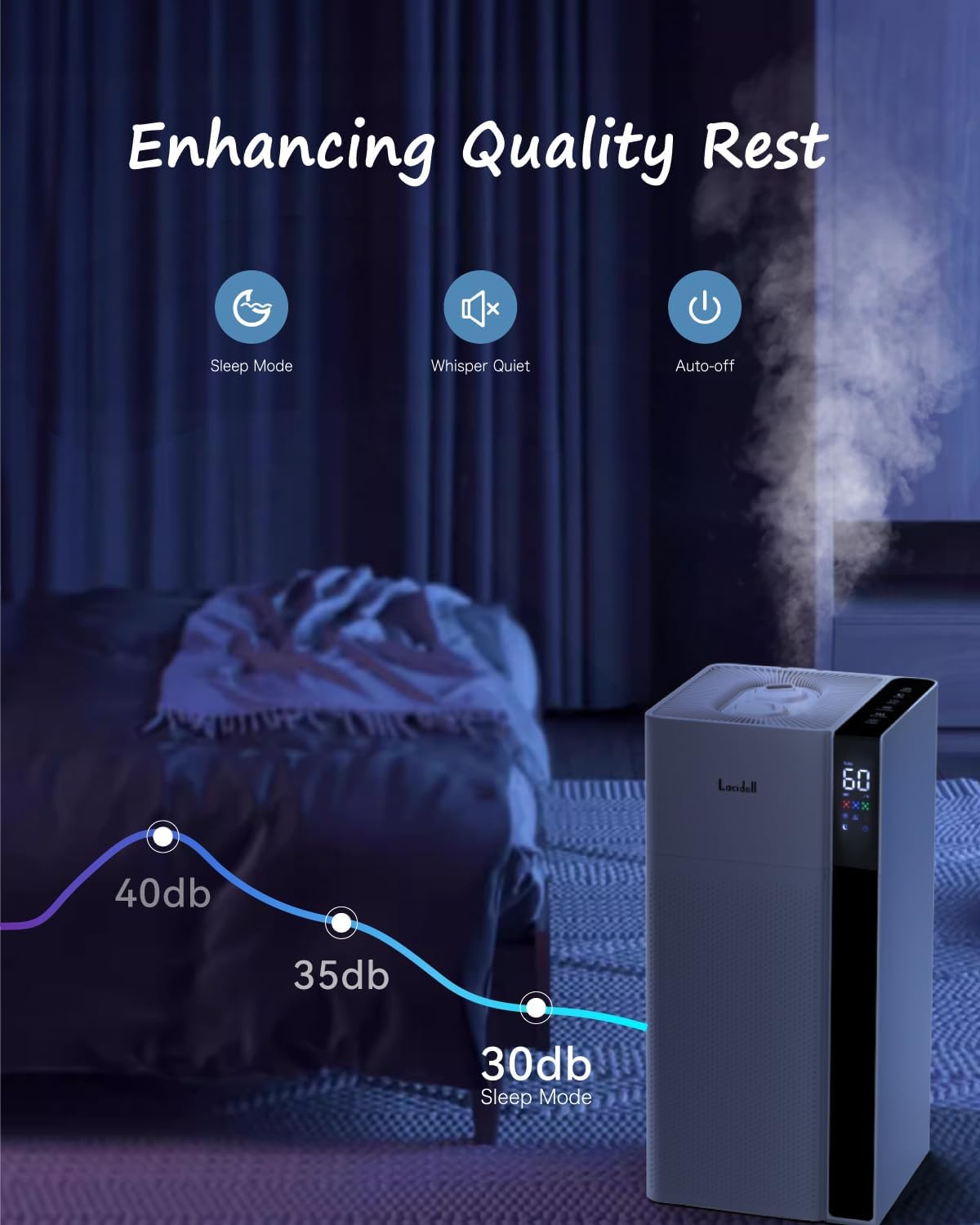

Figura 6: Visual representation of the humidifier's quiet operation, with noise levels as low as 30dB in Sleep Mode, enhancing quality rest.

Configuración

1. Deshacer: Carefully remove the humidifier from its packaging and place it on a flat, stable surface.
2. Posicionamiento: Ensure the humidifier is placed at least 6 inches away from walls and furniture to allow for proper mist dispersion.
3. Llena el tanque de agua:

   The humidifier features a top-filling design for easy refilling. Remove the top cover and pour water directly into the tank up to the 'MAX' line. Use clean, cool tap water or distilled water for best results and to prevent mineral buildup.

   Vídeo 1: Demonstrates the top-filling design and how to add water directly to the 5.3 Gallon water tank.
4. Adjust Mist Nozzle: The humidifier is equipped with a 360° rotatable mist nozzle, allowing you to direct the mist as needed.
5. Conectar: Conecte el cable de alimentación a una toma de corriente adecuada.

Operación

The humidifier can be operated via the touch control panel or the included remote control.

1. Encendido/apagado: Press the 'POWER' button to turn the device on or off.
2. Seleccionar modo niebla: Press the 'MODE' button to switch between 'WARM' and 'COOL' mist options.
3. Ajustar la salida de niebla: Use the '+' or '-' buttons to select one of the three available spray volumes (Low, Medium, High).
4. Establecer temporizador: Press the 'TIMER' button to set the desired operating duration from 1 to 24 hours. The unit will automatically shut off once the timer expires.
5. Humedad personalizada: Adjust the target humidity level from 45% to 90% using the humidity control settings. The humidifier will maintain the set humidity level automatically.
6. Modo de sueño: Activate Sleep Mode for quiet operation (≤35dB) and dimmed display lights, ideal for nighttime use.
7. Cierre automático: The humidifier will automatically shut down when the water level is low, indicated by a warning on the display.

Mantenimiento

La limpieza regular es esencial para garantizar el rendimiento óptimo y la higiene de su humidificador.

• Mantenimiento diario:
  • Desconecte el humidificador.
  • Vacíe el agua restante del tanque.
  • Wipe the tank and base with a clean, soft cloth.
• Limpieza semanal (o más frecuente con agua dura):
  • Desenchufe el humidificador y vacíe el tanque de agua.
  • Pour 2 cups of undiluted white vinegar into the water tank and base. Let it soak for 20 minutes.
  • Use a soft brush or cloth to clean mineral deposits from the tank and ultrasonic atomizer.
  • Enjuague bien el tanque y la base con agua limpia hasta que desaparezca el olor a vinagre.
  • Seque todas las superficies.

  Vídeo 3: Illustrates the easy cleaning process for the humidifier's internal components and water tank.

• Almacenamiento: When not in use for an extended period, clean the unit thoroughly, ensure it is completely dry, and store it in a cool, dry place.

Solución de problemas

Si tiene problemas con su humidificador, consulte las siguientes soluciones comunes:

Presupuesto

Garantía y soporte

For warranty information, technical support, or any inquiries regarding your Lacidoll humidifier, please refer to the contact information provided in your product packaging or visit the official Lacidoll websitio. Guarde su recibo de compra para reclamos de garantía.
