Introducción
This manual provides essential information for the safe assembly, operation, and maintenance of your FRP MB40 4-Stroke Mini Bike. Please read this manual thoroughly before operating the mini bike to ensure proper use and to prevent injury or damage.
Image: The FRP MB40 4-Stroke Mini Bike, showcasing its compact design and the included basic tools for assembly.
Información de seguridad
ADVERTENCIA: This product is intended for proper use in safe and appropriate environments only. Dangerous riding behaviors such as wheelies or jumps are strictly prohibited. The manufacturer shall not be held liable for any injuries or damages resulting from improper use or handling of the product.
Advertencia sobre la Proposición 65: Este producto puede contener sustancias químicas conocidas en el estado de California como causantes de cáncer y defectos de nacimiento u otros daños reproductivos.
- Always wear appropriate safety gear, including a helmet, eye protection, gloves, and sturdy footwear.
- Ensure the mini bike is in good working condition before each ride.
- Operate only in designated areas, away from public roads and traffic.
- Supervise a los jóvenes jinetes en todo momento.
- Familiarize yourself with the emergency kill switch and braking system.
Image: A diagram illustrating the dimensions of the FRP MB40 Mini Bike and reiterating the safety disclaimer regarding prohibited dangerous riding behaviors.
Contenido del paquete
Al abrir el paquete, verifique que estén presentes todos los siguientes componentes:
- MB40 Mini Bike (main frame with engine)
- Rueda delantera
- Horquilla delantera
- Manillar
- Guardabarros delantero
- Assembly tools (typically included)
Instrucciones de montaje
The FRP MB40 Mini Bike is designed for easy assembly with most components pre-installed. All necessary tools are typically included. Follow these steps for quick setup:
- Instalar el manillar: Attach the handlebar to the front fork assembly. Ensure it is securely fastened and aligned for comfortable riding.
- Instalar la rueda delantera: Mount the front wheel onto the front fork. Verify that all nuts and bolts are tightened to the manufacturer's specifications.
- Install Front Fender: Secure the front fender above the front wheel.
- Instalar el asiento: Attach the seat to the main frame. The unified bolt system simplifies this process.
Image: A visual guide demonstrating the four simple installation steps: handlebar, front wheel, front fender, and seat.
Instrucciones de funcionamiento
Arranque del motor
The FRP MB40 features an easy-start mechanism. To start the 40CC 4-stroke engine:
- Ensure the fuel tank contains fresh gasoline.
- Locate the pull-start mechanism.
- Engage the choke if the engine is cold (refer to engine manual for specific choke operation).
- Tire del cordón de arranque con firmeza y suavidad hasta que el motor arranque.
- Una vez iniciado, desactive gradualmente el estrangulador.
Image: A child demonstrating the simple pull-start method for the FRP Mini Bike, highlighting its user-friendly design.
Riding the Mini Bike
The MB40 is designed for young riders, offering a maximum speed of 18 mph and supporting up to 165 lbs. It features a 4-stroke engine, which provides stable operation and reduced noise compared to 2-stroke engines, and does not require oil mixing with fuel.
- Familiarize yourself with the throttle and brake controls before riding.
- Mantenga siempre una velocidad segura y esté atento a su entorno.
- Utilize the dual disc brakes for effective stopping power.
- The emergency kill switch provides an immediate engine shut-off for safety.
Image: A child riding the FRP Mini Bike, with callouts for key safety features including the emergency kill switch, anti-scratch enclosure, and dual disc brakes.
Mantenimiento
Regular maintenance ensures the longevity and safe operation of your FRP MB40 Mini Bike.
- Cambios de aceite: The 4-stroke engine is designed for 10W-40 oil. Refer to the engine manual for recommended oil change intervals and procedures. Regular oil changes are crucial for engine health.
- Presión de los neumáticos: Check tire pressure before each ride. Maintain recommended pressure for optimal performance and safety. The knobby off-road tires are designed for various terrains.
- Inspección de frenos: Regularly inspect brake levers, cables, and disc pads for wear and proper function. Adjust or replace components as needed.
- Mantenimiento de la cadena: Keep the drive chain clean and properly lubricated. Check for correct tension.
- Inspección general: Periodically check all nuts, bolts, and fasteners for tightness. Ensure the anti-scratch enclosure is intact.

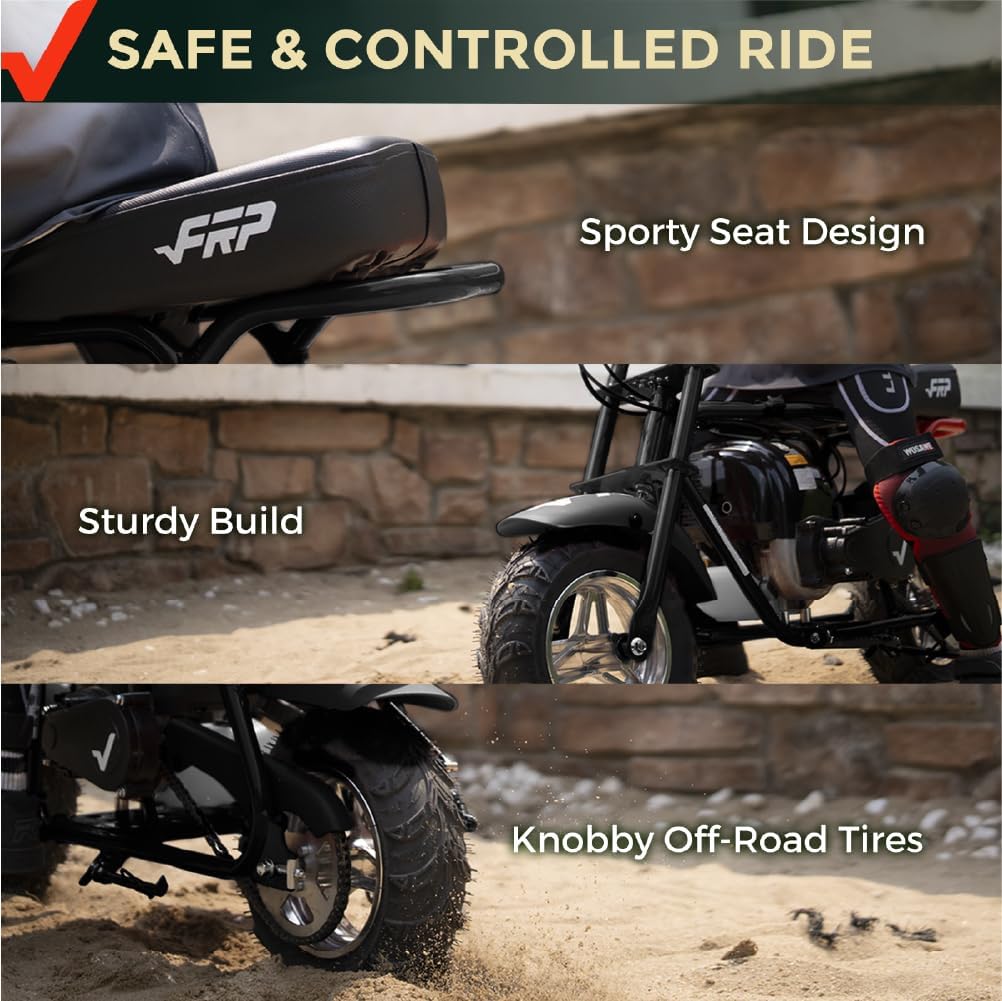

Imagen: Detallada views of the FRP Mini Bike's features, including the sporty seat design, sturdy frame construction, and knobby off-road tires suitable for diverse riding conditions.
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | PRFV |
| Modelo | MB40 Mini Dirt Bike |
| Tipo de motor | 40 cc de 4 tiempos |
| Velocidad máxima | 18 mph |
| Capacidad de carga máxima | 165 libras |
| Aceite recomendado | 10W-40 |
| Peso del artículo | 46 libras |
| Dimensiones del producto | 38.5 x 20 x 11 pulgadas |
| Características especiales | 4 Stroke Stronger Power, Durable, Kill Switch, Multi-Speed, Rear Disc Brake |

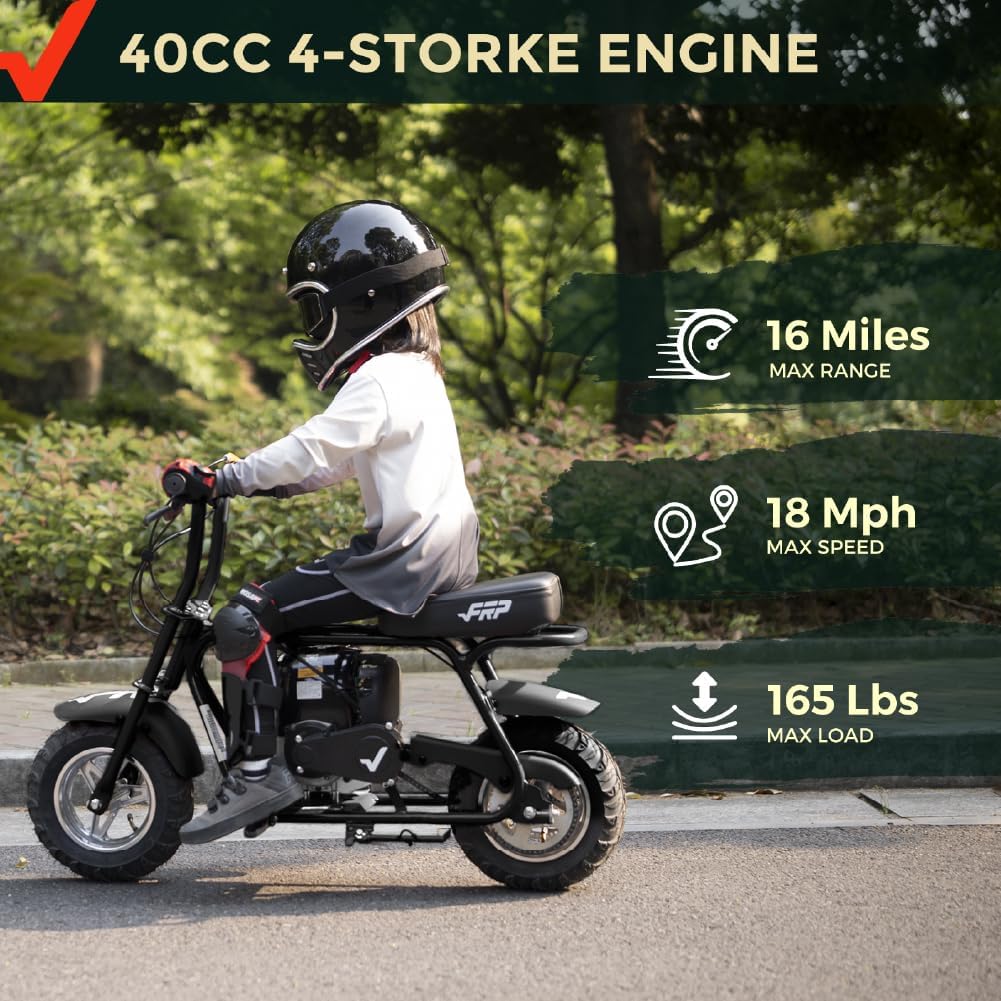

Image: A child riding the FRP Mini Bike, visually representing its 40CC 4-stroke engine capabilities, including a maximum range of 16 miles, a top speed of 18 mph, and a maximum load capacity of 165 lbs.
Solución de problemas
This section provides general guidance for common issues. For detailed troubleshooting, please refer to the engine manual or contact customer support.
- El motor no arranca: Check fuel level, ensure the kill switch is in the "run" position, and verify the spark plug connection. If cold, ensure the choke is engaged.
- Pérdida de potencia: Inspect fuel filter, air filter, and spark plug. Ensure proper oil level.
- Problemas con los frenos: Check brake cable tension and disc pad wear. Adjust or replace as necessary.
- Ruidos inusuales: Stop operation immediately and inspect for loose parts, chain issues, or engine problems.
Garantía y atención al cliente
FRP provides comprehensive customer service for your MB40 Mini Bike:
- 60-Day Customer Service: Includes no-cost parts replacement and a pre-paid return label for eligible issues.
- 365-Day Technical Support: Available to assist with any technical questions or concerns.
- Devoluciones: Please retain original packaging for 60 days for smooth returns.
- Importante: Any unauthorized modifications will void the warranty.
For support, please contact FRP customer service directly. Visit the FRP Store on Amazon Para más información.
Imagen: Una sobreview of FRP's after-sales policy, detailing 60 days of free parts and returns, and emphasizing contacting FRP service for assistance.
