Manual del usuario de la linterna LED de alta potencia Shadowhawk

Introducción

Thank you for choosing the Shadowhawk High-Power LED Flashlight. This robust and versatile flashlight is designed for a wide range of applications, from daily use and outdoor adventures to emergency situations. Featuring an advanced XHM90.2 LED chip, multiple lighting modes, and a durable, waterproof design, it provides exceptional illumination and reliability. This manual will guide you through the setup, operation, and maintenance of your new flashlight to ensure optimal performance and longevity.

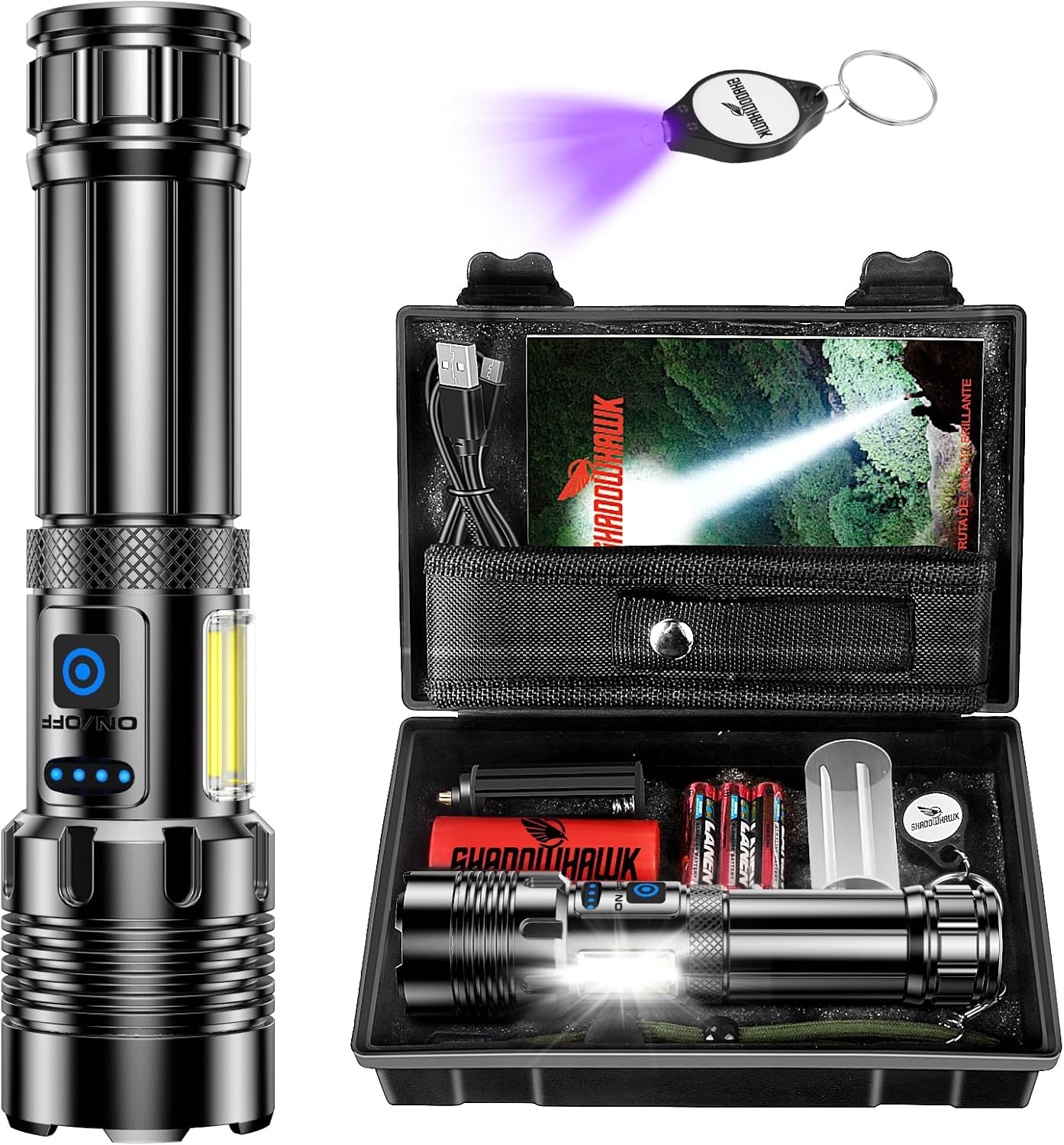

This image displays the Shadowhawk high-power LED flashlight alongside its protective carrying case. The case contains the flashlight, a USB charging cable, a high-capacity battery, a 3AAA battery adapter, a UV blacklight keychain, a lanyard, and a user manual. The flashlight itself features an on/off button with a battery indicator and a COB side light.

Características del producto

• High-Power Illumination: Equipped with a latest-generation XHM90.2 LED chip, delivering up to 500,000 lumens, capable of illuminating objects up to 3937 feet away and covering an area of 2,160 square feet.


  This image demonstrates the powerful illumination capability of the Shadowhawk flashlight, casting a broad and bright beam across a dark outdoor landscape, highlighting its 500,000 lumens output and XHM90.2 LED chip.

• 7 Enhanced Lighting Modes: Features a main LED light with High, Medium, and Strobe modes, and a COB side light with High, Medium, Red, and Red Strobe modes for versatile use as a work light or warning signal.


  This graphic illustrates the seven distinct lighting modes of the Shadowhawk flashlight. It shows three main LED modes: High, Medium, and Strobe, and four COB side light modes: High, Medium, Red, and Red Strobe, demonstrating their varied uses from general illumination to emergency signaling.
• Telescopic Zoom Function: Easily adjust the focus from a wide floodlight to a concentrated spotlight by stretching the head of the flashlight.

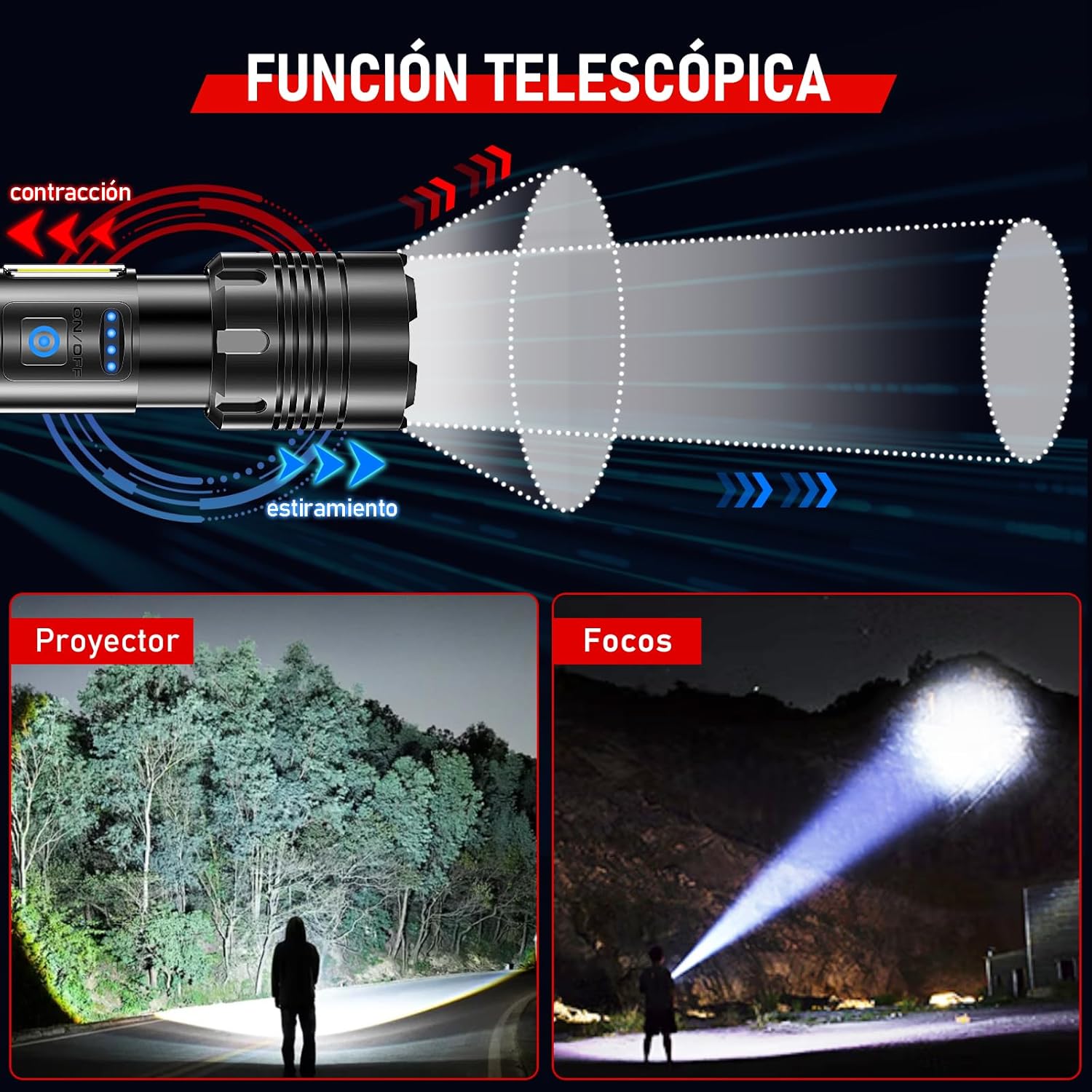

  This image explains the telescopic zoom function of the Shadowhawk flashlight. It visually represents how extending the flashlight head adjusts the beam from a wide floodlight (Proyector) to a focused spotlight (Focos), allowing users to control the illumination range.

• Batería recargable de larga duración: Equipped with a high-efficiency rechargeable battery providing up to 12 hours of runtime, with a constant output beam and a lifespan of up to 50,000 hours.


  This image highlights the long-lasting rechargeable battery of the Shadowhawk flashlight, indicating up to 12 hours of runtime on low mode. It also depicts various built-in protections: overcharge, over-discharge, over-voltage, long cycle life, and rechargeable battery.
• USB Charging & Power Bank Function: Features a fast-charging USB input port and a USB output port, allowing it to function as a power bank for charging other devices in emergencies. Includes a battery level indicator (25%, 50%, 75%, 100%).


  This image demonstrates the USB input and output capabilities of the Shadowhawk flashlight. It shows the flashlight being charged via USB input with a battery level indicator (25%, 50%, 75%, 100%) and also functioning as a power bank to charge other devices via its USB output port.

• Included 395nm UV Blacklight: Comes with a separate 12-LED UV blacklight keychain, useful for detecting pet stains, verifying currency, and other specific applications.


  This image illustrates various specific applications for the included 395nm UV blacklight. Examples include detecting pet urine stains, bed bugs, tomato worms, bathroom stains, verifying currency and IDs, and identifying fluorescent rocks and minerals, showing 'Before' and 'After' scenarios.

• Premium & IP67 Waterproof Material: Constructed from durable aluminum alloy with IP67 waterproof rating, ensuring reliable performance in various environments. Note: Do not immerse in water.


  This image emphasizes the IP67 waterproof and durable construction of the Shadowhawk flashlight, made from aluminum alloy. It shows the flashlight in various outdoor and emergency scenarios like hiking, camping, repair work, and rescue, highlighting its robust design and a close-up of its 3mm thick waterproof gasket.
• Diseño ergonómico: Features an anti-slip texture, adjustable design, and a safety hammer tail cap.


  This detailed diagram provides an exploded view of the Shadowhawk flashlight's industrial design and key components. It labels parts such as the rear cover, anti-slip texture, switch with indicator light, adjustable design, safety hammer, COB side light, M90.2 lamp, and high transmittance lens, showcasing its efficient heat dissipation and ergonomic aluminum design.

Contenido del paquete

The Shadowhawk High-Power LED Flashlight package includes the following items:

• 1 x Shadowhawk S1670 High-Power LED Flashlight
• 1 x High-Capacity Rechargeable Lithium-ion Battery (pre-installed or separate)
• 1 x cable de carga USB
• 1 x 3AAA Battery Adapter (for optional AAA battery use)
• 1 x 12-LED 395nm UV Blacklight Keychain
• 1 x Cordón
• Caja de regalo 1 x
• 1 x Manual de usuario

Configuración

Instalación de la batería

1. Desenrosque la tapa trasera de la linterna girándola en sentido contrario a las agujas del reloj.
2. Insert the provided high-capacity rechargeable Lithium-ion battery with the positive (+) end facing towards the head of the flashlight.
3. Alternatively, if using 3 AAA batteries, insert them into the provided 3AAA battery adapter, ensuring correct polarity, then insert the adapter into the flashlight with the positive (+) end facing the head.
4. Enrosque nuevamente la tapa de la cola girándola en el sentido de las agujas del reloj hasta que quede bien apretada.

Carga inicial

1. Localice el puerto de carga USB en la linterna (generalmente cubierto por una solapa de goma).
2. Connect the smaller end of the provided USB charging cable to the flashlight's charging port.
3. Connect the larger end of the USB cable to a standard USB power source (e.g., wall adapter, computer USB port, power bank).
4. The battery level indicator lights on the flashlight will illuminate to show charging progress (25%, 50%, 75%, 100%).
5. Once all four indicator lights are solid, the flashlight is fully charged. Disconnect the charging cable.

Instrucciones de funcionamiento

Main LED Light Operation

• Encendido/apagado: Press the power button once to turn on the main LED light. Press and hold the button for 2 seconds to turn off the light directly from any mode.
• Modo Ciclismo: With the main LED light on, press the power button repeatedly to cycle through the modes: High → Medium → Strobe.

COB Side Light Operation

• Activate COB Light: Double-click the power button quickly to activate the COB side light. This can be done whether the main light is on or off.
• COB Mode Cycling: Once the COB light is active, press the power button repeatedly to cycle through its modes: High → Medium → Red → Red Strobe.
• Deactivate COB Light: Double-click the power button again to turn off the COB light, or press and hold the button for 2 seconds.

Función de zoom telescópico

• To adjust the beam focus, gently pull the head of the flashlight outwards to narrow the beam into a spotlight.
• Push the head of the flashlight inwards to widen the beam into a floodlight.

Usar como banco de energía

• Abra la tapa de goma que cubre el puerto de salida USB.
• Conecte el cable de carga de su dispositivo al puerto de salida USB de la linterna.
• La linterna comenzará a cargar tu dispositivo. Observa el indicador de carga.
• Desconecte el cable una vez completada la carga.

Using the UV Blacklight Keychain

• The small UV blacklight keychain operates independently.
• Press the button on the keychain to activate its UV LEDs.
• Use it for specific tasks such as detecting pet stains, verifying documents, or identifying fluorescent materials.

Mantenimiento

• Limpieza: Limpie la linterna con un paño suave y seco.amp Paño. No utilice limpiadores abrasivos ni disolventes.
• Cuidado de la batería: For optimal battery life, charge the flashlight regularly, even if not in frequent use. Avoid fully depleting the battery before recharging.
• Almacenamiento: Guarde la linterna en un lugar fresco y seco, alejada de la luz solar directa y de temperaturas extremas. Si la va a guardar durante un tiempo prolongado, retire la batería.
• Resistencia al agua: While IP67 rated for water resistance, avoid immersing the flashlight in water. Ensure all ports are sealed when exposed to moisture.

Solución de problemas

Presupuesto

Garantía y soporte

For any questions, concerns, or technical support regarding your Shadowhawk High-Power LED Flashlight, please refer to the contact information provided with your purchase or visit the official Shadowhawk webSitio web. Conserve su comprobante de compra para reclamaciones de garantía.
