Manual de instrucciones del sistema de guitarra inalámbrico SONICAKE QWS-10

1. Introducción

The SONICAKE Wireless Guitar System QWS-10 provides a reliable and high-fidelity 2.4G wireless audio connection for high-impedance instruments such as electric guitars, bass guitars, and other electric instruments. This system offers freedom of movement without compromising sound quality, featuring low latency and a robust transmission range.

Image 1.1: The SONICAKE Wireless Guitar System QWS-10, showing both the transmitter and receiver units.

2. Producto terminadoview

The QWS-10 system is designed for ease of use and performance. Key features include:

• 2.4G Wireless Audio System: Optimized for high-impedance instruments.
• Baja latencia: Less than 5 milliseconds (5ms) for real-time performance.
• Alta fidelidad: Flat frequency response curve ensures accurate sound reproduction.
• Distancia de transmisión: Reliable operation up to 30 meters (approximately 98 feet).
• Múltiples canales: Features 6 distinct channels, allowing up to 6 sets of devices to operate simultaneously in the same environment.
• Compatibilidad con múltiples receptores: One transmitter can connect to up to six receivers simultaneously.
• Durable Rotating Plug: The 220-degree rotatable plug incorporates metal damping components, maintaining a consistent feel even after over 5000 rotations.
• Carga USB tipo C: Dual Type-C head cable supports simultaneous charging of both units.
• Apagado automático: Units will automatically power off after 15 minutes of no volume output to conserve battery.

Image 2.1: Visual representation of the system's low latency, indicated as less than 5ms.

Image 2.2: The system in use, demonstrating the wireless connection between an instrument and an amplifier, highlighting the transmission distance.

Image 2.3: Illustration of the system's capability to support one transmitter with up to six receivers simultaneously.

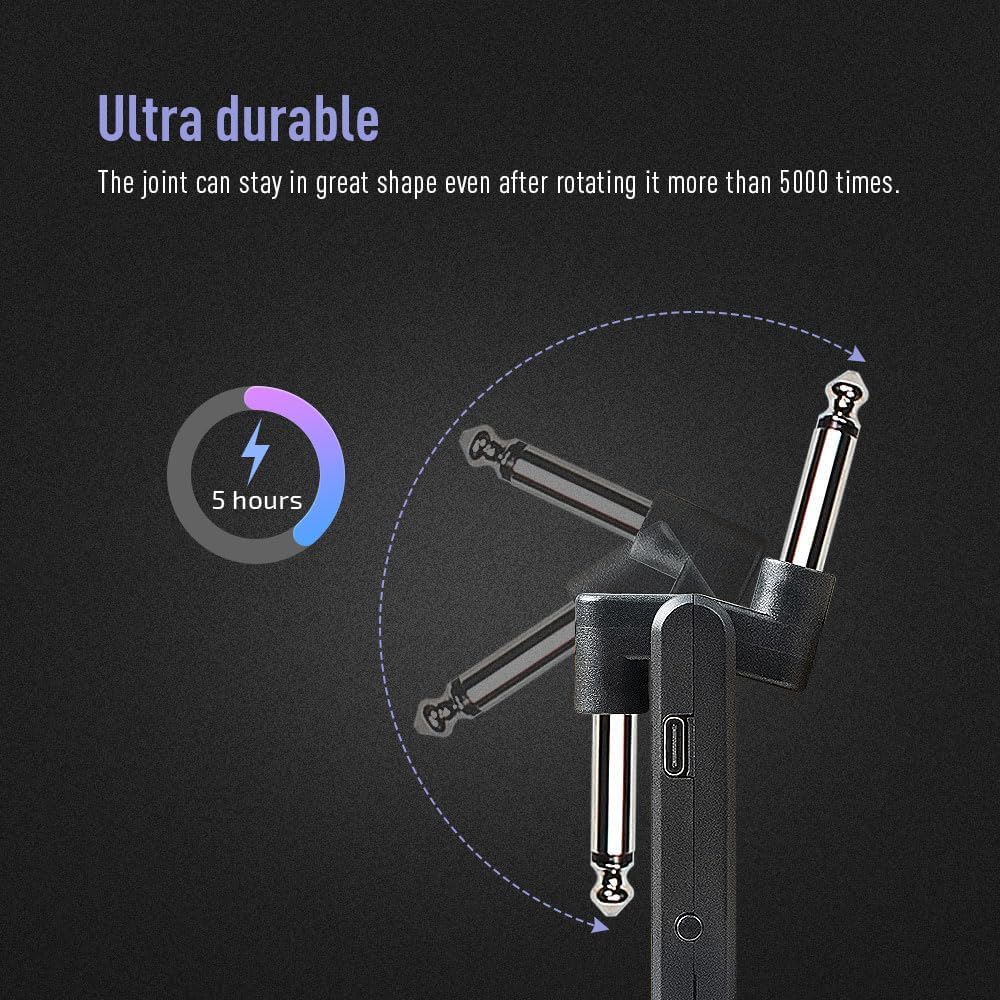

Image 2.4: Detail of the ultra-durable rotating plug, designed for longevity and flexibility.

3. Configuración

1. Carga inicial: Before first use, fully charge both the transmitter (TX) and receiver (RX) units using the provided USB Type-C charging cable. The charging indicator will show status.
2. Conectar el transmisor: Plug the transmitter unit into your instrument's output jack (e.g., electric guitar, bass). Ensure it is securely seated.
3. Conectar el receptor: Conecte la unidad receptora a su amplifier's input, a pedal, or an audio interface. Ensure it is securely seated.

Image 3.1: The transmitter unit connected to an electric guitar.

4. Instrucciones de funcionamiento

1. Encendido: Press and hold the power button on both the transmitter and receiver units until the indicator lights illuminate.
2. Selección automática de canales: Upon powering on, the transmitter will automatically select the optimal channel. The receiver will then automatically follow and connect to the transmitter.
3. Indicadores LED: Observe the blue LED lights on both units. A solid blue light indicates a successful connection.
4. Apagado: Press and hold the power button on each unit until the indicator lights turn off.

5. Instrucciones de emparejamiento

The QWS-10 system is designed for automatic pairing. Follow these steps if re-pairing is necessary or for initial setup:

1. Ensure both the transmitter and receiver units are powered off.
2. Simultaneously press and hold the pairing button (often the same as the power button) on both the transmitter and receiver for more than 2 seconds.
3. Observe the blue indicator lights. If they turn on and remain solid, pairing is successful. The transmitter will select the best available channel, and the receiver will automatically synchronize.

Image 5.1: Diagram showing the smart connection process where the transmitter selects the best channel.

6. Carga

The SONICAKE Wireless Guitar System features built-in rechargeable batteries. To charge the units:

• Use the provided USB dual Type-C charging cable.
• Connect both the transmitter and receiver to the dual Type-C cable.
• Conecte el extremo USB-A del cable a un adaptador de corriente USB estándar (no incluido) o al puerto USB de una computadora.
• The indicator lights will show charging status. A full charge provides approximately 5 hours of continuous use.

7. Mantenimiento

To ensure the longevity and optimal performance of your QWS-10 Wireless Guitar System, follow these maintenance guidelines:

• Limpieza: Wipe the units with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals.
• Almacenamiento: Guarde las unidades en un lugar fresco y seco, alejado de la luz solar directa, temperaturas extremas y alta humedad.
• Cuidado de la batería: For extended storage, charge the units to approximately 50% every few months to maintain battery health. Avoid fully discharging the batteries for long periods.
• Tratar con cuidado: While the rotating plug is durable, avoid excessive force or twisting beyond its intended range of motion.

8. Solución de problemas

If you encounter issues with your SONICAKE Wireless Guitar System, refer to the following common problems and solutions:

9. Especificaciones

Detailed technical specifications for the SONICAKE Wireless Guitar System QWS-10:

10. Garantía y soporte

For warranty information, technical support, or service inquiries regarding your SONICAKE Wireless Guitar System QWS-10, please refer to the product packaging or contact the seller/manufacturer directly. Keep your proof of purchase for warranty claims.
