Introducción
Thank you for choosing the AIKE Manual Commercial Soap Dispenser and Wall Mount Paper Towel Dispenser Bundle. This manual provides essential information for the proper installation, operation, and maintenance of your new dispensers. Please read these instructions carefully before use and retain them for future reference.
Producto terminadoview
1. AIKE Manual Commercial Soap Dispenser (Model AK1006)
Esta imagen muestra el frente view of the AIKE Manual Commercial Soap Dispenser, Model AK1006, in black. It features a clear window to monitor soap levels and a "PUSH" button for dispensing. The AIKE logo is visible at the top.
Características:
- Gran capacidad: 24 fl. oz. (approximately 710 ml) reservoir for extended use between refills.
- Lock Design: Prevents unauthorized opening and tampriendo
- Resistente a huellas dactilares: Stain-resistant coating maintains a clean appearance.
- Replaceable Pump: Allows for easy maintenance and extended product lifespan.
- Visible Soap Level: A clear window on the front indicates the current soap volume.
This image highlights the internal soap reservoir of the AIKE Manual Commercial Soap Dispenser, showing its 24 fl. oz. large capacity. The transparent container holds blue liquid soap, indicating it allows for long-term use without frequent refills.
This image displays the packing list and dimensions for the AIKE Manual Commercial Soap Dispenser AK1006. The dispenser measures 9.3 inches in height, 4.9 inches in width, and 3.7 inches in depth. The packing list includes 1 key, 1 user manual, 1 soap dispenser, 4 screws, 1 nail-free sticker, and 4 expansion anchors.
Packing List (Model AK1006):
- Soap Dispenser x 1
- Clave x 1
- Manual de usuario x 1
- Tornillos x 4
- Expansion Anchors x 4
- Nail-Free Sticker x 1 (for alternative mounting)
Dimensions (Model AK1006):
- Altura: 9.3 pulgadas
- Ancho: 4.9 pulgadas
- Profundidad: 3.7 pulgadas
2. AIKE Wall Mount Paper Towel Dispenser (Model AK5180)

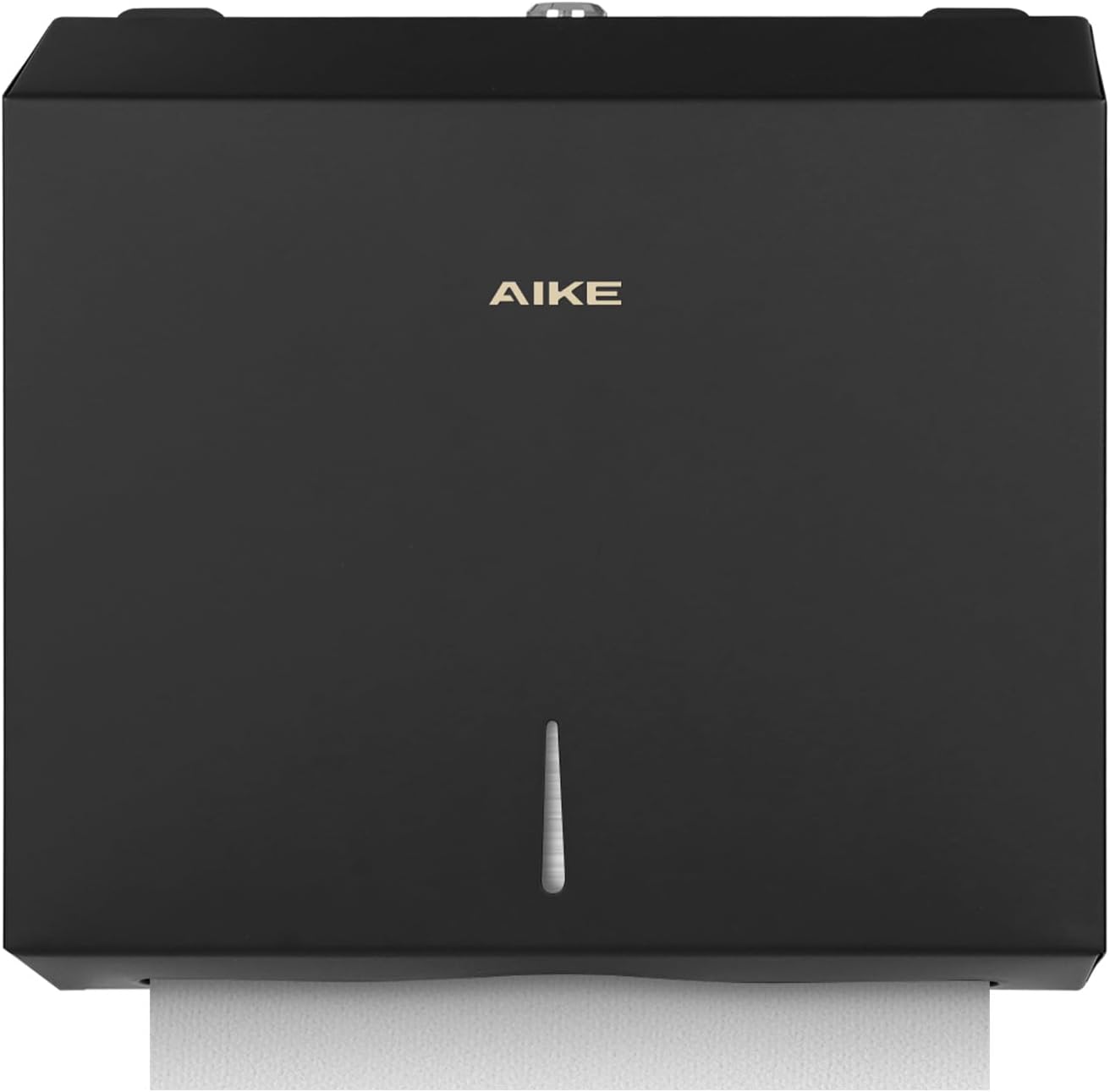

Esta imagen muestra el frente view of the AIKE Wall Mount Paper Towel Dispenser, Model AK5180, in black. It features a sleek, rectangular design with the AIKE logo at the top and a narrow vertical window at the bottom to check paper towel levels. A paper towel is visible dispensing from the bottom slot.
Características:
- Alta capacidad: Holds up to 250 multifold hand towels.
- Long Window: Allows quick monitoring of paper towel quantity.
- Anti-Theft Key: Includes two keys for secure access and refilling.
- Construcción duradera: Designed for public and high-traffic areas.
This image shows the AIKE Wall Mount Paper Towel Dispenser AK5180 with its top open, revealing the internal compartment designed to hold up to 250 multifold hand towels. The suitable folded towel size is indicated as 10.6 inches (27 cm) by 3.9 inches (10 cm).
This image highlights two key features of the AIKE Wall Mount Paper Towel Dispenser AK5180: the "Long Window" for quickly checking tissue count and the "Anti-Theft Key x 2" for secure access. The dispenser is shown with a key inserted into the lock mechanism.
This image displays the packing list and dimensions for the AIKE Wall Mount Paper Towel Dispenser AK5180. The dispenser measures 10.91 inches (27.7 cm) in width, 10.43 inches (26.5 cm) in depth, and 4.02 inches (10.2 cm) in height. The packing list includes 1 dispenser, 1 manual, 2 keys, 4 screws, and 4 wall anchors.
Packing List (Model AK5180):
- Paper Towel Dispenser x 1
- Llaves x 2
- Manual x 1
- Tornillos x 4
- Anclajes de pared x 4
Dimensions (Model AK5180):
- Ancho: 10.91 pulgadas (27.7 cm)
- Profundidad: 10.43 pulgadas (26.5 cm)
- Altura: 4.02 pulgadas (10.2 cm)
- Suitable Towel Size (folded): 10.6 inches (27 cm) x 3.9 inches (10 cm)
Configuración e instalación
Both dispensers are designed for wall mounting. Ensure you select a suitable location with adequate wall support and clearance for operation and maintenance.
General Wall Mounting Steps:
- Elegir la ubicación: Select a flat, sturdy wall surface at an appropriate height.
- Puntos de perforación de marcado: Hold the dispenser against the wall at the desired height. Use a pencil to mark the positions for the mounting holes. Ensure the marks are level.
- Perforar agujeros: Use an appropriate drill bit to drill holes at the marked positions. For drywall, insert the expansion anchors. For wood studs, anchors may not be necessary.
- Dispensador de montaje: Align the dispenser's mounting holes with the drilled holes. Insert the screws through the dispenser and into the wall anchors (if used) or directly into the wall. Tighten securely. Do not overtighten.
Specific Installation Notes:
- Soap Dispenser (AK1006): Can also be installed using the provided nail-free sticker for certain surfaces. Ensure the surface is clean and dry before applying.
- Paper Towel Dispenser (AK5180): Ensure sufficient clearance below the dispenser for towels to be pulled out easily.
Instrucciones de funcionamiento
1. AIKE Manual Commercial Soap Dispenser (Model AK1006)
- Descubrir: Insert the provided key into the lock at the top of the dispenser and turn to unlock the cover.
- Llenar: Open the cover and pour liquid soap directly into the reservoir. Do not overfill.
- Cerrar y bloquear: Close the cover securely and turn the key to lock it. Remove the key.
- Dispensar: Place your hand under the dispenser and press the "PUSH" button firmly to dispense soap. Prime the pump by pressing several times if it's the first use or after refilling.
2. AIKE Wall Mount Paper Towel Dispenser (Model AK5180)
- Descubrir: Insert one of the provided keys into the lock on the top of the dispenser and turn to open the front cover.
- Cargar toallas: Place a stack of multifold paper towels into the dispenser. Ensure they are neatly stacked and fit within the internal dimensions (10.6" x 3.9" folded).
- Toalla de hilo: Pull the first towel through the dispensing slot at the bottom.
- Cerrar y bloquear: Close the front cover securely and turn the key to lock it. Remove the key.
- Dispensar: Pull a towel from the bottom slot when needed.
Mantenimiento
Recarga:
- Soap Dispenser (AK1006): Monitor the soap level through the clear window. Refill as described in the "Operating Instructions" when the level is low.
- Paper Towel Dispenser (AK5180): Check the paper towel level through the long window. Refill as described in the "Operating Instructions" when the stack is low.
Limpieza:
- Wipe the exterior surfaces of both dispensers regularly with a soft, damp Paño y jabón suave.
- Evite utilizar limpiadores abrasivos o disolventes, ya que pueden dañar el acabado.
- For the soap dispenser, periodically clean the nozzle to prevent clogs.
Pump Replacement (AK1006):
The soap dispenser features a replaceable pump. If the pump mechanism becomes faulty over time, it can be replaced. Contact AIKE customer support for replacement parts and instructions.
Solución de problemas
Soap Dispenser (AK1006):
- No soap dispenses:
- Check if the reservoir is empty and refill.
- Prime the pump by pressing the button several times.
- Ensure the nozzle is not clogged. Clean if necessary.
- Fugas:
- Ensure the top cover is securely closed and locked.
- Check for any cracks or damage to the reservoir or pump.
Paper Towel Dispenser (AK5180):
- Towels not dispensing smoothly:
- Ensure the paper towels are correctly loaded and not jammed.
- Verify that the paper towel size is appropriate for the dispenser (multifold, 10.6" x 3.9" folded).
- Check for any obstructions in the dispensing slot.
- Cover not closing/locking:
- Ensure the paper towels are not overfilled, preventing the cover from closing properly.
- Check if the lock mechanism is clear of debris.
Presupuesto
AIKE Manual Commercial Soap Dispenser (Model AK1006):
- Modelo: AK1006
- Material: Plástico
- Color: Negro
- Capacidad: 24 fl. oz. (approx. 710 ml)
- Dimensiones (alto x ancho x profundidad): 9.3" x 4.9" x 3.7"
- Montaje: Wall Mount (screws/anchors or nail-free sticker)
AIKE Wall Mount Paper Towel Dispenser (Model AK5180):
- Modelo: AK5180
- Material: Plástico
- Color: Negro
- Capacidad: Up to 250 multifold hand towels
- Suitable Towel Size (folded): 10.6" (27 cm) x 3.9" (10 cm)
- Dimensiones (An x Pr x Al): 10.91" (27.7 cm) x 10.43" (26.5 cm) x 4.02" (10.2 cm)
- Montaje: Wall Mount (screws/anchors)
Garantía y soporte
AIKE products come with a manufacturer warranty. For detailed warranty information and support, please refer to the AIKE store front page or contact AIKE customer service directly. We are committed to assisting you with any product-related inquiries or issues.
Información del contacto: Please visit the official AIKE website or your point of purchase for current customer support contact details.
