LeadsaiL FA98 Wireless Mechanical Keyboard and Mouse Combo User Manual

1. Introducción

Thank you for choosing the LeadsaiL FA98 Wireless Mechanical Keyboard and Mouse Combo. This manual provides essential information for setting up, operating, and maintaining your new device. Please read it thoroughly to ensure optimal performance and longevity of your product.

2. Contenido del paquete

El paquete debe contener los siguientes artículos:

• LeadsaiL FA98 Wireless Mechanical Keyboard
• LeadsaiL Wireless Mouse
• USB Nano Receiver (stored in the mouse battery compartment)
• Manual de usuario (este documento)

Image: The LeadsaiL FA98 Wireless Mechanical Keyboard and Mouse Combo, showcasing the keyboard and mouse together.

3. Guía de configuración

3.1. Instalación de la batería

The keyboard and mouse require batteries for operation. Batteries are not included in the package.

• Para el ratón: Open the battery compartment cover on the underside of the mouse. Insert 1 AA battery, ensuring correct polarity. The USB Nano Receiver is stored in this compartment.
• Para el teclado: Open the battery compartment cover on the underside of the keyboard. Insert 2 AAA batteries, ensuring correct polarity.

Image: Diagram showing battery compartments for the keyboard (2 AAA) and mouse (1 AA), and the location of the USB receiver within the mouse.

3.2. Conexión del dispositivo

The keyboard and mouse connect wirelessly via a single 2.4GHz USB Nano Receiver.

• Remove the USB Nano Receiver from the battery compartment of the mouse.
• Plug the USB Nano Receiver into an available USB port on your computer (Windows PC, macOS Laptop, etc.).
• Turn on the keyboard and mouse using their respective power switches (located on the underside of each device).
• The devices should automatically connect to your computer. No additional drivers are required.

Image: Close-up of the USB Nano Receiver and its function in connecting both the keyboard and mouse wirelessly.

Video: Official product video demonstrating the features and setup of the LeadsaiL FA98 Wireless Mechanical Keyboard, including the USB receiver connection.

4. Instrucciones de funcionamiento

4.1. Uso del teclado

The LeadsaiL FA98 keyboard features a 98-key compact layout with low-profile mechanical red switches. It includes dedicated function keys and a numeric keypad.

• Teclas de función (F1-F12): These keys often have secondary functions (e.g., media control, volume adjustment) when pressed in combination with the Fn tecla. Consulte las leyendas de las teclas para conocer funciones específicas.
• Operating System Mode Switch: The keyboard supports both Windows and macOS. Use the Fn + IMPERMEABLE or Fn + GANAR keys to switch between modes.
• Luces indicadoras: The keyboard has indicator lights for Number Lock, Caps Lock, and Low Battery.

Image: Illustration of the keyboard layout highlighting FN+ shortcuts and hot keys for various functions.

Image: Close-up of the keyboard's upper right corner showing the Number Lock, Caps Lock, and Low Battery indicator lights.

4.2. Uso del ratón

The LeadsaiL wireless mouse offers silent clicks and adjustable DPI settings.

• Ajuste de PPP: Press the DPI button (usually located near the scroll wheel) to cycle through different cursor speeds (e.g., 800, 1200, 1600 DPI). This allows you to adjust sensitivity to your preference.
• Clics silenciosos: El mouse está diseñado para un funcionamiento silencioso, minimizando el ruido del clic.

Image: Diagram illustrating the DPI adjustment feature of the LeadsaiL wireless mouse, showing different DPI levels.

5. Características principales

• 2.4GHz Stable Wireless Connection: Provides a reliable connection up to 33 feet (10 meters) with a single USB Nano Receiver.
• Bajo-Profile Interruptores mecánicos rojos: Tuned for optimal feedback and comfort, offering smooth and quiet typing with satisfying tactile feedback. Keys rebound quickly, reducing finger fatigue.


Imagen: Detallada view de los de bajo perfilfile mechanical red switches, showing their design and comparison to standard switches.

• Double-shot Injection Keycaps: Ensures clear and vivid legends that will not fade over time, providing durability and a comfortable typing experience.
• Diseño compacto y elegante: The 98-key layout saves desktop space and is convenient for portability. Features a slim profile and sturdy construction.

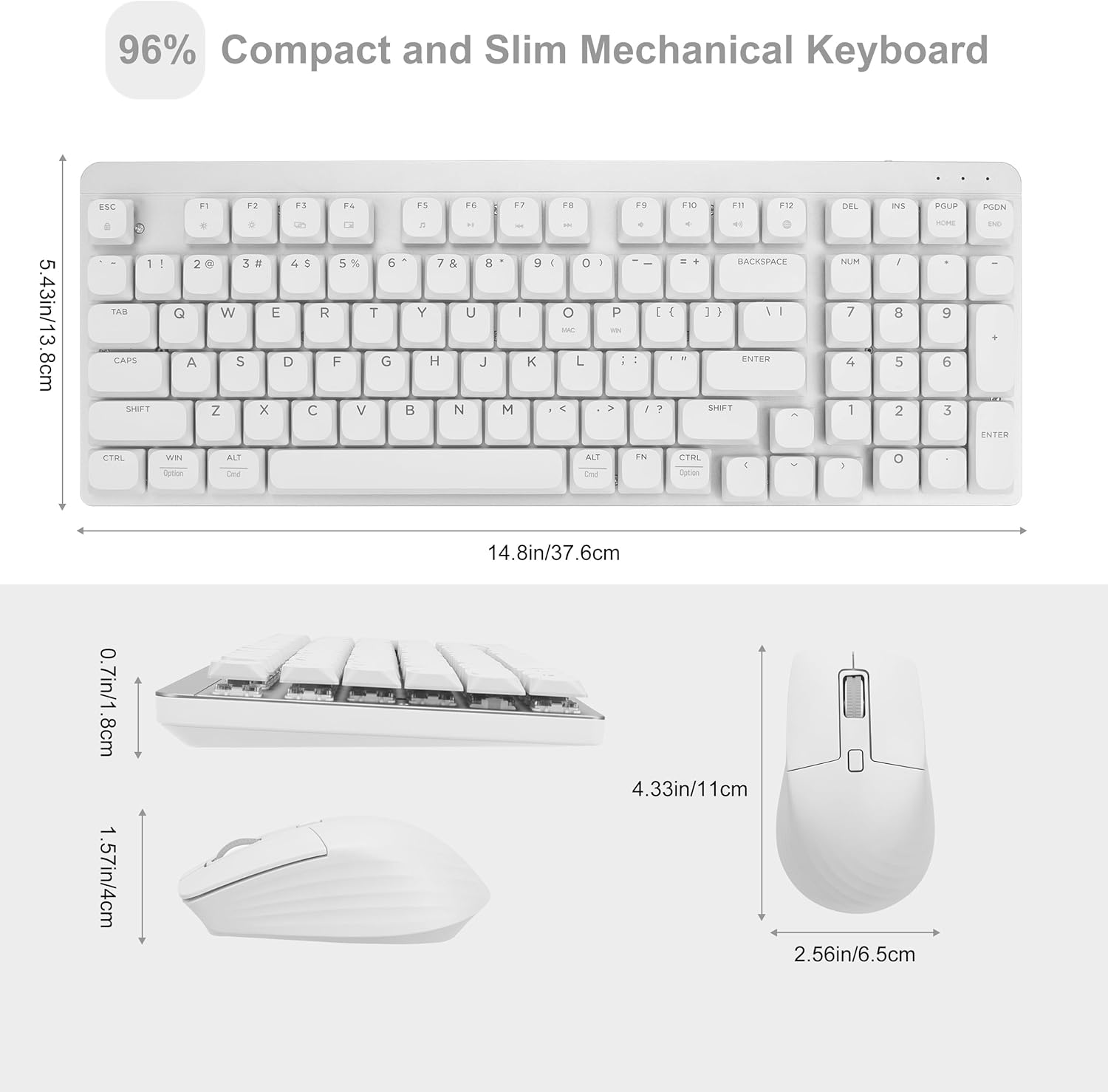

Image: Dimensions of the compact LeadsaiL FA98 mechanical keyboard and mouse, highlighting their space-saving design.

• Compatibilidad multiplataforma: Compatible with Windows, macOS, and Linux operating systems, functioning with laptops, desktops, PCs, and notebooks with USB ports.


Image: The LeadsaiL FA98 keyboard and mouse combo displayed with a laptop and tablet, indicating multi-system compatibility for macOS and Windows.

• Diseño ergonómico: The keyboard features a foldable stand to achieve a 9° typing angle, reducing fatigue during extended use. The mouse has an ergonomic shape for a comfortable grip.

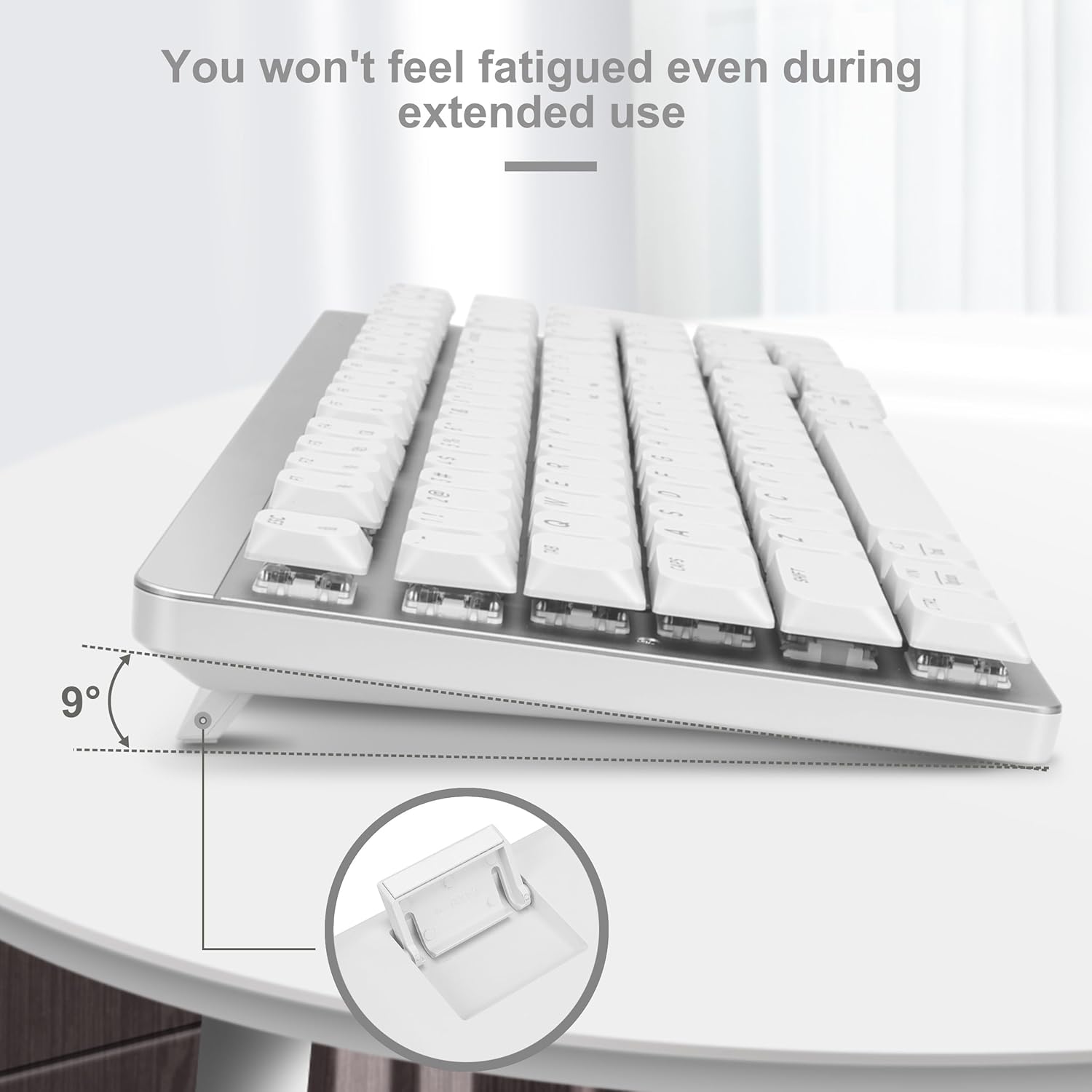

Imagen: Lateral view of the LeadsaiL FA98 keyboard showing the 9-degree ergonomic tilt provided by its foldable stand.

• Ahorro de energía inteligente: The keyboard enters auto-standby after 5 seconds of inactivity, and the mouse after 3 seconds. Click any key or button to wake them up.

6. Mantenimiento

6.1. Limpieza

Para mantener la apariencia y funcionalidad de su teclado y mouse:

• Utilice un paño suave y seco para limpiar las superficies.
• Para suciedad difícil, ligeramente dampEnjuague el paño con agua o una solución limpiadora suave. Evite productos químicos agresivos.
• Utilice aire comprimido para eliminar el polvo y los residuos de entre las teclas.

6.2. Reemplazo de la batería

Replace batteries when the low battery indicator light illuminates or when performance degrades.

• Siga los pasos de instalación de la batería en la Sección 3.1.
• Deseche las baterías usadas de manera responsable de acuerdo con las regulaciones locales.

7. Solución de problemas

8. Especificaciones

9. Garantía y soporte

LeadsaiL products are designed for reliability and performance. For specific warranty information and customer support, please refer to the warranty card included with your product or visit the official LeadsaiL webSitio. Conserve su recibo de compra como comprobante de compra.
