Introducción
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Decaura Laundry Sink Mixer Tap. Designed for versatility, this tap features a 360-degree swivel spout and a durable ceramic cartridge, making it suitable for various applications including laundry, kitchen, and bathroom sinks. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Un detallado view of the Decaura Laundry Sink Mixer Tap in Matt Black, showcasing its sleek design and single-lever handle.
Información de seguridad
Cierre siempre el suministro principal de agua antes de comenzar cualquier trabajo de instalación o mantenimiento.
Asegúrese de que todas las conexiones estén bien sujetas para evitar fugas. No apriete demasiado.
Si no está seguro de algún paso, consulte con un plomero calificado.
Mantenga las piezas pequeñas fuera del alcance de los niños.
Contenido del paquete
Verifique que todos los componentes estén presentes antes de comenzar la instalación:
- Decaura Laundry Sink Mixer Tap (Matt Black)
- Hot and Cold Water Hoses (500 mm length)
- Mounting Hardware (including locking screw and nut)
- Installation Tool (plastic spanner)
- Juntas de sellado
Presupuesto
| Característica | Detalle |
|---|---|
| Fabricante | Decaura |
| Dimensiones del paquete | 27.4 x 16.3 x 5.9 cm |
| Número de modelo del artículo | 50015 |
| Color | Matt Negro |
| Estilo | Clásico |
| Finalizar | Negro |
| Material | Acero inoxidable |
| Forma | Oval |
| Método de instalación | Agujero simple |
| Caudal | 5.5 litros por minuto |
| Longitud de la manguera | 500 milímetros |
| Número de agujeros | 1 |
| Altura del caño | 120 milímetros |
| Alcance del pico | 216 milímetros |
| Colocación de la manija / palanca | Centro |
| Número de manijas | 1 |
| Material del mango | Acero inoxidable |
| Enchufe Profile | Montaje en cubierta |
| Características especiales | Giro de 360 grados |
| Componentes incluidos | Hardware de instalación |
| ¿Se requieren pilas? | No |
| Peso del artículo | 940 gramos |
Guía de instalación
Siga estos pasos cuidadosamente para una instalación exitosa:
- Prepare el fregadero: Ensure the mounting hole on your sink or countertop is between 33-38mm in diameter and the countertop thickness is a maximum of 45mm. Clean the area around the mounting hole.
- Attach Hoses and Locking Screw: Before inserting the tap into the sink hole, attach the hot and cold water hoses to the tap base. Then, attach the locking screw to the tap base. This order is crucial for easier tightening later.
- Insertar grifo: Place the main body of the tap into the mounting hole, ensuring the sealing gasket is correctly positioned between the tap base and the sink surface.
- Grifo seguro: From underneath the sink, slide the rubber washer and metal washer onto the threaded rod. Hand-tighten the mounting nut, then use the provided plastic installation tool to fully tighten the nut, securing the tap firmly to the sink. Ensure the tap is aligned correctly before final tightening.
- Conectar el suministro de agua: Connect the hot and cold water hoses to your corresponding hot and cold water supply lines. Ensure all connections are tight to prevent leaks. It is recommended to install isolating valves for future maintenance.
- Prueba de fugas: Slowly turn on the main water supply. Check all connections for any signs of leaks. Operate the tap to ensure proper hot and cold water flow.
A technical diagram illustrating the dimensions of the Decaura Laundry Sink Mixer Tap, including spout height, spout reach, and recommended mounting hole size and countertop thickness for installation.
Operación
The Decaura Laundry Sink Mixer Tap is designed for ease of use and precise control.
Control de flujo de agua y temperatura:
The single lever handle controls both water flow and temperature. Lift the handle to increase water flow. Move the handle left for hot water and right for cold water. The premium 35mm ceramic disc cartridge ensures smooth and effortless operation, allowing for precise temperature adjustments.
Caño giratorio de 360°:
The tap features a 360-degree swivel spout, providing extended reach and flexibility. This is particularly useful for double bowl sinks or for broadening your washing space in laundry or kitchen environments. Simply rotate the spout to direct water where needed.
Aireador ahorrador de agua:
The integrated aerator provides a non-splashing stream, which is soft to the touch and promotes higher water efficiency. This helps conserve water while maintaining effective flow.
The Decaura Laundry Sink Mixer Tap in use, demonstrating the water flow as a hand washes a lemon under the faucet, highlighting its practical application.

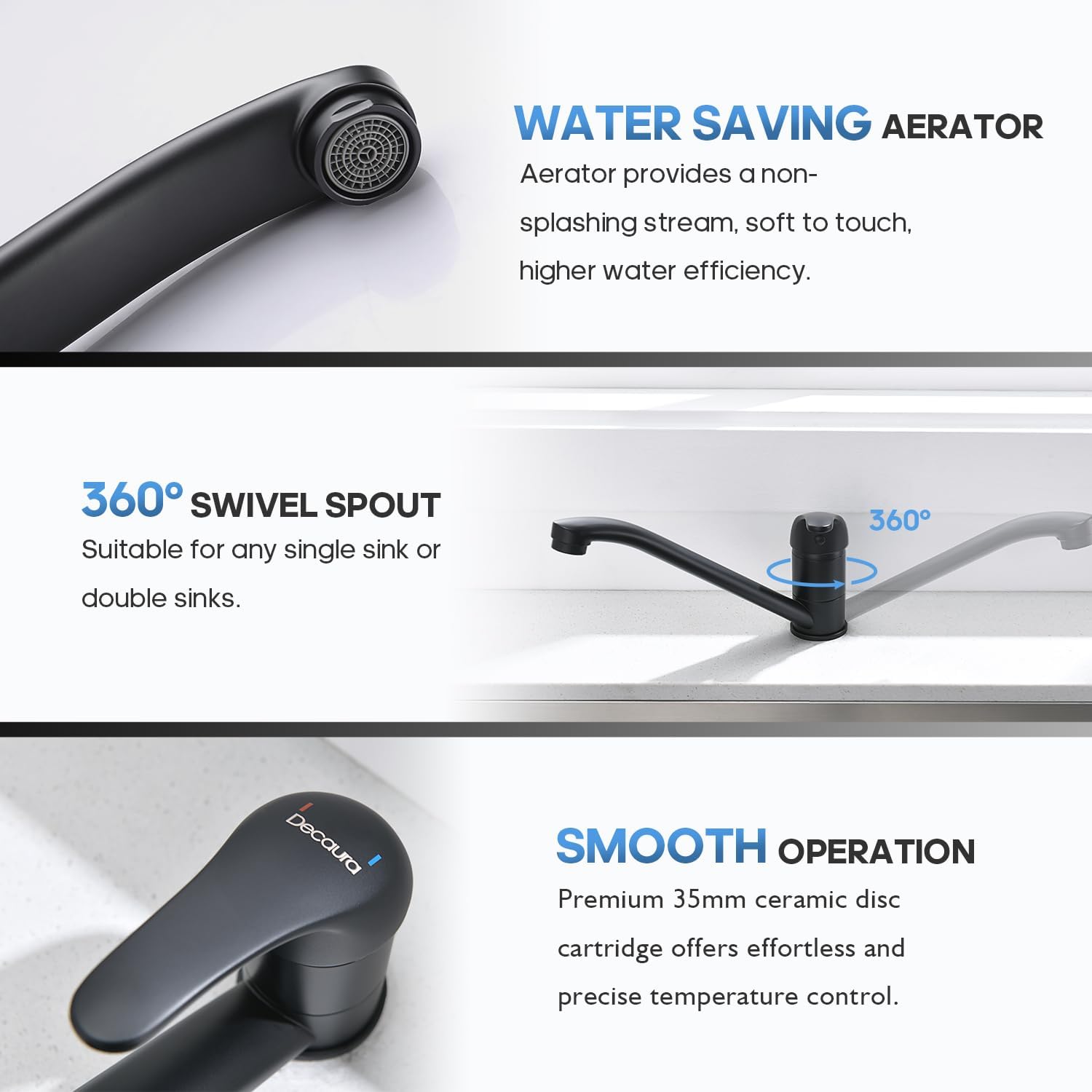

An infographic detailing key features of the tap: Water Saving Aerator for non-splashing stream, 360° Swivel Spout for extended reach, and Smooth Operation due to the 35mm ceramic disc cartridge.
Mantenimiento y cuidado
To ensure the longevity and appearance of your Matt Black tap, follow these maintenance guidelines:
- Limpieza regular: Clean the tap regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Limpieza de manchas: Para manchas de agua o huellas dactilares, limpie con un paño húmedo.amp cloth and dry immediately with a soft, dry cloth.
- Limpieza del aireador: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and rinse thoroughly before reattaching.
- Evite materiales agresivos: Do not use polishes, waxes, or any products containing alcohol, ammonia, bleach, or other strong solvents on the tap's finish.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Bajo caudal de agua | Aireador obstruido o válvulas de suministro parcialmente cerradas. | Clean the aerator. Ensure hot and cold water supply valves are fully open. |
| Leaking from Tap Base | Loose mounting nut or improperly seated gasket. | Ensure the mounting nut is securely tightened. Check that the sealing gasket is correctly positioned. |
| Leaking from Hose Connections | Loose hose connections or damaged washers. | Tighten hose connections. Replace washers if damaged. |
| Water Temperature Inconsistent | Issues with water heater or supply pressure imbalance. | Check your water heater settings. Ensure balanced hot and cold water pressure. |
Garantía y atención al cliente
Decaura products are manufactured to high-quality standards and undergo a 100% water test before shipment to ensure reliability.
This product comes with a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the product packaging or contact Decaura customer service.
Our dedicated 24/7 customer service team is available to assist you with any questions, concerns, or issues you may encounter. Please reach out to us for carefree after-sales support.
For support, visit the official Decaura store or contact us through the platform where you purchased the product.
Nota: Es posible que se requiera comprobante de compra para reclamos de garantía.
